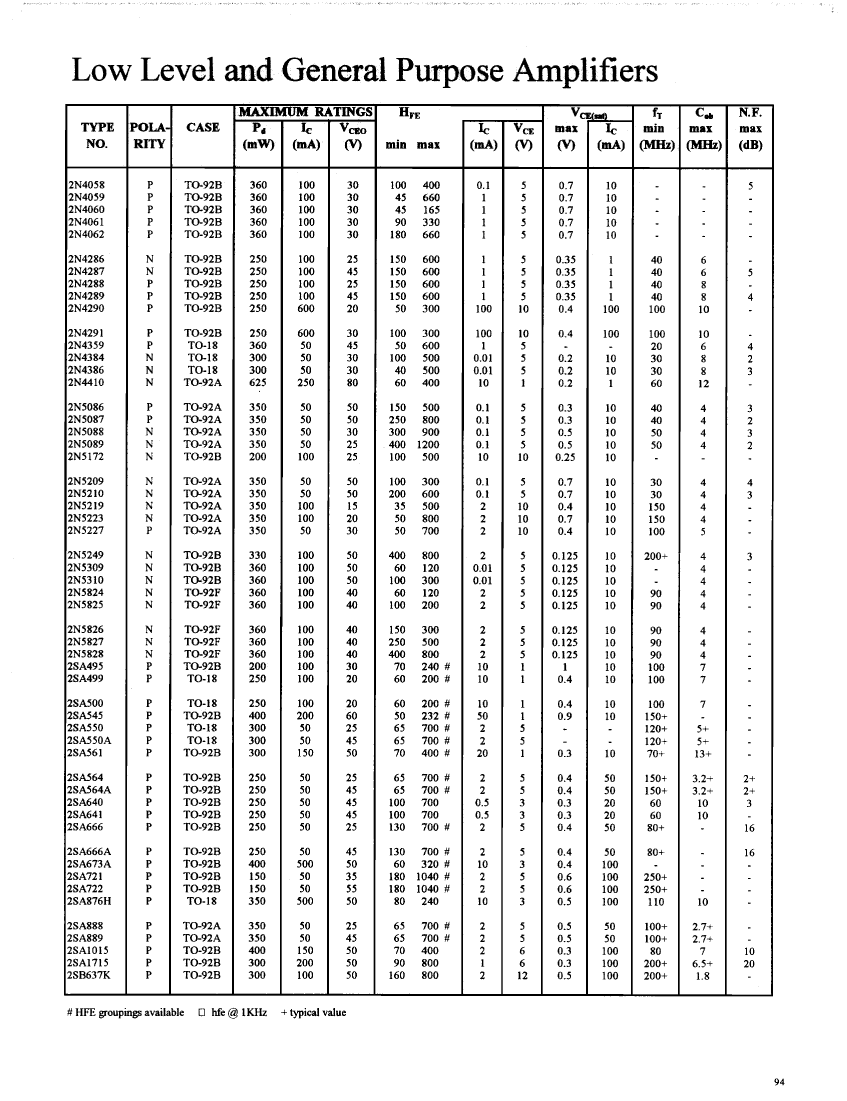

Small Signal Bipolar Transistor, 0.1A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,
| Parameter Name | Attribute value |
| Maker | Micro Electronics |
| package instruction | CYLINDRICAL, O-PBCY-W3 |
| Reach Compliance Code | unknow |
| Maximum collector current (IC) | 0.1 A |
| Collector-emitter maximum voltage | 20 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 50 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 0.62 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 150 MHz |
| 2N5223 | 2N5824 | 2N5825 | 2N5826 | 2N5827 | 2N5828 | |
|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.1A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, | Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, | Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, | Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, | Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, | Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, |
| package instruction | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow |
| Maximum collector current (IC) | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Collector-emitter maximum voltage | 20 V | 40 V | 40 V | 40 V | 40 V | 40 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 50 | 60 | 100 | 150 | 250 | 400 |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
| JESD-30 code | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 0.62 W | 0.36 W | 0.36 W | 0.36 W | 0.36 W | 0.36 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 150 MHz | 90 MHz | 90 MHz | 90 MHz | 90 MHz | 90 MHz |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 |
