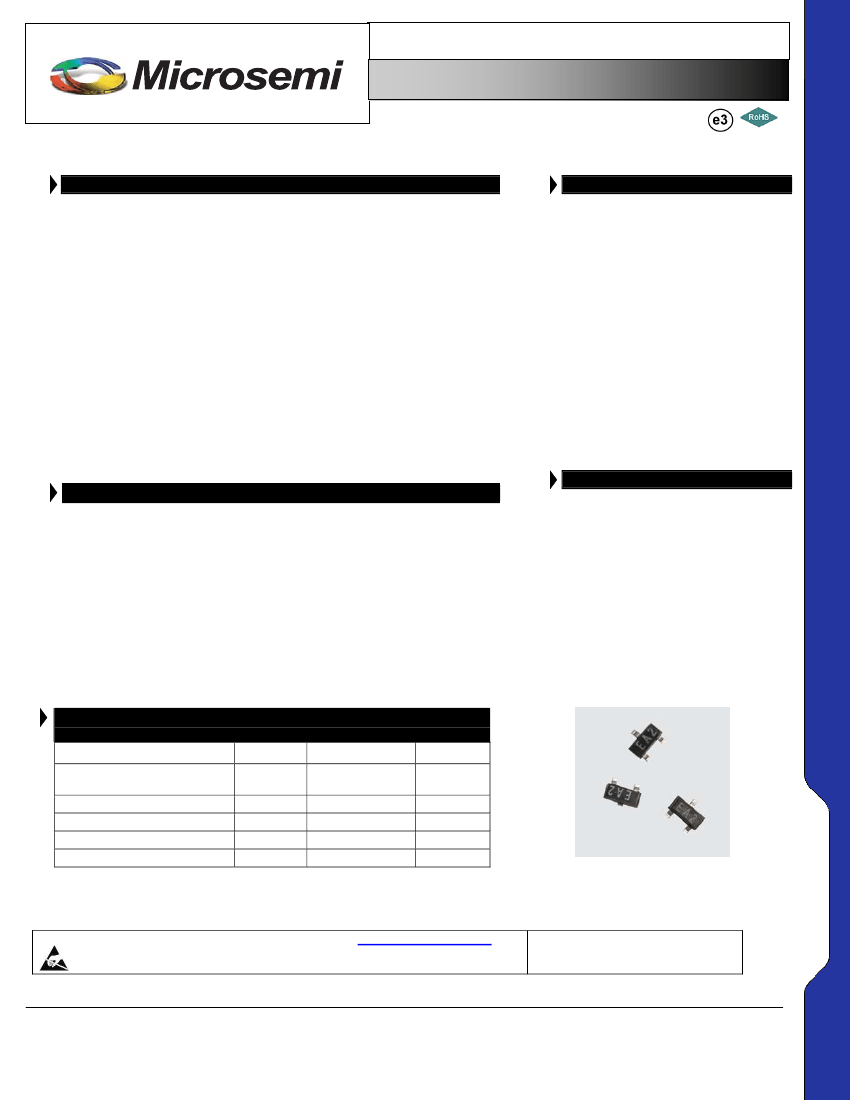

LXP1000 – LXP1011
TM
®
SURFACE MOUNT
SOT23 PKG PIN Diodes
RoHS Compliant
DESCRIPTION
The LXP series of SOT-23 PIN diodes offers the circuit designer a
higher level of quality in a commercially priced package. Choose
from LXP1000, LXP1004, and LXP1008 for switching applications,
LXP1002, LXP1005, LXP1010 and LXP1011 for low distortion
attenuation from VHF through 1.5 GHz. They are available in a host
of configurations (see configuration table for internal wiring.) The
LXP series of PIN diodes supersedes the LSP series. The LXP
products are supplied with a RoHS compliant matte tin finish. The
LSP series was supplied with a lead/tin finish.
Other configurations are available - consult factory for details. When
ordering specify configuration (example: LXP1004-23-4 is a
common cathode dual pin).
KEY FEATURES
Low Cost
High Performance
Surface Mount
Available on Tape
Multiple Configurations to Choose
From
RoHS Compliant
1
www.MICROSEMI.com
APPLICATIONS
The LXP1000 series of SOT-23 PIN diodes are ideal for low cost
RF switching and attenuator applications through 1.5 GHz. The can
be tuned for narrow band control for frequencies through 5 GHz.
They are available as Single Diode, Series “T”, and Common Pair
configurations. The SOT-23 products can be supplied in bulk or on
‘tape & reel’ for automated pick and place assembly. Tape &
Reeled parts are supplied in 8mm conductive polycarbonate tape.
APPLICATIONS/BENEFITS
Low Current Switching
Low Distortion Attenuation
Ultra Low Distortion Switching
High Quality / Economical Price.
ABSOLUTE
MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Symbol
Maximum Leakage Current
@80% of Minimum Rated V
B
Storage Temperature
Operating Temperature
Power Dissipation
Forward Current (1uS Pusle)
I
R
T
STG
T
OP
P
D
I
F
Value
50
-65 to +125
-55 to +125
250
1
Unit
nA
ºC
ºC
mW
A
LXP1001-LXP1011
LXP1001-LXP1011
IMPORTANT:
For the most current data, consult our website
:
www.MICROSEMI.com
These devices are ESD sensitive and must be handled using ESD precautions.
1
The LXP1000 Series of products are
supplied with a RoHS complaint Gold finish
.
Copyright
2007
Rev. 2009-02-02
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
LXP1000 – LXP1011
TM
®
SURFACE MOUNT
SOT23 PKG PIN Diodes
RoHS Compliant

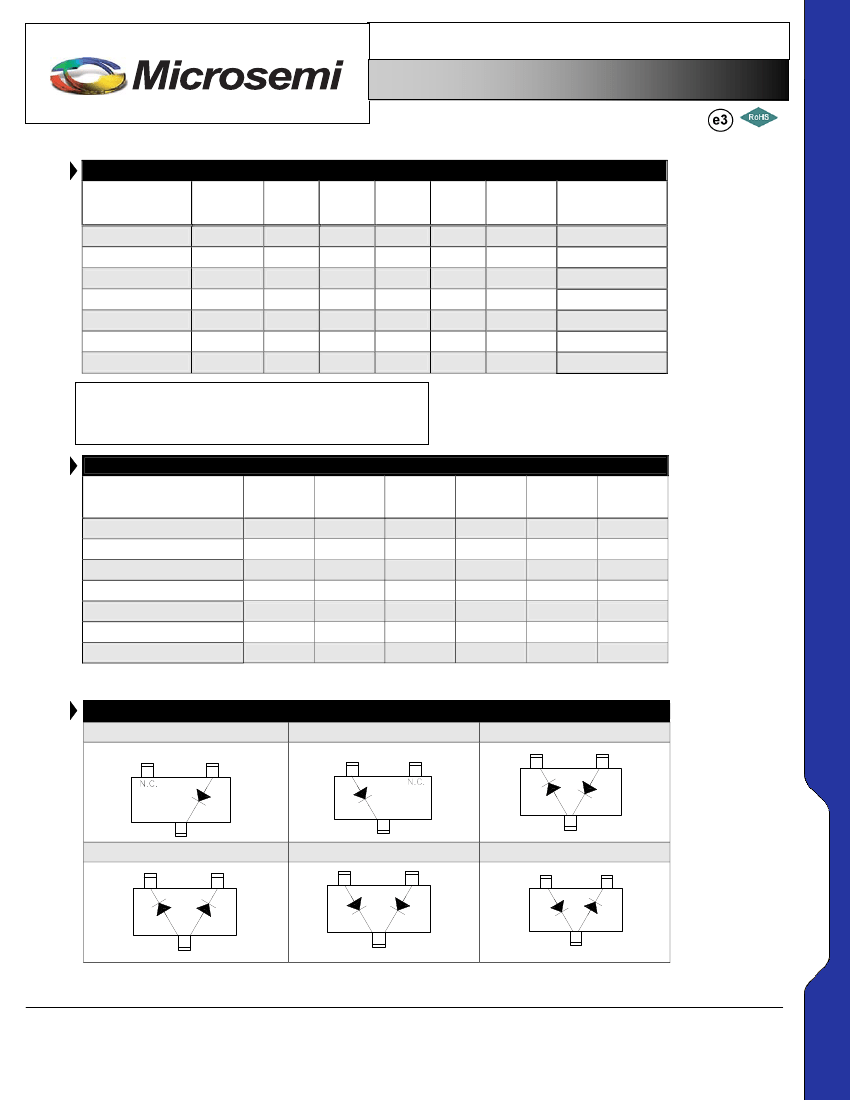

ELECTRICAL PARAMETERS @ 25C (Unless Otherwise Specified)
.
Model Number
V
b
(V)
I
R
=10μA
(Min)
C
T
(pF)
1
@V
R
(Typ)
V
R
(V)
R
s
(Ω)
2
@I
F
(Max)
I
F
(mA)
T
L
(nS)
3
.
(Typ)
Application
www.MICROSEMI.com
LXP1000
LXP1002
LXP1004
LXP1005
LXP1008
LXP1010
LXP1011
Notes
1.
2.
3.
35
100
35
100
50
100
200
0.28
0.32
0.75
0.40
0.30
0.35
0.35
5
50
20
50
20
50
50
2.5
4.0
0.6
6.5
1.5
3.0
8.0
5
100
10
5
10
10
20
40
1500
70
2000
200
1000
2000
Switch
Attenuator
Switch
Attenuator
Switch
Attenuator
Attenuator
Capacitance (C
T
) is measured at f = 1 MHz
Series Resistance (R
S
) is measured at f = 100 MHz
Carrier Lifetime (T
L
) is measured at I
F
= 10 mA, I
R
= 6 mA
TYPICAL CONFIGURATIONS
Model Number
23-0
23 – 1
23 - 2
23 - 3
23 - 4
23 - 5
LXP1000
LXP1002
LXP1004
LXP1005
LXP1008
LXP1010
LXP1011
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
PINOUT
23-0
23-1
23-2
ELECTRICAL
ELECTRICAL
23-3
23-4
23-5
Copyright
2007
Rev. 2009-02-02
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
LXP1000 – LXP1011
TM
®
SURFACE MOUNT
SOT23 PKG PIN Diodes
RoHS Compliant

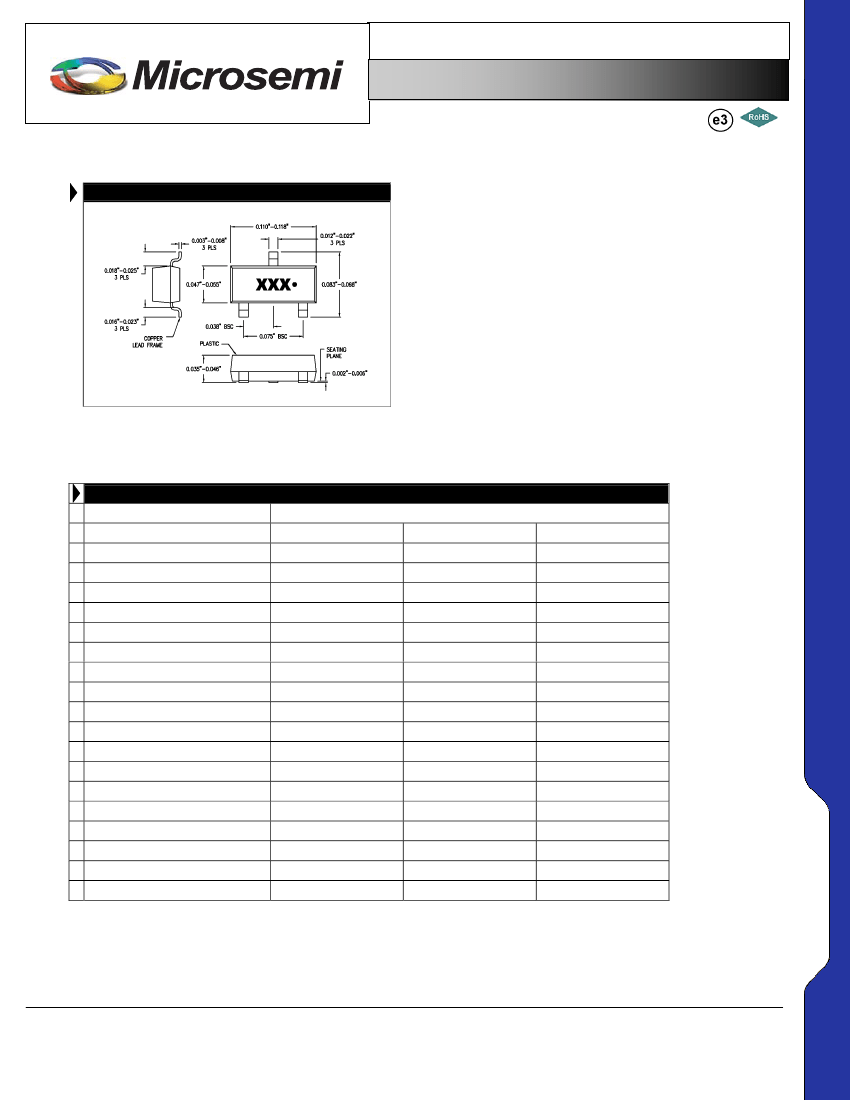

SOT23 (23) STYLE PACKAGE
www.MICROSEMI.com
MSC P/N
LXP1000 – 23-0
LXP1000 – 23-1
LXP1000 – 23-2
LXP1000 – 23-3
LXP1000 – 23-4
LXP1002 – 23-0
LXP1002 – 23-1
LXP1002 – 23-2
LXP1002 – 23-4
LXP1004 – 23-0
LXP1004 – 23-1
LXP1004 – 23-2
LXP1004 – 23-3
LXP1004 – 23-4
LXP1005 – 23-0
LXP1008 – 23-2
LXP1008 – 23-4
LXP1010 – 23-0
LXP1011 – 23-0
CROSS REFERENCE
INDUSTRY EQUIVALENT
HSMP3890
HSMP3891
HSMP3892
HSMP3893
HSMP3894
HSMP3810
HSMP3811
HSMP3812
HSMP3814
HSMP3820
HSMP3821
HSMP3822
HSMP3823
HSMP3824
HSMP3880
MA4P789ST
MA4P789CK
MA4P274
MA4CP103A
SMP1304-01
SMP1310-12
SMP1310-13
MA4P274ST
MA4P274CK
MA4P274
MECHANICAL
MECHANICAL
