AT22V10/L
Features
•
•
High Speed Programmable Logic Device
15 ns Max Propagation Delay
5 V
±10%
Operation
Low Power CMOS Operation
Speed
Temp
I
CC
(mA)
"L"
-15,-20
All
Com./Mil. Com./Mil. Others
12/15
90/100
55
•
•
•
•
•
CMOS and TTL Compatible Inputs and Outputs
10
µA
Leakage Maximum
Reprogrammable - Tested 100% for Programmability
High Reliability CMOS Technology
2000 V ESD Protection
200 mA Latchup Immunity
Full Military, Commercial and Industrial Temperature Ranges
Dual-In-Line and Surface Mount Packages
High Speed
UV Erasable
Programmable
Logic Device
Logic Diagram
OE PRODUCT TERMS
12
INPUT PINS
PROGRAMMABLE
INTERCONNECT
AND
COMBINATORIAL
LOGIC ARRAY
1
LOGIC
OPTION
8 TO 16
PRODUCT
TERMS
(UP T0 10
FLIP-FLOPS)
OUTPUT
OPTION
10
I/O PINS
Description
The AT22V10 and AT22V10L are CMOS high performance EPROM-based Programmable
Logic Devices (PLDs). Speeds down to 15 ns and power dissipation as low as 12 mA are
offered. All speed ranges are specified over the full 5 V
±10%
range. All pins offer a low
±10
µA
leakage.
The AT22V10L provides the optimum low power CMOS PLD solution, with low DC power
(8 mA typical) and full CMOS output levels. The AT22V10L significantly reduces total sys-
tem power and enhances system reliability.
Full CMOS output levels help reduce power in many other system components.
The AT22V10 and AT22V10L incorporate a variable product term architecture. Each output
is allocated from eight to 16 product terms, which allows highly complex logic functions to be
realized.
Two additional product terms are included to provide synchronous preset and asynchronous
reset. These terms are common to all 10 registers. All registers are automatically cleared upon
power up.
Register preload simplifies testing. A security fuse prevents unauthorized copying of pro-
grammed fuse patterns.
DIP/SOIC
PLCC
Pin Configurations
Pin Name
CLK/IN
IN
I/O
*
VCC
Function
Clock and Logic Input
Logic Inputs
Bidirectional Buffers
No Internal Connection
+5 V Supply
CLK/IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
GND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
Vcc
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
IN
CLK/IN
IN IN
IN
IN
IN
*
IN
IN
IN
8
*
1
VCC
I/O
I/O
I/O
I/O
I/O
22
*
I/O
I/O
I/O
15
IN
IN
I/O
*
GND IN I/O
0023C
1-97
Absolute Maximum Ratings*
Temperature Under Bias.................-55
o
C to +125
o
C
Storage Temperature......................-65
o
C to +150
o
C
Voltage on Any Pin with
Respect to Ground........................ -2.0 V to +7.0 V
(1)
Voltage on Input Pins
with Respect to Ground
During Programming................... -2.0 V to +14.0 V
(1)
Programming Voltage with
Respect to Ground...................... -2.0 V to +14.0 V
(1)
Integrated UV Erase Dose .............. 7258 W
•
sec/cm
2
*NOTICE: Stresses beyond those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device. This is a
stress rating only and functional operation of the device at these
or any other conditions beyond those indicated in the operational
sections of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect de-
vice reliability.
Note:
1. Minimum voltage is -0.6 V dc which may undershoot to -2.0 V
for pulses of less than 20 ns. Maximum output pin voltage is
V
CC
+0.75 V dc which may overshoot to +7.0 V for pulses of less
than 20 ns.
Logic Options
SP
D
CK
Q
Q
To
Output
To
Output
AR
From
Output
Output Options
OE
OE
From
Logic
Option
I/O
From
Logic
Option
I/O
D.C. and A.C. Operating Conditions
Commercial AT22V10/L
-15, -20, -25
Operating Temperature (Case)
V
CC
Power Supply
0
o
C - 70
o
C
5 V
±
10%
Industrial AT22V10/L
-15, -20, -25
-40
o
C - 85
o
C
5 V
±
10%
Military AT22V10/L
-15, -20, -25, -30
-55
o
C - 125
o
C
5 V
±
10%
1-98
AT22V10/L
AT22V10/L
D.C. Characteristics
Symbol Parameter
I
LI
I
LO
Condition
Min
Typ
Max
10
10
Com.
Ind., Mil.
Com.
Ind., Mil.
Com.
Ind., Mil.
1.7
2.0
2.0
2.0
-120
-0.6
2.0
V
IN
= V
IH
or V
IL
,
V
CC
= MIN
V
IN
=V
IH
or V
IL
,
V
CC
=MIN
I
OL
= 16 mA
I
OL
= 12 mA
I
OL
= 24 mA
V
OH
Output High
Voltage
I
OH
= -100
µ
A
I
OH
= -4.0 mA
Com.,Ind.
Mil.
Com.
V
CC
-0.3
Units
µA
µA
mA
mA
mA
mA
mA
mA/MHz
mA/MHz
mA
V
V
V
V
V
V
V
V = -0.1 V to V
CC
+1
Input Load Current
IN
V
Output Leakage
Current
V
OUT
= -0.1 V to V
CC
+0.1 V
AT22V10-15,-20
90
100
55
12
15
I
CC
Power Supply
Current
V
CC
= MAX,
V
IN
= GND,
Outputs Open
AT22V10-25,-35
(2)
AT22V10L
(2)
I
CC2
I
OS
(1)
V
IL
V
IH
V
OL
Clocked Power
Supply Current
Output Short
Circuit Current
Input Low Voltage
Input High Voltage
Output Low
Voltage
V
CC
= MAX,
Outputs Open
V
OUT
= 0.5 V
AT22V10L
(2)
0.8
V
CC
+0.75
0.5
0.5
0.8
2.4
Notes: 1. Not more than one output at a time should be shorted. Du-
ration of short circuit test should not exceed 30 sec.
2. See I
CC
vs. Frequency curves in the back of this data sheet.
A.C. Characteristics, Commercial and Industrial
AT22V10-15
Symbol Parameter
t
PD
t
EA
t
ER
t
CF
t
CO
t
S
t
H
t
P
t
W
F
MAX
t
AW
t
AR
t
AP
Input or Feedback to
Non-Registered Output
Input to Output Enable
Input to Output Disable
Clock to Feedback
Clock to Output
Input or Feedback Setup Time
Hold Time
Clock Period
Clock Width
External Feedback 1/(t
S
+t
CO
)
Internal Feedback 1/(t
S
+ t
CF
)
No Feedback 1/(t
P
)
Min
Typ
Max
AT22V10/L-20
Min
Typ
Max
AT22V10/L-25
Min
Typ
Max
Units
ns
ns
ns
ns
ns
ns
ns
ns
ns
10
10
10
0
0
10
0
12
6
1
7
8
15
15
15
2.5
10
0
0
12
0
20
10
50.0
80.0
83.3
12
20
20
20
15
15
15
0
0
15
0
24
12
5
10
12
25
25
25
10
15
4
8
8
8
12
41.6
50.0
50.0
20
20
9
12
15
22
25
25
10
15
18
33.3
40.0
41.6
MHz
MHz
MHz
ns
ns
Asynchronous Reset Width
Asynchronous Reset,
Synchronous Preset,
Recovery Time
Asynchronous Reset to
Registered Output Reset
15
15
8
8
12
20
25
ns
1-99

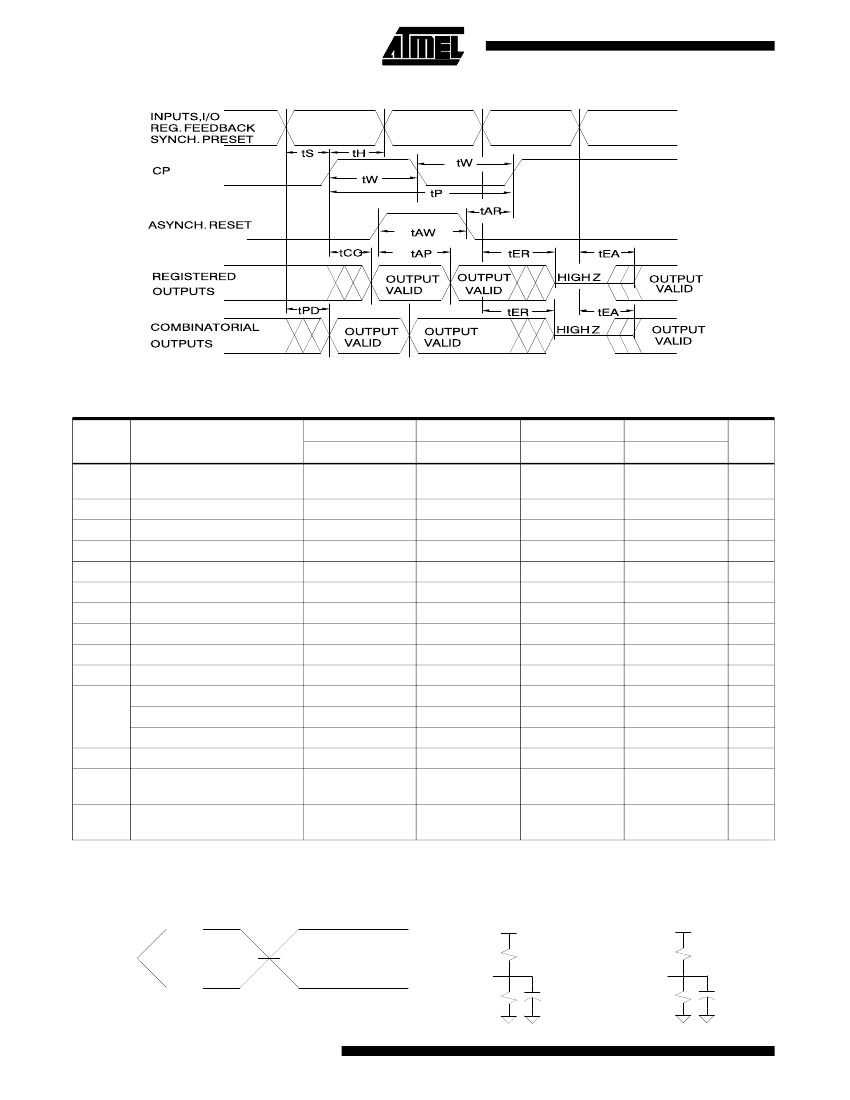

A.C. Waveforms
(1)
Note:
1. Timing measurement reference is 1.5 V. Input AC driving levels are 0.0 V and 3.0 V, unless otherwise specified.
A.C. Characteristics, Military
AT22V10-15
Symbol Parameter
t
PD
t
EA
t
ER
t
CF
t
CO
t
SF
t
S
t
H
t
P
t
W
F
MAX
t
AW
t
AR
t
AP
Input or Feedback to
Non-Registered Output
Input to Output Enable
Input to Output Disable
Clock to Feedback
Clock to Output
Feedback Setup Time
Input Setup Time
Hold Time
Clock Period
Clock Width
External Feedback 1/(t
S
+t
CO
)
Internal Feedback 1/(t
SF
+ t
CF
)
No Feedback 1/(t
P
)
Min
Typ
Max
AT22V10/L-20
Min
Typ
Max
AT22V10/L-25
Min
Typ
Max
AT22V10/L-30
Min
Typ
Max
Units
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
10
10
10
0
0
10
10
0
12
6
1
7
8
8
15
15
15
2.5
10
0
0
12
17
0
20
10
50.0
80.0
83.3
12
20
20
20
15
15
15
0
0
15
18
0
24
12
5
10
12
15
25
25
25
10
15
0
0
18
20
0
30
15
30.3
40.0
41.6
20
20
20
10
12
15
15
30
30
30
15
20
4
8
10
14
8
15
31.2
50.0
50.0
25.0
30.0
33.3
MHz
MHz
MHz
ns
ns
Asynchronous Reset Width
Asynchronous Reset
Recovery Time
Asynchronous Reset to
Registered Output Reset
15
15
8
8
12
20
20
20
9
12
15
22
25
25
10
15
18
25
30
30
15
18
20
30
ns
Input Test Waveforms and
Measurement Levels
3.0V
AC
DRIVING
LEVELS
0.0V
1.5V
AC
MEASUREMENT
LEVEL
Output Test Loads:
Commercial
5.0V
R1= 250
Ω
OUTPUT
PIN
R2= 167
Ω
CL= 50pF
R2= 248
Ω
R1= 338
OUTPUT
PIN
CL= 50pF
Military
5.0V
tR, tF < 5 ns (10% to 90%)
1-100
AT22V10/L
AT22V10/L

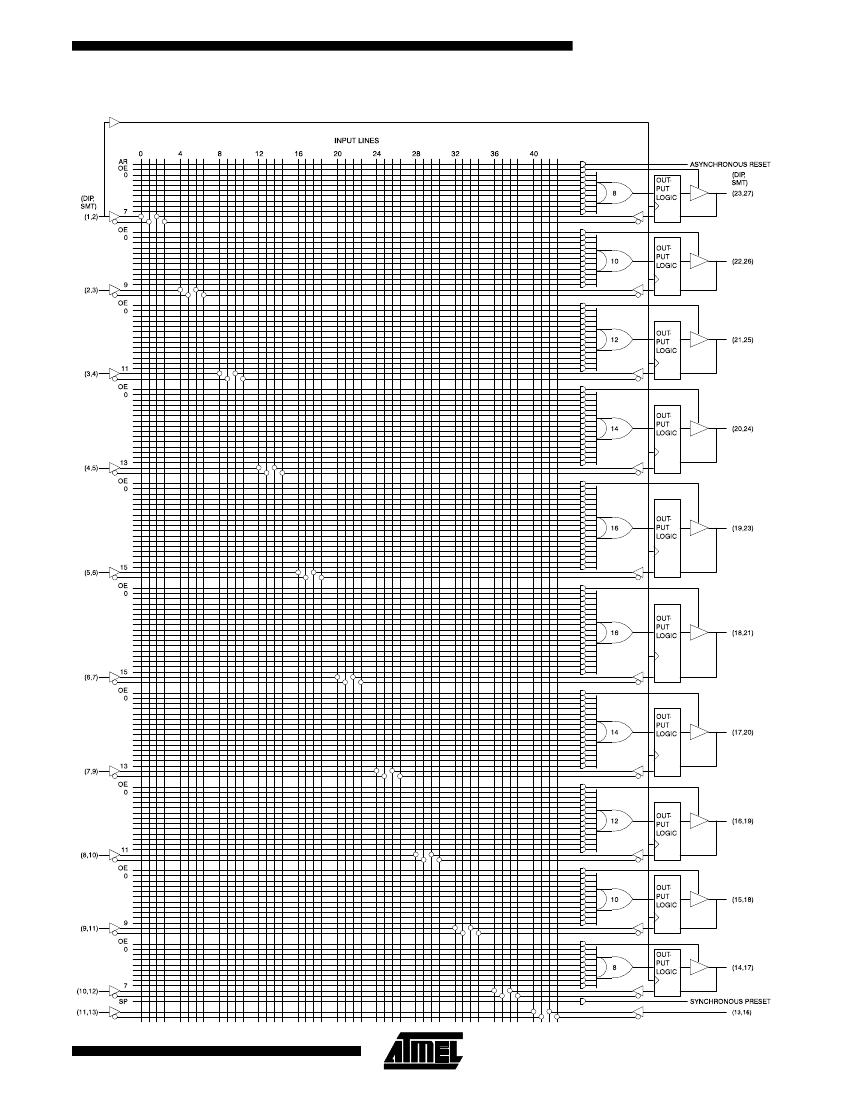

Functional Logic Diagram AT22V10/L
1-101
