MT9LSDT272AG-66CL3 datasheet, PDF

Datasheet> All Categories > storage> storage> MT9LSDT272AG-66CL3

MT9LSDT272AG-66CL3: DescriptionSynchronous DRAM Module, 2MX72, 9ns, CMOS, DIMM-168; Categorystorage storage; File Size757KB，18 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT9LSDT272AG-66CL3 Overview

Synchronous DRAM Module, 2MX72, 9ns, CMOS, DIMM-168

MT9LSDT272AG-66CL3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	DIMM
package instruction	DIMM-168
Contacts	168
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	9 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	83 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	150994944 bi
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	168
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	225
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.018 A
Minimum standby current	3 V
Maximum slew rate	0.72 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

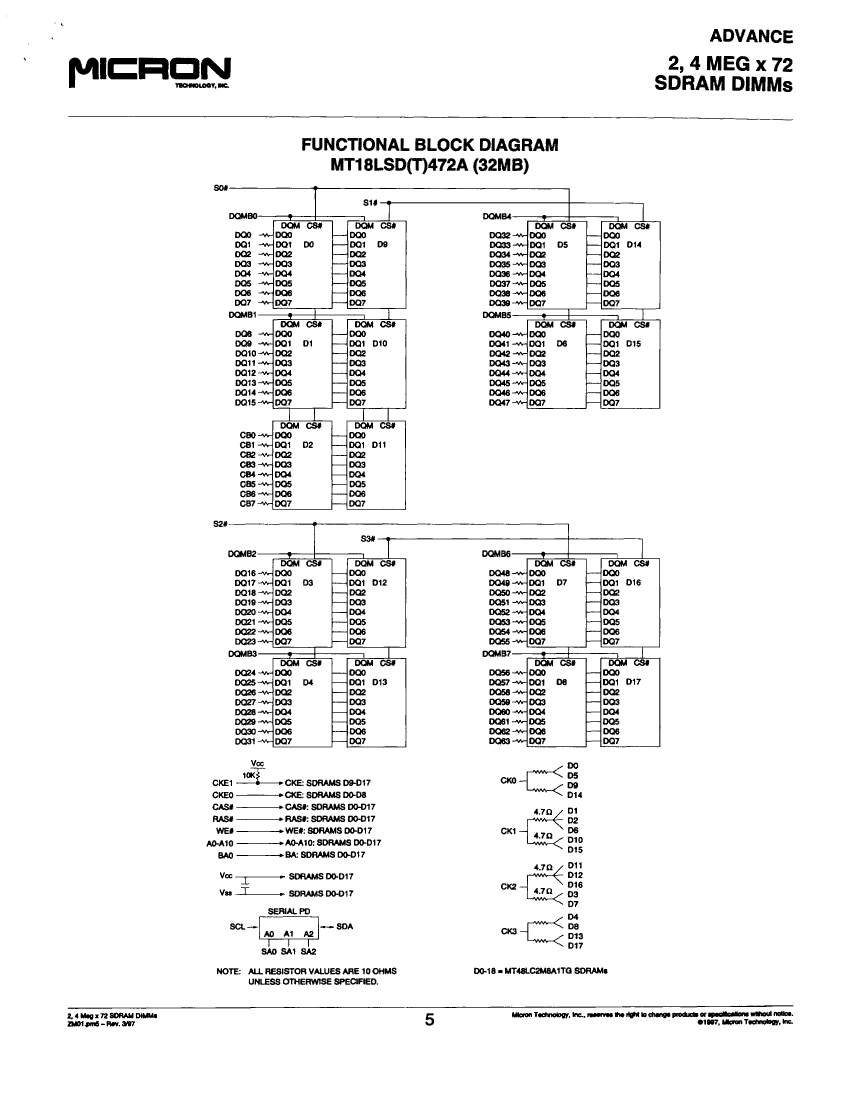

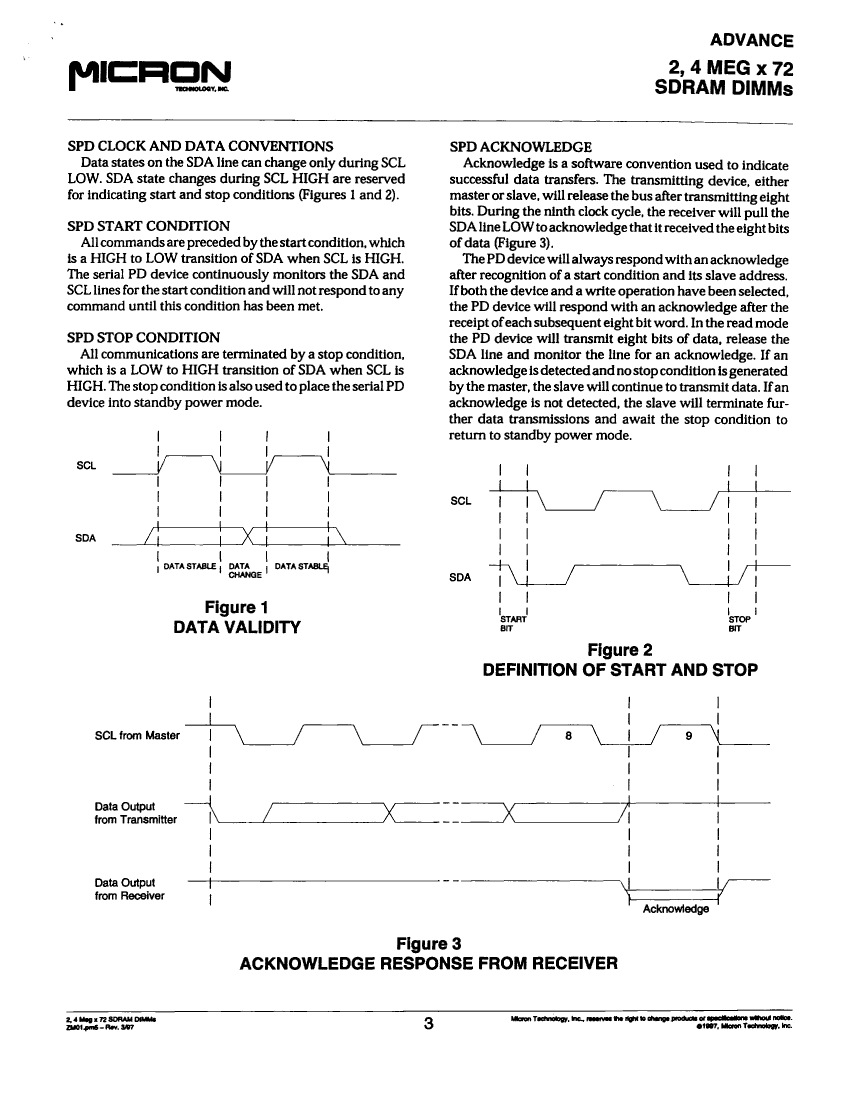

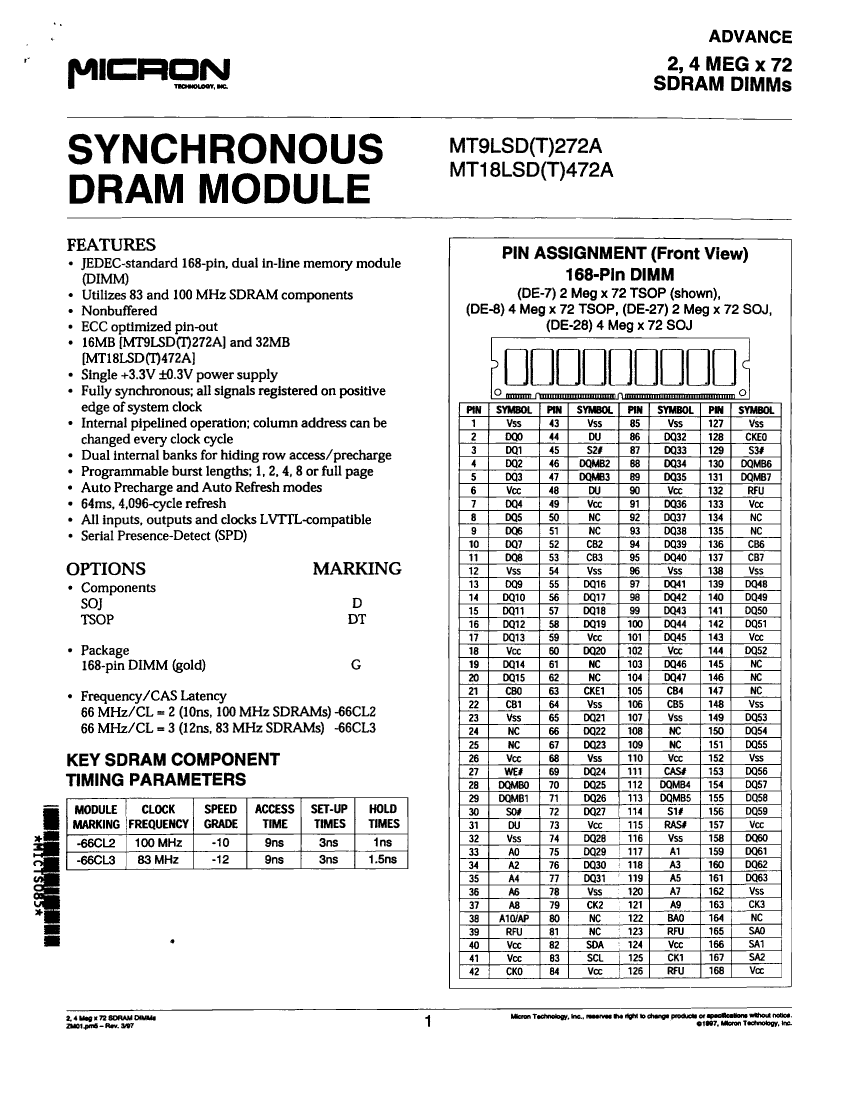

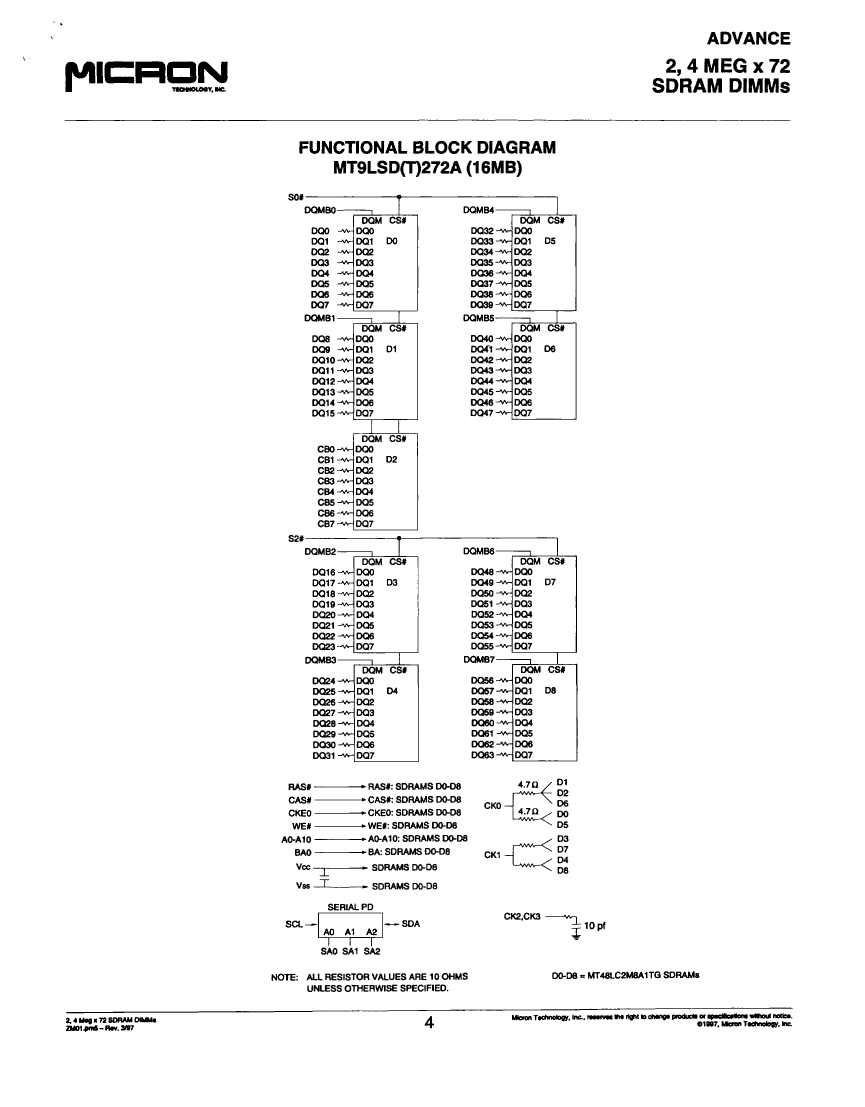

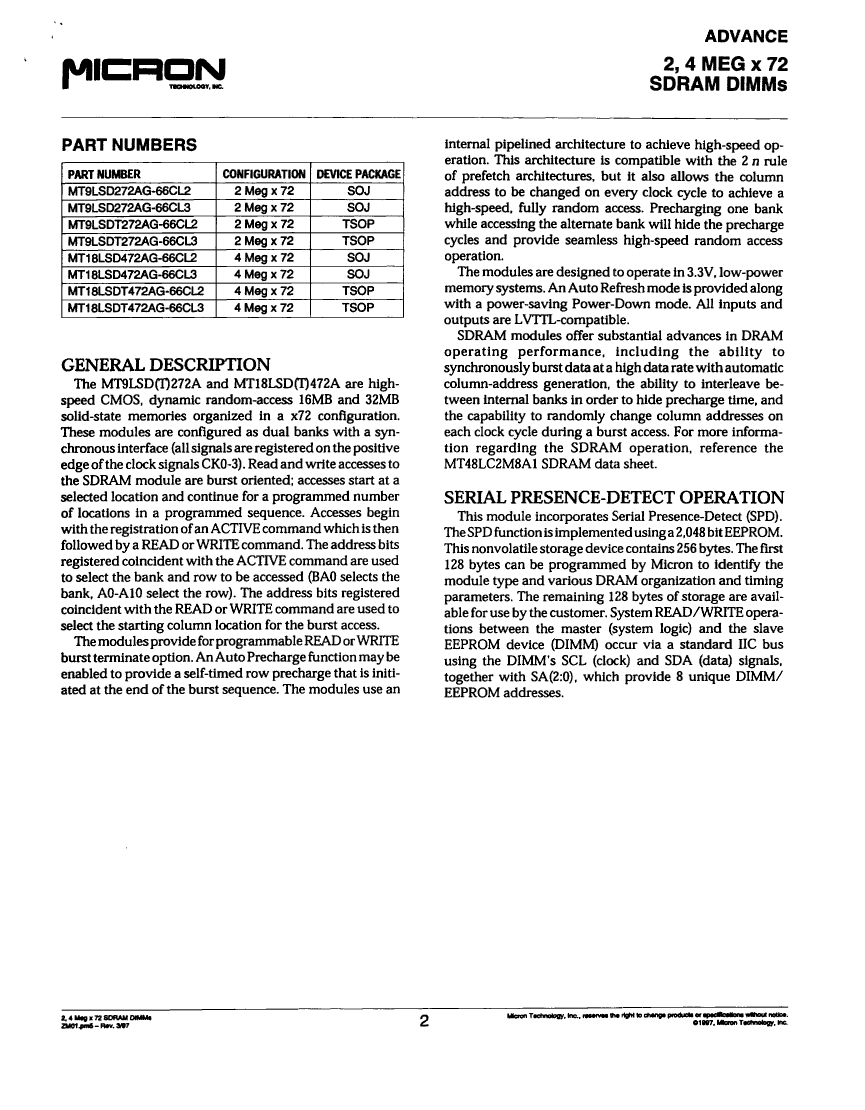

Preview

Download Datasheet

View All

MT9LSDT272AG-66CL3 Related Products

	MT9LSDT272AG-66CL3	MT18LSD472AG-66CL2	MT18LSDT472AG-66CL3	MT9LSD272AG-66CL2	MT18LSD472AG-66CL3	MT9LSD272AG-66CL3	MT9LSDT272AG-66CL2	MT18LSDT472AG-66CL2
Description	Synchronous DRAM Module, 2MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM, 4MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM Module, 4MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM, 2MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM, 4MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM, 2MX72, 9ns, CMOS, DIMM-168	Synchronous DRAM Module, 2MX72, 7.5ns, CMOS, DIMM-168	Synchronous DRAM Module, 4MX72, 7.5ns, CMOS, DIMM-168
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
package instruction	DIMM-168	DIMM-168	DIMM-168	DIMM-168	DIMM-168	DIMM-168	DIMM-168	DIMM-168
Contacts	168	168	168	168	168	168	168	168
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	9 ns	9 ns	9 ns	9 ns	9 ns	9 ns	7.5 ns	7.5 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	83 MHz	100 MHz	83 MHz	100 MHz	83 MHz	83 MHz	100 MHz	100 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	150994944 bi	301989888 bit	301989888 bit	150994944 bit	301989888 bit	150994944 bit	150994944 bi	301989888 bi
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	72	72	72	72	72	72	72
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	168	168	168	168	168	168	168	168
word count	2097152 words	4194304 words	4194304 words	2097152 words	4194304 words	2097152 words	2097152 words	4194304 words
character code	2000000	4000000	4000000	2000000	4000000	2000000	2000000	4000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX72	4MX72	4MX72	2MX72	4MX72	2MX72	2MX72	4MX72
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096
self refresh	YES	YES	YES	YES	YES	YES	YES	YES
Maximum standby current	0.018 A	0.036 A	0.036 A	0.018 A	0.036 A	0.018 A	0.018 A	0.036 A
Minimum standby current	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum slew rate	0.72 mA	1.08 mA	0.99 mA	0.81 mA	0.99 mA	0.72 mA	0.81 mA	1.08 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
