DBL5W5P80C5M40 datasheet, PDF - EEWORLD Datasheet

DBL5W5P80C5M40: DescriptionD Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DBL5W5P80C5M40 Overview

D Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DBL5W5P80C5M40
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	5

PDM: Rev:C

STATUS:

Released

Printed: Jun 05, 2004

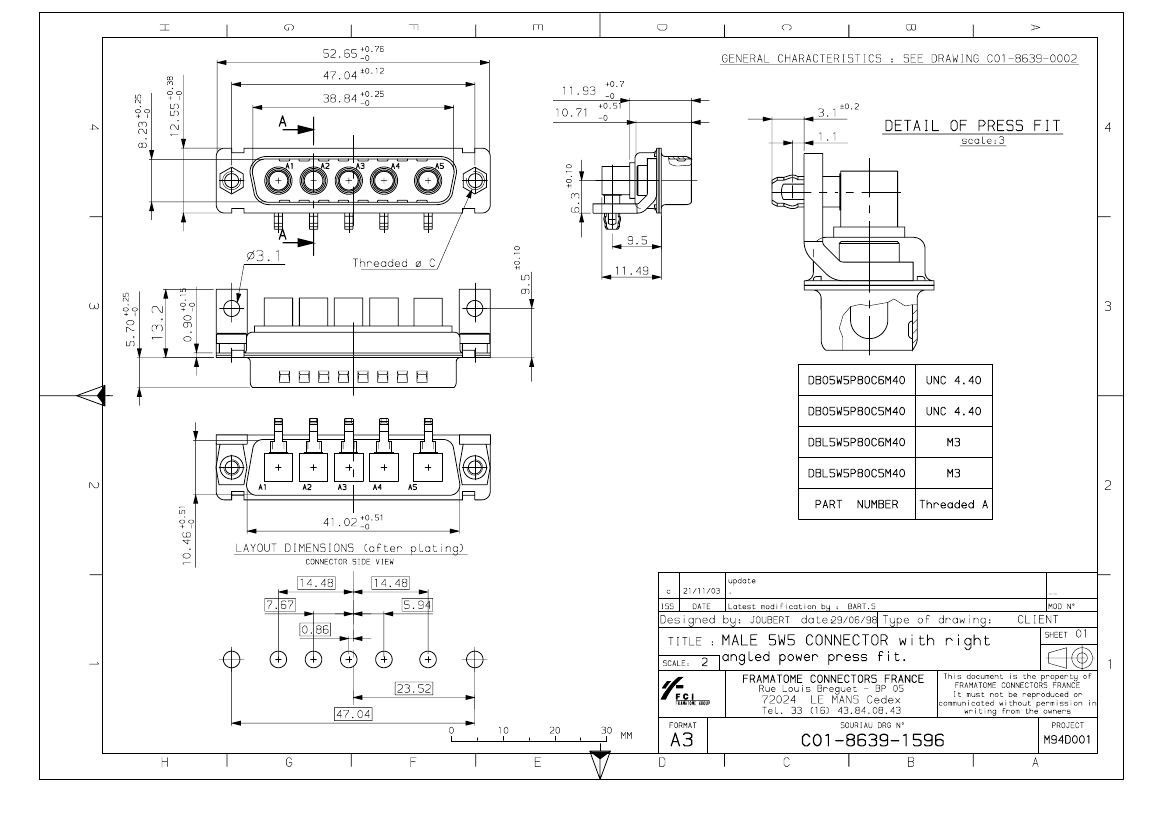

	DBL5W5P80C5M40	DBL5W5P80C6M40	DBO5W5P80C5M40	DBO5W5P80C6M40
Description	D Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 5 Contact(s), Male, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compli	compli	compli	compli
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	DBL5W5P80C5M40	DBL5W5P80C6M40	DBO5W5P80C5M40	DBO5W5P80C6M40
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	3/B	3/B	3/B
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	5	5	5	5
