121-103-1-2-10BKA

Description
Helical Convoluted Tubing
File Size335KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

121-103-1-2-10BKA Overview

Helical Convoluted Tubing

Convoluted
Tubing
121-103

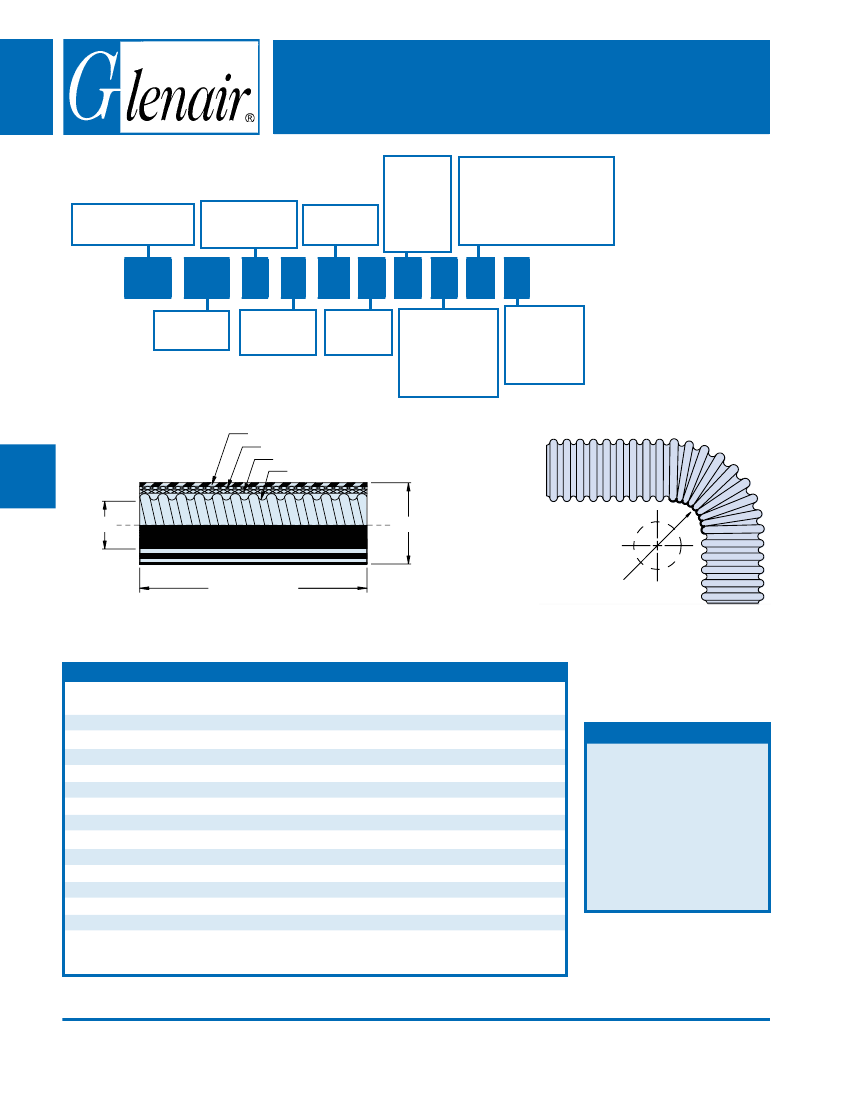

Series 74 Helical Convoluted Tubing (AMS-T-81914)
Type F: Convoluted Tubing with Jacket and Two Shields
Material
K
- PEEK
4
E
- ETFE
F
- FEP
P
- PFA
T
- PTFE
3
Outer Shield
A
- Composite AmberStrand
®
C
- Stainless Steel
N
- Nickel/Copper
S
- SnCuFe
T
- Tin/Copper
A
Product Series
121
- Convoluted Tubing
Class
1
- Standard Wall
2
- Thin Wall
2
Tubing Size
(See
Table I)
Series 74
TYPE
F
JACKET
AND TWO
EXTERNAL
SHIELDS
121
-
103
-
1
-
1
-
16
B
K
T
S
H
Jacket
E
- EPDM
N
- Neoprene
H
- Hypalon
®
V
- Viton
B
Basic Part
Number
Convolution
1
- Standard
2
- Close
Color
B
- Black
C
- Natural
Inner Shield
A
- Composite
AmberStrand
®
N
- Nickel/Copper
S
- SnCuFe
T
- Tin/Copper
C
A DIA
JACKET
OUTER SHIELD
INNER SHIELD
TUBING
B DIA
MINIMUM
BEND RADIUS
D
LENGTH
(AS SPECIFIED IN FEET)
E
F
TABLE I: TUBING SIZE ORDER NUMBER AND DIMENSIONS
TUBING FRACTIONAL
A INSIDE
B DIA
MINIMUM
SIZE
SIZE REF
DIA MIN
MAX
BEND RADIUS *
06
3/16
.181 (4.6)
.540 (13.7)
.50 (12.7)
09
9/32
.273 (6.9)
.634 (16.1)
.75 (19.1)
10
5/16
.306 (7.8)
.670 (17.0)
.75 (19.1)
12
3/8
.359 (9.1)
.730 (18.5)
.88 (22.4)
14
7/16
.427 (10.8)
.791 (20.1)
1.00 (25.4)
16
1/2
.480 (12.2)
.870 (22.1)
1.25 (31.8)
20
5/8
.603 (15.3)
.990 (25.1)
1.50 (38.1)
24
3/4
.725 (18.4)
1.150 (29.2)
1.75 (44.5)
28
7/8
.860 (21.8)
1.293 (32.8)
1.88 (47.8)
32
1
.970 (24.6)
1.446 (36.7)
2.25 (57.2)
40
1 1/4
1.205 (30.6)
1.759 (44.7)
2.75 (69.9)
48
1 1/2
1.437 (36.5)
2.052 (52.1)
3.25 (82.6)
56
1 3/4
1.688 (42.9)
2.302 (58.5)
3.63 (92.2)
64
2
1.937 (49.2)
2.552 (64.8)
4.25 (108.0)
*The minimum bend radius is based on Type A construction. For
multiple-braided coverings, these minimum bend radii may be increased slightly.
APPLICATION NOTES
1.
Metric dimensions (mm) are
in parentheses and are for
reference only.
Consult factory for thin-
wall, close convolution
combination.
For PTFE maximum lengths
consult factory.
Consult factory for PEEK
TM
min/max dimensions.
2.
3.
4.
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-12
