G627S0261311EU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> G627S0261311EU

G627S0261311EU: DescriptionCard Edge Connector; CategoryThe connector The connector; File Size248KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

G627S0261311EU Overview

Card Edge Connector

G627S0261311EU Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	CARD EDGE CONNECTOR
Manufacturer's serial number	G627S

Preview

Download Datasheet

View All

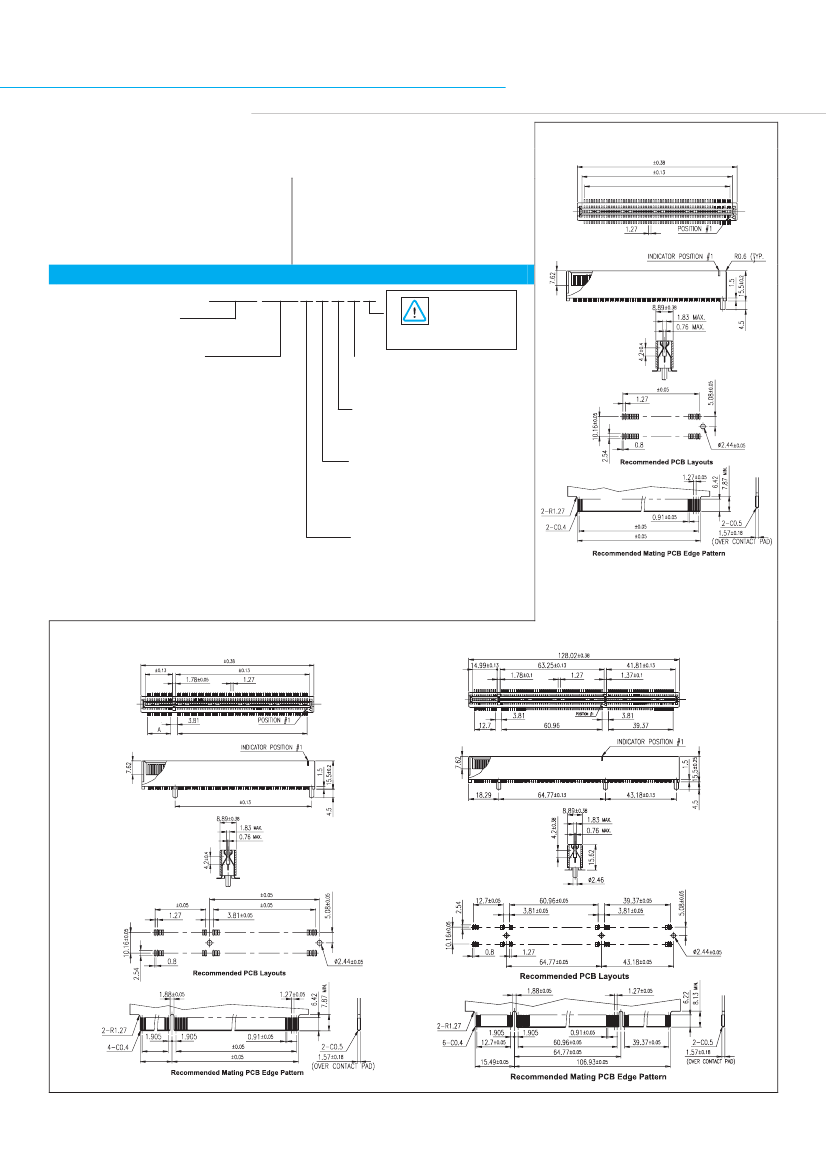

Amphenol

Card Edge Interconnects

G627S

Materials

Housing

Contacts

– 94V-0 thermoplastic

– P/B with 50µ” Ni

– 0.5A

– 125 VAC/rms 60Hz

1.27mm SMT Card Edge Connector (VESA/PCI)

Durability

Gold Flash

10µ” Gold

15µ” Gold

30µ” Gold

– 75 cycles

– 125 cycles

– 150 cycles

– 250 cycles

Single Bay

120 Position PCI Bus

82.30

77.47

74.93

Versatile 1 piece Board-to-Board connector system.

Electrical

Current

Voltage

Part Number System:

G627S XXX X X X X X

Card Edge Connector

1.27mm Pitch, Surface Mount

NUMBER OF POSITIONS

Single Bay

010

030

012

040

020

050

026

060

Dual Bay

040

050

060

Tri-Bay

132

184A (PCI 3.3V)

184B (PCI 5.0V)

080

120(PCI)

100

182

112(VESA)

Suffix may be added

to Part Number.

This Suffix is for

Internal use mainly.

Additional Suffix ‘EU’ or ‘LF’ may be

added for RoHS compliant product.

BOARD MOUNT OPTION

1: Plastic locator

080

100

120(PCI)

74.93

INSULATOR MATERIAL

1: PPS, Colour – Brown

2: PPS, Colour – Ivory (PCI)

CONTACT FINISH

0: Gold flash

1: 10µ” Gold

2: 15µ” Gold

3: 30µ” Gold

74.93

NUMBER OF BAYS

1: Single bay

2: Two bay

PNS-627S Rev.A

3: Three bay

77.22

Two Bays

112 Position VESA Connector

79.76

14.99

Three Bays

184A Positions for PCI Bus 3.3V

58.17

55.88

59.69

Dimensions in mm

59.69

12.70

55.88

12.70

15.49

55.88

58.67

AMTA Catalogue

AMTA

M-3
