5962-01-204-1258

Description
Peripheral Driver, 7 Driver, BIPolar, CDIP16
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size107KB,7 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

5962-01-204-1258 Overview

Peripheral Driver, 7 Driver, BIPolar, CDIP16

5962-01-204-1258 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMicrosemi
Reach Compliance Codeunknow
Number of drives7
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current0.35 A
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply50 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage50 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
HIGH VOLTAGE MEDIUM
CURRENT DRIVER ARRAYS
DESCRIPTION
The SG2000 series integrates seven NPN Darlington pairs with
internal suppression diodes to drive lamps, relays, and solenoids in
many military, aerospace, and industrial applications that require
severe environments. All units feature open collector outputs with
greater than 50V breakdown voltages combined with 500mA
current carrying capabilities. Five different input configurations
provide optimized designs for interfacing with DTL, TTL, PMOS, or
CMOS drive signals. These devices are designed to operate from
-55°C to 125°C ambient temperature in a 16 pin dual in line ceramic
(J) package and 20 pin Leadless Chip Carrier (LCC). The plastic
dual in–line (N) is designed to operate over the commercial
temperature range of 0°C to 70°C.
FEATURES
Seven npn Darlington pairs
-55°C to 125°C ambient operating temperature range
Collector currents to 600mA
Output voltages from 50V to 95V
Internal clamping diodes for inductive loads
DTL, TTL, PMOS, or CMOS compatible inputs
Hermetic ceramic package
HIGH RELIABILITY FEATURES
Available to MIL-STD-883 and DESC SMD
MIL-M38510/14101BEA - JAN2001J
MIL-M38510/14102BEA - JAN2002J
MIL-M38510/14103BEA - JAN2003J
MIL-M38510/14104BEA - JAN2004J
Radiation data available
LMI level "S" processing available

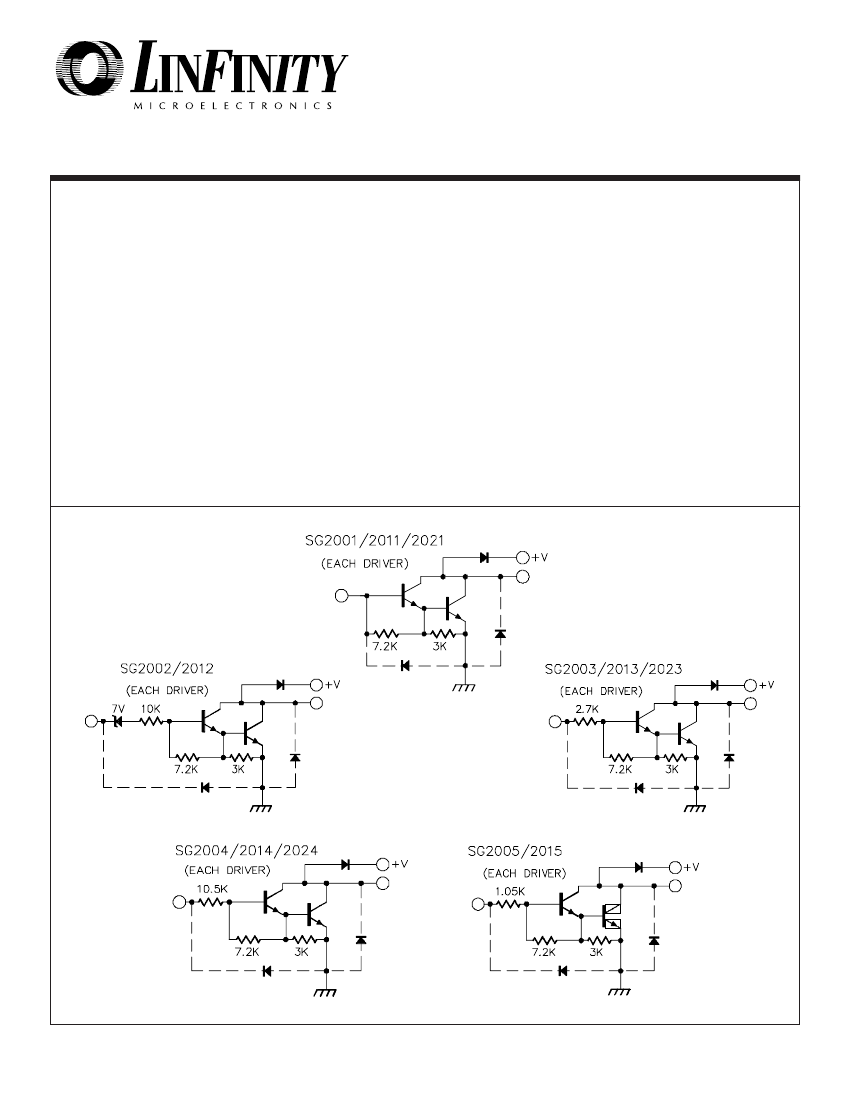

PARTIAL SCHEMATICS
Rev 1.3b
4/7/2005
Copyright
©
1997
1
11861 Western Avenue
Garden Grove, CA 92841
(714) 898-8121
FAX: (714) 893-2570
Microsemi Inc.
