VXM2-1F1-11M999 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> VXM2-1F1-11M999

VXM2-1F1-11M999: DescriptionParallel - Fundamental Quartz Crystal, 11.999MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size101KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

VXM2-1F1-11M999 Overview

Parallel - Fundamental Quartz Crystal, 11.999MHz Nom, SMD, 4 PIN

VXM2-1F1-11M999 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	SMD, 4 PIN
Reach Compliance Code	compli
Other features	10 PPM TOLERANCE ALSO AVAILABLE; TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	100 ppm
JESD-609 code	e4
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	11.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

267 Lowell Road

Hudson, NH 03051 USA

Tel: 1-888-328-7661 Fax: 1-603-598-0075

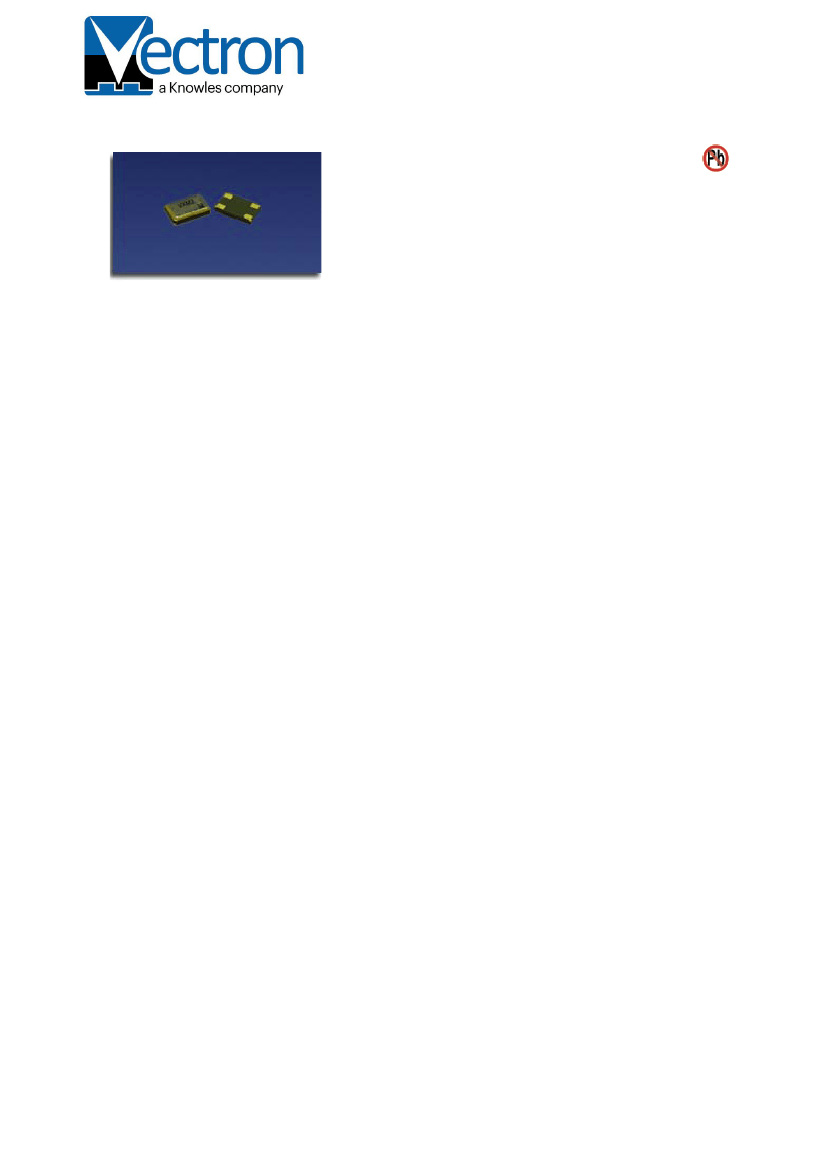

VXM2 Ultra Miniature SMD Crystals

Product is compliant to RoHS directive

and fully compatible with lead free assembly

Package:

Frequency Range:

Mode:

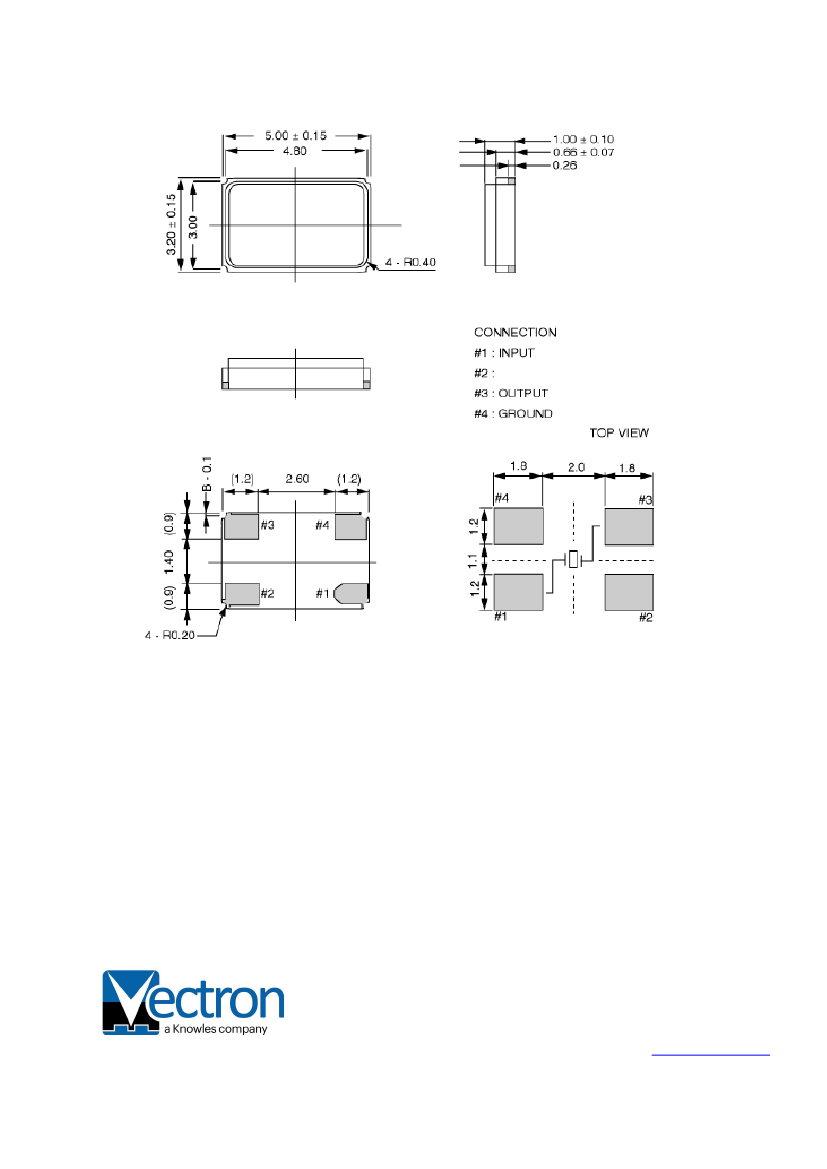

5.0 x 3.2 x 1.0 mm 4 pads

8 MHz to 150 MHz

1 =

Fundamental (8 to 50 MHz)

= 3 Overtone (40 to 150 MHz)



100 PPM from - 20° to + 70°

= ± 50 PPM from - 20° to + 70°

= ± 100 PPM from - 40° to + 85°

= ± 50 PPM from - 40° to + 85°

= ± 25 PPM from - 20° to + 70°

= ± 30 PPM from - 20° to + 70°

= ± 10 PPM from - 10° to + 60°

= ± 15 PPM from - 30° to + 85°

0 =

Series Resonant

1 =

16 pF

2 =

20 pF

3 =

32 pF

4 =

18 pF

5 =

10 pF

6 =

30 pF



10 ppm to

±100ppm

at +25 ± 3°

100 Ohms Max. : 8.000MHz½9.999MHz

80 Ohms Max. : 10.000MHz½11.999MHz

60 Ohms Max. : 12.000MHz½15.999MHz

50 Ohms Max. : 16.000MHz½19.999MHz

40 Ohms Max. : 20.000MHz½23.999MHz

30 Ohms Max. : 24.000MHz½50.000MHz

80 Ohms Max. : 40.000MHz½150.000MHz (3 Overtone)

5 pF Maximum

10 to 100 uW

± 3 PPM/ year Maximum

Tape and Reel (1000 pcs minimum)

VXM2-1B2-16M000

= 5.0 x 3.2 x 1.0 mm 4 pads

= Fundamental Mode

= ± 50 PPM -20° to + 70°

= 20 pF load

Stability:

Load Capacitance (CL):

STD Calibration Tolerance:

ESR:

Shunt Capacitance (Co):

Drive Level:

Aging:

Standard Packaging:

Typical P/N:

Page1/2

Revision: October 15, 2014
