5557-0-19-01-21-14-10-0: DescriptionWire Terminal; CategoryThe connector; File Size92KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

5557-0-19-01-21-14-10-0 Overview

Wire Terminal

5557-0-19-01-21-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	5557
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL

Preview

Download Datasheet

View All

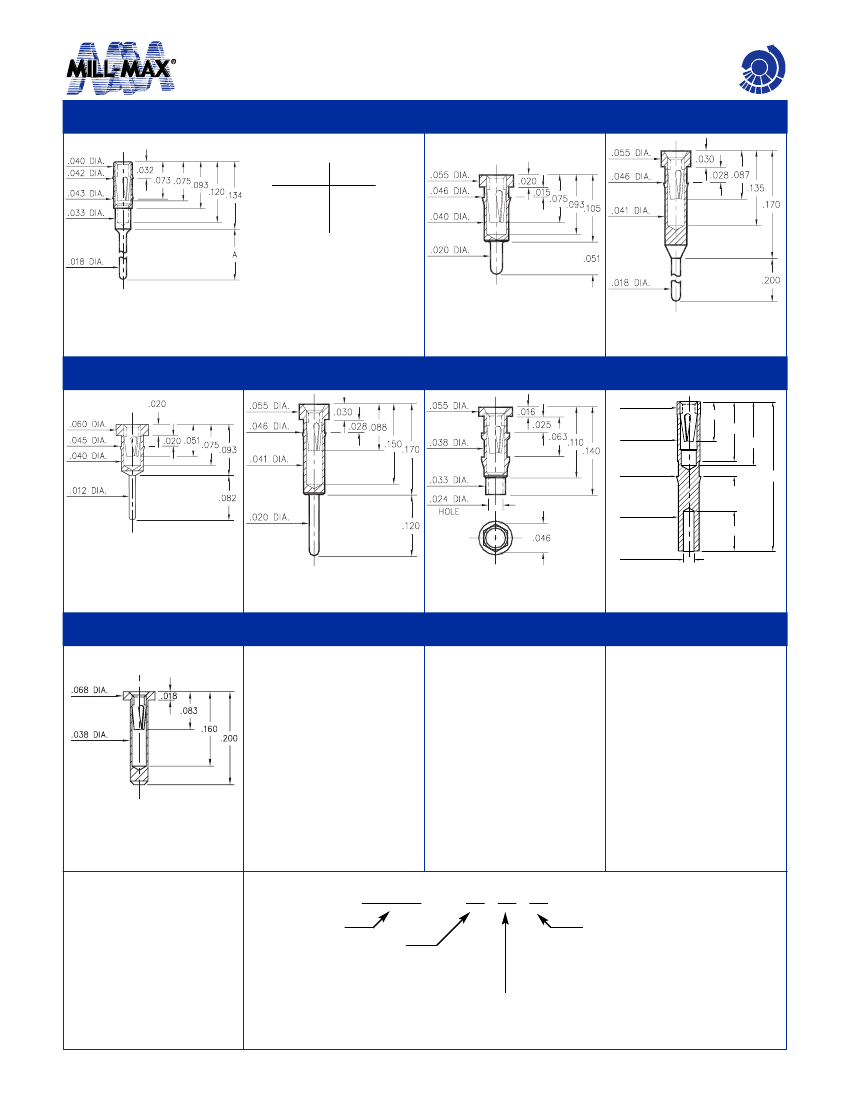

PIN RECEPTACLES

for .015” - .022” diameter pins

(see specific contact range on pages 206 & 207)

CHI

PINS

0489

Basic Part

Number

Length

0463

0489-0

0489-1

0489-2

.102

.199

.299

0466

0489-X-15-XX-11-XX-04-0

Press-fit in .041 mounting hole.

0463-0-15-XX-21-XX-04-0

Press-fit in .043 mounting hole.

shell is Phos. Br. Alloy 544 (B2)

0466-0-15-XX-21-XX-04-0

Press-fit in .043 mounting hole.

shell is Phos. Br. Alloy 544 (B2)

7491

0462

0560

5557

7491-0-15-XX-X1-XX-04-0

Press-fit in .042 mounting hole

0462-0-15-XX-X1-XX-04-0

Press-fit in .043 mounting hole

0560-0-15-XX-11-XX-10-0

Hex press-fit in .043 plated

thru hole

5557-0-19-XX-21-XX-10-0

Wire termination and

Press-fit in .043 hole

5552

5552-0-15-XX-05-XX-10-0

Solder mount in .040 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#05, #11 or #21

CONTACT (DATA ON PAGES 206 & 207)

SPECIFY CONTACT FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

129

516-922-6000

5557-0-19-01-21-14-10-0 Related Products

	5557-0-19-01-21-14-10-0	5552-0-15-01-05-14-10-0	WCTQ10010400D	5552-0-15-15-05-14-10-0
Description	Wire Terminal	PCB Terminal	RES NET,THIN FILM,1.04K OHMS,200WV,.5% +/-TOL,-50,50PPM TC,0303 CASE	PCB Terminal
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compli	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	5557	5552	CTQ	5552
Maker	Mill-Max	Mill-Max	-	Mill-Max
terminal gender	FEMALE	FEMALE	-	FEMALE
Terminal and terminal strip types	WIRE TERMINAL	PCB TERMINAL	-	PCB TERMINAL
