Double Row Solder Cup Spring Pin Header Strips

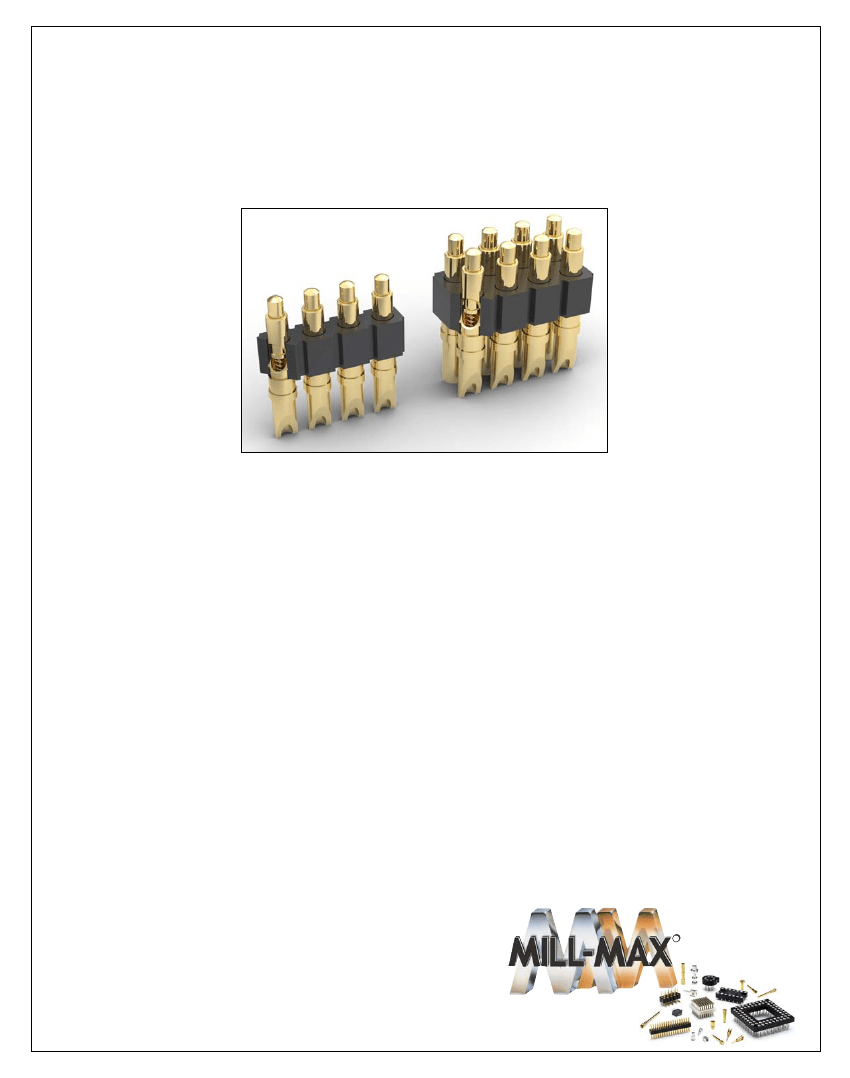

Mill-Max has developed a convenient and reliable method to make connections between wires and mating
components such as P.C. boards, batteries or other cable assemblies with our new single and double row solder
cup spring pin header strips.
These solder cup spring pin headers are ideal for wire termination in both test and field applications where
stack up tolerances or blind-mating can be a challenge. Each spring pin provides .0275” (.6985mm) of mid-
stroke compression (.055” (1,397mm) maximum compression) and is rated for one million cycles.
Uniform orientation of the solder cups makes it easy to solder your cable or discrete wires to the spring pins by
eliminating the need to manipulate the wires or the connector to solder each wire. The solder cup is sized to
accommodate up to a 22 AWG wire. Once the wires are securely soldered in the cups you have a wired
spring-loaded assembly; a perfect interface solution for discreet wire to board, cable to board or cable to cable
applications where tolerance stack ups demand the versatility and forgiveness of a spring-loaded connection.
Gold-plated brass components and beryllium copper springs ensure the highest conductivity, corrosion resist-
ance and durability. 824 & 826 series headers feature spring -loaded pins rated at 3 amps maximum (2 amps
continuous use), high temperature Nylon 46 insulators and are available from 2-64 positions single row and
4-64 double row.
As a compliment to the 824 & 826 series connectors Mill-Max offers a line of target connectors to act as the
mating surface for the spring-loaded plungers. Target connectors are available in through-hole and SMT (319
series single row, 419 series double row), right angle (399…10-008 single row, 499…10-008 double row) and
with solder cup terminations for cable to cable applications (330 series single row, 430 series double row.)
For more information, please visit www.mill-max.com/PR618.
R
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771-0300
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
Maximum Interconnect Solutions
(7/13 -- PR618)
SPRING-LOADED
CONNECTORS

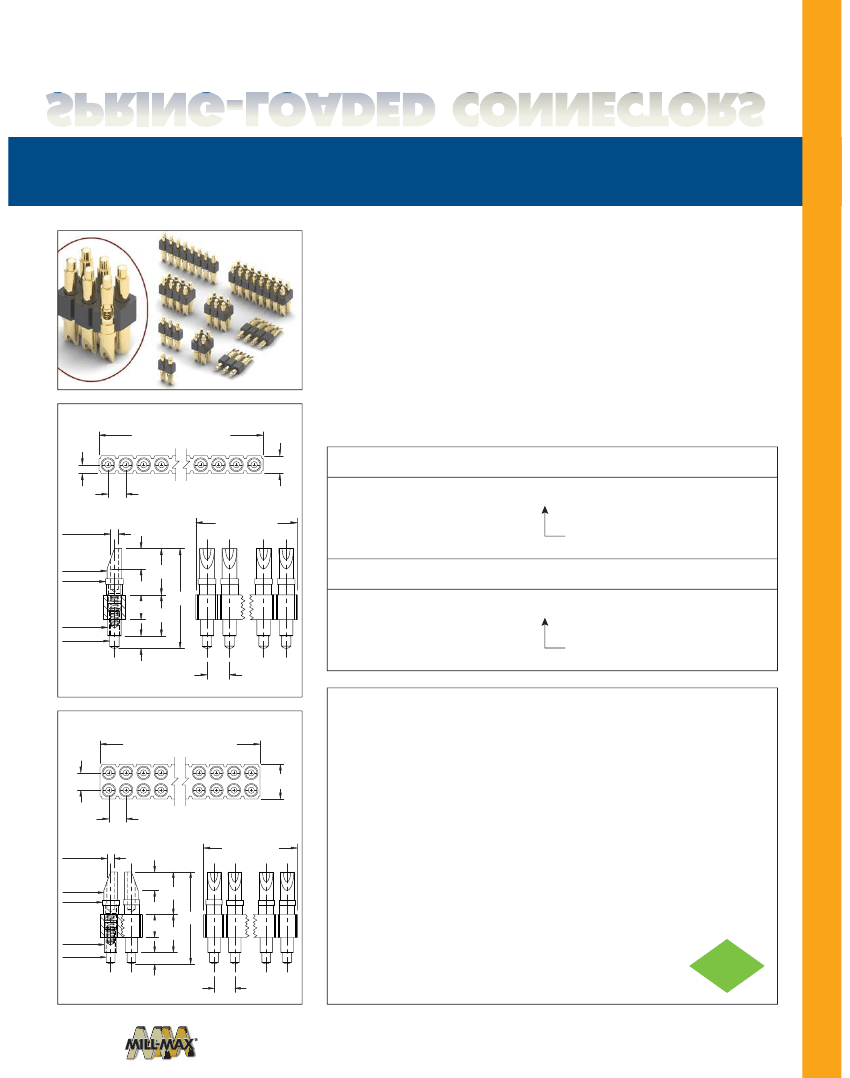

SERIES 824 & 826 • .100” GRID SOLDERCUP HEADER •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on .100” grid, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
• Pistons have a .0275” mid. stroke and a .055” max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• Insulators are high temperature thermoplastic
• Both 824 & 826 series strips have spring pins with wire termination soldercups. The
soldercups are aligned to provide easy access for soldering up to size 22 AWG wires
SINGLE ROW Series 824
Number
of Pins x .100"
ORDERING INFORMATION
.100
.050
.100
(TYP)
Single Row Series 824
824-22-0XX-00-001000
.035 DIA. x
.180"
Deep
Hole
.065 DIA.
.078 DIA.
Number
of Pins
X .100"
Specify number of contacts
01-64
.089
.204
Double Row Series 826
.441
.110
.059 DIA.
.042 DIA.
.182
826-22-0XX-00-001000
Specify number of contacts
04-72
.100
(TYP)
.055
Stroke
Technical Specifications
DOUBLE ROW Series 826
Number
of Pins x .100" / 2
.100
.200
.100
(TYP)
.035 DIA. x
.180"
Deep
Hole
.065 DIA.
.078 DIA.
Number
of Pins
X
.100" / 2
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (.0275”): 60 grams
Durability: 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20m max.
Insulation resistance: 10,000M min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
.089
.204
.110
.059 DIA.
.042 DIA.
.441
.182
.055
Stroke
RoHS - 2
2011/65/EU
.100
(TYP)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 17 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 20 ” gold over
100 ” nickel
Spring: Beryllium copper-plated 10 ” gold
Insulator: High temperature thermoplastic, rated UL94 V-0
