KH104
DC to 1.1GHz Linear Amplifier
Features
s
s
s
s
s
s
General Description
The KH104 linear amplifier represents a significant
advance in linear amplifiers. Proprietary design
techniques have yielded an amplifier with 14dB of
gain and a -3dB bandwidth of DC to 1100MHz. Gain
flatness to 750MHz of ±0.4dB coupled with excellent
VSWR and phase linearity gives outstanding pulse
fidelity and low signal distortion.
Designed for 50Ω systems, the KH104 is very easy to
use, requiring only properly bypassed power supplies
for operation. This translates to time and cost savings
in all stages of design and production.
Fast rise time, low overshoot and linear phase make
the KH104 ideal for high speed pulse amplification.
These properties plus low distortion combine to
produce an amplifier well suited to many communi-
cations applications. With a 1.1GHz bandwidth, the
KH104 can handle the fastest digital traffic, even
when the demodulation scheme or the digital coding
format requires that DC be maintained. It is also
ideal for traditional video amplifier applications such
as radar or wideband analog communications systems.
These same characteristics make the KH104 an excellent
choice for use in fiber optics systems, on either the
transmitting or receiving end of the fiber. The low
group delay distortion insures that pulse integrity
will be maintained. As a photomultiplier tube pre-
amp, its fast response and quick overload recovery
provide for superior system performance.
The KH104 is constructed using thin film resistor/
bipolar transistor technology, and is available in the
following versions:
KH104AI
14 +V
R
-3dB bandwidth of 1.1GHz
325psec rise and fall times
14dB gain, 50Ω input and output
Low distortion, linear phase
1.4:1 VSWR (output, DC-1.1GHz)
Direct replacement for CLC104
Applications
s
s
s
s
Digital and wideband analog communications
Radar, IF and RF processors
Fiber optic drivers and receivers
Photomultiplier preamplifiers

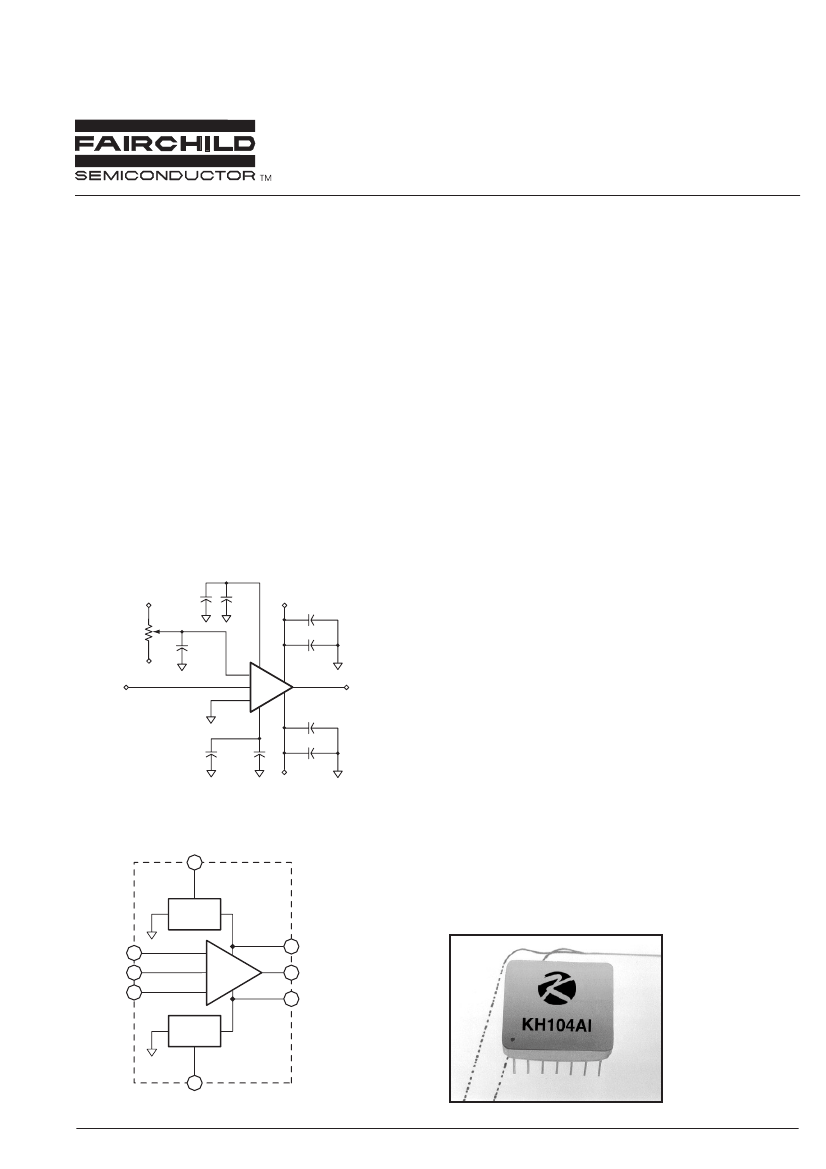

Basic Circuit Diagram
+15V
39
0.01
+15V
2.2
10K
Offset
Adjust
-15V
V
in
0.01
0.01
12
4
3,5-10
14
1
KH104
2
13
11
V
o
0.01
2.2
Capacitance if
µF
39
0.01
-15V
Equivalent Circuit Diagram
+V
CC
1
+5.4V
Reg
Offset
Adjust 12
V
in
Ground
4
-25°C to +85°C
14-pin double-wide DIP
KH104
11 V
o
13 -V
R
*
-5.4V
Reg
2
*Pins 3, 5-10 case is ground
REV. 1A February 2001
DATA SHEET
KH104
KH104 Electrical Characteristics
PARAMETERS
Ambient Temperature
FREQUENCY DOMAIN RESPONSE
✝
-3dB bandwidth
✝
✝
(T
A
= +25°C, V
CC
= ±15V, R
L
= 50Ω, R
s
= 50Ω; unless specified)
TYP
+25°C
1100
1050
14.2
±0.4
1.5
600
40
35
18
11
17
10
325
375
1.2
3
1.2
47
53
40
43
26
17
55
11
71
65
80
0.6
50
375
54
55
375
450
1.6
MIN & MAX RATINGS
Min
1000
13.8
-0.6
14.9
+0.6
3
Max
MHz
MHz
dB
dB
°
ps
dB
dB
dB
dB
dB
dB
ps
ps
ns
%
ns
-dBc
-dBc
-dBc
-dBc
+dBm
dB
dB
dB
dB
280
2.0
250
625
60
µA
µA/°C
mV
µV/°C
mA
dB
IBN
IBN
ICC
PSRR
SSBW
SSBW
LPD
GD
RINI
RIIN
UNITS
SYM
CONDITIONS
KH104AI
0dBm out
10dBm out
@ 100MHz
DC - 750MHz
DC - 600MHz
DC - 750MHz
750MHz - 1100MHz
DC - 750MHz
750MHz - 1100MHz
DC - 750MHz
750MHz - 1100MHz
1V step
2V step
1V step
1V step
V
inpeak
= ±0.5V
0dBm, 100MHz
0dBm, 100MHz
10dBm, 100MHz
10dBm, 100MHz
100MHz
500MHz
10Hz to 1200MHz
100MHz
500MHz
note 2
note 2
note 3
note 3
no load
1KHz
non-inverting gain (note 1)
gain flatness
linear phase deviation
group delay
reverse isolation
input return loss
output return loss
TIME DOMAIN RESPONSE
rise and fall time
(10% to 90%)
settling time to 0.8%
overshoot
overload recovery
NOISE AND DISTORTION RESPONSE
✝
2nd harmonic distortion
✝
3rd harmonic distortion
✝
2nd harmonic distortion
✝
3rd harmonic distortion
3rd order intermolulation intercept
2-tone, 1MHz separation
equivalent input noise voltage
noise figure
usable dynamic range
STATIC, DC PERFORMANCE
input bias current
input bias current (drift)
output offset voltage
output offset voltage (drift)
* supply current
supply rejection ratio
TRS
TRL
TS
OS
OR
HD2
HD3
HD2
HD3
30
35
Min/max ratings are based on product characterization and simulation. Individual parameters are tested as noted. Outgoing quality levels are
determined from tested parameters.
Absolute Maximum Ratings
V
CC
I
o
input voltage
junction temperature
operating temperature
storage temperature
±9V to ±16V
±40mA
±0.5V
+175°C
AI: -25°C to +85°C
-65°C to +150°C
Notes
1. Nominal gain only - gain variation over temperature is ±0.1dB.
2. Input offset voltage = (input bias current) x (R
s
|| 50Ω).
3. Output offset can be adjusted to zero with an external
potentiometer – see “Reducing DC Offset”.
4. * AI 100% tested at 25°C.
✝
AI Sample tested at 25°C.
2
REV. 1A February 2001
KH104
DATA SHEET

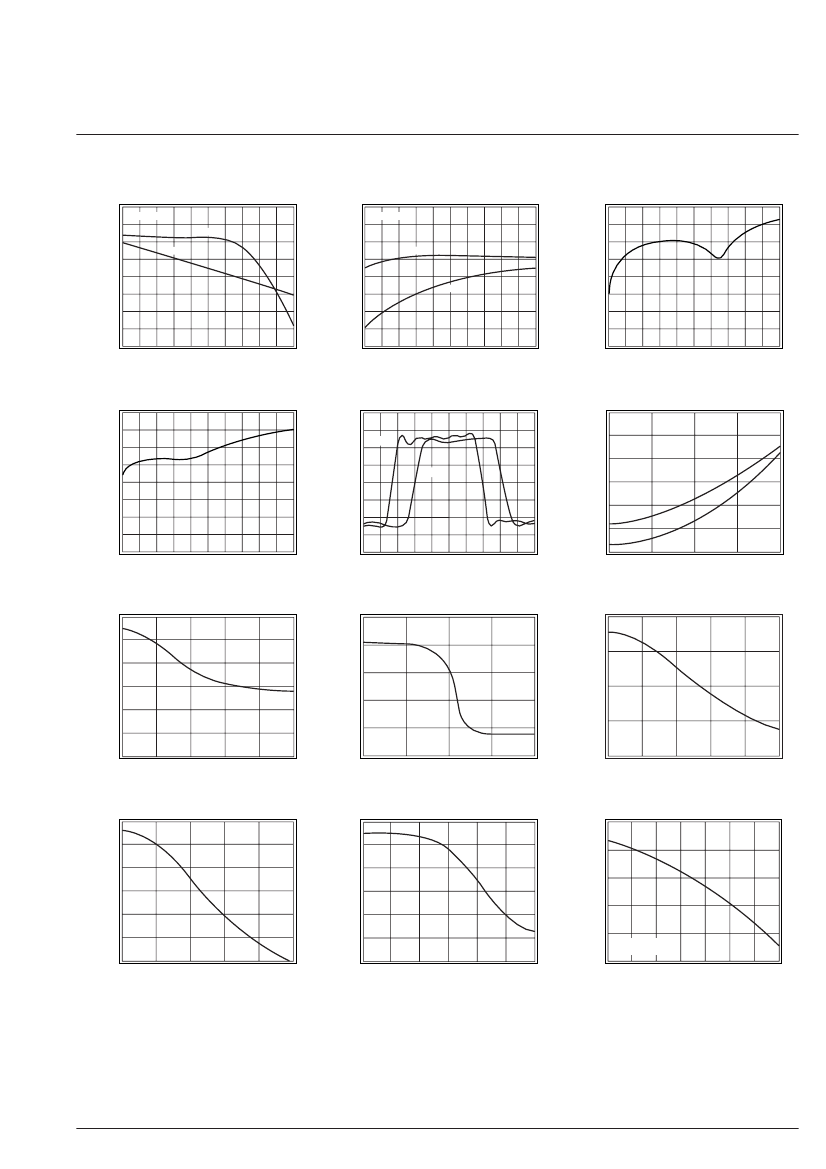

KH104 Performance Characteristics
(T
A
= +25°C, V
CC
= ±15V, R
L
= 50Ω, R
s
= 50Ω; unless specified)
Forward Gain and Phase
16
P
o
= 0dBm
|S
21
|
Reverse Gain and Phase
180
0
P
o
= 0dBm
Input Return Loss
360
0
14
|S
12
| (-dB)
12
-180
40
|S
12
|
|S
11
| (-dB)
∠S
21
0
20
∠S
12
180
20
∠S
21
(deg)
∠S
12
(deg)
|S
21
| (dB)
0
40
10
-360
60
-180
60
8
0
260
520
780
1.04G
1.3G
540
80
0
260
520
780
1.04G
1.3G
-360
80
0
260
520
780
1.04G
1.3G
Frequency (MHz)
Output Return Loss
0
Frequency (MHz)
Pulse Response
-20
P
o
= 0dBm
Frequency (MHz)
2nd and 3rd Harmonic Distortion
Input (40mV/div)
Distortion (dBc)
20
Input
-30
Output (200mV/div)
|S
22
| (-dB)
-40
-50
2nd
Output
40
-60
3rd
60
-70
80
0
260
520
780
1.04G
1.3G
-80
500ps/div
100k
1M
10M
100M
1G
Frequency (MHz)
2-Tone, 3rd Order Intermod. Intercept
30
-120
Frequency (Hz)
Noise Spectral Density
16
-1dB Gain Compression
Noise Level (dBm/Hz)
Intercept Point (dBm)
Power Output (dBm)
25
20
15
10
5
0
0
200
400
600
800
1000
-130
-140
-150
-160
12
8
4
-170
10
1k
100k
10M
1G
0
0
200
400
600
800
1000
Frequency (MHz)
Usable Dynamic Range
72
70
Frequency (Hz)
Power Supply Rejection Ratio
105
Frequency (MHz)
Relative Bandwidth vs. Case Temp.
Relative Bandwidth (%)
Dynamic Range (dB)
70
60
100
95
90
85
P
d
= 1.6W
Θ
CA
= 30°C/W
66
64
62
60
0
200
400
600
800
1000
PSRR (dB)
68
50
40
30
20
10
1
10
100
1k
10k
100k
1M
80
0
20
40
60
80
100
120
140
Frequency (MHz)
Frequency (Hz)
Case Temperature (°C)
REV. 1A February 2001
3
DATA SHEET
KH104
PC Board Layout Considerations
Proper layout of printed circuit boards is important to
achieve optimum performance of a circuit operating in the
1GHz frequency range. Use of microstripline is
recommended for all signal-carrying paths and low
resistance, low inductance signal return and bypass
paths should be used. To keep the impedance of
these paths low, use as much ground plane as possible.
Ground plane also serves to increase the flow of heat out
of the package.
The KH104 has three types of connections: signal paths
(input and output), DC inputs (supplies and offset adjust),
and grounds. 50Ω microstrip is recommended for
connection to the input (pin 4) and output (pin 11).
Microstrip on a doublesided PC board consists of a
ground plane on one side of the board and a constant-
width signal-carrying trace on the other side of the board.
For 1/16” G10 or FR-4 PC board material, a 0.1” wide
trace will have a 50Ω characteristic impedance. The
ground plane beneath the signal trace must extend at
least one trace width on either side of the trace. Also, all
traces (including ground) should be kept at least one
trace width from the signal carrying traces.
To keep power supply noise and oscillations from appear-
ing at the amplifier output, all supply pins should be
capacitively bypassed to ground.
The power
supply pins (1 and 2) are the inputs to a pair of voltage
regulators whose outputs are at pins 13 and 14. It is
recommended that 0.01µF or larger ceramic capacitors
be connected from pins 1, 2, 13 and 14 to ground, within
0.2” of the pins. A 1µF or larger solid tantalum capacitor
to ground is required within 3” of pins 1 and 2, and
for good low frequency performance, solid tantalum
capacitors of at least 15µF should be connected from
pins 13 and 14 to ground within 3” of the pins. Use 0.025”
or wider traces for the supply lines. The offset adjust pin
(12) also requires bypassing; a 0.01µF or
larger ceramic capacitor to ground within 0.2” of the pin is
recommended.
Grounding is the final layout consideration. Pins 3 and 5-
10 should all be connected to a ground plane which
should cover as much of one side of the board around the
amplifier as possible.
Reducing DC Offset
DC offset of the KH104 may be adjusted by applying a
DC voltage to the amplifier’s offset adjust pin (12). The
simplest method is shown in Figure 1. Using this method
of offset adjust it is possible to vary the output offset by
approximately ±400mV. This simple adjustment has no
effect on the offset drift characteristics of the KH104.
+15V
39
0.01
+15V
2.2
10K
Offset
Adjust
-15V
V
in
0.01
0.01
12
4
3,5-10
14
1
KH104
2
13
11
V
o
0.01
2.2
Capacitance if
µF
39
0.01
-15V
Figure 1: Basic Circuit
If lower offset and offset drift are required, a low frequency
op amp may be used in conjunction with the KH104 in a
composite configuration. The suggested circuit appears
in Figure 2. Its method of operation is to compare an
attenuated version of the output signal to the input signal
and apply a correcting voltage at the offset adjust pin. A
compensation capacitor C
s
reduces the bandwidth of the
op amp correction circuit to limit the op amp’s effect on
the KH104 to frequencies below f
45
, the frequency at
which the op amp has 45dB of open loop gain. Using an
LM108, f
45
is about 7Hz with C
s
= 0.1µF. Thus the op amp
can correct DC and low frequency errors below f
45
, with-
out affecting KH104 performance above f
45
. Also note
that the noise performance of the op amp will dominate
below f
45
.
12
4
+15V
0.01
2k
7
2
6
V
in
KH104
11
V
o
R
L
50Ω
49.9k
0.01
R
c
9.76k
R
a
11.8k
R
b
1k
Capacitance in
µF
R
c
= (R
a
+ R
b
) || 49.9k
LM108
8
4
3
C
s
0.01
0.01
-15V
Figure 2: Composite Amplifier
With an LM108 op amp in this composite configuration,
input offset is typically 2mV and drift is 15mV/°C. At
frequencies well below f
45
, the composite gain is equal
to (1 + 49.9k/(R
a
+ R
b
)) and the output impedance is
4
REV. 1A February 2001
KH104
DATA SHEET
very low. As the signal frequency increases beyond f
45
,
the op amp loses influence and the KH104 gain and
output impedance dominate. To ensure a smooth
transition and matched gain at all frequencies, adjust R
b
for a minimum op amp output swing with a 0.1V
pp
sinewave input (to the KH104) at the frequency f
45
. Since
the KH104 has a 50Ω output impedance, its
output voltage is a function of the load impedance
_
(A
v
~ 10R
L
/(R
L
+ 50)), whereas the gain of the compos-
ite amplifier at low frequencies and DC is relatively
independent of the load impedance, due to the high
open-loop gain of the op amp. Thus, to avoid gain
mismatching and phase non-linearity, use the composite
amplifier only if the load impedance is constant from DC
to at least 10(f
45
).
Use of a composite amplifier reduces input offset voltage
and its corresponding drift, but has no effect on input bias
current. This current is converted to an input voltage by
the resistance to ground seen at the amplifier input and
the voltage appears, amplified, at the output. Typical
input offset voltage due to the bias current is 2mV and
input offset drift is approximately 15mV/°C.
Thermal Considerations
The KH104 case must be maintained at or below 140°C.
Note that because of the amplifier design, power dissipa-
tion remains fairly constant, independent of the load or
drive level. Therefore, standard derating is not possible.
There are two ways to keep the case temperature low.
The first is to keep the amount of power dissipated inside
the package to a minimum and the second is to get the
heat out of the package quickly by reducing the thermal
resistance from case to ambient.
A large portion of the heat dissipated inside the package
is in the voltage regulators. At the minimum +9V supply
level the regulators dissipate 390mW and at the
maximum ±16V supply level they dissipate 1.2W.
The amplifier itself dissipates a fairly constant 600mW
(55mA x 10.8V). Reducing the power dissipation of the
internal regulators will go far towards reducing the
internal junction temperatures without impacting the so
performance. Reducing either the input supply voltages
(on pins 1 and 2) and/or shunting the regulator current
through external resistors (from pins 1 to 14 and pins
2 to 13) are both effective means towards significantly
reducing the internal power dissipation. A minimum
voltage across the regulator of 3.6V and a minimum
regulator current of 10mA will satisfy the regulator
dropout voltage and current limits.
Given the maximum anticipated power supply voltages,
the shunt resistor should be calculated to yield a 35mA
current from that voltage to the regulated voltage of 5.4V.
This will leave 10mA through the regulator at the
minimum quiescent current of 45mA. The regulator input
voltages may be reduced directly by dropping the voltage
supplies, or, if that option is not available, using either
a zener or resistive dropping element in series with
the supply. If a series dropping element is used, the
decoupling capacitors must appear on pins 1 and 2 of the
KH104. Figure 3 shows two possible power reduction
circuits from fixed ±15V supplies.
Several methods of decreasing the thermal resistance
from case to ambient are possible. With no heat paths
other than still air at 25°C, the thermal resistance from
case to ambient for the KH104 is about 40°C/W. When
placed in a printed circuit board with all ground pins
soldered into a ground plane 1” X 1.5”, the thermal
resistance drops to about 30°C/W In this configuration,
the case rise will be 30°C for 9V supplies and 50°C
for 16V supplies. This results in maximum allowable
ambient temperatures of 110°C and 90°C, respectively. If
higher operating temperatures are required, heat sinking
of the package is recommended.
+15V
D1
5.6V
2.2µF
+
0.01µF
1
+15V
60Ω
2.2µF
+
0.01µF
1
14
13
115Ω
200Ω
V
in
2
V
o
V
in
2
14
13
V
o
115Ω
200Ω
2.2µF
+
0.01µF
D2
5.6V
2.2µF
+
0.01µF
60Ω
-15V
-15V
D1, D2 IN4734
nominal, no load P
d
~
760mW
–
nominal, no load P
d
~
900mW
–
Figure 3: Reducing Power Dissipation
REV. 1A February 2001
5
京公网安备 11010802033920号
EEWORLD
