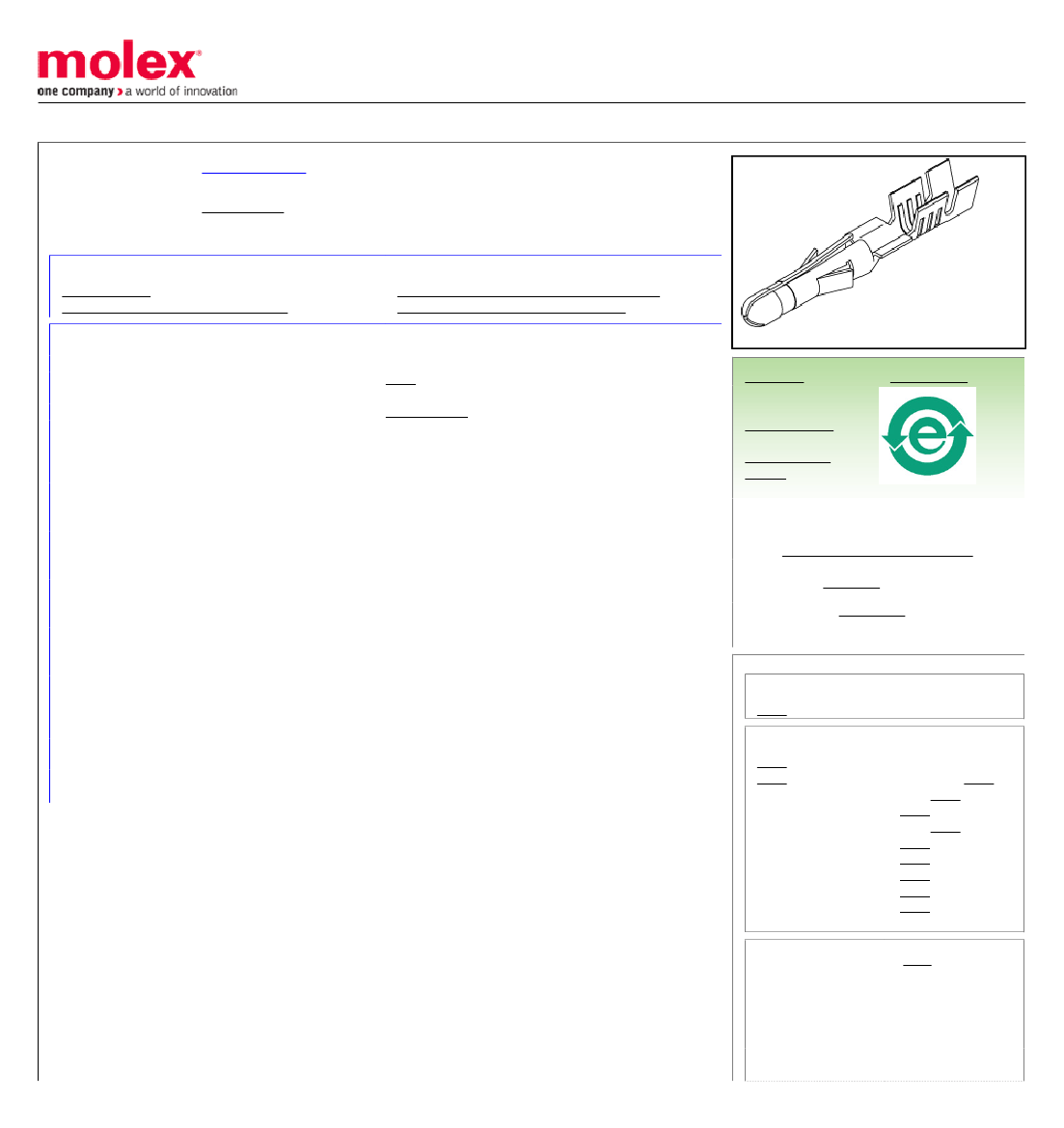

0002092116
Active
standard_093
2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1380,
Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
Documents:

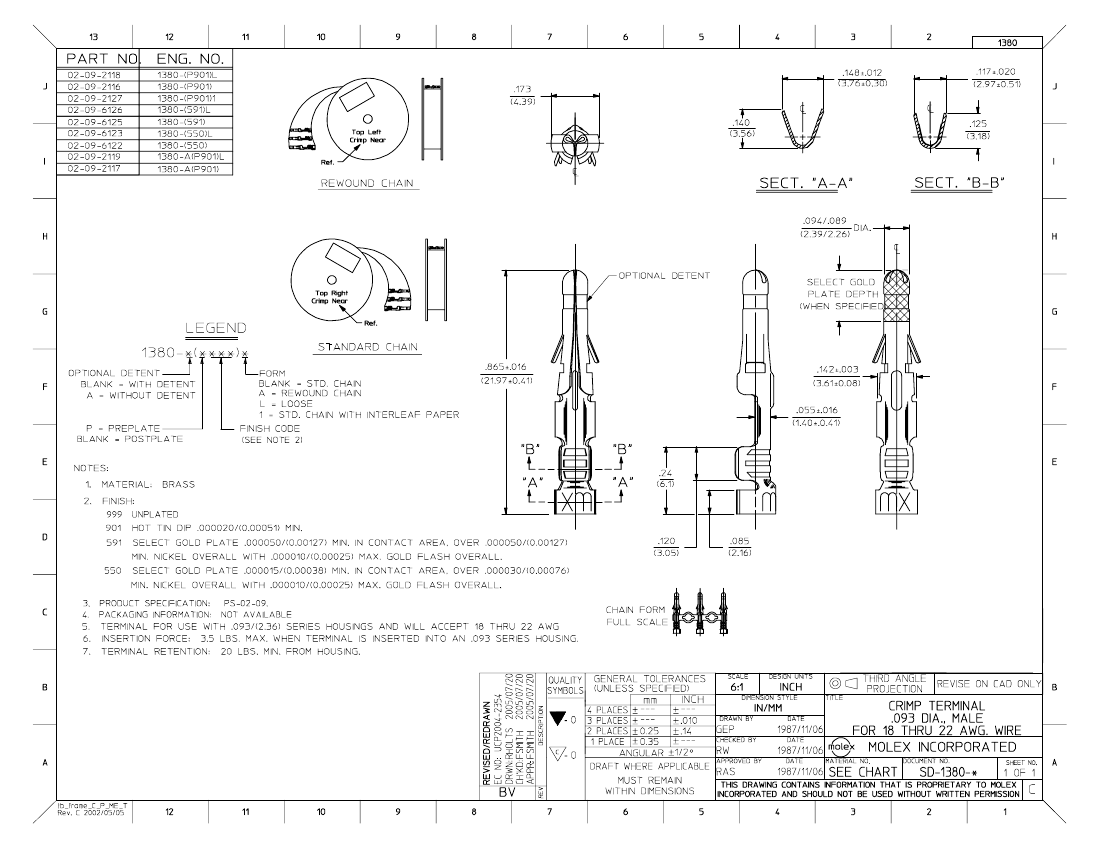

Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-43660-9999 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Terminals
1380
Yes
standard_093
Standard .093"
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
25
Male
Brass
Tin
Tin
Reel
20
0.50
20
0.50
Crimp or Compression
1.52-3.05mm (.060-.120")
18, 20, 22
N/A
Material Info
Old Part Number
1380-(P901)
Search Parts in this Series
1380Series
Use With
1619 Plug or Receptacle Housing,
1545 Plug or Receptacle Housing, 1396
Plug or Receptacle Housing, 1490 Plug
or Receptacle Housing, 2629 Plug or
Receptacle Crimp Housings, 1261 Plug
or Receptacle Housing, 1292 Plug
or Receptacle Housing, 1360 Plug
or Receptacle Housing, 1375 Plug
or Receptacle Housing, 3191 Plug
or Receptacle Housing, 2163 Plug or
Receptacle Housings
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-02-09, PS-43660-9999
SD-1380-*
