39528-5046 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39528-5046

39528-5046: DescriptionStrip Terminal Block, 15A, 2 Row(s), 2 Deck(s), ROHS COMPLIANT; CategoryThe connector; File Size39KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39528-5046 Overview

Strip Terminal Block, 15A, 2 Row(s), 2 Deck(s), ROHS COMPLIANT

39528-5046 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	39528
Installation type	BOARD
Number of layers	2
Rows	2
Number of channels	46
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

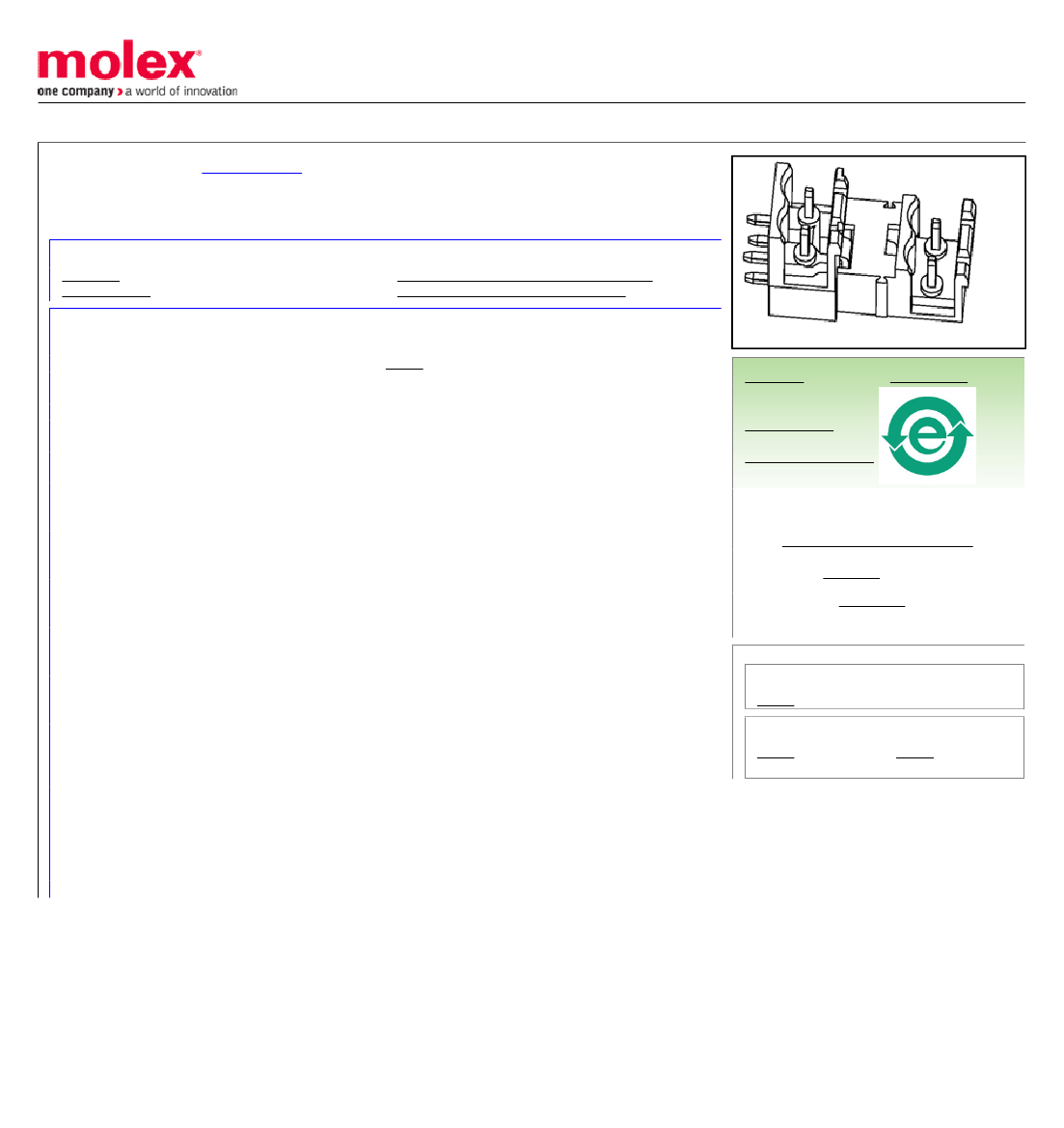

This document was generated on 10/16/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

39528-5046

Active

5.00mm Pitch Eurostyle™ Horizontal PCB Dual Level Header, Open Ends, Green

Housing, 46 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Terminal Blocks

39528

N/A

PCB Header

ESE, Eurostyle™Pluggable

Euro Block

822350527361

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Component Type

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Horizontal

5.00mm

3.05mm

5.00mm

Yes

Open Ends

Yes

N/A

-40°C to +105°C

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39528Series

Mates With

39520 Horizontal Plug, 39523 Vertical Plug,

Most 5.00mm Pitch Industry Standard Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39528-001

This document was generated on 10/16/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
