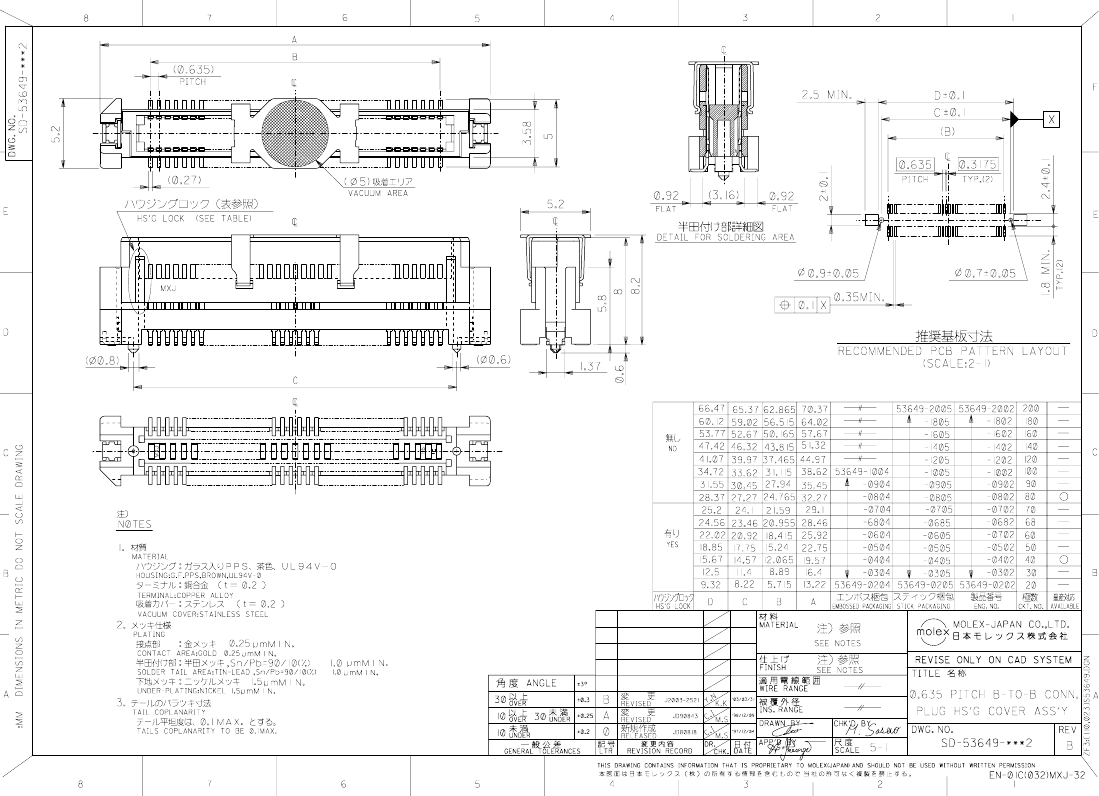

53649-0602: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking Mech, Brown Insulator, Receptacle,; CategoryThe connector The connector; File Size249KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

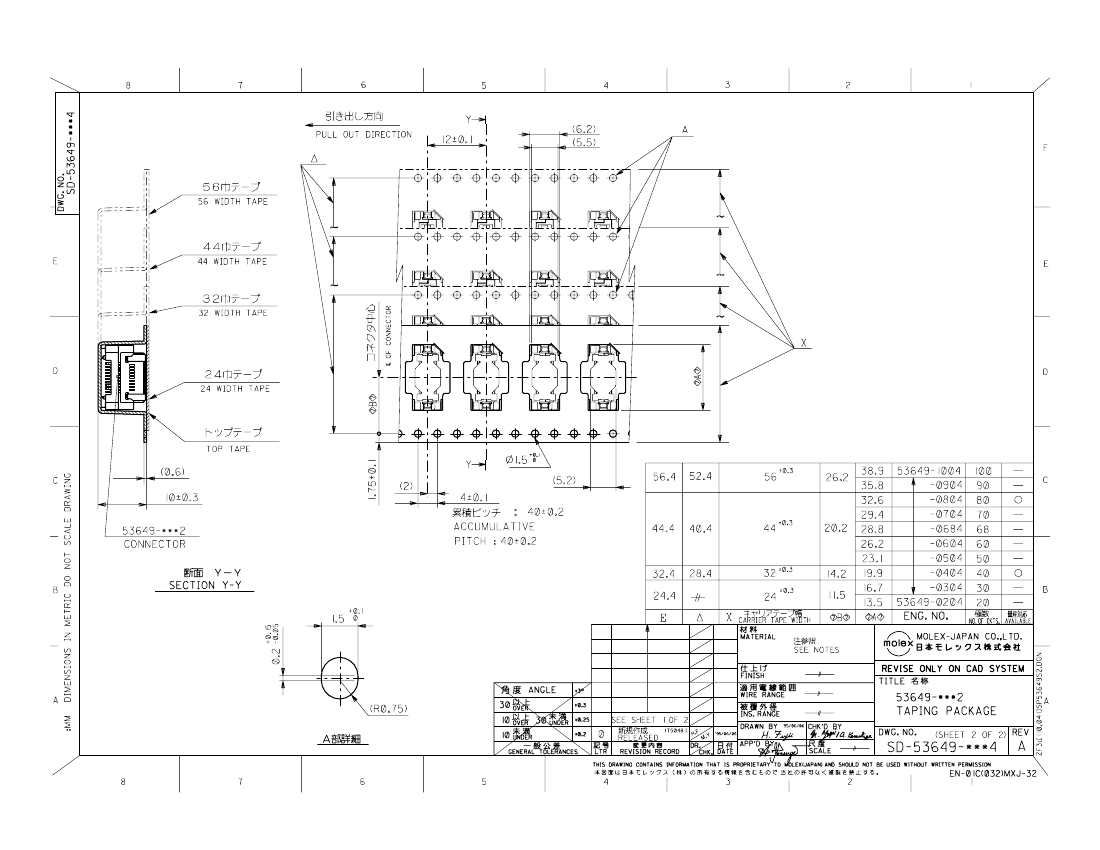

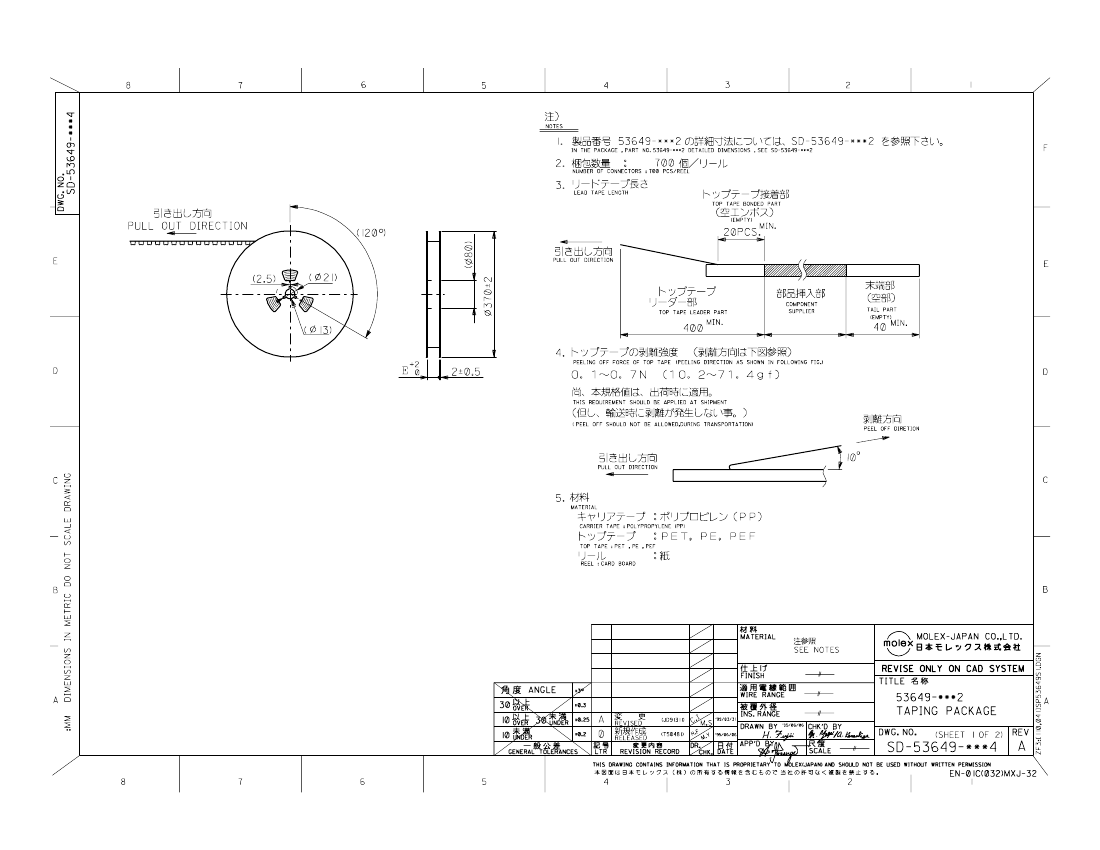

53649-0602 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking Mech, Brown Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Other features	WITH HOUSING LOCK
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.323 inch
body length	1.02 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
maximum insertion force	.7228 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	53649
Plug contact pitch	0.025 inch
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Evacuation force-minimum value	.1112 N
