Part Number

Search

53649-0672

Description
Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,
CategoryThe connector    The connector
File Size208KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

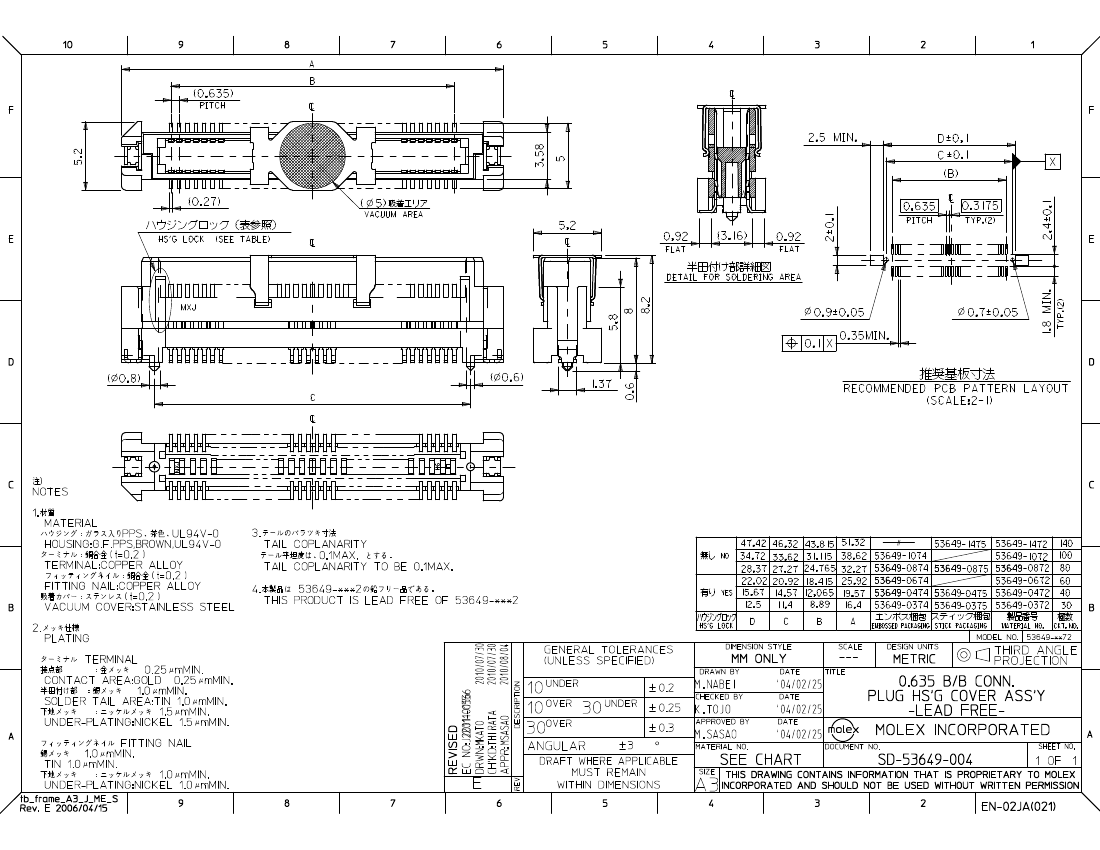

53649-0672 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,

53649-0672 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Board mount optionsPEG
body width0.205 inch
subject depth0.315 inch
body length1.02 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance70 mΩ
Dielectric withstand voltage250VAC V
Durability30 Cycles
Insulation resistance1000000000 Ω
Insulator colorBROWN
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number53649
Plug contact pitch0.025 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts60

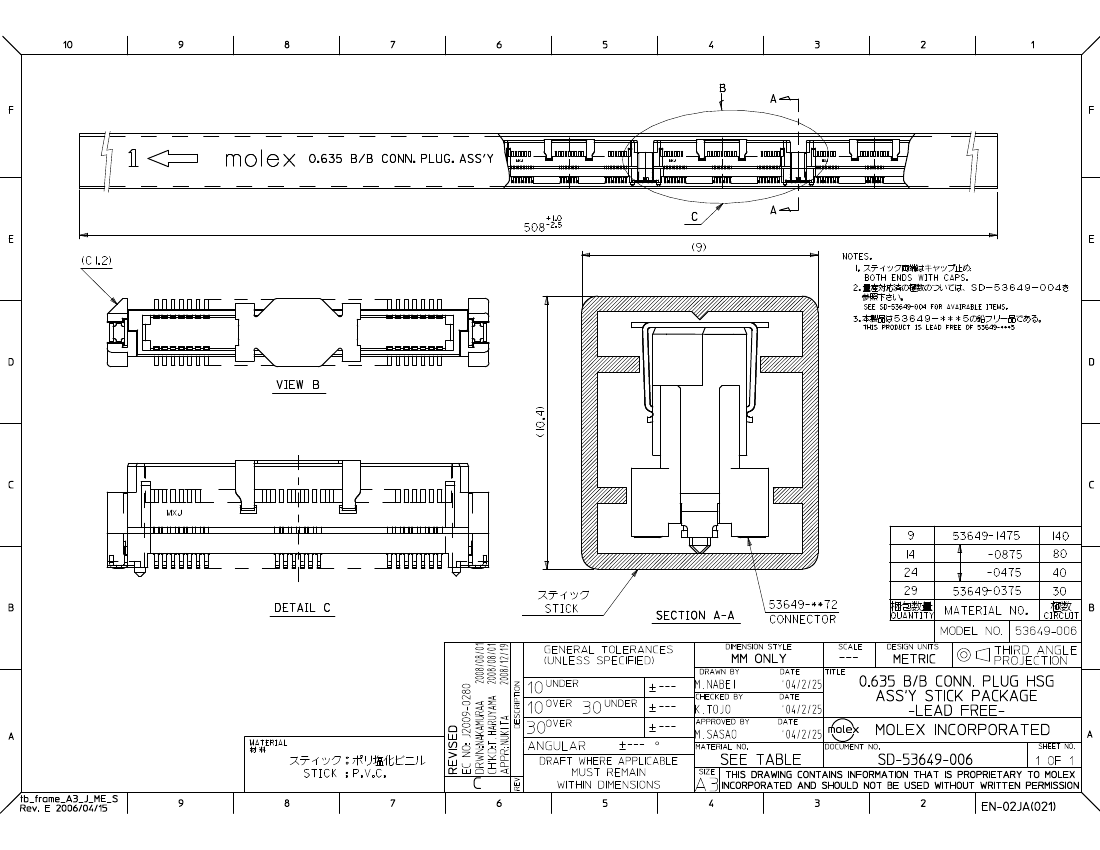

53649-0672 Related Products

53649-0672 0536491475 53649-1472 53649-0472 53649-0475
Description Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug, 0.635 btb plg hsgcoverassy140ckt Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug, Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,
Reach Compliance Code unknow - unknown compliant unknown
Board mount options PEG - PEG PEG PEG
body width 0.205 inch - 0.205 inch 0.205 inch 0.205 inch
subject depth 0.315 inch - 0.315 inch 0.315 inch 0.315 inch
body length 1.02 inch - 2.02 inch 0.77 inch 0.77 inch
Body/casing type PLUG - PLUG PLUG PLUG
Connector type BOARD CONNECTOR - BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI - AU ON NI AU ON NI AU ON NI
Contact completed and terminated TIN OVER NICKEL - TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL
Contact point gender MALE - MALE MALE MALE
Contact material COPPER ALLOY - COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 70 mΩ - 70 mΩ 70 mΩ 70 mΩ
Dielectric withstand voltage 250VAC V - 250VAC V 250VAC V 250VAC V
Durability 30 Cycles - 30 Cycles 30 Cycles 30 Cycles
Insulation resistance 1000000000 Ω - 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BROWN - BROWN BROWN BROWN
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE - GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number 53649 - 53649 53649 53649
Plug contact pitch 0.025 inch - 0.025 inch 0.025 inch 0.025 inch
Installation option 1 LOCKING - LOCKING LOCKING LOCKING
Installation method STRAIGHT - STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD - BOARD BOARD BOARD
Number of connectors ONE - ONE ONE ONE
PCB row number 2 - 2 2 2
Number of rows loaded 2 - 2 2 2
Maximum operating temperature 85 °C - 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C - -55 °C -55 °C -55 °C
PCB contact pattern RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 4.191 mm - 4.191 mm 4.191 mm 4.191 mm
Plating thickness 10u inch - 10u inch 10u inch 10u inch
polarization key POLARIZED HOUSING - POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.5 A - 0.5 A 0.5 A 0.5 A
Guideline UL - UL UL UL
reliability COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 0.635 mm - 0.635 mm 0.635 mm 0.635 mm
Termination type SURFACE MOUNT - SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 60 - 140 40 40
Base Number Matches - - 1 1 1
