75227-5417 datasheet, PDF - EEWORLD Datasheet

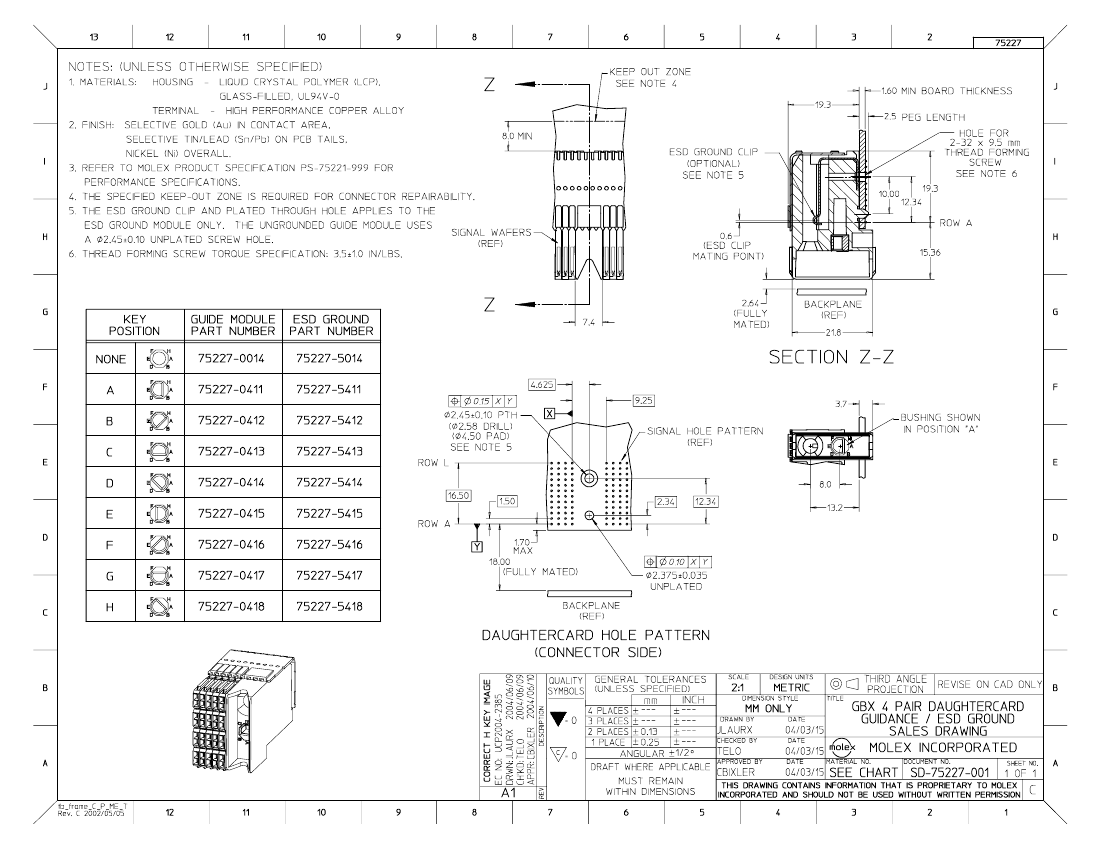

75227-5417: DescriptionBoard Connector, 40 Contact(s), 8 Row(s), Female, Right Angle, 0.073 inch Pitch, Press Fit Terminal, Guide Slot, Plug; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

75227-5417 Overview

Board Connector, 40 Contact(s), 8 Row(s), Female, Right Angle, 0.073 inch Pitch, Press Fit Terminal, Guide Slot, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	TUBE PACKAGING
subject depth	1.365 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	1 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	75227
Plug contact pitch	0.073 inch
Match contact row spacing	0.073 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	PRESS FIT
Total number of contacts	40
