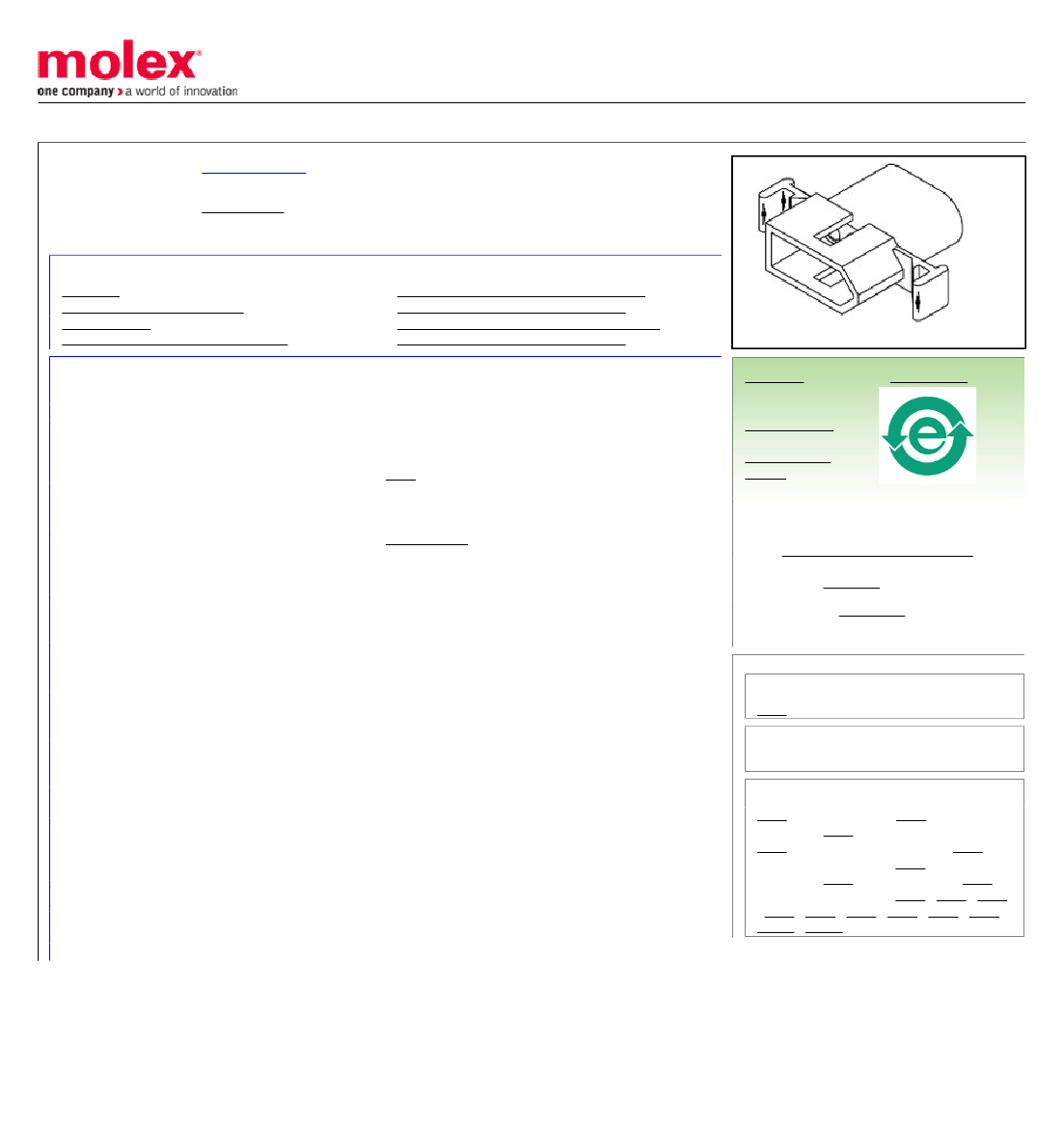

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0003092031
Active
standard_093
2.36mm (.093") Diameter Standard .093 Pin and Socket Plug Housing, 3 Circuits,
Single Row
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-1396-002 (PDF)
Product Specification PS-42477 (PDF)
Product Specification PS-43660-9999 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
MolexKits
Overview
Product Name
Crimp Housings
1396
17.0A max. can be achieved when housing is used with
42477 or 42478 terminals
Yes
standard_093
Standard .093"
Physical
Circuits (maximum)
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
3
94V-2
Dual
No
Yes
1
Bag
Yes
0.198 In
5.03 mm
No
-40°C to +105°C
Search Parts in this Series
1396Series
Mates With
1396r
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1376 Male PC Tail Terminals,
1377 Female PC Tail Terminals, 1380
Male Crimp Terminals, 1381 Female Crimp
Terminals, 1433 Crimp Terminals, 1434
Male Crimp Terminals, 1973 , 2151 , 2273
, 2870 , 2871 , 4272 , 4550 , 6271 , 6310 ,
42477 , 42478
Electrical
Current - Maximum per Contact
14A
Material Info
Old Part Number
1396-P
Reference - Drawing Numbers
Packaging Specification
Product Specification

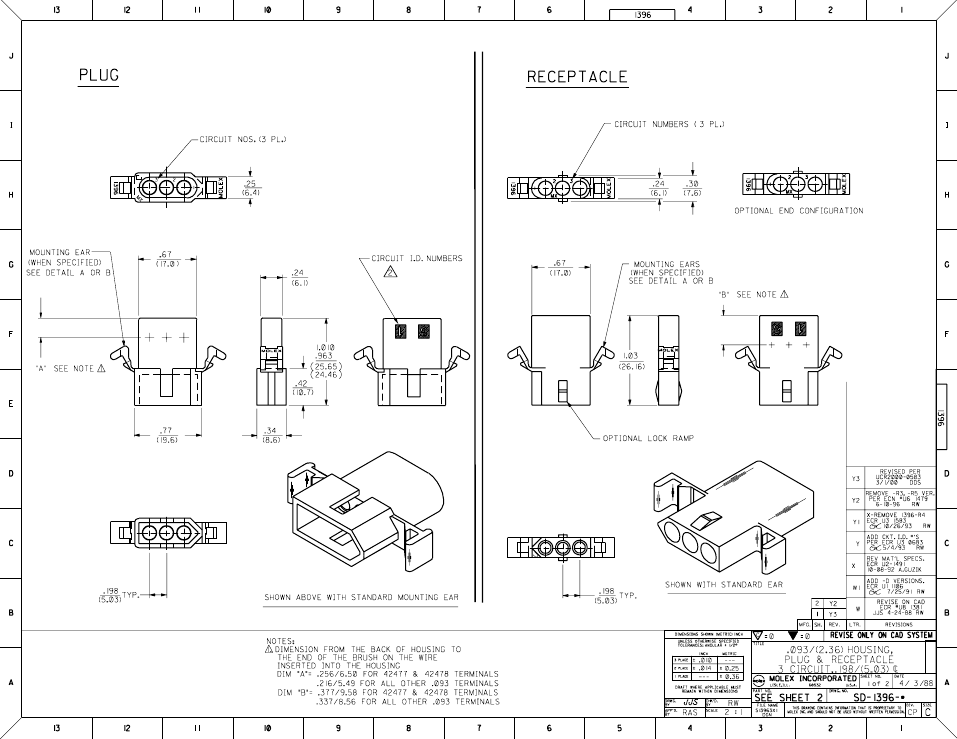

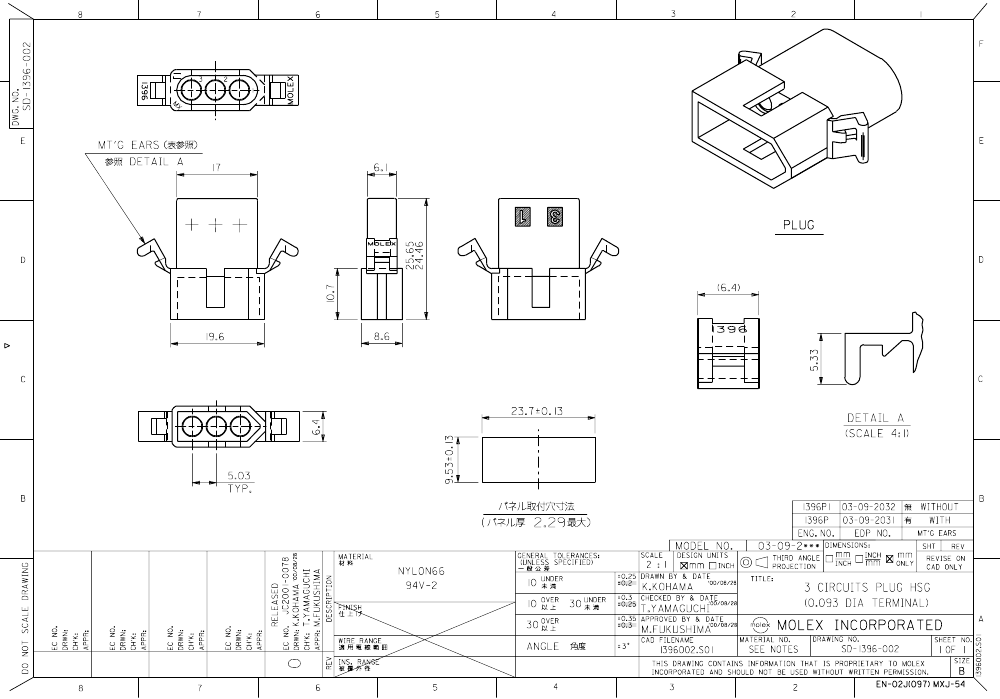

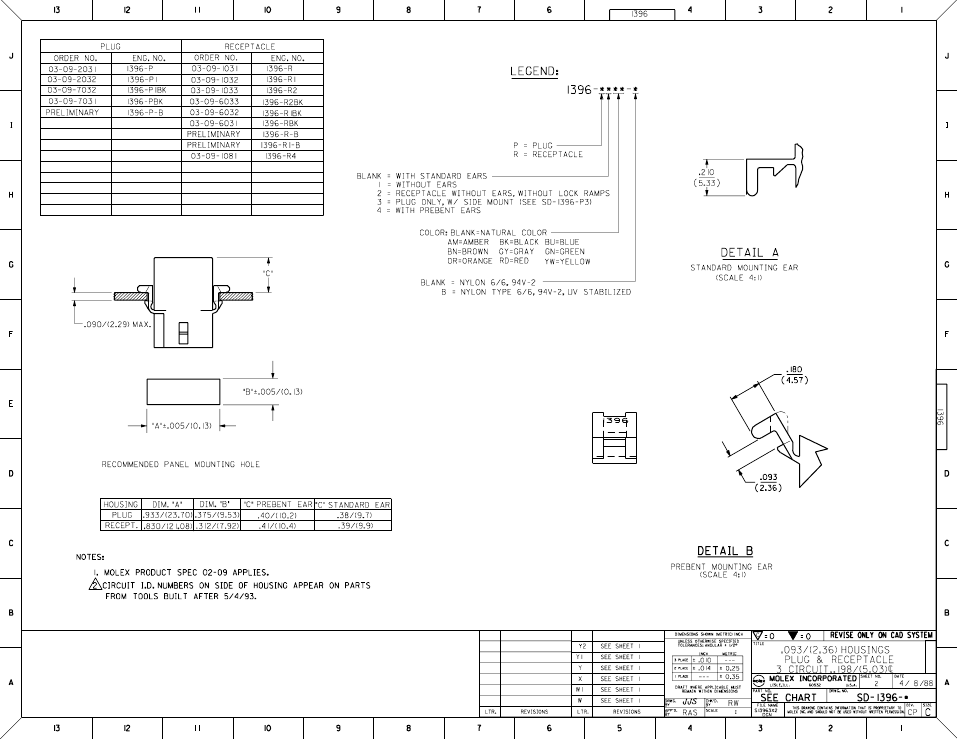

Sales Drawing
PK-1396-001
PS-02-09, PS-1396-002, PS-42477, PS-43660-9999
SD-1396-*, SD-1396-002
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
