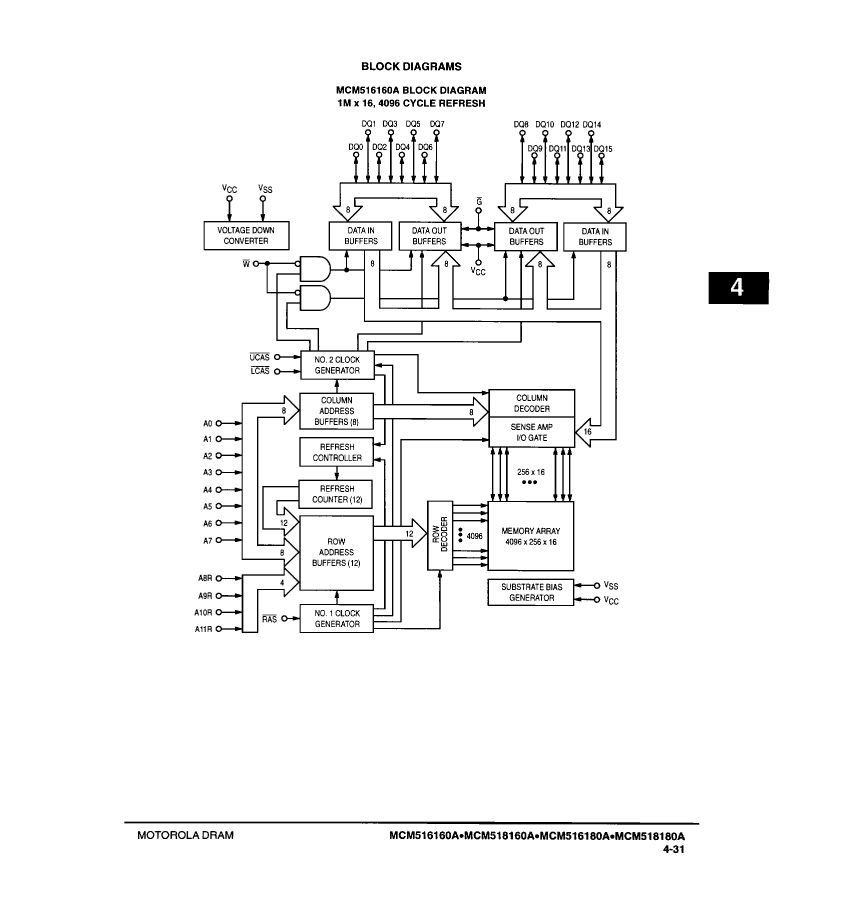

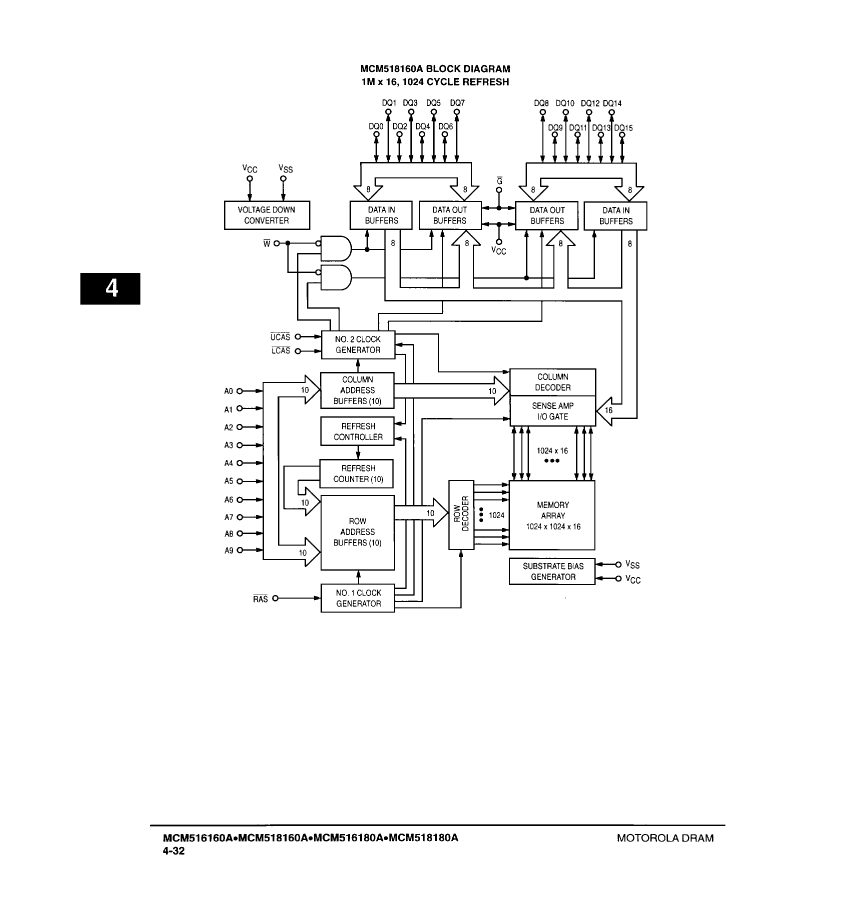

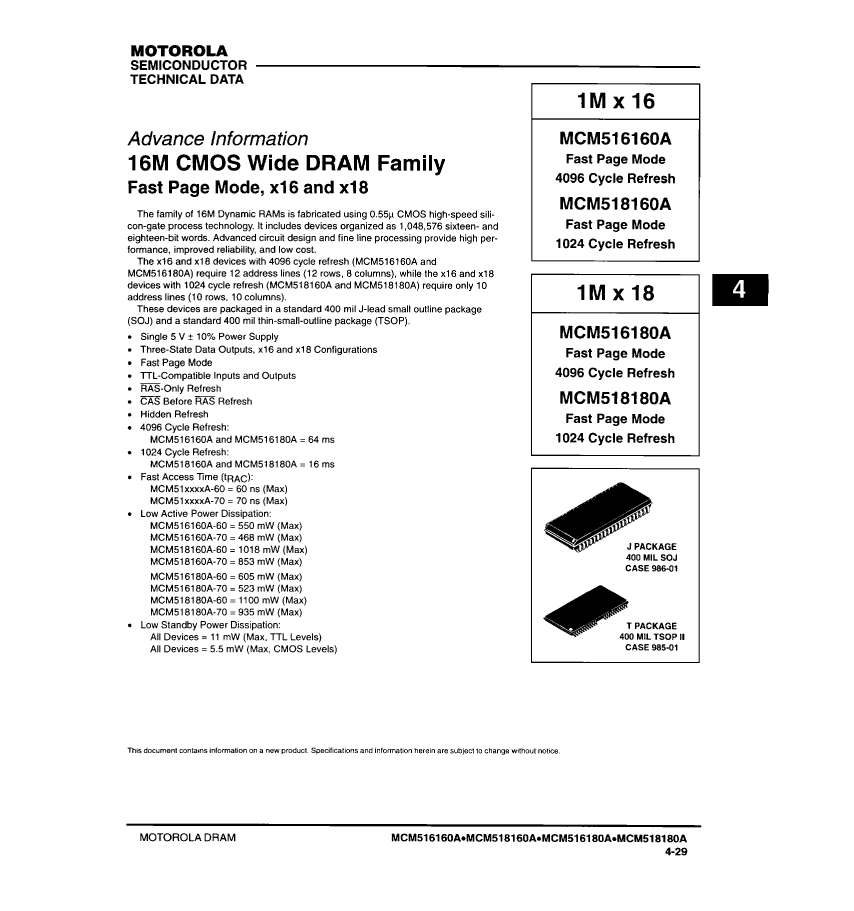

1M X 18 FAST PAGE DRAM, 60 ns, PDSO44, 0.400 INCH, TSOP2-50/44

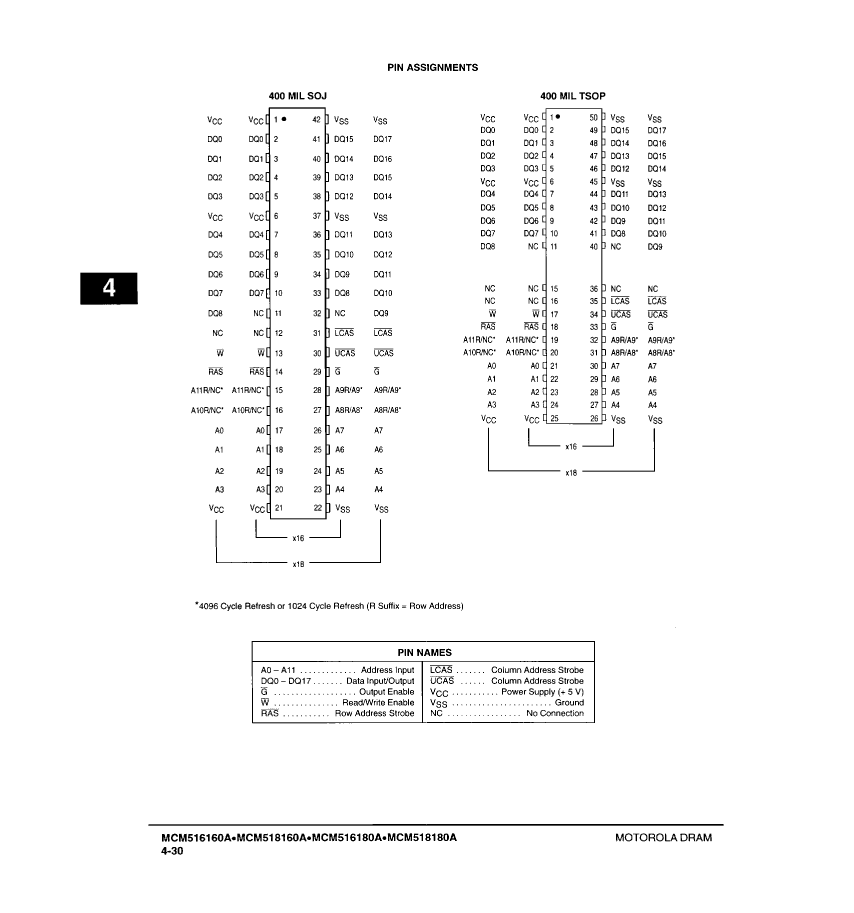

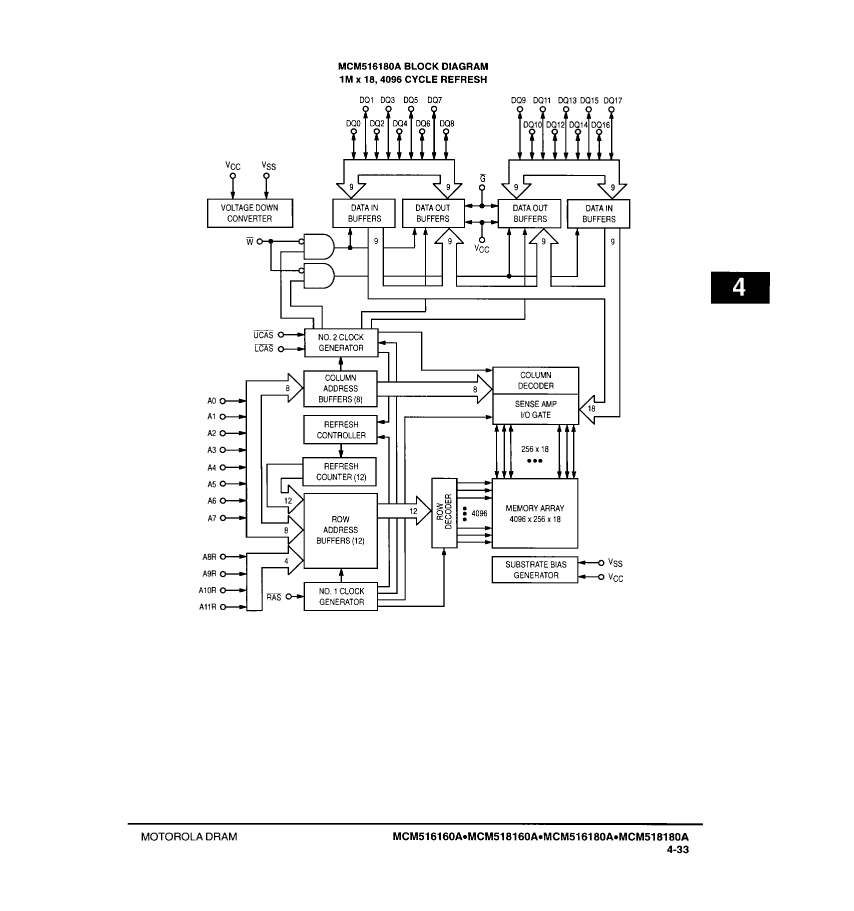

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | TSOP2 |
| package instruction | TSOP2, |
| Contacts | 50 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| access mode | FAST PAGE |
| Maximum access time | 60 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS |
| JESD-30 code | R-PDSO-G44 |
| length | 20.955 mm |
| memory density | 18874368 bi |
| Memory IC Type | FAST PAGE DRAM |
| memory width | 18 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 44 |
| word count | 1048576 words |
| character code | 1000000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 1MX18 |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSOP2 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE |
| Certification status | Not Qualified |
| refresh cycle | 1024 |
| Maximum seat height | 1.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.8 mm |
| Terminal location | DUAL |
| width | 10.16 mm |
| MCM518180AT60 | MCM518180AJ60 | MCM516180AT70 | MCM516180AJ60 | MCM516180AJ70 | MCM516180AT60 | MCM518180AJ70 | MCM518180AT70 | |
|---|---|---|---|---|---|---|---|---|
| Description | 1M X 18 FAST PAGE DRAM, 60 ns, PDSO44, 0.400 INCH, TSOP2-50/44 | 1MX18 FAST PAGE DRAM, 60ns, PDSO42, 0.400 INCH, SOJ-42 | 1MX18 FAST PAGE DRAM, 70ns, PDSO44, 0.400 INCH, TSOP2-50/44 | 1MX18 FAST PAGE DRAM, 60ns, PDSO42, 0.400 INCH, SOJ-42 | 1MX18 FAST PAGE DRAM, 70ns, PDSO42, 0.400 INCH, SOJ-42 | 1MX18 FAST PAGE DRAM, 60ns, PDSO44, 0.400 INCH, TSOP2-50/44 | 1MX18 FAST PAGE DRAM, 70ns, PDSO42, 0.400 INCH, SOJ-42 | 1M X 18 FAST PAGE DRAM, 70 ns, PDSO44, 0.400 INCH, TSOP2-50/44 |
| Parts packaging code | TSOP2 | SOJ | TSOP2 | SOJ | SOJ | TSOP2 | SOJ | TSOP2 |
| package instruction | TSOP2, | SOJ, | TSOP2, TSOP44/50,.46,32 | SOJ, SOJ42,.44 | SOJ, SOJ42,.44 | TSOP2, TSOP44/50,.46,32 | SOJ, SOJ42,.44 | TSOP2, TSOP44/50,.46,32 |
| Contacts | 50 | 42 | 50 | 42 | 42 | 50 | 42 | 50 |
| Reach Compliance Code | unknow | unknown | unknown | unknow | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| access mode | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE |
| Maximum access time | 60 ns | 60 ns | 70 ns | 60 ns | 70 ns | 60 ns | 70 ns | 70 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; BYTE ACCESS |
| JESD-30 code | R-PDSO-G44 | R-PDSO-J42 | R-PDSO-G44 | R-PDSO-J42 | R-PDSO-J42 | R-PDSO-G44 | R-PDSO-J42 | R-PDSO-G44 |
| length | 20.955 mm | 27.31 mm | 20.955 mm | 27.31 mm | 27.31 mm | 20.955 mm | 27.31 mm | 20.955 mm |
| memory density | 18874368 bi | 18874368 bit | 18874368 bit | 18874368 bi | 18874368 bi | 18874368 bi | 18874368 bi | 18874368 bi |
| Memory IC Type | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM |
| memory width | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 44 | 42 | 44 | 42 | 42 | 44 | 42 | 44 |
| word count | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words |
| character code | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 1MX18 | 1MX18 | 1MX18 | 1MX18 | 1MX18 | 1MX18 | 1MX18 | 1MX18 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSOP2 | SOJ | TSOP2 | SOJ | SOJ | TSOP2 | SOJ | TSOP2 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| refresh cycle | 1024 | 1024 | 4096 | 4096 | 4096 | 4096 | 1024 | 1024 |
| Maximum seat height | 1.2 mm | 3.7 mm | 1.2 mm | 3.7 mm | 3.7 mm | 1.2 mm | 3.7 mm | 1.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | J BEND | GULL WING | J BEND | J BEND | GULL WING | J BEND | GULL WING |
| Terminal pitch | 0.8 mm | 1.27 mm | 0.8 mm | 1.27 mm | 1.27 mm | 0.8 mm | 1.27 mm | 0.8 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm |
| Maker | Motorola ( NXP ) | - | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Is it lead-free? | - | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | - | - | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| I/O type | - | - | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-609 code | - | - | e0 | e0 | e0 | e0 | e0 | e0 |
| Encapsulate equivalent code | - | - | TSOP44/50,.46,32 | SOJ42,.44 | SOJ42,.44 | TSOP44/50,.46,32 | SOJ42,.44 | TSOP44/50,.46,32 |
| Peak Reflow Temperature (Celsius) | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | - | - | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| self refresh | - | - | NO | NO | NO | NO | NO | NO |
| Maximum standby current | - | - | 0.001 A | 0.001 A | 0.001 A | 0.001 A | 0.001 A | 0.001 A |
| Maximum slew rate | - | - | 0.09 mA | 0.105 mA | 0.09 mA | 0.105 mA | 0.15 mA | 0.15 mA |
| Terminal surface | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maximum time at peak reflow temperature | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
