GCM1555C1H680JA16W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GCM1555C1H680JA16W

GCM1555C1H680JA16W: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000068uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size78KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GCM1555C1H680JA16W Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000068uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

GCM1555C1H680JA16W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0402
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	Capacitor GCM15 L=1.0mm W=0.5mm T=0.5mm
capacitance	0.000068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.5 mm

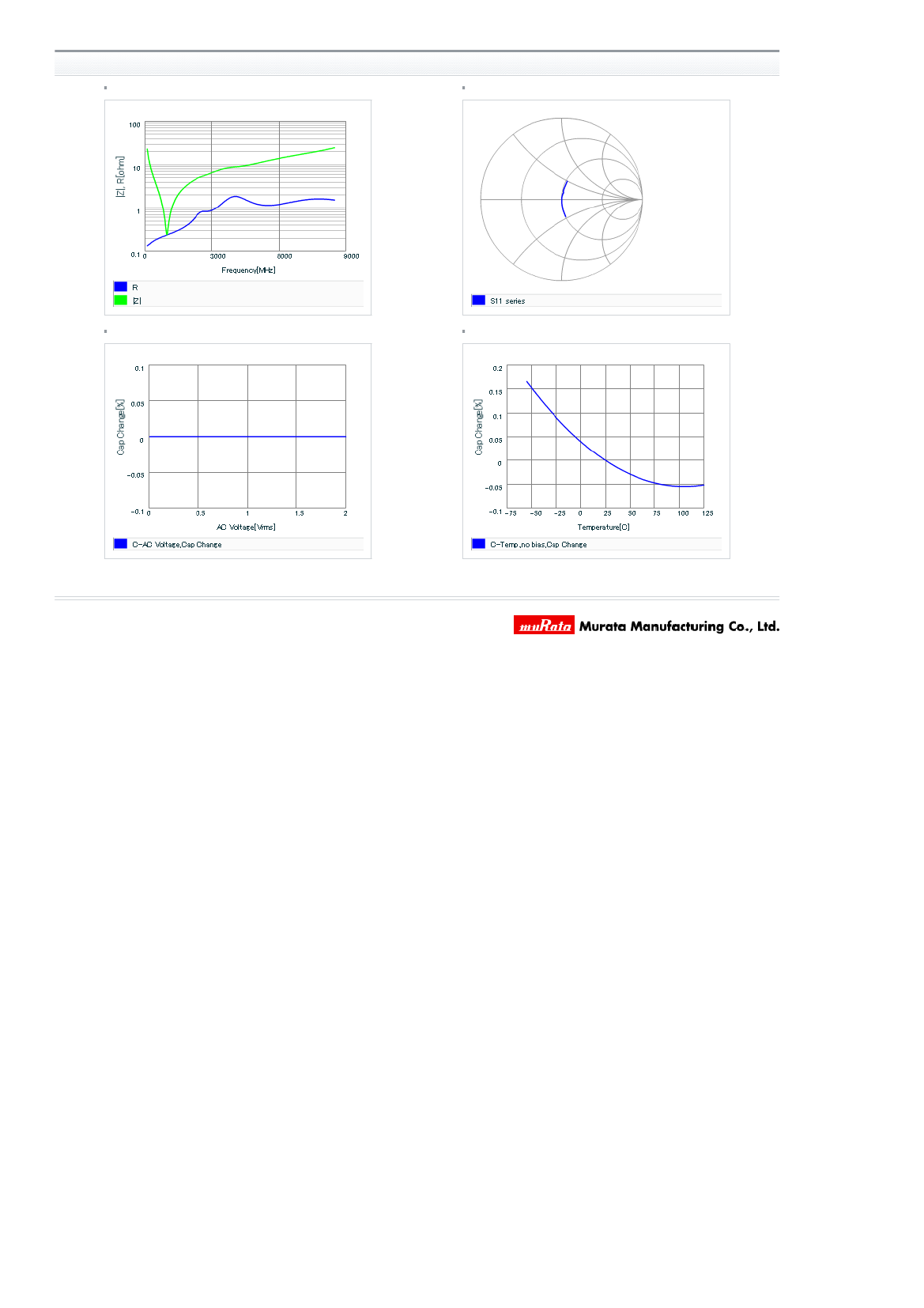

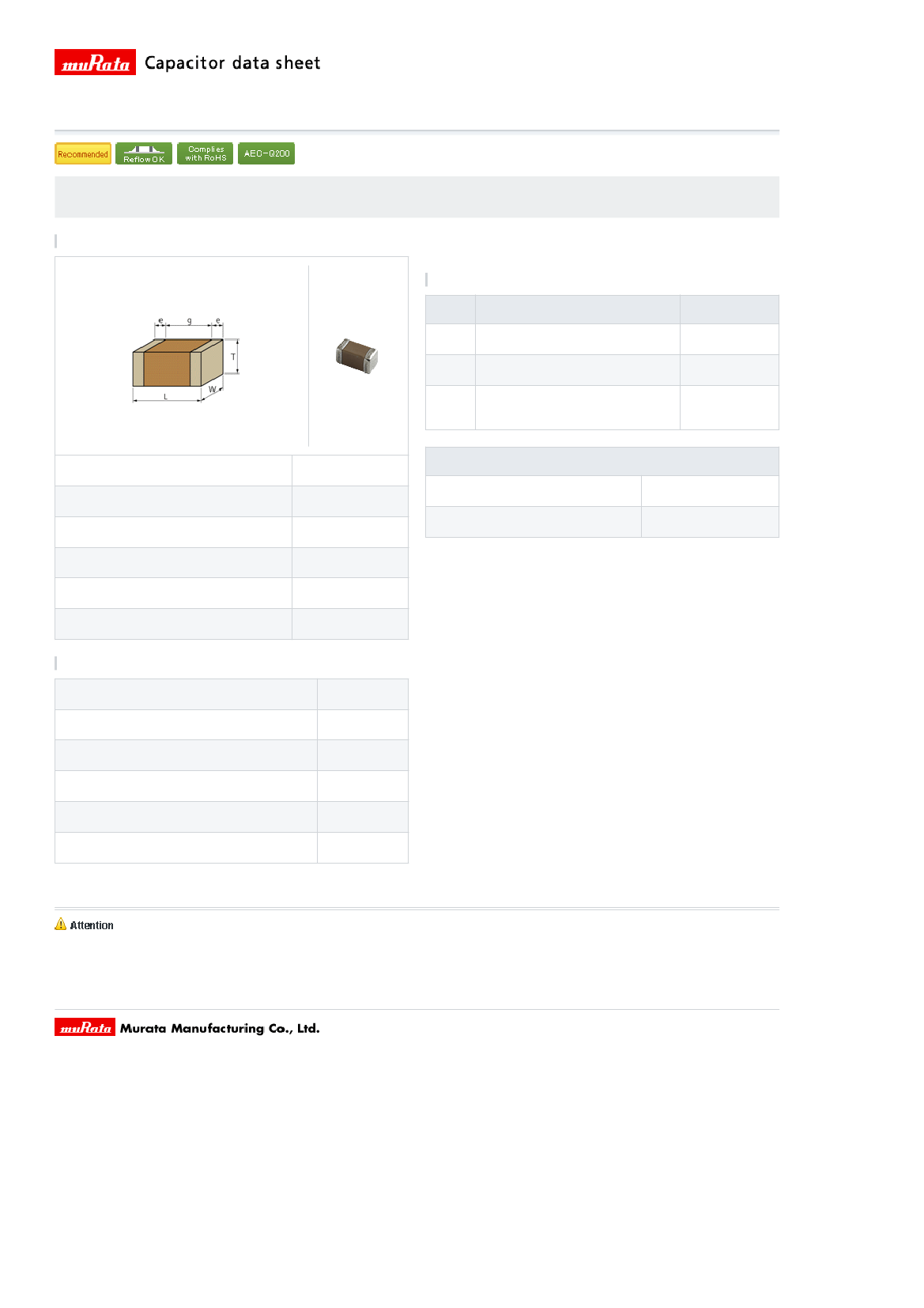

Preview

Download Datasheet

View All

GCM1555C1H680JA16#

# indicates a package specification code.

< List of part numbers with package codes >

GCM1555C1H680JA16D , GCM1555C1H680JA16W , GCM1555C1H680JA16J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

10000

50000

20000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

1 piece

0.5 ±0.05mm

φ180mm Reel

0.5 ±0.05mm

0.15 to 0.35mm

0.3mm min.

0402 (1005)

Mass (typ.)

1.6mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

68pF ±5%

50Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/19
