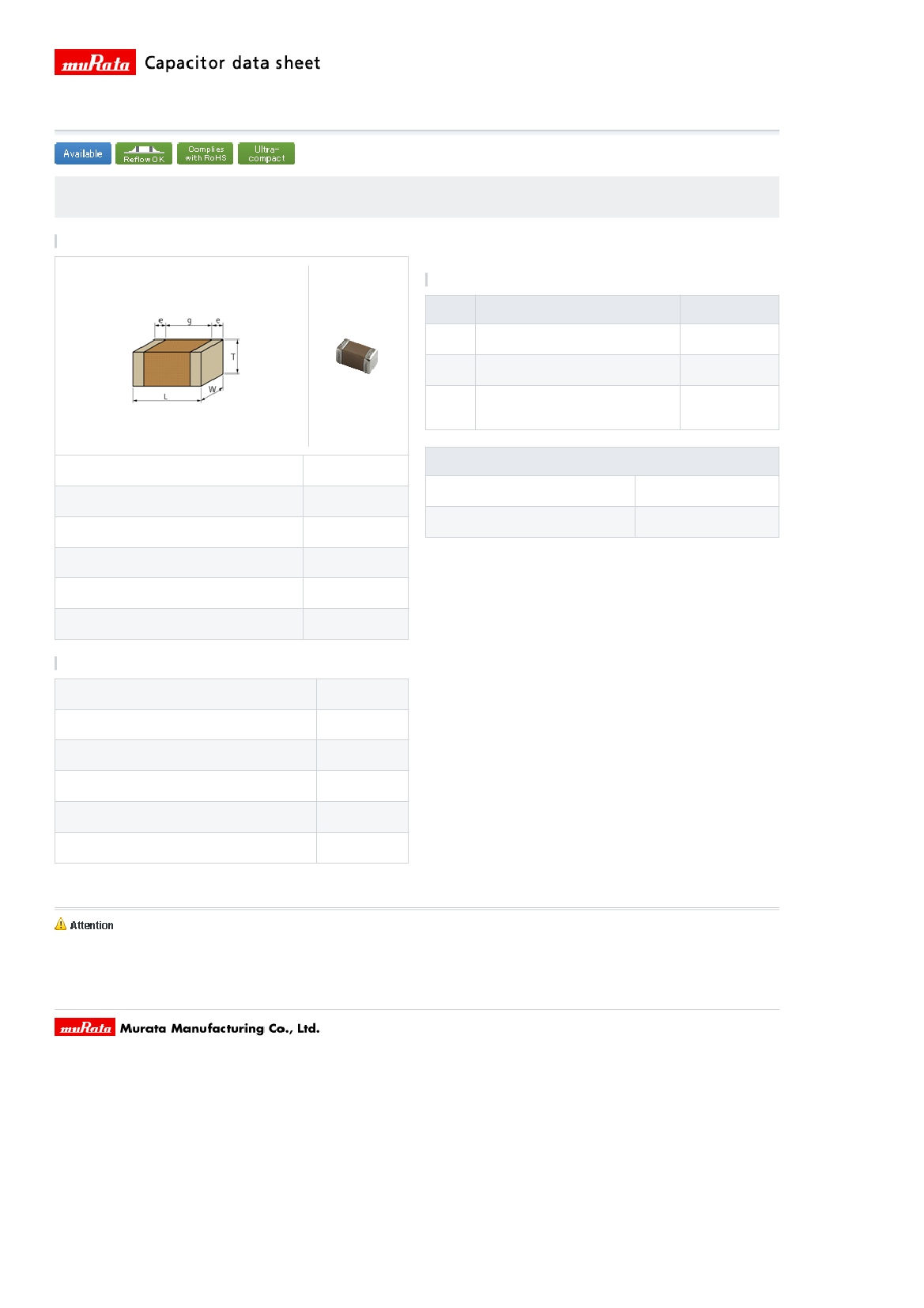

Preview

GRM033R71H122MA12W: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0012uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM033R71H122MA12W Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0012uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT

GRM033R71H122MA12W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0201
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.3 mm
length	0.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
size code	0201
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	0.3 mm

Preview

Download Datasheet

View All

GRM033R71H122MA12#

# indicates a package specification code.

< List of part numbers with package codes >

GRM033R71H122MA12D , GRM033R71H122MA12W , GRM033R71H122MA12J

Shape

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

15000

50000

W

30000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.6 ±0.03mm

1 piece

0.3 ±0.03mm

φ180mm Reel

0.3 ±0.03mm

0.1 to 0.2mm

0.2mm min.

0201 (0603)

Mass (typ.)

0.33mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

1200pF ±20%

50Vdc

X7R(EIA)

±15.0%

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
