GRM2162L1H6R7BD01J: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, LH, 0.0000067uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM2162L1H6R7BD01J Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, LH, 0.0000067uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT

GRM2162L1H6R7BD01J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0805
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.0000067 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	1.49%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	1.49%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	LH
Temperature Coefficient	-80+/-60ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

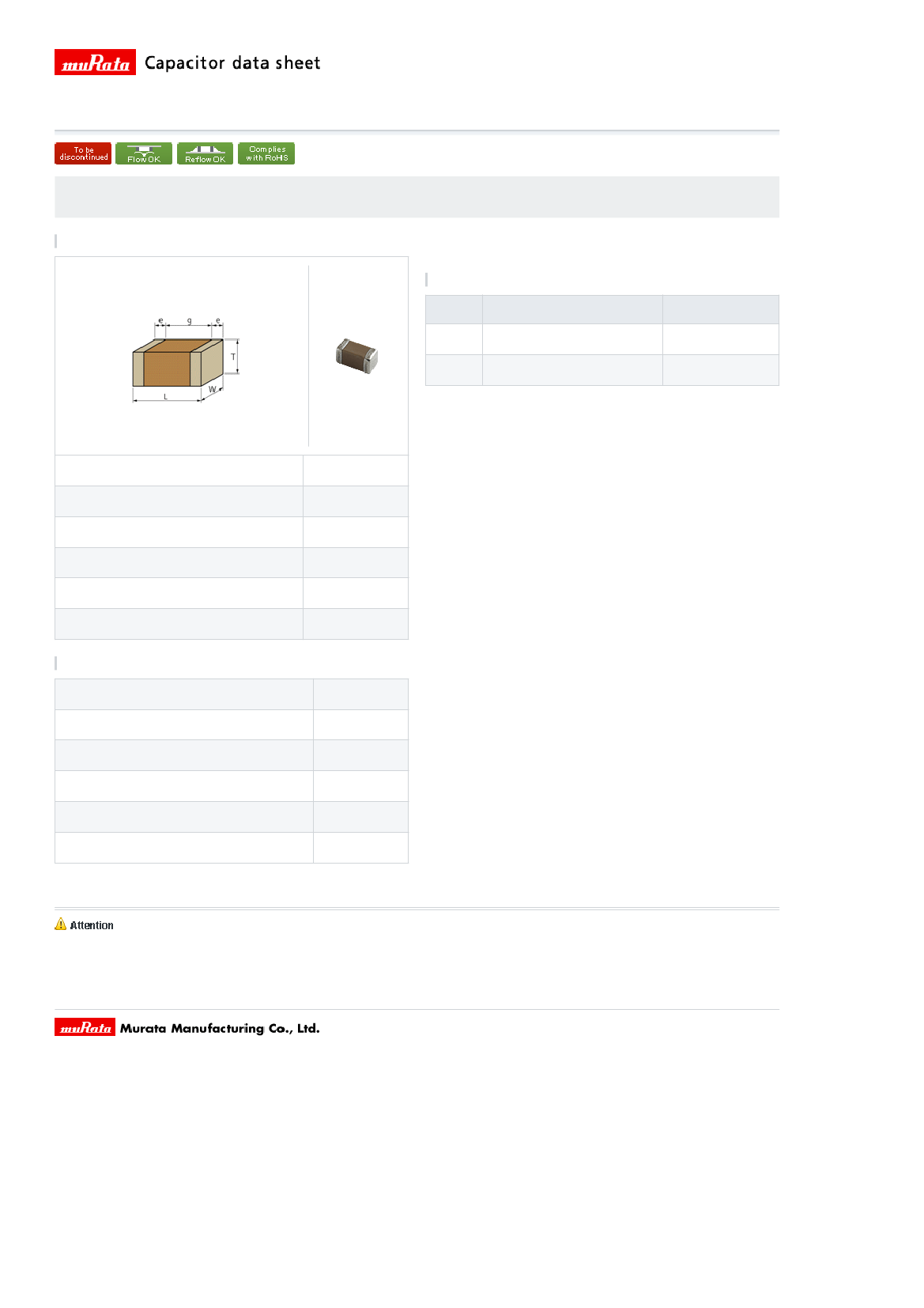

GRM2162L1H6R7BD01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM2162L1H6R7BD01D , GRM2162L1H6R7BD01J

Shape

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.1mm

1.25 ±0.1mm

0.6 ±0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

6.7pF ±0.1pF

50Vdc

LH(JIS)

-80±60ppm/℃

20 to 85℃

-25 to 85℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
