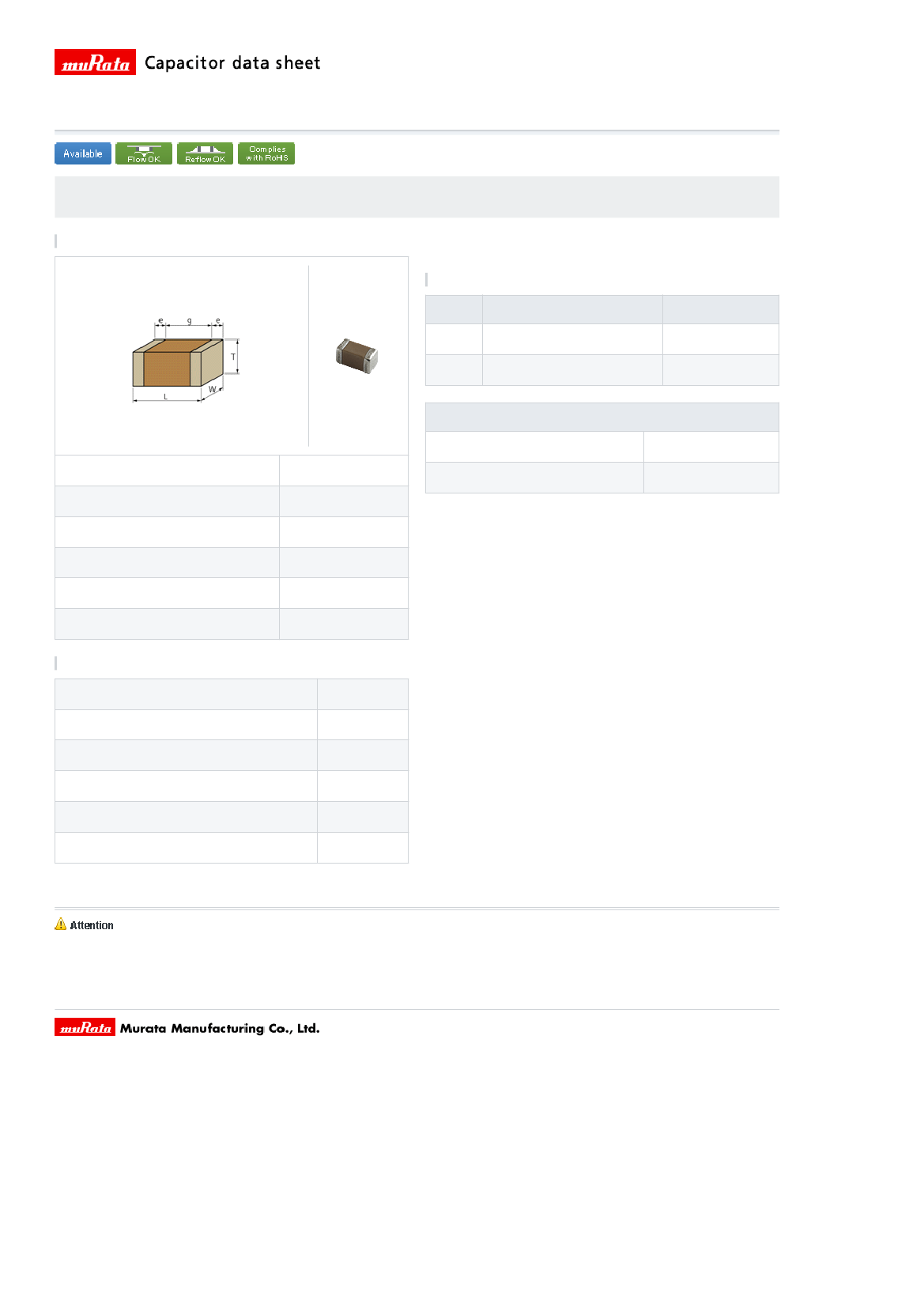

Preview

GRM219B11H182MA17J: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, B, 10% TC, 0.0018uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM219B11H182MA17J Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, B, 10% TC, 0.0018uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

GRM219B11H182MA17J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0805
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.85 mm
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	B
Temperature Coefficient	10% ppm/°C
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

GRM219B11H182MA17#

# indicates a package specification code.

< List of part numbers with package codes >

GRM219B11H182MA17D , GRM219B11H182MA17J

Shape

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.1mm

1.25 ±0.1mm

0.85 +0.15/-0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012)

φ180mm Reel

11mg

162g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

1800pF ±20%

50Vdc

B(JIS)

±10.0%

-25 to 85℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
