GRM219F51H154ZD01D datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM219F51H154ZD01D

GRM219F51H154ZD01D: DescriptionCERAMIC, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

GRM219F51H154ZD01D Overview

CERAMIC, CHIP, ROHS COMPLIANT

GRM219F51H154ZD01D Parametric

Parameter Name	Attribute value
Maker	Murata
package instruction	, 0805
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.15 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.85 mm
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	80%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal shape	WRAPAROUND
width	1.25 mm

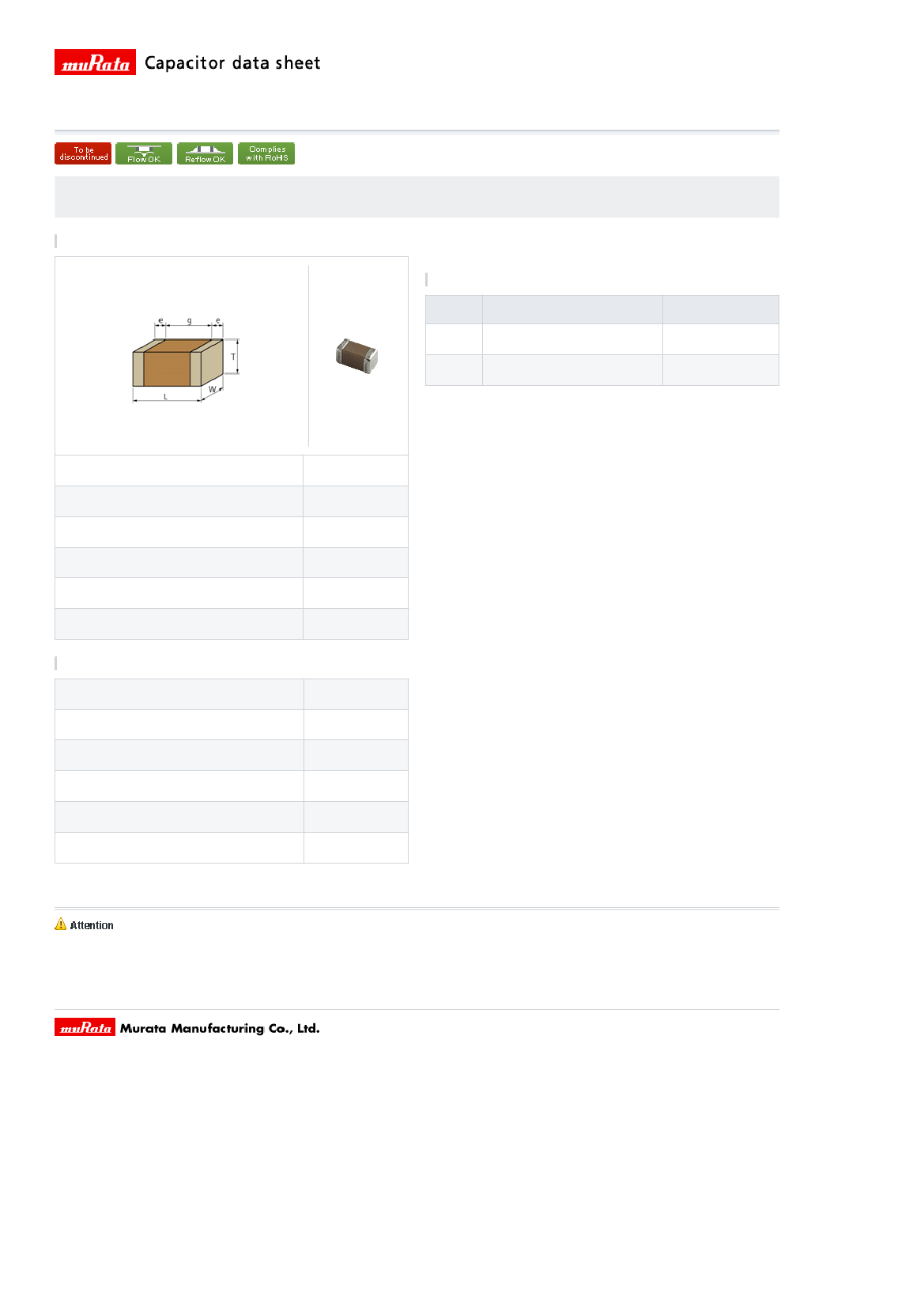

Preview

Download Datasheet

View All

GRM219F51H154ZD01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM219F51H154ZD01D , GRM219F51H154ZD01J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.1mm

1.25 ±0.1mm

0.85 ±0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

0.15µF +80/-20%

50Vdc

Y5V(EIA)

+22.0/-82.0%

-30 to 85℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
