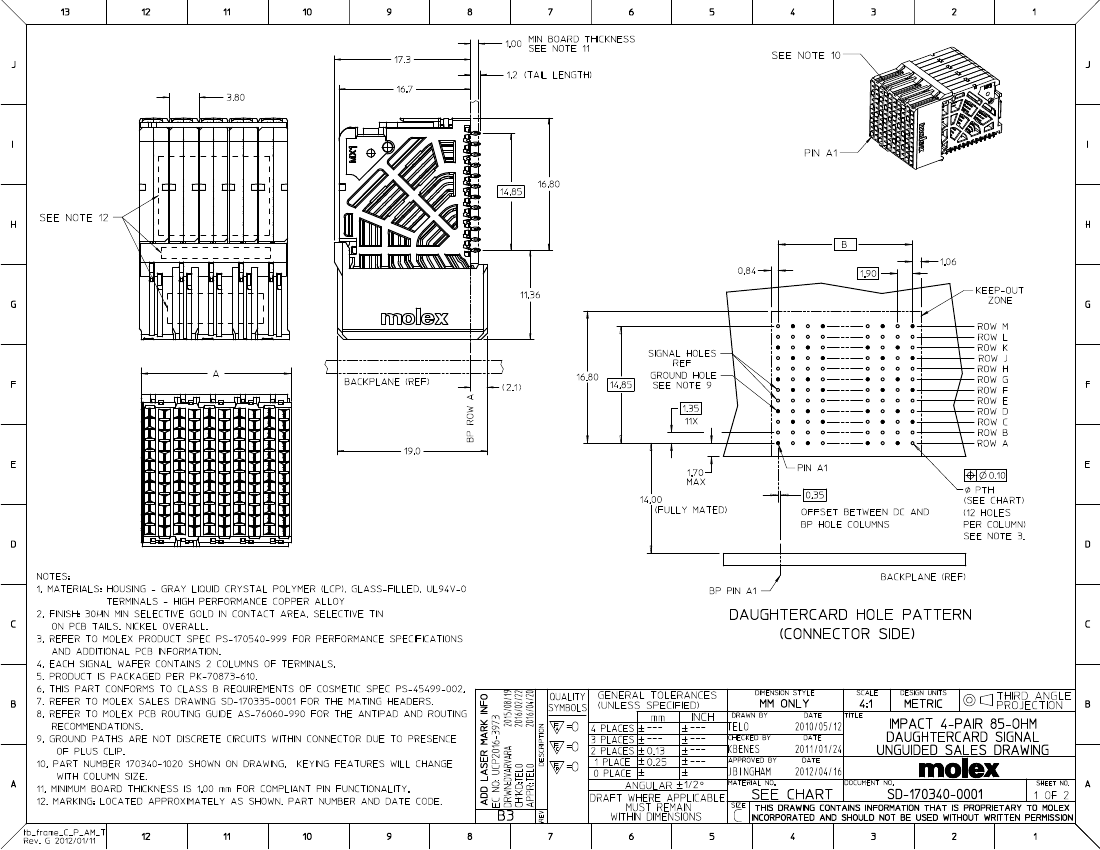

Board Connector,

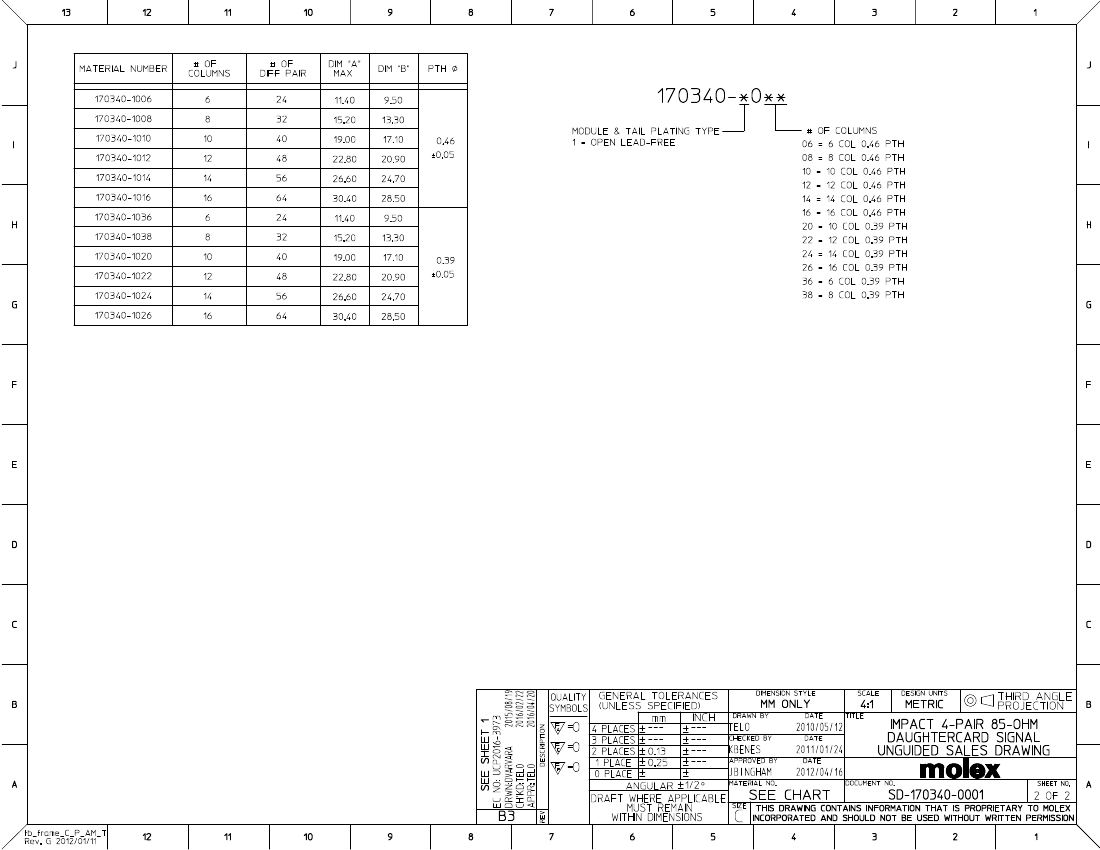

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compli |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact material | NOT SPECIFIED |
| Manufacturer's serial number | 170340 |
| Base Number Matches | 1 |
| 1703401006 | 1703401016 | 1703401038 | 1703401022 | 1703401024 | 1703401026 | 1703401036 | |
|---|---|---|---|---|---|---|---|
| Description | Board Connector, | Board Connector, | Board Connector, 96 Contact(s), 12 Row(s), Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Receptacle, | Board Connector, 144 Contact(s), 12 Row(s), Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Receptacle | Board Connector, 168 Contact(s), 12 Row(s), Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Receptacle | Board Connector, 192 Contact(s), 12 Row(s), Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Receptacle | Board Connector, 72 Contact(s), 12 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, ROHS COMPLIANT |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | compli | compli | compliant | compliant | compliant | compliant | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Manufacturer's serial number | 170340 | - | 170340 | - | 170340 | 170340 | - |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Body/casing type | - | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contact resistance | - | - | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | - |
| Dielectric withstand voltage | - | - | 250VAC V | 250VAC V | 250VAC V | 250VAC V | - |
| Durability | - | - | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | - |
| maximum insertion force | - | - | .3892 N | .3892 N | .3892 N | .3892 N | - |
| Insulation resistance | - | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - |
| Insulator color | - | - | GRAY | GRAY | GRAY | GRAY | - |
| insulator material | - | - | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - |
| Plug contact pitch | - | - | 0.075 inch | 0.075 inch | 0.075 inch | 0.075 inch | - |
| Installation option 1 | - | - | LOCKING | LOCKING | LOCKING | LOCKING | - |
| Installation method | - | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | - | - | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | - | - | ONE | ONE | ONE | ONE | - |
| Number of rows loaded | - | - | 12 | 12 | 12 | 12 | 12 |
| Maximum operating temperature | - | - | 85 °C | 85 °C | 85 °C | 85 °C | - |
| Minimum operating temperature | - | - | -55 °C | -55 °C | -55 °C | -55 °C | - |
| Plating thickness | - | - | 30u inch | 30u inch | 30u inch | 30u inch | - |
| Rated current (signal) | - | - | 0.75 A | 0.75 A | 0.75 A | 0.75 A | - |
| Guideline | - | - | UL | UL | UL | UL | - |
| reliability | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - |
| Terminal length | - | - | 0.047 inch | 0.047 inch | 0.047 inch | 0.047 inch | - |
| Terminal pitch | - | - | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.35 mm |
| Termination type | - | - | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | - | - | 96 | 144 | 168 | 192 | 72 |
| Evacuation force-minimum value | - | - | .0834 N | .0834 N | .0834 N | .0834 N | - |
