Series M
A
Miniature Toggles
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
6A @ 125V AC & 3A @ 250V AC
4A @ 30V DC for On-None-On & On-None-Off; 3A @ 30V DC for all other circuits
Logic Level (gold):
0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Logic/Power Level (gold over silver):
Combines silver & gold ratings
Note: Find additional explanation of dual rating & operating range in Supplement section.
Contact Resistance:
10 milliohms maximum for silver; 20 milliohms maximum for gold
Insulation Resistance:
1,000 megohms minimum @ 500V DC
Dielectric Strength:
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts and case for 1 minute minimum
Mechanical Life:
100,000 operations minimum; 50,000 operations minimum for flat, locking & splashproof devices
Electrical Life:
25,000 operations minimum for silver; 50,000 operations minimum for gold;
50,000 operations minimum for silver at 3A @ 125V AC
Angle of Throw:
25°
Toggle:
Bushing:
Case:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
Brass with chrome plating
Frame:
Stainless steel
Brass with nickel plating
Support Bracket:
Brass with tin plating
Diallyl phthalate resin (UL94V–0)
Phosphor bronze with silver or gold plating
Silver alloy (code W); copper with gold plating (code G); or silver alloy with gold plating (code A)
Silver with silver plating (code W); copper or brass with gold plating (code G);
or silver with gold plating (code A)
Terminals:
Copper or brass with silver plating; or copper or brass with gold plating
Pushbuttons
Rockers
Toggles
Other Ratings
Programmable Illuminated PB
Materials & Finishes
Rotaries
Keylocks
Slides
Environmental Data
Operating Temp Range:
–30°C through +85°C (–22°F through +185°F)
Humidity:
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
Vibration:
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
Shock:
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Sealing:
Splashproof bushing options B3, D3, D8, L3, & L8, which have o-rings inside & outside the
bushing, meet IP67 of IEC60529 Standards.
Mounting Torque:
3.0Nm (26.55 lb
•
in) double nut for large bushing;
1.5Nm (13 lb
•
in) double nut & 0.7Nm (6 lb
•
in) single nut for all other bushings
Soldering:
Wave Soldering (PC version) for Gold: See Profile A in Supplement section.
Manual Soldering for Gold: See Profile A in Supplement section.
Wave Soldering (PC version) for Silver: See Profile B in Supplement section.
Manual Soldering for Silver: See Profile B in Supplement section.
Note: Lever must be in OFF (center) position while soldering.
Cleaning:
These devices are not process sealed. Hand clean locally using alcohol based solution.
Tactiles
Installation
Tilt
Processing
Touch
Indicators
Standards & Certifications
Supplement
Flammability Standards:
UL94V–0 for case
UL: File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” before dash in part number to order UL recognized switch.
All models recognized at 6A @ 125V AC, 3A @ 250V AC or 0.4VA maximum @ 28V DC maximum.
CSA: File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” before dash in part number to order CSA certified switch.
All models certified at 6A @ 125V AC or 3A @ 250V AC or 0.4VA maximum @ 28V maximum.
Accessories
A48
www.nkk.com
Miniature Toggles
Series M
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics
Antirotation design, standard on noncylindrical levers, mates toggle
and bushing; bottom of toggle has two flatted sides which fit into
a complementary opening inside bushing.
Antijamming design protects contacts from damage due
to excessive downward force on actuator.
High torque bushing construction prevents rotation
or separation from frame during installation.
High insulating barriers increase isolation of
circuits in multipole devices and provide
added protection to contact points.
Molded diallyl phthalate case has a UL
flammability rating of 94V-0.
Epoxy sealed terminals prevent entry
of solder flux and other contaminants.
Prominent external insulating barriers
increase insulation resistance and
dielectric strength.
Interlocked actuator block, lever, and interior guide
prevent switch failure due to biased lever movement.
Clinching of frame to case well above base and terminals
provides 1,500V dielectric strength.
Actual Size
Bushing Mount
Page A48
Bracket PC Mount
Page A60
Angle PC Mount
www.nkk.com
Page A66
A49
Series M
Toggles
Angle PC Mount Miniature Toggles
TYPICAL SWITCH ORDERING EXAMPLE
A
A
Rockers
Pushbuttons
Programmable Illuminated PB
Poles
1
2
3
SPDT
DPDT
SP3T
3PDT
4PDT
DP3T
on vertical
models only.
S
S2
S3
E
E2
Small Toggles
.413” (10.5mm) Bat
.200” (5.08mm) Bat
.256” (6.5mm) Bat
.450” (11.4mm) Flatted
.256” (6.5mm) Flatted
A2
S2
A1
S1
Small Bushings
.280” (7.1mm) Smooth with Keyway
.350” (8.9mm) Smooth with Keyway
.280” (7.1mm) Threaded with Keyway
.350” (8.9mm) Threaded with Keyway
A
W
G
Contact Materials & Ratings
Silver; Rated
6A @ 125V AC & 3A @ 250V AC
Gold; Rated
0.4VA max @ 28V AC/DC max
Gold over Silver; Rated
6A @ 125V AC & 0.4VA max @
28V AC/DC max
B
C
Optional Caps
For S Bat Toggle
Conical Cap for S Bat Toggle
A
B
C
E
Cap for Locking Lever
No
Code
A
C
G
Nickel Plated Supplied
with Switch
Black
Blue
Red
F
G
Cap Colors
Black
White
Red
Yellow
Green
Blue
*
4
Keylocks
*
4-pole available
Toggle dimensions are based on use with
a .350” (8.9mm) bushing; add .070”
(1.78mm) to toggle length when combin-
ing with a .280” (7.1mm) bushing.
Rotaries
Circuits
Slides
Locking Lever
ON
ON
(ON)
(ON)
(ON)
ON
(ON)
(ON)
L
.201” (5.1mm) Dia. Locking Lever
L2
Bushing For Locking Levers
Smooth with Keyway for Lever Lock
30
32
40
45
Terminals
Slides
2
3
5
8
9
ON
ON
ON
(ON)
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
ON
ON
ON
.150” (3.81mm)
Right Angle PC (1-3 Pole)
Right Angle PCB
(1 Pole & 0.4VA Rating Only)
.150” (3.81mm)
Vertical PC (1-4 Pole)
.100” (2.54mm)
Vertical PC (1-4 Pole)
Tactiles
*
4
*
6
*
7
Tilt
( ) = Momentary
*
3-ON circuits available
Touch
Standard Toggle, Bushing, & Terminal Combinations:
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Touch
with double and
four pole bases only
S2A2G30, S2A2G40, SS2G30, SS2G40,
LL2G30, & LL2G40
M2012S2A2G40
Indicators
IMPORTANT:
Switches are supplied without UL,
cULus & CSA marking unless specified.
UL, cULus & CSA recognized only when
ordered with marking on the switch.
Specific models, ratings, & ordering in-
structions are noted on General Specifi-
cations page.
Accessories
.200” (5.08mm) Bat Toggle
SPDT
ON-NONE-ON Circuit
Supplement
A1
www.nkk.com
www.nkk.com
A1
Supplement
Accessories
.280” (7.1mm)
Smooth Bushing with Keyway
Gold Contacts
with 0.4VA Rating
Vertical PC Terminals with
.150” (3.81mm) Terminal Spacing
Indicators
Tilt
Tactiles
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
M20
1
2
S2
A2
G
40
Toggles
Series M
Toggles
Angle PC Mount Miniature Toggles
POLES & CIRCUITS
A
(
Toggle Position
) = Momentary
Center
Up
Down
Pole
Model
Keyway
Connected Terminals
Down
Keyway
Throw & Schematics
Up
Note: Terminal numbers are not actually on
the switch.
*
Reverse circuits available for vertical
mount SP & DP upon request.
Rockers
Center
Pushbuttons
*
SP
Programmable Illuminated PB
M2012
M2013
M2015
* M2018
M2019
M2022
* M2023
ON
ON
ON
(ON)
ON
ON
ON
ON
(ON)
ON
ON
ON
ON
(ON)
ON
ON
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
NONE
OFF
NONE
OFF
OFF
NONE
OFF
NONE
OFF
OFF
NONE
OFF
NONE
OFF
OFF
ON
ON
(ON)
(ON)
(ON)
ON
ON
(ON)
(ON)
(ON)
ON
ON
(ON)
(ON)
(ON)
ON
ON
(ON)
(ON)
(ON)
2 (COM)
2-3
OPEN
2-1
SPDT
3
1
DP
M2025
* M2028
M2029
M2032
M2033
M2035
M2038
M2039
M2042
M2043
M2045
M2048
M2049
2-3 5-6
OPEN
2-1 5-4
DPDT
2
3
(COM)
1
6
5
4
Keylocks
3P
2-3 5-6
8-9
OPEN
2-1 5-4
8-7
3PDT
2
3
1
6
5
(COM)
4
9
8
7
Rotaries
4P
2-3 5-6
8-9 11-12
OPEN
2-1 5-4
8-7 11-10
4PDT
2
3
1
6
5
(COM)
4
9
8
7
12
11
10
Slides
For 3 Throw (3-On)
Connected Terminals & Schematics
Tactiles
Pole Model Down Center
Up
Down
External
Connection
2 (in)
5
Center
External
Connection
2 (in)
5
Up
External
Connection
2 (in)
5
Tilt
SP
M2024
ON
M2026
(ON)
M2027
ON
ON
ON
ON
ON
(ON)
(ON)
1 (out)
3 4 (out) 6 (out)
1 (out)
3 4 (out) 6 (out)
1 (out)
3 4 (out) 6 (out)
2-3 5-6
Touch
External
Connection
2 (in)
5
External
Connection
8 (in)
11
2-3 5-4
External
Connection
2 (in)
5
External
Connection
8 (in)
11
2-1 5-4
External
Connection
2 (in)
5
External
Connection
8 (in)
11
Indicators
DP
M2044
ON
M2046
(ON)
M2047
ON
ON
ON
ON
ON
(ON)
(ON)
1 (out) 3 4 (out) 6 (out) 7 (out) 9 10 (out) 12 (out)
1 (out)
3 4 (out) 6 (out) 7 (out) 9 10 (out) 12 (out)
1 (out) 3 4 (out) 6 (out) 7 (out) 9 10 (out) 12 (out)
2-3 5-6
8-9 11-12
2-3 5-4
8-9 11-10
2-1 5-4
8-7 11-10
Accessories
The SP3T model utilizes a
double pole base.
(out)
External
Conn
6
5
3
2
1
The DP3T model utilizes a
four pole base.
Common
(in)
(out)
(out)
External
Conn
Common
(in)
(out)
12
11
10
9
8
7
6
(out)
3
5
4
2
1
Supplement
External connection must be
made during field installation.
A68
4
Common
(in)
(out)
(out)
External connection must be
made during field installation.
www.nkk.com
(out)
(out)
Angle PC Mount Miniature Toggles

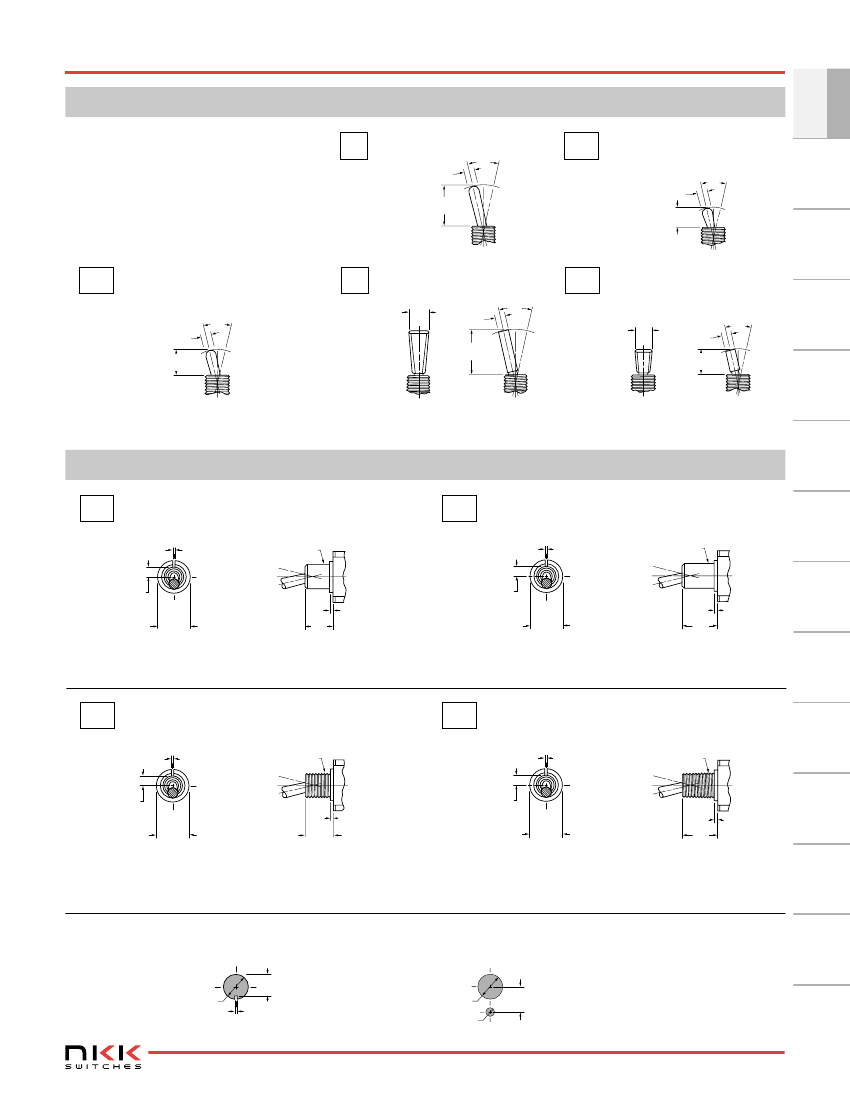

SMALL TOGGLES
Important:
Toggle length changes based on
bushing selected. All illustrations are
shown with .350” (8.9mm) long
bushing. When using a .280” (7.1mm)
long bushing, toggle length increases
.070” (1.78mm).
.256” (6.5mm)
Bat
25°
(2.7) Dia
.106
(6.5)
.256
Series M
A
S2
.200” (5.08mm)
Bat
(2.7) Dia
.106
(5.08)
.200
25°
(2.8) Dia
.110
(10.5)
.413
(5.08)
.200
(2.54)
.100
(11.4)
.450
25°
(4.2)
.165
(2.5)
.098
(6.5)
.256
25°
SMALL BUSHINGS
A2
.280” (7.1mm)
Smooth with Keyway
(0.8)
.031
(6.2) Dia
.244
(0.8)
.031
(6.2) Dia
.244
(8.0) Dia
.315
(0.9)
.035
(7.1)
.280
(8.0) Dia
.315
(0.9)
.035
(8.9)
.350
A1
.280” (7.1mm)
Threaded with Keyway
(0.8)
.031
1/4-40 Thd
S1
.350” (8.9mm)
Threaded with Keyway
(0.8)
.031
1/4-40 Thd
(8.0) Dia
.315
(0.9)
.035
(7.1)
.280
(8.0) Dia
.315
(0.9)
.035
(8.9)
.350
When using this bushing, toggle length is increased
by .070” (1.78mm). Maximum Panel Thickness
with Standard Hardware: .031” (0.8mm)
Panel Cutouts
For A2, S2, A1 or
S1 Bushing
with Keyway
For A1 or
S1 Bushing
with Locking Ring
Maximum Panel Thickness with
Standard Hardware: .102” (2.6mm)
Standard Hardware:
2 Hex Nuts (AT513H)
1 Lockwasher (AT509)
1 Locking Ring (AT507H)
For dimensions, see Accessories
& Hardware section.
A69
(6.5) Dia
.256
(0.6)
.024
www.nkk.com
Supplement
(5.6)
.220
(6.5) Dia
.256
(2.2) Dia
.087
(6.5)
.256
Accessories
Indicators
Touch
(2.5)
.098
(2.5)
.098
Tilt
Tactiles
When using this bushing, toggle length
is increased by .070” (1.78mm).
Slides
(2.5)
.098
(2.5)
.098
Rotaries
S2
.350” (8.9mm)
Smooth with Keyway
Keylocks
Standard Material & Finish:
Brass with Bright Chrome
Contact factory for optional finishes.
Programmable Illuminated PB
S3
E
.450” (11.4mm)
Flatted
E2
.256” (6.5mm)
Flatted
Pushbuttons
Rockers
S
.413” (10.5mm)
Bat
25°
Toggles
Programming Basics
京公网安备 11010802033920号
EEWORLD
