5KQ50 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KQ50

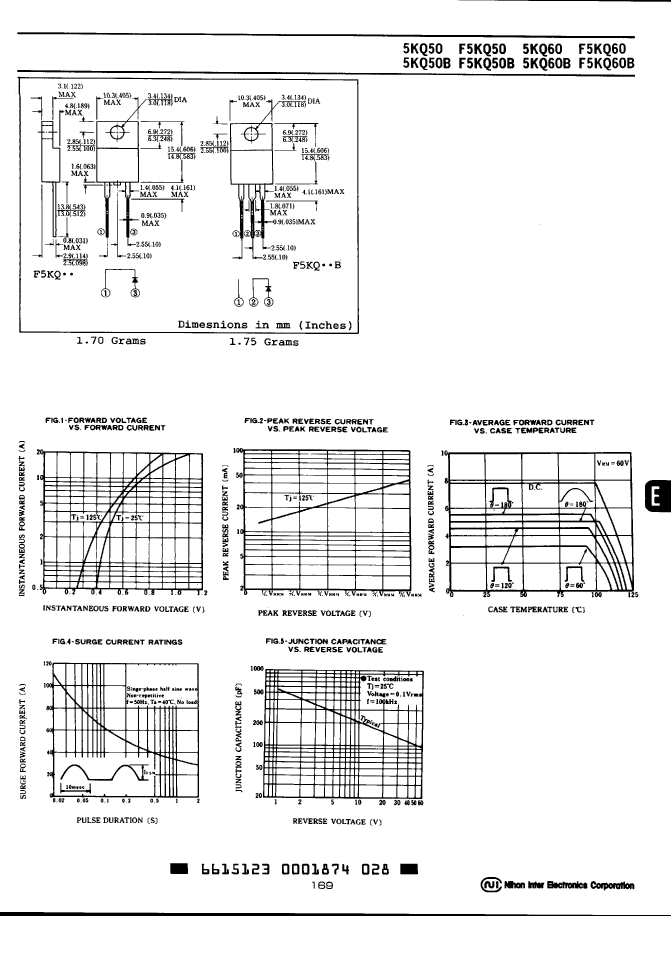

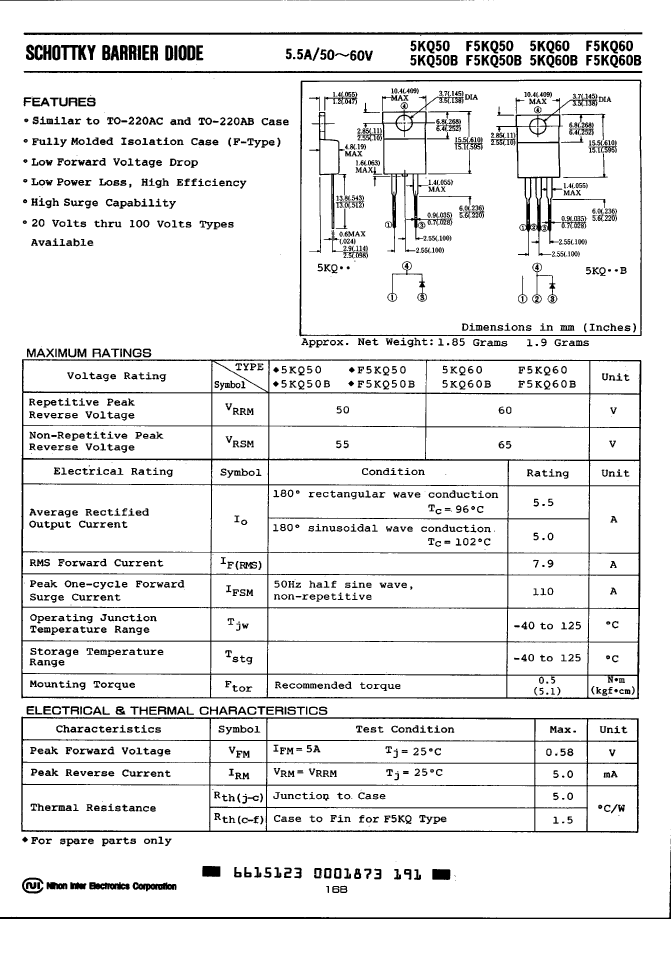

Preview

5KQ50: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN; CategoryDiscrete semiconductor diode; File Size77KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

5KQ50 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN

5KQ50 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	5000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

5KQ50 Related Products

	5KQ50	5KQ50B	F5KQ50B	F5KQ50	5KQ60B	F5KQ60B	F5KQ60	5KQ60
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN
Parts packaging code	TO-220AC	TO-220AB	TO-220AB	TO-220AC	TO-220AB	TO-220AB	TO-220AC	TO-220AC
package instruction	R-PSFM-T2	R-PSFM-T3	R-PSFM-T3	R-PSFM-T2	R-PSFM-T3	R-PSFM-T3	R-PSFM-T2	R-PSFM-T2
Contacts	2	3	3	2	3	3	2	2
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	ISOLATED	ISOLATED	CATHODE	ISOLATED	ISOLATED	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V
JESD-30 code	R-PSFM-T2	R-PSFM-T3	R-PSFM-T3	R-PSFM-T2	R-PSFM-T3	R-PSFM-T3	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A	110 A	110 A	110 A	110 A	110 A	110 A	110 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	3	3	2	3	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V	50 V	50 V	60 V	60 V	60 V	60 V
Maximum reverse current	5000 µA	5000 µA	5000 µA	5000 µA	5000 µA	5000 µA	5000 µA	5000 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	-	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
