ECL06B025-FTRLH: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 6A, 25V V(RRM), Silicon, TO-252AA; CategoryDiscrete semiconductor diode; File Size67KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

ECL06B025-FTRLH Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 6A, 25V V(RRM), Silicon, TO-252AA

ECL06B025-FTRLH Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-PSSO-G2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.47 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	45 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	25 V
Maximum reverse current	3000 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE

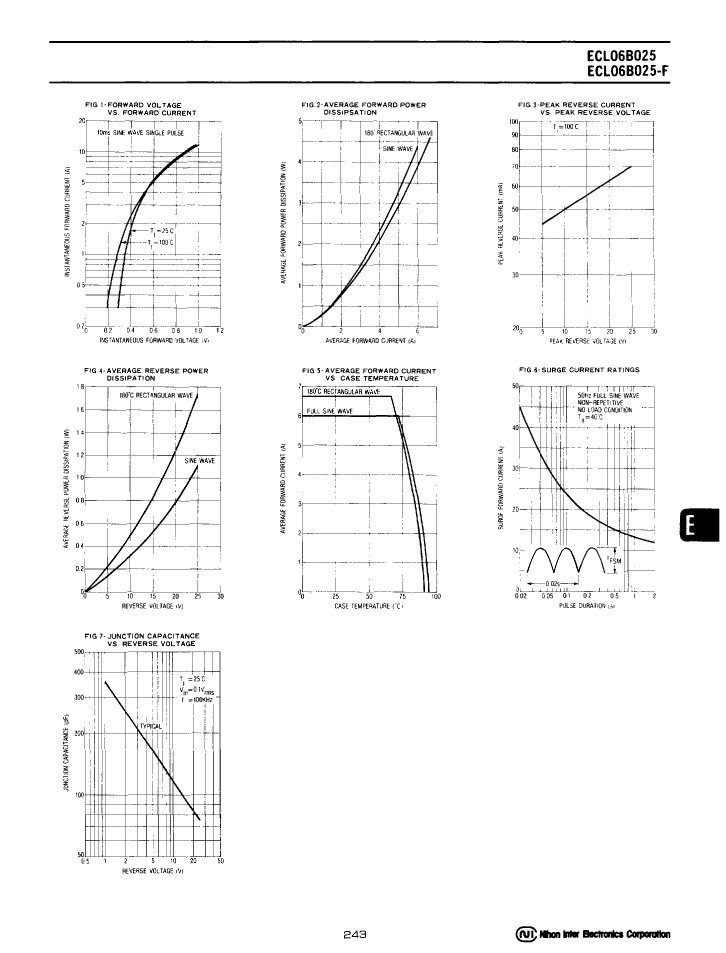

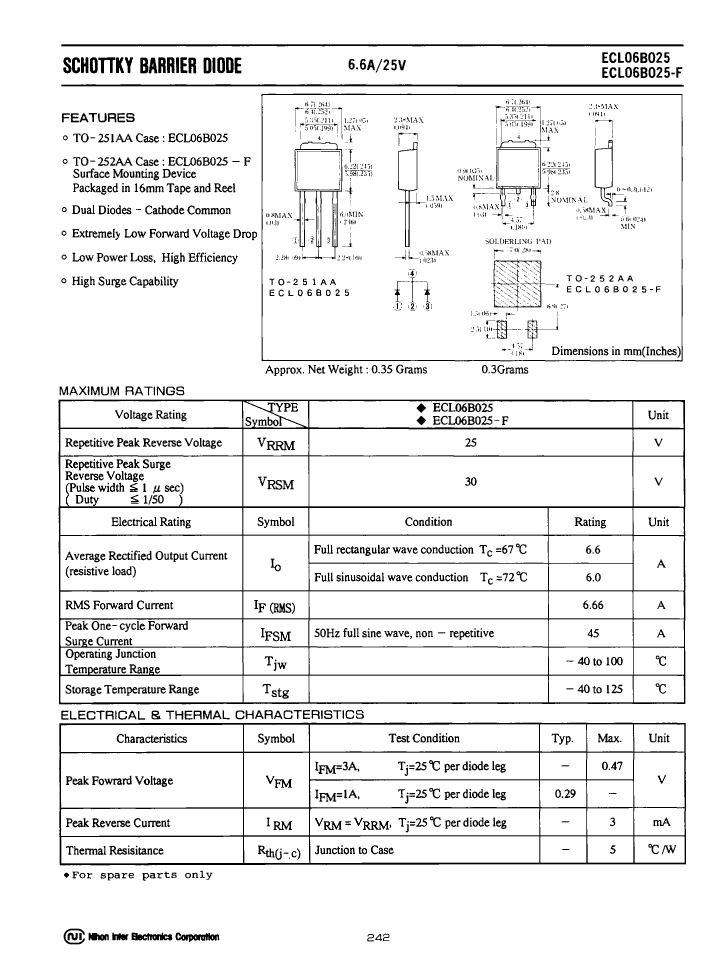

ECL06B025-FTRLH Preview
