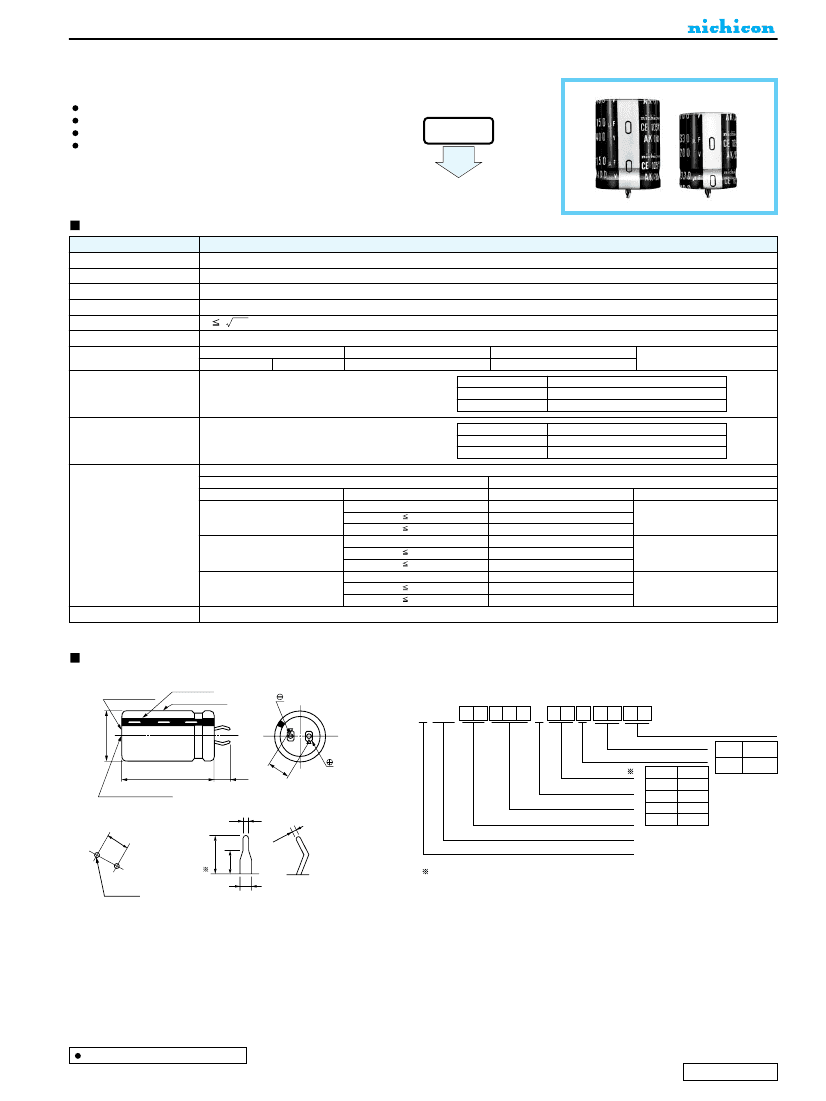

ALUMINUM ELECTROLYTIC CAPACITORS
AK
Snap-in Terminal Type, Permissible Abnormal Voltage,
Wide Temperature Range
series
Withstanding 2000 hours application of ripple current at 105°C.
Extended voltage range at 200V, 400V and 420V.
Improved safety features for abnormally excessive voltage.
Ideally suited for the equipment used at voltage fluctuating area.
AK
Smaller
AQ
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Stability at Low Temperature
–
25 ~ +105°C
Performance Characteristics
200
•
400
•
420V
33 ~ 1200µF
± 20% at 120Hz, 20°C
I
3 CV
(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF),V : Voltage(V)]
0.20MAX. 120Hz 20°C
Rated voltage(V)
Impedance ratio Z—25°C/Z+20°C
200
8
400
•
420
8
Measurement frequency : 120Hz
Endurance
After an application of DC voltage (in the range of rated
DC voltage even after over-lapping the specified ripple
current) for 2000 hours at 105°C, capacitors meet
the characteristic requirements listed at right.
After leaving capacitors under no load at 105°C for 1000
hours, they meet the requirements listed at right.
Capacitance change Within ±20% of initial value
tan
δ
200% or less of initial specified value
Initial specified value or less
Leakage current
Capacitance change Within ±15% of initial value
tan
δ
150% or less of initial specified value
Leakage current
Initial specified value or less
Shelf Life
Safety Performance
The pressure relief vent will operate in normal conditions, with no dangerous conditions such as flames, ignitions or dispersion of pieces of the capacitor and/or case.
rating
test conditions
Capacitance (µF)
Limited DC current
Test voltage
Voltage (V)
330
C < 330
4A
200
330
C < 470
5A
300VDC and 375VDC
470
C
< 470
7A
330
C < 100
2A
400
100
C < 220
4A
500VDC and 600VDC
220
C
< 470
7A
330
C < 100
2A
420
520VDC and 630VDC
100
C < 220
4A
220
C
< 470
7A
Printed with white color letter on dark blue sleeve
Marking
Drawing
Bottom plate
(code BP only)
Polarity bar
Sleeve (P.V.C.)
Type numbering system (Example : 200V 680
µ
F)
1
2
3
4
5
6
7
8
9
10 11 12
13 14
15 16
L A K 2 D 6 8 1 MH L A 5 0
φ
D
+1MAX.
Bottom Plate
Case length code
BP
With Bottom
Plate
10
L±
2
Case dia. code
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (680µF)
φD
22
25
30
35
Code
Z
A
B
C
Without
code less Bottom Plate
Pressure relief vent
4.0±0.5
0.8
+0.2
-0.1
.2
+0 .1
.8
-0
4.0±0.5
10
±
0.1
0
Rated voltage (200V)
Series name
Type
2.5
Please contact to us if Eco-Products are required.
2-2φ±0.1
(PC board hole dimensions)
1.5
+0.2
-0.1
(Terminal dimensions)
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100S
