NCM21NPO472F100TRF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NCM21NPO472F100TRF

NCM21NPO472F100TRF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0047uF, Through Hole Mount, 2012, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size51KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NCM21NPO472F100TRF Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0047uF, Through Hole Mount, 2012, RADIAL LEADED, ROHS COMPLIANT

NCM21NPO472F100TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	5.08 mm
JESD-609 code	e3
length	5.08 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	TR
positive tolerance	1%
Rated (DC) voltage (URdc)	100 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	3.18 mm

Preview

Download Datasheet

View All

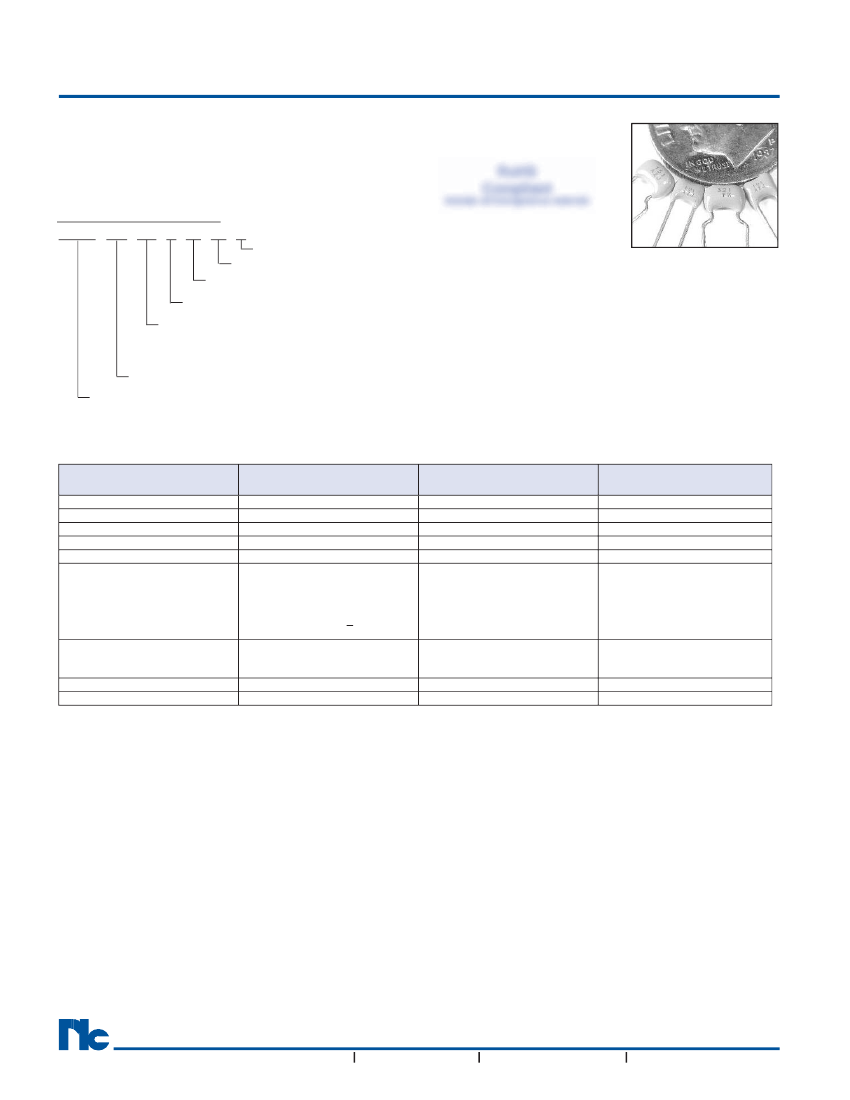

NCM Series

Conformally Coated, Radial Multilayer Ceramic Capacitors

FEATURES

• FLAME RETARDANT EPOXY COATING

•

TEMPERATURE COEFFICIENTS NPO, X7R, Z5U

• 50, 100 AND 200 VOLTS

• AVAILABLE ON TAPE AND REEL

PART NUMBER SYSTEM

NCM20 Z5U 104 M

50 TR

RoHS Compliant

Tape and Reel

Voltage

Tolerance Code (see speciﬁcations table below)

Capacitance code, expressed in pF,

ﬁrst two digits are signiﬁcant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefﬁcient

Series, Size Code

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

SPECIFICATIONS

Characteristics

Capacitance Range*

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characterisitcs

Voltage Rating

NPO

1pF ~ 0.1µF

±1%(F), ±2%(G), ±5%(J)

-55°C to +125°C

0±30ppm/°C

50, 100 & 200 Vdc

0.15% Max. (+25°C and +125°C)

for values greater than 30 pF.

For values of 30pF and below:

Q = 20 x C +400 1.0Vrms

1MHz for values < 1000pF

1KHz for values > 1000pF

100K Megohms or

1000 Megohm -µF Min.,

Whichever is Less

250% of Rated Voltage

200% of Rated Voltage at +125°C

X7R

470pF ~ 4.7µF

±5%(J), ±10%(K), ±20%(M)

-55°C to +125°C

±15% (0 Vdc)

50 & 100 Vdc

Z5U

1000pF ~ 4.7µF

±20%(M), +80%/-20%(Z)

+10°C to +85°C

+22%/-56%

50 & 100 Vdc

Dissipation Factor

2.5% Max. at 1KHz, 1Vrms Max.

4.0% Max. at 1KHz, 5Vrms Max.

Insulation Resistance 25°C

(Mil- STD-202, Method 302)

Dielectric Strength

Life Test (1000 hours)

100K Megohms or

1000 Megohm -µF Min.,

Whichever is Less

250% of Rated Voltage

200% of Rated Voltage at +125°C

10K Megohms or

100 Megohm -µF Min.,

Whichever is Less

200% of Rated Voltage

150% of Rated Voltage at +85°C
