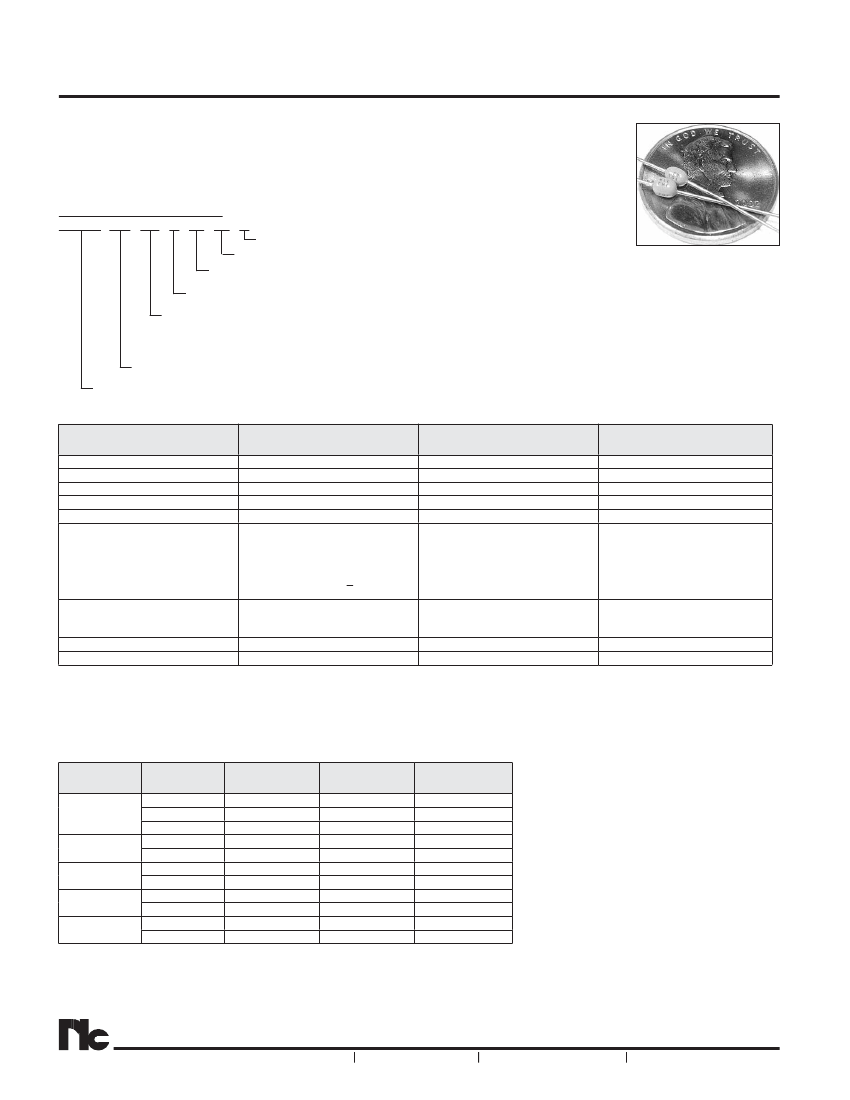

Axial Multilayer Ceramic Capacitors
FEATURES
• CONFORMALLY COATED, MINIATURE SIZE
• 50, 100, AND 200 Vdc
• NPO, X7R, AND Z5U TEMPERATURE COEFFICIENTS
• SUPPLIED ON TAPE AND REEL
PART NUMBER SYSTEM
NCMA20 Z5U 104 M
50 TR
F
RoHS Compliant
Tape and Reel
Voltage
Tolerance Code (see specifications table below)
Capacitance code, expressed in pF,
first two digits are significant, third digit is no. of zeros. “R” indicates
decimal for under 10pF
Temperature Coefficient
Series, Size Code
NCMA Series
*See Part Number System for Details
SPECIFICATIONS
Characteristics
Capacitance Range*
Capacitance Tolerance (Code)
Operating Temperature Range
Temperature Characterisitcs
Voltage Rating
NPO
1pF ~ 0.01µF
±1%(F), ±2%(G), ±5%(J)
-55°C to +125°C
0±30ppm/°C
50, 100 & 200 Vdc
0.15% Max. (+25°C and +125°C)
for values greater than 30 pF.
For values of 30pF and below:
Q = 20 x C +400 1.0Vrms
1MHz for values < 1000pF
1KHz for values > 1000pF
100K Megohms or
1000 Megohm -µF Min.,
Whichever is Less
250% of Rated Voltage
200% of Rated Voltage at +125°C
X7R
220pF ~ 0.47µF
±5%(J), ±10%(K), ±20%(M)
-55°C to +125°C
±15% (0 Vdc)
50, 100 & 200 Vdc
Z5U
0.01µF ~ 1.0µF
±20%(M), +80%/-20%(Z)
+10°C to +85°C
+22%/-56%
50 & 100 Vdc
Dissipation Factor
2.5% Max. at 1KHz, 1Vrms Max.
4.0% Max. at 1KHz, 5Vrms Max.
Insulation Resistance 25°C
(Mil- STD-202, Method 302)
Dielectric Strength
Life Test (1000 hours)
100K Megohms or
1000 Megohm -µF Min.,
Whichever is Less
250% of Rated Voltage
200% of Rated Voltage at +125°C
10K Megohms or
100 Megohm -µF Min.,
Whichever is Less
200% of Rated Voltage
150% of Rated Voltage at +85°C
SIZE CODE AND AVAILABLE CAPACITANCE RANGE
Size Code
NCMA10
NCMA11
NCMA20
NCMA30
NCMA40
WVDC
50
100
200
50
100
50
100
50
100
50
100
NPO
X7R
Z5U
1000pF~1200pF 8200pF~0.047μF 0.068μF~0.22μF
150pF~820pF
560pF~0.015μF 0.01μF~0.047μF
1pF~330pF*
220pF~0.01μF
-
1800pF~3900pF 0.047μF~0.1μF
0.22μF~0.047μF
1000pF~2700pF 0.018μF~0.039μF
0.1μF
0.047μF~0.1μF
1800pF~3900pF 0.027μF~0.1μF
1000pF~1800pF 8200pF~0.033μF 0.033μF~0.047μF
4700pF~5600pF 0.056μF~0.33μF
0.15μF~1.0μF
1800pF~3900pF 0.022μF~0.1μF
0.068μF~0.33μF
8200pF~0.01μF
0.33μF~0.47μF
-
4700pF-8200pF
0.12μF~0.18μF
0.15μF~0.47μF
*-Selected values, Please contact NIC for availability.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
69
