NCMA10NPO181K100TRF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NCMA10NPO181K100TRF

NCMA10NPO181K100TRF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size116KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NCMA10NPO181K100TRF Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

NCMA10NPO181K100TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.00018 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Selected Values, Contact NIC
diameter	2.54 mm
dielectric materials	CERAMIC
JESD-609 code	e3
length	4.32 mm
Manufacturer's serial number	NCMA
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR, 14 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
series	NCMA
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WIRE

Preview

Download Datasheet

View All

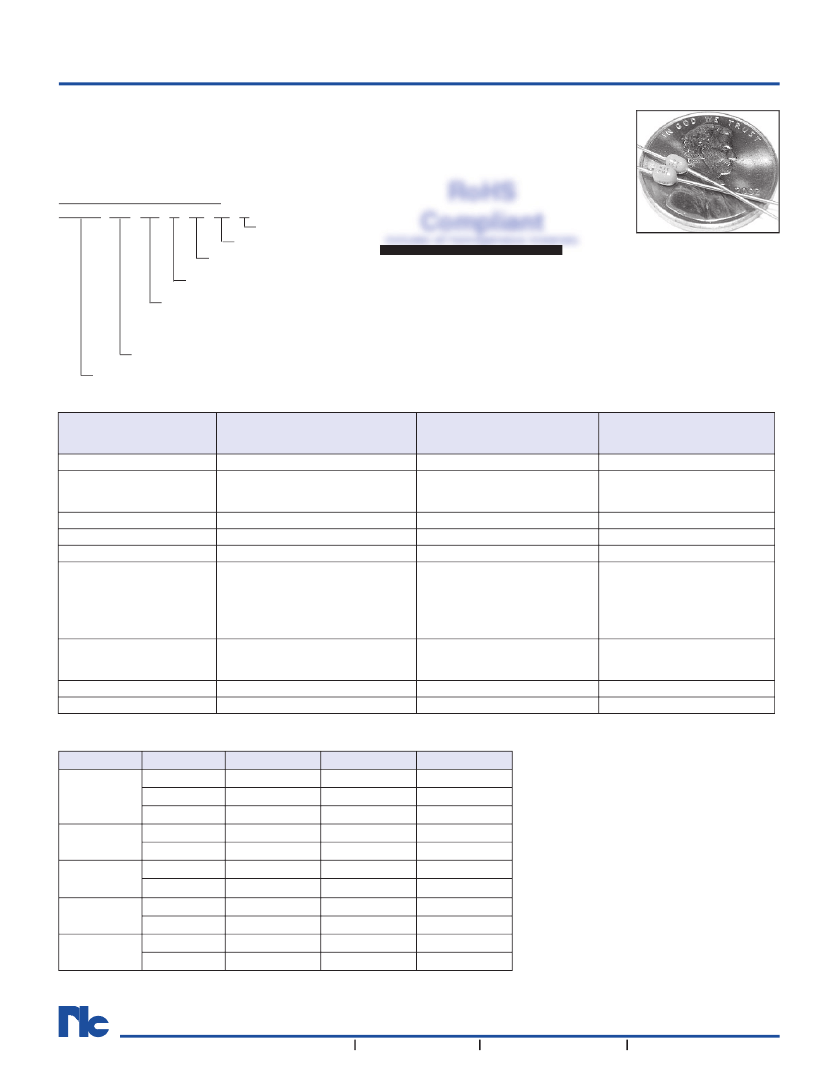

Axial Multilayer Ceramic Capacitors

FEATURES

• CONFORMALLY COATED, MINIATURE SIZE

• 50, 100, AND 200 Vdc

• NPO, X7R, AND Z5U TEMPERATURE COEFFICIENTS

• TAPE AND REEL

NCMA20 Z5U 104 M

NCMA Series

PART NUMBER SYSTEM

50 TR

RoHS Compliant

Tape and Reel

includes all homogeneous materials

*See Part

Number System for Details

RoHS

Compliant

Voltage

Tolerance Code (see specifications table below)

Capacitance code, expressed in pF,

first two digits are significant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefficient

Series, Size Code

SPECIFICATIONS

Characteristics

Capacitance Range

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characteristics

Voltage Rating

NPO

1pF ~ .01

µF

±1%(F), ±2%(G), ±5%(J), ±10%(K)

-55

C to +125

0±30ppm/

50, 100 & 200 Vdc

0.15% Max. (+25

C and +125

For Values Greater Than 30pF

For Values of 30pF and Below:

Q = 20 x C +400

1.0 Vrms, 1 MHz For Values

≤

1000pF

and 1kHz For Values > 1000pF

100K Megohms or

1000 Megohms-

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

X7R

220pF ~.47

µF

±5%(J), ±10%(K), ±20%(M)

-55

C to +125

±15% (0 Vdc)

50, 100 & 200 Vdc

Z5U

.01

F ~ 1.0

µF

±20%(M), +80 -20%(Z)

+10

C to +85

+22%, -56%

50 & 100 Vdc

Dissipation Factor

2.5% Max. at 1 kHz 1 Vrms Max.

4.0% Max. at 1kHz, 5Vrms Max.

Insulation Resistance 25

(MIL-STD-202-Method 302)

Dielectric Strength

Life Test (1000 hours)

100K Megohms or

1000 Megohms-

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

10K Megohms or

100 Megohms-

F Min.,

Whichever is Less

200% of Rated Vdc

150% of Rated Voltage at +85°C

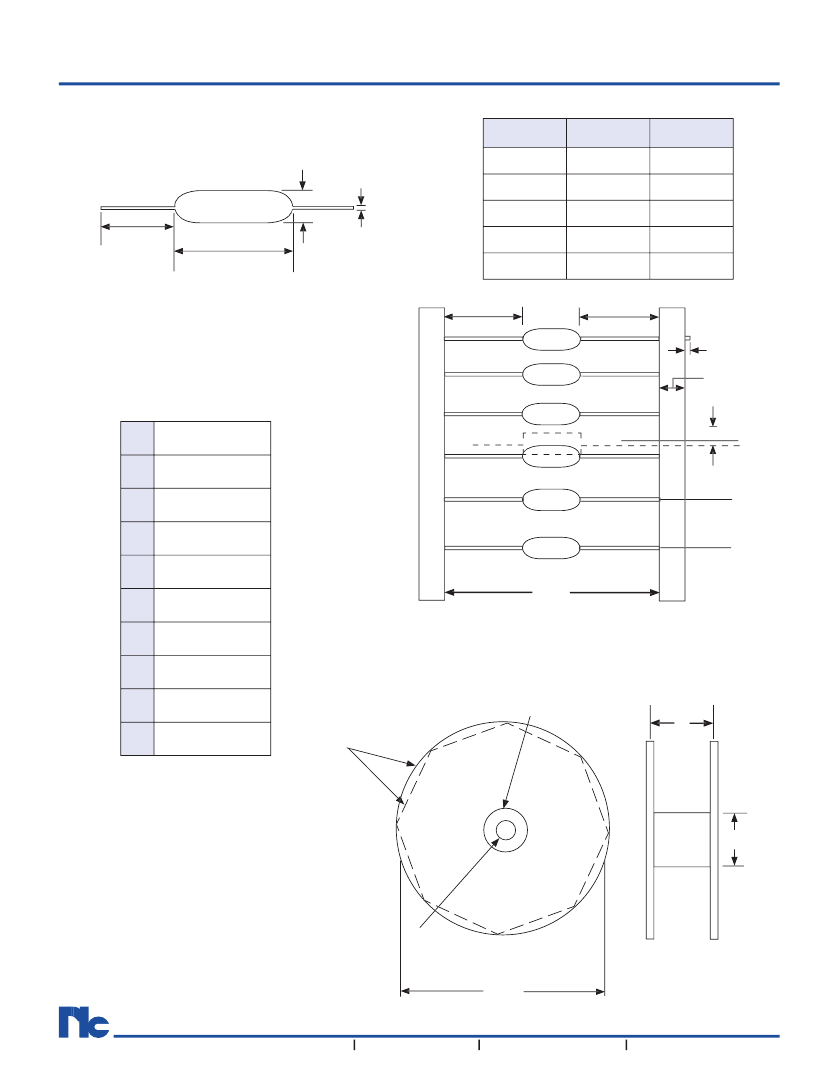

SIZE CODE AND AVAILABLE CAPACITANCE RANGE

Size Code

NCMA 10

WVDC

100

200

NCMA 11

NCMA 20

NCMA 30

NCMA 40

100

NPO

1000pF~1200pF

150pF~820pF

1pF~330pF*

1800pF~3900pF

1000pF~2700pF

1800pF~3900pF

1000pF~1800pF

4700pF~5600pF

1800pF~3900pF

8200pF~.01

µF

4700pF~8200pF

X7R

8200pF~.047

µF

560pF~.015

µF

220pF~.01

µF

.047

F~.1

µF

.018

µF

~.039

µF

.027

µF

~.1

µF

8200pF~.033

µF

.056

µF

~.33

µF

.022

µF

~.1

µF

.33

µF

~.47

µF

.12

F~.18

µF

Z5U

.068

F~.22

µF

.01

µF

~.047

µF

.22

µF

~.47

µF

.047

µF

~.1

µF

.033

µF

~.047

µF

.15

µF

~1.0

µF

.068

µF

~.33

µF

.15

µF

~.47

µF

*-Selected values, Please contact NIC for availability.

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
