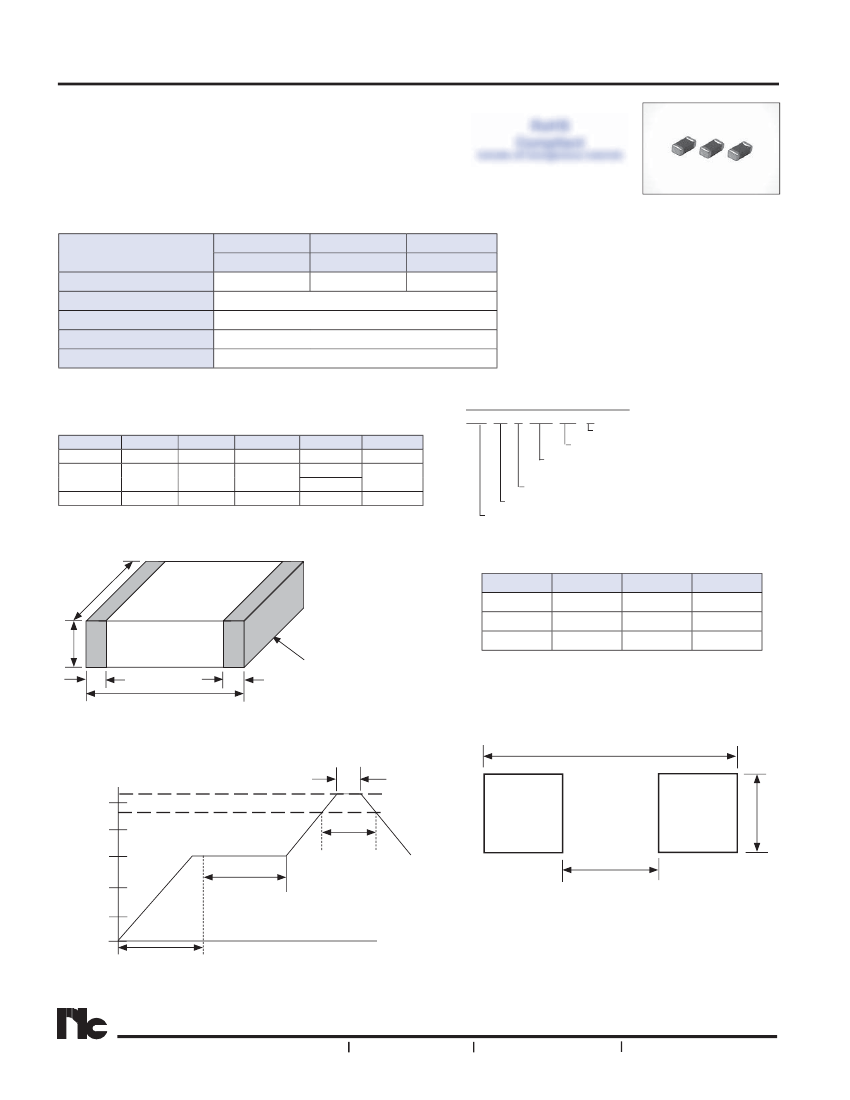

Ferrite Chip Inductor
FEATURES
• SURFACE MOUNT CASE SIZES (0603 ~ 1206)
• DURABLE MULTILAYER CONSTRUCTION
• MAGNETICALLY SHEILDED
• TAPE & REEL PACKAGING FOR AUTOMATIC INSERTION
• BOTH FLOW AND REFLOW SOLDERABLE
• Pb-FREE/RoHS COMPLIANT
SPECIFICATIONS
Case Size
Inductance Range
Available Tolerance*
Temperature Range
Resistance to Solder Heat
Temperature Rise
NFI06
0603
0.047μH ~ 10μH
NFI08
0805
0.047μH ~ 33μH
-40°C ~ +85°C
260°C for 10 seconds
Delta T at IDC +30°C max.
NFI12
1206
0.12μH ~ 33μH
NFI Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
5% (J), 10% (K), 15% (L), 20% (M), 25% (N)
*10% (K) tolerance is standard. Minimum order requirement may apply for optional tolerances.
PART NUMBER SYSTEM
CASE SIZE DIMENSIONS (mm)
Type
NFI06
NFI08
NFI12
Case Size
A
B
0603
1.6 ± 0.15 0.8 ± 0.15
0805
1206
C
0.8 ± 0.15
0.85 ± 0.20
2.0 ± 0.15 1.25 ± 0.15
1.25 ± 0.20
3.2 ± 0.20 1.6 ± 0.20 1.1 ± 0.30
D
0.3 ± 0.2
0.5 ± 0.3
0.5 ± 0.3
NFI 06 K R22 TR F
RoHS Compliant
Tape & Reel Packaging
Inductance Code, value in
μH,
R = decimal point
Tolerance Code (see specifications table)
Case Code (see available values tables)
Series
DIMENSIONS (mm)
LAND PATTERN DIMENSIONS (mm)
B
Case Size
0603
0805
C
D
D
TERMINATION:
(Nickel Barrier
with Sn Finish)
E
2.6
3
4.4
F
0.6
1
2.2
G
0.8
1
1.4
1206
A
RECOMMENDED REFLOW SOLDERING PROFILE
Peak Temperature
(260°C for 10 sec.)
E
Temperature - Deg. C
250
200
150
100
50
25
60 sec.
150°C 60 sec.
Time above 230°C
60 sec.
G
F
Time (Seconds)
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1

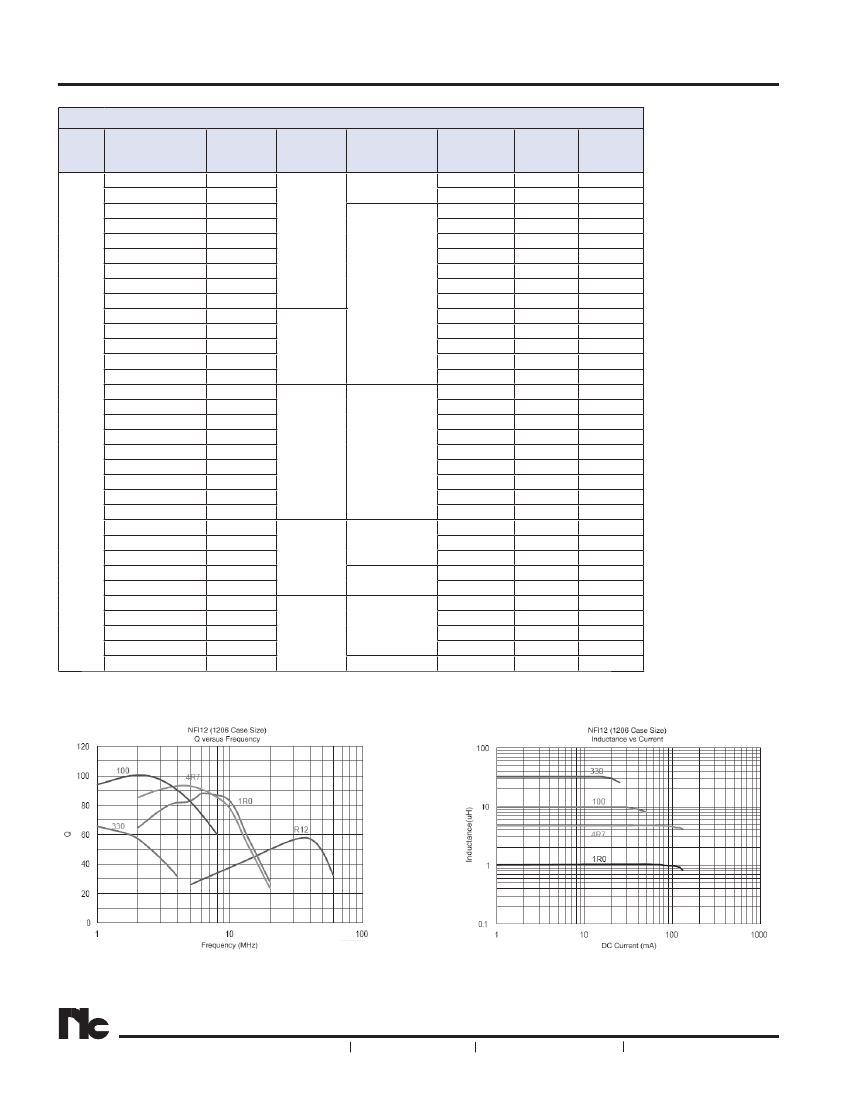

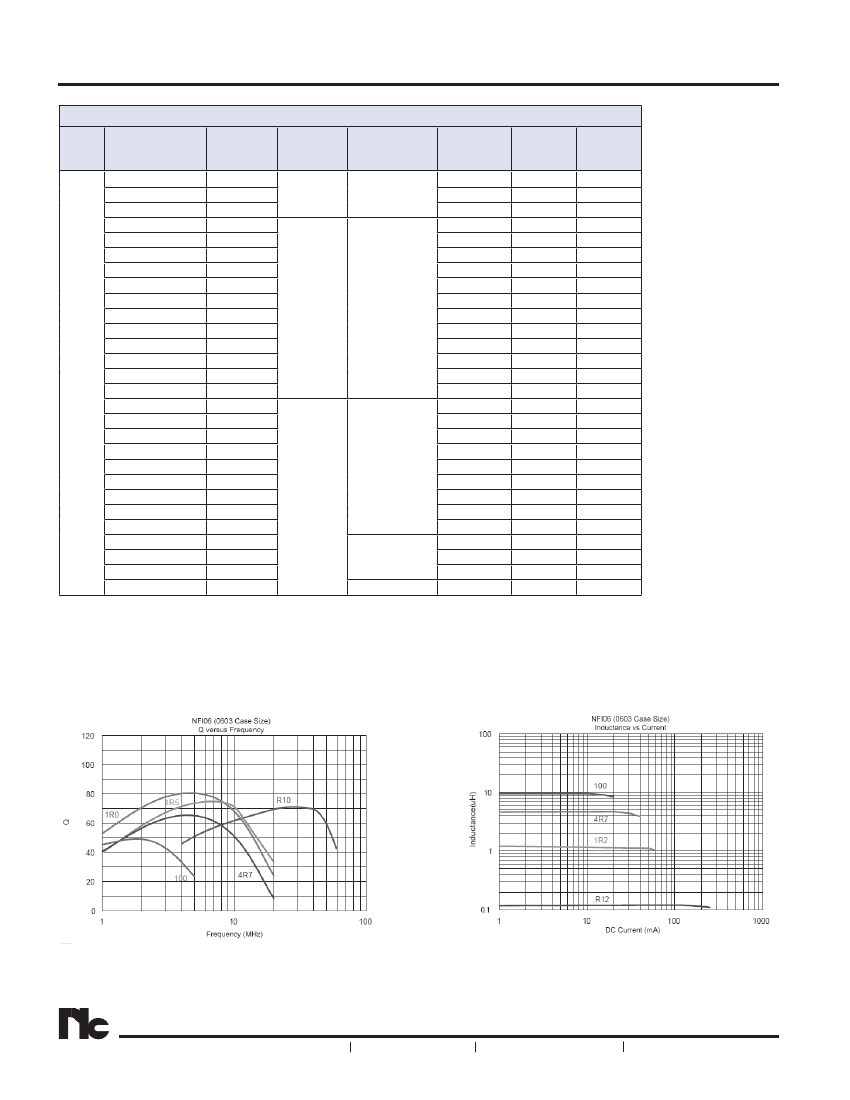

Ferrite Chip Inductor
PRESSED PAPER CARRIER TAPE DIMENSIONS (mm)
Size
NFI06
NFI08
B(mm)
1.85±0.05
2.30±0.05
A(mm)
1.05±0.05
1.50±0.05
K(mm)
0.95±0.05
0.95±0.05
1.75±0.1
NFI Series
E(mm)
3.5±0.05
P(mm)
4.0±0.10
t(mm)
0.95±0.05
W
8.0±0.10
4.0 ±0.1
1.5 ±0.1
t
W
E
P
A
B
K
EMBOSSED PLASTIC CARRIER TAPE DIMENSIONS (mm)
Size
NFI08*
B(mm)
2.35±0.10
A(mm)
1.50±0.10
K(mm)
1.45±0.10
1.27±0.10
1.75±0.1
E(mm)
3.5±0.05
P(mm)
4.0±0.10
t(mm)
0.22±0.05
W
8.0±0.10
NFI12
3.50±0.10
1.88±0.10
*Parts with 1.25mm thickness
4.0 ±0.1
1.5 ±0.1
t
W
E
P
A
B
K
REEL DIMENSIONS (mm)
Series
NFI06
NFI08
NFI08*
NFI12
A ± 2.0 B ± 2.0
178
60
D ± 0.5
10.5
E ± 0.5
2.0
R ± 0.5
13.5
t ± 0.5
9.0
Quantity/Reel
4,000
4,000
2,000
3,000
E
R
Dφ
A
t
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
B
Specifications are subject to change
5
