3M
™

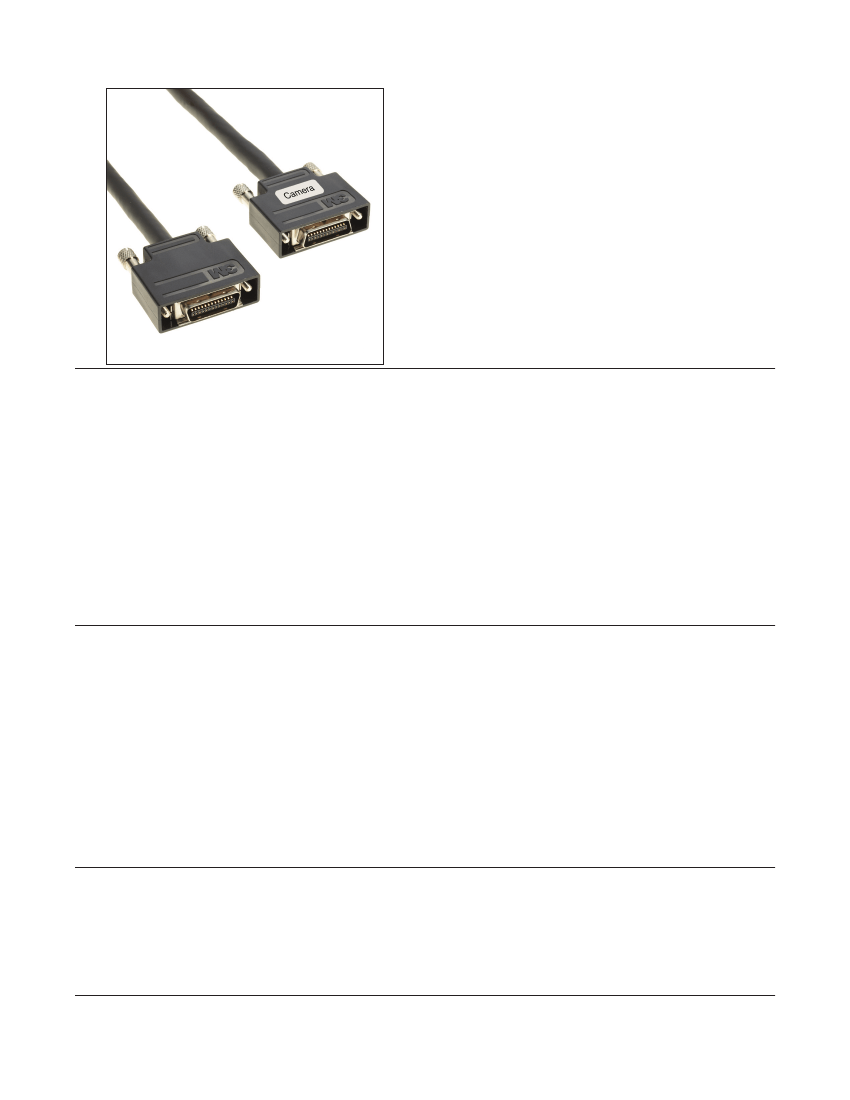

Mini D Ribbon (MDR) Cable Assembly
.050” High-Flex Digital Camera Cable - 26 position
14B26-SZ3B-XXX-04C
• Flexible cable enables moving head applications.
• For machine vision camera to frame grabber
communications in applications where full CameraLink
™
configuration is not necessary
• Mates to popular 3M MDR 26 position receptacle
• 3 shielded quads with drains and 5 unshielded twisted pairs
• Entire cable bundle shielded with foil and braid for
additional signal protection
• Rugged MDR ribbon type contact for reliable, repeatable
connectivity
• Rugged thumbscrew retention
• EMI shielded junction shell
• See Regulatory Information Appendix (RIA) for chemical
compliance information
Date Modified: January 20, 2008
TS-2257-A
Sheet 1 of 3
Physical
Connector Contact Plating:
Wiping Area: 30 µ” [0.76 µ m] Min. Gold (RIA E1 & C1 apply)
Shell:
Color: Black
Material: Polyester Elastomer
Cable:
Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Flammability: AWM VW-1
Flex Cycles: > 2 x 10
6
cycles (100 mm bend radius, 100 mm stroke, 30 strokes/minute)
Electrical
Voltage Rating:
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Shielded Twisted Pairs:
Characteristic Impedance:
Conductor Size:
Skew (within pair):
Skew (Channel skew per chipset):
30V
1A
> 1 x 10
8
Ω
at 100 V
DC
350 V
RMS
for 1 minute
100 ± 10
Ω
28 AWG Stranded
50 ps/meter maximum
100 ps/meter maximum
Environmental
Temperature Rating:
-20 °C to +75 °C
UL File No.: E86982
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050” High-Flex Digital Camera Cable - 26 position
CN-1
CAMERA
14B26-SZ3B-XXX-04C
CN-2
FRAME GRABBER
39.7
[1.56]
Connector Label
(Camera Side)
4 x #4-40
Thumbscrews
2 x 26 Position High Density
Mini D Ribbon (MDR) Male Plug
12.8
[0.51]
Cable Length
32.5
[1.28]
Cable Length Tolerance is the
larger of + 50 mm / -0 mm or +3% / -0%
1
13
mm
[inch]
Tolerance Unless
Noted
14
26
mm
[ ] Dimensions for
Reference Only
.0
±.1
.00
±.10
Generic End Detail
MDR 26 Position Plug
(Both Ends)
Use 3M
™
Jacksocket 3341-31 for mounting receptacle to panel.
Ordering Information
14B26-SZ3B-XXX-04C
Cable Length
050
100
150
200
250
=
=
=
=
=
50 cm
100 cm
150 cm
200 cm
250 cm
300
350
400
450
500
=
=
=
=
=
300 cm
350 cm
400 cm
450 cm
500 cm
600
700
800
900
A00
=
=
=
=
=
600 cm
700 cm
800 cm
900 cm
1000 cm
TS-2257-A
Sheet 2 of 3
For lengths greater than 1000 cm refer to Table 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050” High-Flex Digital Camera Cable - 26 position
Table 1
CN-1
Connector
Position
14
2
15
3
16
1
4
17
5
18
6
19
7
20
13
8
21
9
22
10
23
11
24
12
25
26
X0 X1 GND
X0-
X0+
X1-
X1+
X2 XC GND
X2-
X2+
Xclk-
Xclk+
X3-
X3+
SerTC+
SerTC-
X3 SerTC GND
SerTFG-
SerTFG+
CC1-
CC1+
CC2+
CC2-
CC3-
CC3+
CC4+
CC4-
NC
Twisted Pair 1
Twisted Pair 2
Twisted Pair 3
Twisted Pair 4
Twisted Pair 5
OPEN
Table 2
Length Codes
First 2
Digits
10
11
12
13
14
15
16
Alpha
Code
A
B
C
D
E
F
G
First 2
Digits
17
18
19
20
21
22
23
Alpha
Code
H
J
K
L
M
N
P
First 2
Digits
24
25
26
27
28
29
30
Alpha
Code
R
S
T
V
W
Y
Z
QUAD 3
QUAD 2
QUAD 1
Wiring Chart
Cable
X0 X1 GND
X0-
X0+
X1-
X1+
X2 XC GND
X2-
X2+
Xclk-
Xclk+
X3-
X3+
SerTC+
SerTC-
X3 SerTC GND
SerTFG-
SerTFG+
CC1-
CC1+
CC2+
CC2-
CC3-
CC3+
CC4+
CC4-
NC
CN-2
Connector
Position
13
25
12
24
11
26
23
10
22
9
21
8
20
7
14
19
6
18
5
17
4
16
3
15
2
1
14B26-SZ3B-XXX-04C
For lengths in excess of 1000 cm substitute the corresponding alpha code for the first 2 digits. Example: the code for 1160 cm is B60.
TS-2257-A
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/717/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-D
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means
that the product or part
does not
contain any of the following substances in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
RIA-2217B-D
