14H26-SZ3M-050-04C datasheet, PDF

Datasheet> All Categories > The connector> The connector> 14H26-SZ3M-050-04C

14H26-SZ3M-050-04C: Description3M Mini D Ribbon (MDR) Cable Assembly; CategoryThe connector The connector; File Size668KB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric View All

14H26-SZ3M-050-04C Overview

3M Mini D Ribbon (MDR) Cable Assembly

14H26-SZ3M-050-04C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

™

Mini D Ribbon (MDR) Cable Assembly

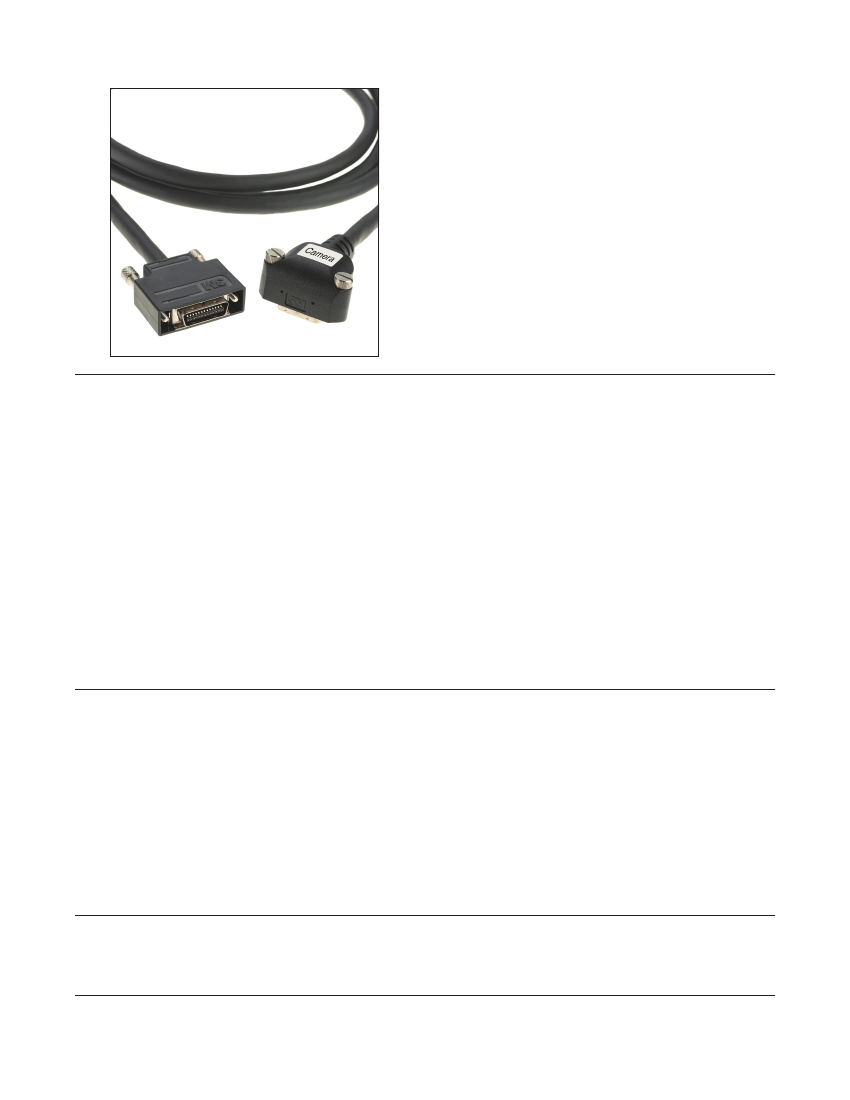

.050” Right-Angle High-Flex Digital Camera Cable – 26 position

14H26-SZ3X-XXX-04C

• Flexible cable enables moving head applications.

• For machine vision camera to frame grabber

communications in applications where full CameraLink

™

configuration is not necessary

• Mates to popular 3M MDR 26 position receptacle

• 3 shielded quads with drains and 5 unshielded twisted pairs

• Entire cable bundle shielded with foil and braid for

additional signal protection

• Rugged MDR ribbon type contact for reliable, repeatable

connectivity

• Rugged thumbscrew retention

• EMI shielded junction shell

• See Regulatory Information Appendix (RIA) for chemical

compliance information

Date Modified: January 20, 2008

TS-2259-B

Sheet 1 of 3

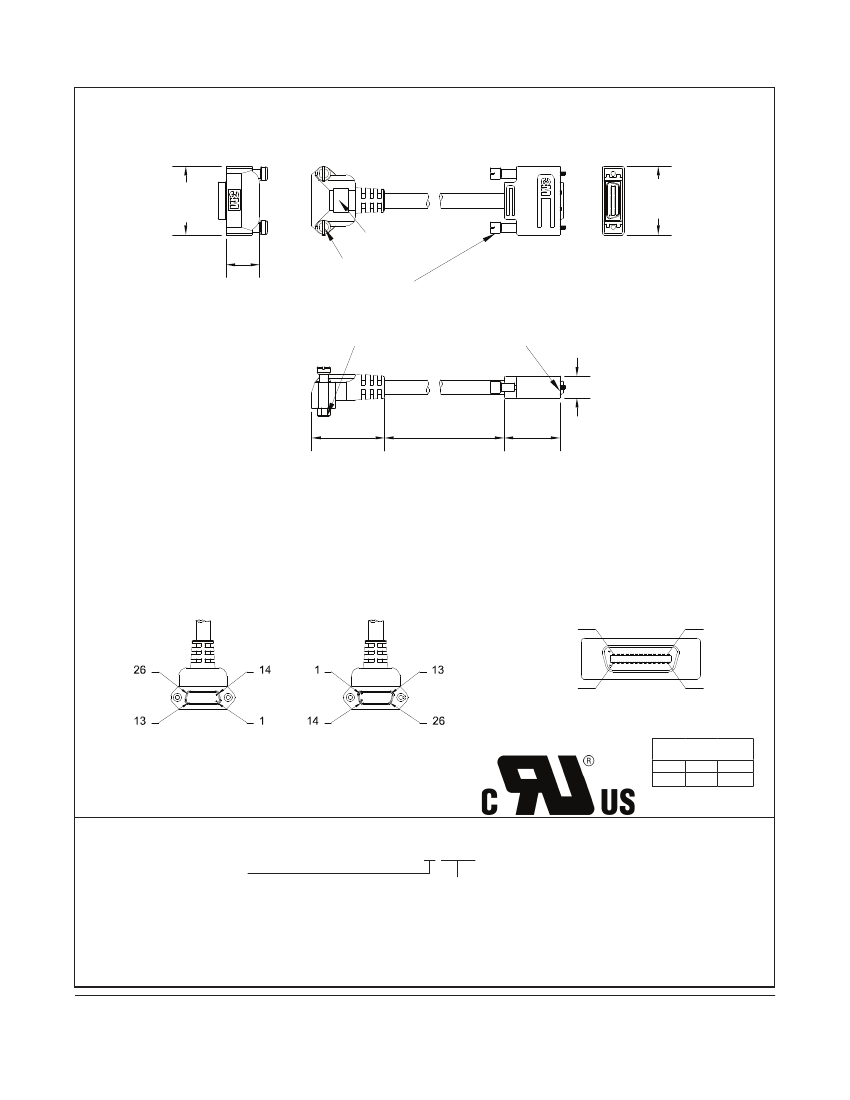

Physical

Connector Contact Plating:

Wiping Area: 30 µ” [0.76 µ m] Min. Gold (RIA E1 & C1 apply)

Overmolded Shell:

Color: Black

Material: Polyvinyl Chloride (PVC)

Shell:

Color: Black

Material: Polyester Elastomer

Cable:

Color: Black

Jacket Material: Polyvinyl Chloride (PVC)

Flammability: AWM VW-1

Flex Cycles:

> 2 x 10

cycles (100 mm bend radius, 100 mm stroke, 30 strokes/minute)

Electrical

Voltage Rating:

30V

Current Rating:

1 A

Insulation Resistance:

> 1 x 10

at 100 V

Withstanding Voltage:

350 V

RMS

for 1 minute

Shielded Twisted Pairs:

Characteristic Impedance:

100 ± 10

Conductor Size:

28 AWG Stranded

Skew (within pair):

50 ps/meter maximum

Skew (Channel skew per chipset):

100 ps/meter maximum

Environmental

Temperature Rating:

-20 °C to +75 °C

UL File No.: E86982

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/717/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217B-D

Appendix E5: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under

Item 6 of the Annex to the Directive.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

CHINA

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means

that the product or part

does not

contain any of the following substances in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that

the product or part

does

contain a substance, as detailed in the chart below, in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with

3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the

product Warranty stated below.

RIA-2217B-D
