Mini D Ribbon (MDR) Cable Assembly

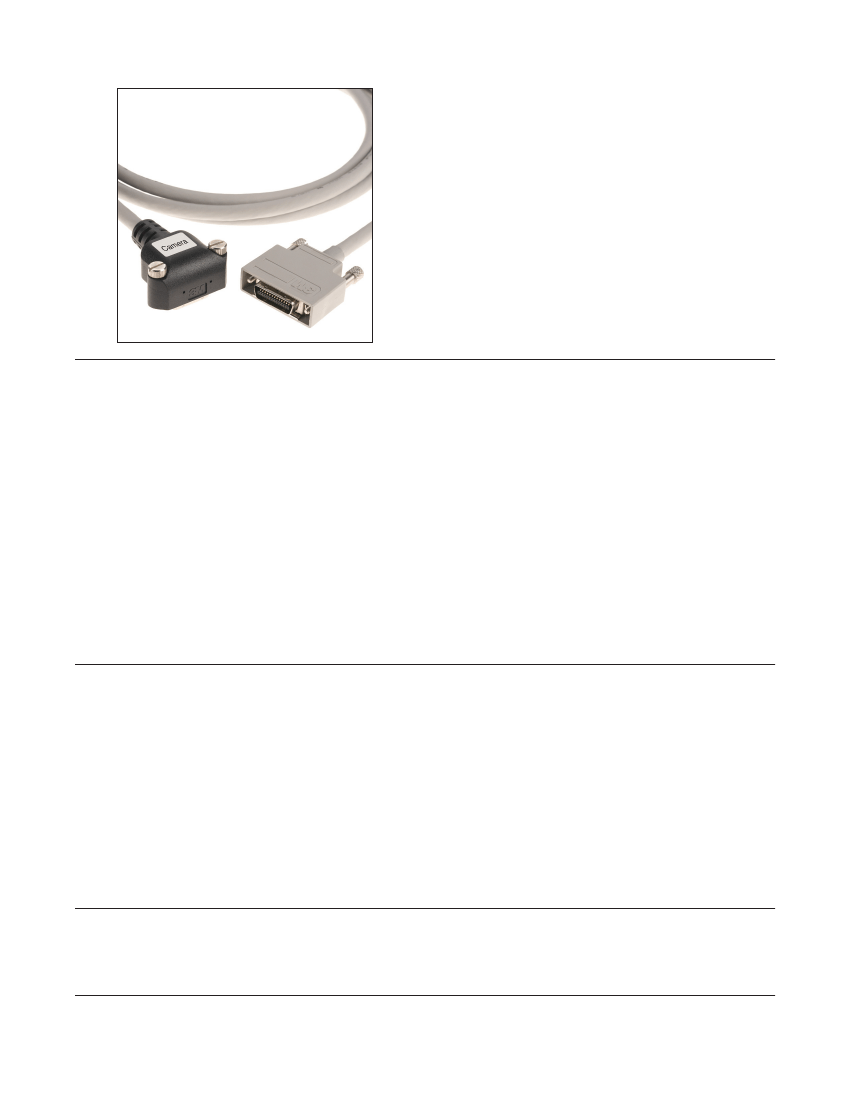

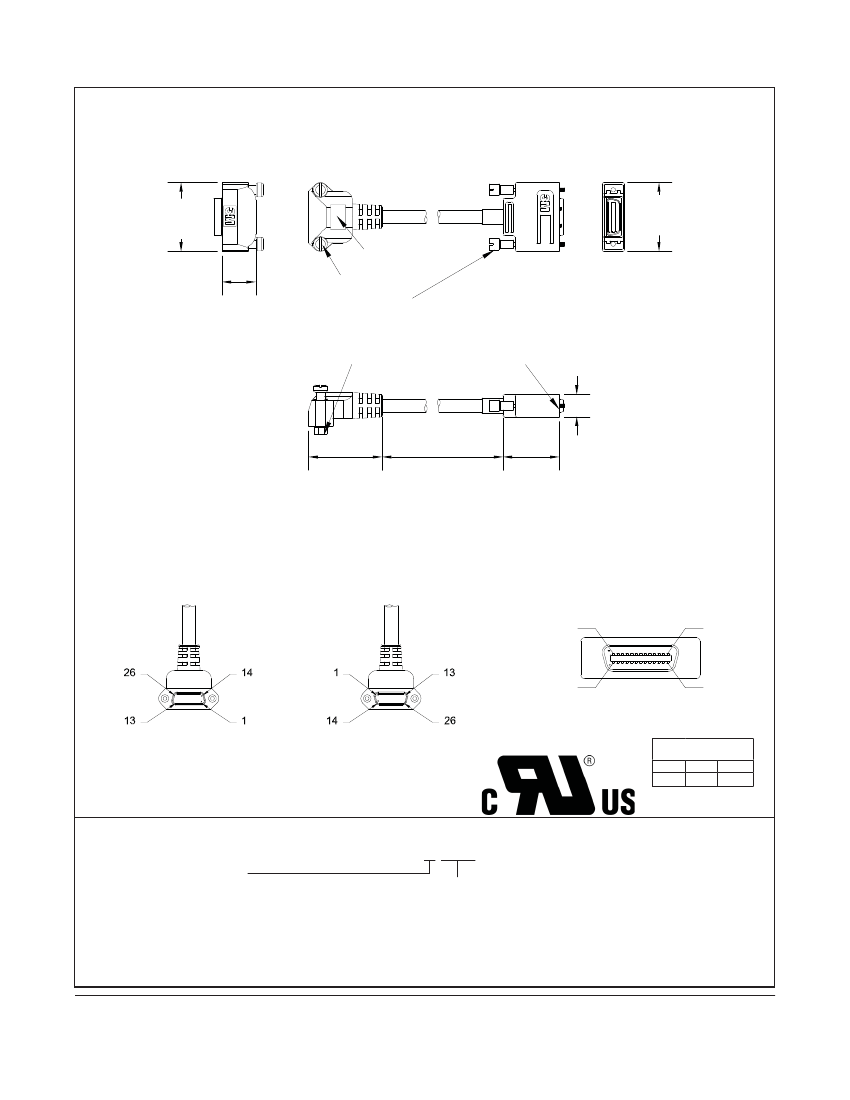

.050” Right-Angle Digital Camera Cable – 26 position

14H26-SZ3X-XXX-03C

• Mates to popular 3M MDR 26 position receptacle

• For machine vision camera to frame grabber

communications in applications where full CameraLink

™

conﬁguration is not necessary

• 3 shielded quads with drains and 5 unshielded twisted pairs

• Entire cable bundle shielded with foil and braid for

additional signal protection

• Rugged MDR ribbon type contact for reliable, repeatable

connectivity

• Rugged thumbscrew retention

• EMI shielded junction shell

• See Regulatory Information Appendix (RIA) for chemical

compliance information

Date Modiﬁed: January 16, 2008

TS-2258-A

Sheet 1 of 3

Physical

Connector Contact Plating:

Wiping Area: 30 μ” [0.76 μ m] Min. Gold (RIA E1 & C1 apply)

Overmolded Shell:

Color: Black

Material: Polyvinyl Chloride (PVC)

Shell:

Color: Gray

Material: Polyester Elastomer

Cable:

Color: Gray

Jacket Material: Polyvinyl Chloride (PVC)

Flammability: AWM VW-1

Electrical

Voltage Rating:

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Individually Shielded Twisted Pairs:

Characteristic Impedance:

Conductor Size:

Skew (within pair):

Skew (Channel skew per chipset):

30V

> 1 x 10

at 100 V

350 V

RMS

for 1 minute

100 ± 10

28 AWG Stranded

50 ps/meter maximum

100 ps/meter maximum

Environmental

Temperature Rating:

-20 °C to +75 °C

UL File No.: E86982


