2N3302 datasheet, PDF - EEWORLD Datasheet

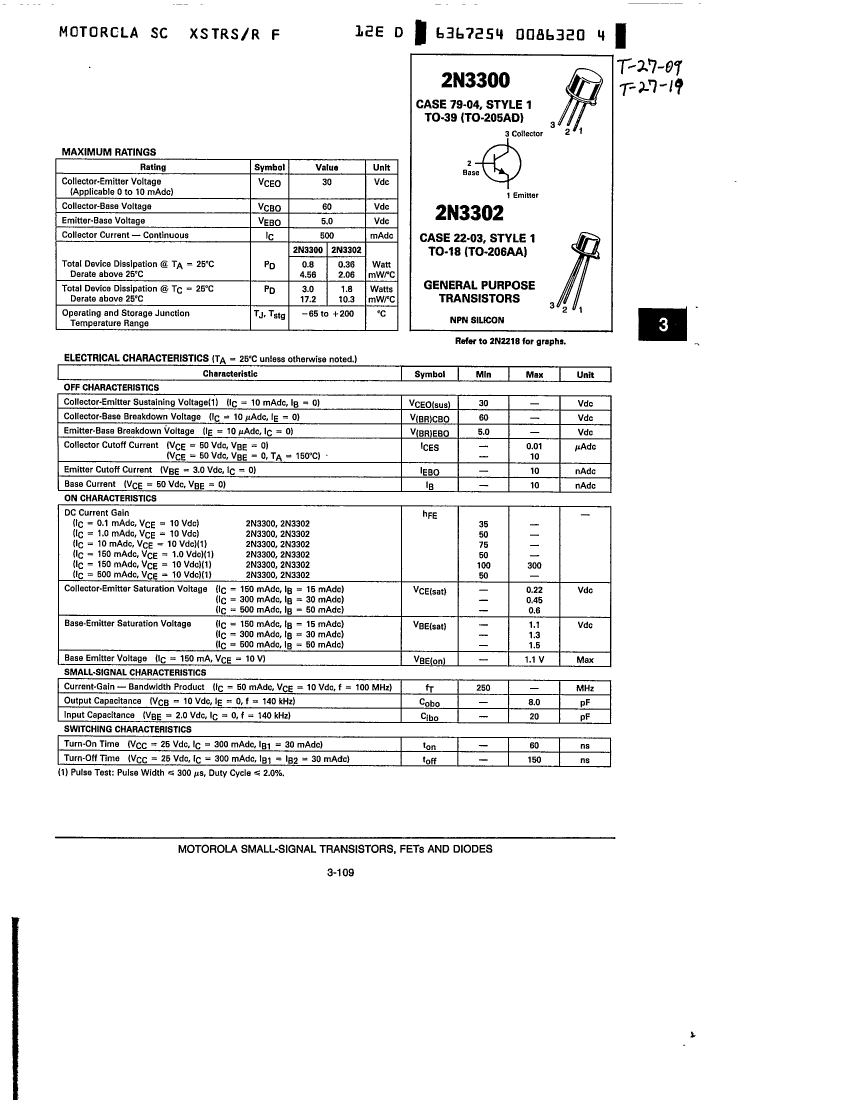

2N3302: DescriptionTRANSISTOR,BJT,NPN,30V V(BR)CEO,500MA I(C),TO-18; CategoryDiscrete semiconductor The transistor; File Size79KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

2N3302 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N3302	-	-	View	Buy Now

TRANSISTOR,BJT,NPN,30V V(BR)CEO,500MA I(C),TO-18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	0.5 A
Configuration	Single
Minimum DC current gain (hFE)	100
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1.8 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	250 MHz
