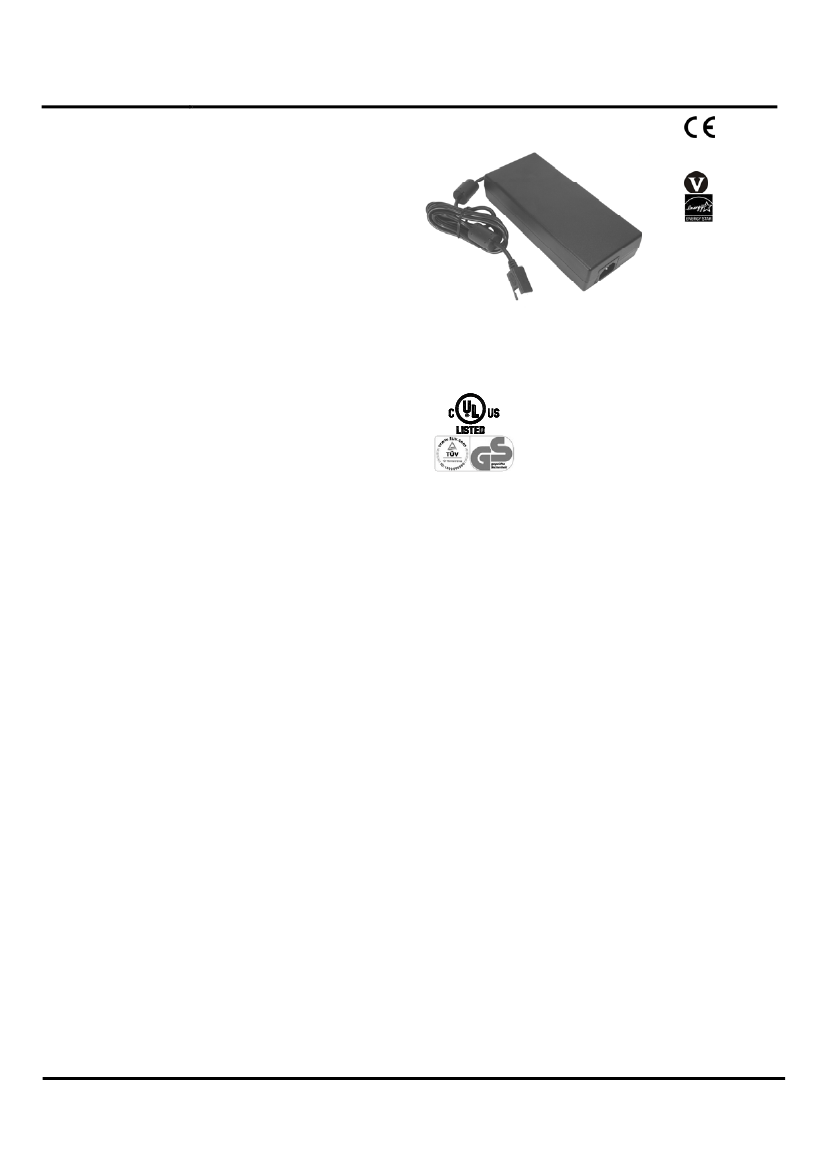

DESCRIPTION
The 3H & 3RH series of AC/DC desktop power adapters
are capable of delivering 180 to 220 watts of continuous
output power. They are enclosed in a 94V-1 rated
polyphenylene-oxide case with an IEC320/C14 or
IEC320/C6 AC inlet to mate with interchangeable cord
for world-wide use. All models meet CISPR 22 and FCC
class B emission limits, and comply with UL, TUV and
CE requirements.
180-220 WATT POWER ADAPTERS
3H & 3RH Series
(LVD)
RoHS
FEATURES
•
•
•
•
•
•
High Efficiency
O v e r v o l ta g e p r o t e c t i o n
Short-circuit protection
Overpow er protection
Over temperature protection
C o m p l i a n t w i t h C E C a n d E n e r g y S ta r
E f f i c i e n c y l e v e l V r e q u i r e m e n ts
No load power consumption < 0.5W
Av e r a g e a c t i v e e f f i c i e n c y
≧
8 7 %
C o m p l i a n t w i t h R o H S r e q u i r e m e n ts
SAFETY STANDARD APPROVALS
•
•
•
UL 60950-1, CSA C22.2 No. 60950-1
TUV EN60950-1
INPUT SPECIFICATIONS
Input voltage:
Input frequency:
Input current:
Touch current:
90-264 VAC
50-60 Hz
3 A (rms) for 100 VAC
1.3 A (rms) for 240 VAC
250 µA max. @ 264 VAC, 60 Hz
GENERAL SPECIFICATIONS
Hold-up time:
Efficiency:
Turn on delay time:
Inrush current:
Withstand voltage:
MTBF:
5 ms minimum at 110 VAC or 240 VAC
87% minimum at full load
3 seconds maximum at 110 VAC
No damage
1500 VAC from input to output and ground
100,000 hours at full load at 25°C ambient,
calculated per MIL-HDBK-217F
OUTPUT SPECIFICATIONS
Output
voltage/current:
Total output power:
Ripple and noise:
Overvoltage
protection:
Overcurrent
protection:
Temperature
coefficient:
Transient response:
See rating chart.
See rating chart.
380 mV peak to peak maximum
set at 112-145% of its nominal output
voltage.
All models protected to short circuit
conditions
All outputs ±0.04% /°C maximum
Maximum excursion of 4% or better on all
models, recovering to 1% of final value
within 500 us after a 25% step load
change
EMC Performance (EN55022)
EN55022:
FCC:
VCCI:
EN61000-3-2:
EN61000-3-3:
EN61000-4-2:
EN61000-4-3:
EN61000-4-4:
EN61000-4-5:
EN61000-4-6:
EN61000-4-8:
EN61000-4-11:
Class B conducted, class B radiated
Class B conducted, class B radiated
Class B conducted, class B radiated
Harmonic distortion, class D
Line flicker
ESD, ±15 KV air and ±8 KV contact
Radiated immunity, 3 V/m
Fast transient/burst, ±1 KV
Surge, ±1 KV diff., ±2 KV com
Conducted immunity, 3 Vrms
Magnetic field immunity, 1 A/m
Voltage dip immunity,
30% reduction for 500 ms
>95% reduction for 10 ms
ENVIRONMENTAL SPECIFICATIONS
Operating temperature:
Storage temperature:
Relative humidity:
0°C to +40°C
-20°C to +80°C
10% to 90% non-condensing
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA
Phone: 408-988-6616
●
Fax: 408-988-6622
●
email: sales@trumpower.com
●
Website: www.TRUMPower.com
DESKTOP POWER ADAPTERS
OUTPUT VOLTAGE/CURRENT RATING CHART
Output
Model
3H-12-180
3RH-12-180
3H-19-220
3H-24-220
3H-48-220
NOTES:
1.
2.
(2)
3H & 3RH SERIES
Average Active
Efficiency (Typical)
@ 115 / 230 Vac
88 / 90 %
88 / 90 %
90 / 92 %
88 / 90 %
92 / 93 %
V1
12 V
12 V
19 V
24 V
48 V
Min. Current
0A
0A
0A
0A
0A
Max. Current
15.00 A
15.00 A
11.57 A
9.16 A
4.58 A
Tol.
5%
5%
5%
5%
5%
Ripple & Noise
380 mV
380 mV
380 mV
380 mV
480 mV
(1)
Max. Power
180 W
180 W
220 W
220 W
220 W
Ripple and noise is maximum peak-to-peak voltage value measured at output within 20 MHz bandwidth, at rated line voltage and
output load ranges, and with a 47 µF electrolytic capacitor in parallel with a 0.1 µF ceramic capacitor across the output.
3H models are equipped with IEC320/C14 inlet, and 3RH models with IEC320/C6 inlet.

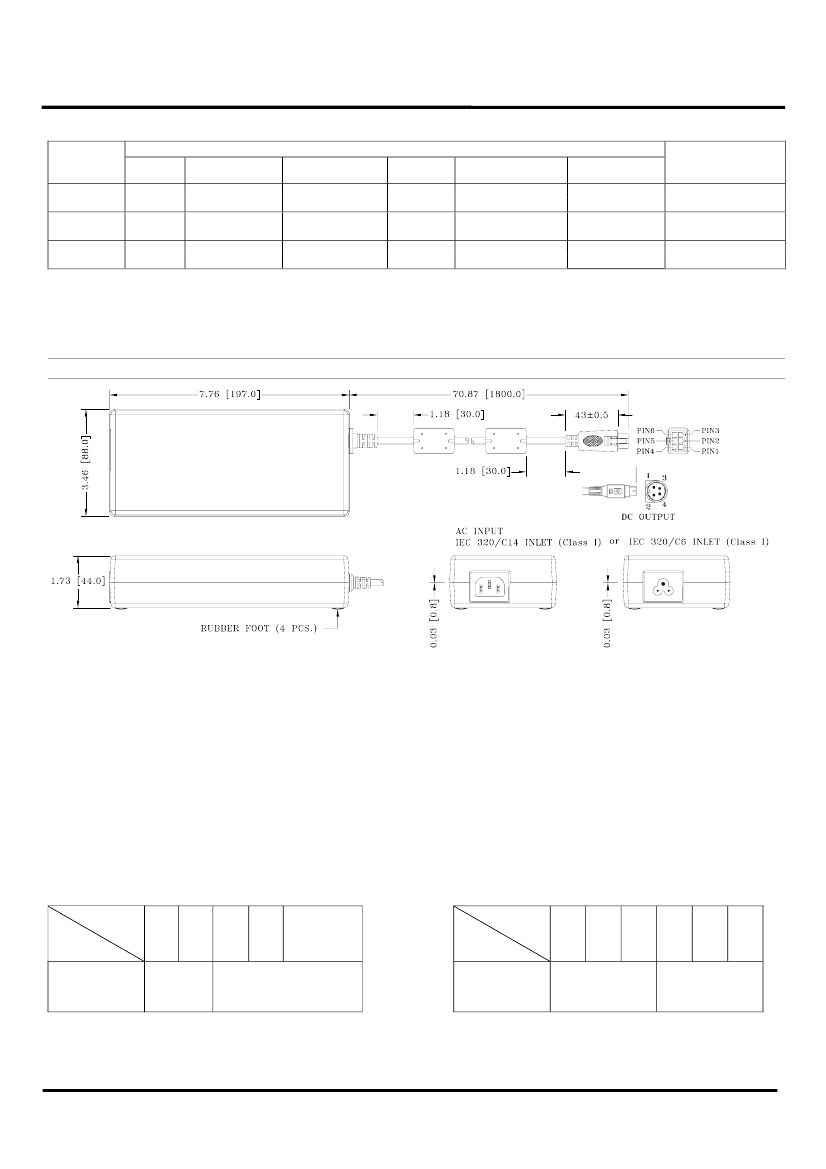

MECHANICAL SPECIFICATIONS
For 3H-12-180 and
3RH-12-180 only
NOTES:
1. Dimensions shown in inches [mm]
2. Tolerance 0.02 [0.5] maximum
3. Weight: 1.0 Kg (2.2 lbs.) approx.
4. The length of output cable for 3H-19-220 is 37.4 [950.0]
5. Output connector for 3H-12-180 and 3RH-12-180 is 4-pin plug without lock (molding type), mating with 4-pin socket, Kycon P/N KPJX-4S-S or
equivalent.
6. Output connector for 3H-19-220, 3H-24-220 and 3H-48-220 is Molex Mini - Fit receptacle, P/N: 39-01-2060 with female terminal #5556 or
equivalent, mating with Molex plug 39-01-2066 and male terminal #5558 or equivalent. It also mates with Molex headers #5566, #5569, or
equivalent.
7. Please contact us for other output connector options.
PIN CHART
PIN
1
MODEL
3H-12-180
3RH-12-180
2
3
4
SHELL OF
CONNECTOR
PIN
1
MODEL
3H-19-220
3H-24-220
3H-48-220
V1 Return &
AC Ground
2
3
4
5
6
+V1
V1 Return &
AC Ground
+V1
