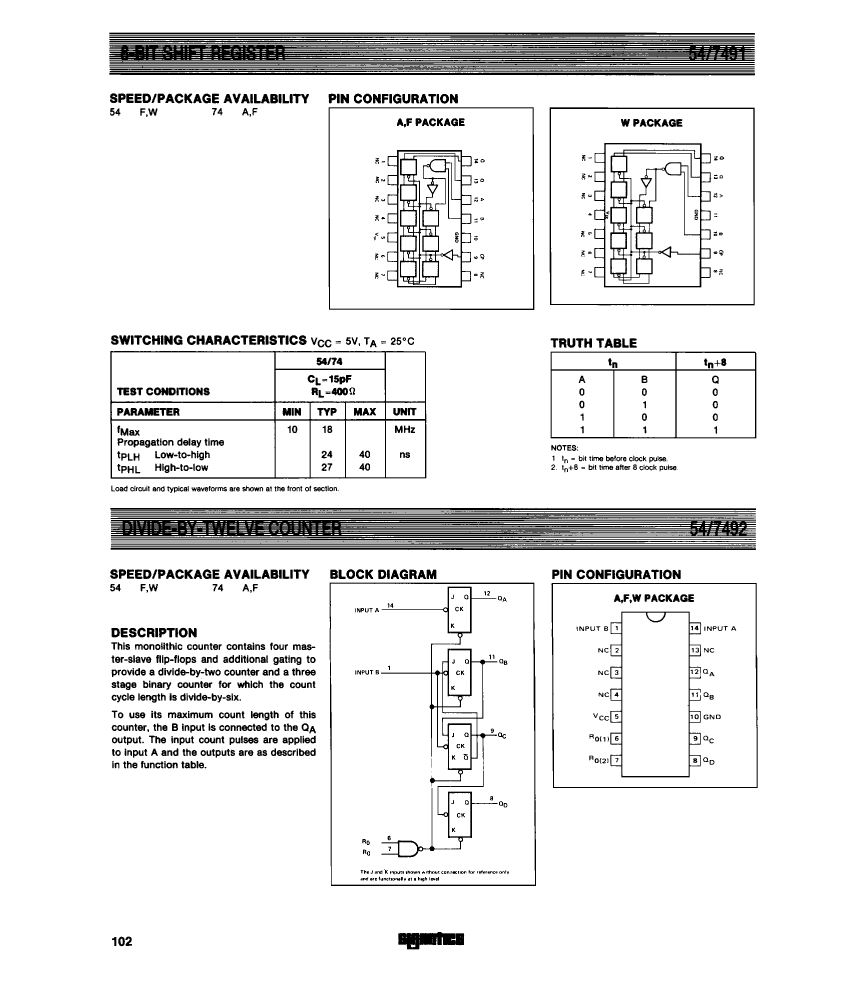

IC TTL/H/L SERIES, 8-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDIP14, Shift Register
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknow |
| Counting direction | RIGHT |
| series | TTL/H/L |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | SERIAL IN SERIAL OUT |
| Maximum Frequency@Nom-Su | 10000000 Hz |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 58 mA |
| propagation delay (tpd) | 40 ns |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| minfmax | 18 MHz |
