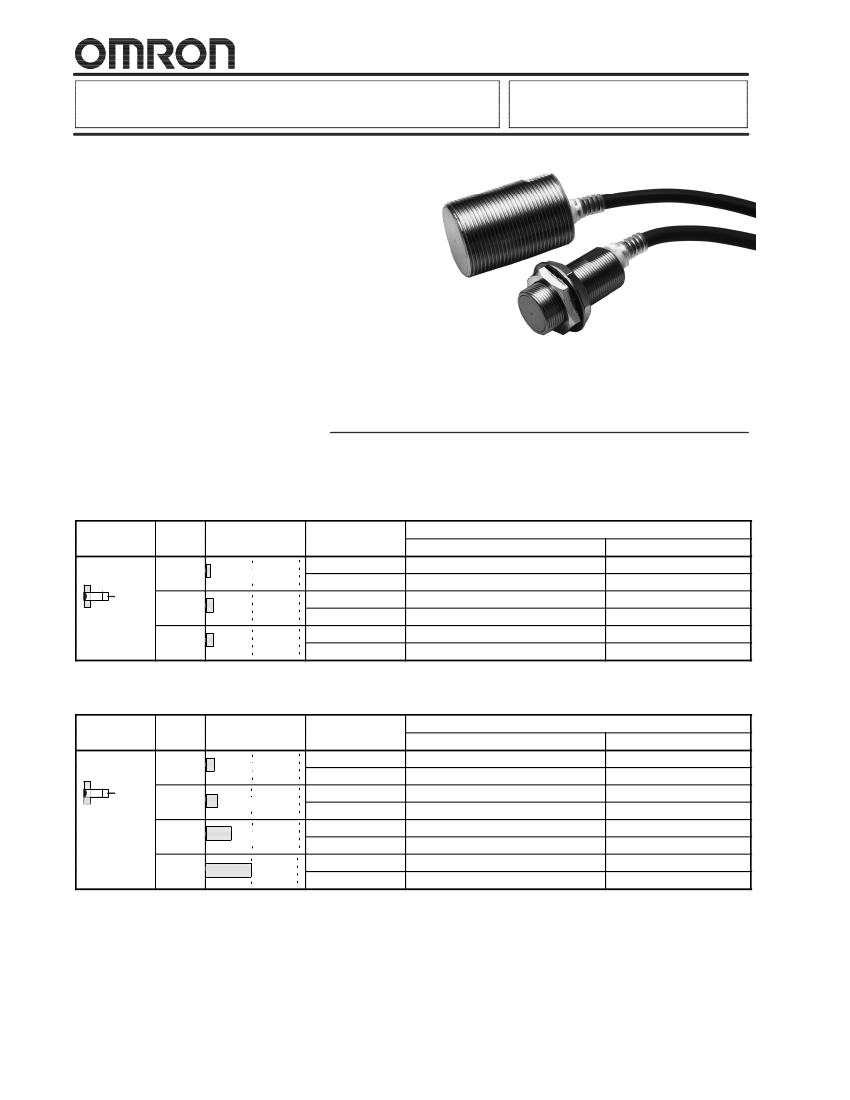

Short Barrel Inductive Prox
Short Barrel 3-Wire Prox Sensors
Meet IP67
H
Thick nickel-plated brass barrel has wrench
flats for easy installation
H
Solid potted internal circuitry withstands
shocks and water washdown to IP67
H
High visibility indicator
H
Miniature and standard sizes
E2E 3-WIRE DC
Ordering Information
WHEN ORDERING, PLEASE NOTE:
Omron has added the suffix “-N” to standard size E2E part numbers for ordering purposes only; the suf-
fix “-N” will not appear on the product.
J
PREWIRED MINIATURE SENSORS
Type
yp
Shielded
Size
4 mm
dia.
M5
5.4 mm
dia.
Sensing distance
g
Output
p
configuration
NPN
PNP
NPN
PNP
NPN
PNP
Part number
NO
E2E-CR8C1
E2E-CR8B1
E2E-X1C1
E2E-X1B1
E2E-C1C1
E2E-C1B1
NC
E2E-CR8C2
E2E-CR8B2
E2E-X1C2
E2E-X1B2
E2E-C1C2
E2E-C1B2
0.8
0 8 mm
1 mm
1 mm
J
PREWIRED SHIELDED STANDARD SENSORS
Type
yp
Shielded
Size
M8
M12
M18
M30
Sensing distance
g
Output
p
configuration
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
Part number
NO
E2E-X1R5E1-N
E2E-X1R5F1-N
E2E-X2E1-N
E2E-X2F1-N
E2E-X5E1-N
E2E-X5F1-N
E2E-X10E1-N
E2E-X10F1-N
NC
E2E-X1R5E2-N
E2E-X1R5F2-N
E2E-X2E2-N
E2E-X2F2-N
E2E-X5E2-N
E2E-X5F2-N
E2E-X10E2-N
E2E-X10F2-N
1.5
1 5 mm
2 mm
5 mm
10 mm
Note: 1. A different oscillating frequency is available. Add a “5” to the part number (e.g., E2E-X5E15-N).
2. E2E sensors with robotic cable are available. Add a “-R” in the part number (e.g., E2E-X5E1-R-N).
2
E2E 3-Wire DC
J
PREWIRED UNSHIELDED STANDARD SENSORS
Type
yp
Unshielded
Size
M8
M12
M18
M30
18 mm
Sensing distance
g
2 mm
Output
p
configuration
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
Part number
NO
E2E-X2ME1-N
E2E-X2MF1-N
E2E-X5ME1-N
E2E-X5MF1-N
E2E-X10ME1-N
E2E-X10MF1-N
E2E-X18ME1-N
E2E-X18MF1-N
NC
E2E 3-Wire DC
E2E-X2ME2-N
E2E-X2MF2-N
E2E-X5ME2-N
E2E-X5MF2-N
E2E-X10ME2-N
E2E-X10MF2-N
E2E-X18ME2-N
E2E-X18MF2-N
5 mm
10 mm
Note: 1. A different oscillating frequency is available. Add a “5” to the part number (e.g., E2E-X5E15-N).
2. E2E sensors with robotic cable are available. Add a “-R” in the part number (e.g., E2E-X5E1-R-N).
J
SENSORS WITH BUILT-IN M12 MICROCHANGE
R
CONNECTOR
Type
yp
Shielded
Size
M8
M12
M18
M30
Unshielded
M8
M12
M18
M30
18 mm
Sensing distance
g
Output
p
configuration
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
Part number
NO
E2E-X1R5E1-M1-N
E2E-X1R5F1-M1-N
E2E-X2E1-M1-N
E2E-X2F1-M1-N
E2E-X5E1-M1-N
E2E-X5F1-M1-N
E2E-X10E1-M1-N
E2E-X10F1-M1-N
E2E-X2ME1-M1-N
E2E-X2MF1-M1-N
E2E-X5ME1-M1-N
E2E-X5MF1-M1-N
E2E-X10ME1-M1-N
E2E-X10MF1-M1-N
E2E-X18ME1-M1-N
E2E-X18MF1-M1-N
NC
E2E-X1R5E2-M1-N
E2E-X1R5F2-M1-N
E2E-X2E2-M1-N
E2E-X2F2-M1-N
E2E-X5E2-M1-N
E2E-X5F2-M1-N
E2E-X10E2-M1-N
E2E-X10F2-M1-N
E2E-X2ME2-M1-N
E2E-X2MF2-M1-N
E2E-X5ME2-M1-N
E2E-X5MF2-M1-N
E2E-X10ME2-M1-N
E2E-X10MF2-M1-N
E2E-X18ME2-M1-N
E2E-X18MF2-M1-N
1.5
1 5 mm
2 mm
5 mm
10 mm
2 mm
5 mm
10 mm
Note: Connector cordsets: For MicroChange
R
models, use OMRON Y96E-4jDj.
J
SENSORS WITH BUILT-IN M8 NANOCHANGE
R
CONNECTOR
Type
yp
Shielded
Size
M8
Sensing distance
g
Output
p
configuration
NPN
PNP
Unshielded
M8
2 mm
NPN
PNP
Part number
NO
E2E-X1R5E1-M3
E2E-X1R5F1-M3
E2E-X2ME1-M3
E2E-X2MF1-M3
NC
E2E-X1R5E2-M3
E2E-X1R5F2-M3
E2E-X2ME2-M3
E2E-X2MF2-M3
1.5 mm
Note: Connector cordsets: For NanoChange
R
models, use OMRON X3SF-M42j-40j-R or Brad Harrison equivalent.
3
E2E 3-Wire DC
J
ACCESSORIES
Description
Mounting brackets
g
Fits M8 size sensors
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Silicone rubber covers for shielded sensors
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Part number
Y92E-B8
Y92E-B12
Y92E-B18
Y92E-B30
Y92E-E12-2
Y92E-E18-2
Y92E-E30-2
E2E 3-Wire DC
J
REPLACEMENT PARTS
Description
Mounting hardware including one pair of
g
g
p
metal nuts and one washer
Fits M5 size sensors
Fits M8 size sensors
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Part number
M5-MHWS
M8-MHWS
M12-MHWS
M18-MHWS
M30-MHWS
4
E2E 3-Wire DC
E2E 3-Wire DC
Specifications
J
MINIATURE SENSORS
Part number
Size
Type
Sensing distance
Supply voltage
Current consumption
Sensing object
Setting distance
Standard object
(mild steel, L x W x H)
Differential travel
Response frequency
Control
output
Operation
E2E-CR8jj
4 mm (0.16 in) dia.
Shielded
0.8 mm (0.03 in)
±
15%
17 mA max.
Magnetic metals
0 to 0.5 mm (0 to 0.02 in)
5 x 5 x 1 mm (0.2 x 0.2 x 0.04 in)
15% max. of effective distance
3 kHz
C1 models:
C2 models:
B1 models:
B1 models:
2 VDC
NPN-NO open collector
NPN-NC open collector
PNP-NO open collector
PNP-NC open collector
0 to 7 mm (0 to 0.03 in)
8 x 8 x 1 mm (0.3 x 0.3 x 0.04 in)
1 mm (0.04 in)
±
15%
10 to 30 VDC, 10% max. permissible ripple peak to peak
E2E-X1jj
M5
E2E-C1jj
5.5 mm (0.21 in) dia.
Max. load
Max.
on-state
voltage
drop
Circuit protection
Indicators
Ambient
temperature
Ambient
humidity
Operating
Operating
100 mA switching capacity
DC power supply reverse polarity
Operation indicator (red LED)
-
-25°C to 70°C (-
-13°F to 158°F) with no icing
35% to 95%
10 to 55 Hz, 1.5 mm (0.06 in) double amplitude
Approx. 50 G’s
—
1, 3, 4, 6, 12, 13
IP67
Approx. 30 g (1.1 oz.)
Stainless steel
Plastic PBT
Polyvinyl chloride
Nickel-plated brass
Nickel-plated brass
Vibration resistance
Shock resistance
Enclosure
rating
UL
NEMA
IEC 144
Weight with cable
Materials
Housing
Sensing
face
Cable
sheath
5
E2E 3-Wire DC
J
STANDARD SIZE SENSORS
Part number
Size
Type
Sensing distance
E2E-X1R5
Ej/Fj-N
M8
Shielded
1.5 mm
(0.06 in)
±10%
Unshielded
2 mm (0.08
in)
±10%
E2E-X2ME
j/
Fj-N
E2E-X2Ej
/ Fj-N
M12
Shielded
2 mm (0.08
in)
±10%
Unshielded
5 mm (0.20
in)
±10%
E2E-X5ME
j/Fj-N
E2E-X5Ej
/ Fj-N
M18
Shielded
5 mm (0.20
in)
±10%
Unshielded
10 mm
(0.39 in)
±10%
E2E-X10M
Ej/Fj-N
E2E 3-Wire DC
E2E-X10E
j/
Fj-N
M30
Shielded
10 mm
(0.39 in)
±10%
E2E-X18M
Ej/ Fj-N
Unshielded
18 mm
(0.71 in)
±10%
Supply voltage
(operating voltage
range) (See Note 1.)
Current consumption
Sensing object
Setting distance
12 to 24 VDC, ripple (p-p): 10% max., (10 to 40 VDC)
13 mA max.
Magnetic metals (refer to
Engineering Data
for non-magnetic metals)
0 to 1.2
mm (0 to
0.05 in)
8x8x
1 mm (0.31
x 0.31 x
0.04 in)
2.0 kHz
0 to 1.6
mm (0 to
0.06 in)
12 x 12 x
1 mm
(0.47 x 0.47
x 0.04 in)
0.8 kHz
0 to 1.6 mm
(0 to 0.06
in)
12 x 12 x
1 mm
(0.47 x 0.47
x 0.04 in)
1.5 kHz
0 to 4.0 mm
(0 to 0.16
in)
15 x 15 x
1 mm
(0.59 x 0.59
x 0.04 in)
0.4 kHz
0 to 4.0 mm
(0 to 0.16
in)
18 x 18 x
1 mm
(0.71 x 0.71
x 0.04 in)
0.6 kHz
0 to 8.0 mm
(0 to 0.31
in)
30 x 30 x
1 mm
(1.18 x 1.18
x 0.04 in)
0.2 kHz
0 to 8.0 mm
(0 to 0.31
in)
30 x 30 x
1 mm
(1.18 x 1.18
x 0.04 in)
0.4 kHz
0 to 14.0
mm (0 to
0.55 in)
54 x 54 x
1 mm
(2.13 x 2.13
x 0.04 in)
0.1 kHz
Standard object
(mild steel)
Differential travel
Response frequency
Operation (with
sensing object
approaching)
Control output
(switching capacity)
Circuit protection
Indicator
Ambient temperature
(See Note 2.)
Ambient humidity
Temperature
influence
Voltage influence
Residual voltage
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
10% max. of sensing distance
E1 models: Load ON
E2 models: Load OFF
200 mA max.
Reverse connection protection, surge absorber, load short-circuit protection
Operation indicator (red LED)
Operating: -
-40°C to 85°C (-
-40°F to 185°F) with no icing
Operating: 35% to 95%
±15%
max. of sensing distance at 23°C in temperature range of -
-40°C to 85°C (-
-40°F to 185°F)
±10%
max. of sensing distance at 23°C in temperature range of -
-25°C to 70°C (-
-13°F to 158°F)
±1%
max. of sensing distance in rated voltage range
±15%
2.0 V max. (under load current of 200 mA with cable length of 2 m)
50 MΩ min. (at 500 VDC) between current carry parts and case
1,000 VAC for 1 min. between current carry parts and case
10 to 55 Hz, 1.5-mm double amplitude for 2 hrs each in X, Y, and Z axes
500 m/s
2
(approx. 50G)
for 10 times each in X, Y,
and Z axes
IP67
1, 4, 6, 12, 13
Approx. 45 g
---
Approx. 25 g
Brass
Approx. 120 g
Approx. 160 g
Approx. 45 g
Approx. 270 g
Approx.
125 g
Approx.
124 g
1,000 m/s
2
(approx. 50G) for 10 times each in X, Y, and Z axes
500 m/s
2
(approx. 50G) for E2E-X5M
Enclosure
rating
Weight
g
IEC
NEMA
Pre-wired
Connector
Material
Body
Sensing
face
Stainless steel
PBT
Note: 1. E2E models with an M18 or M30 connector operate at a non-smoothed, all-wave rectified, mean voltage range of 24 VDC
±20%.
2. When using an E2E with an M8 connector at an ambient temperature range between 70°C and 85°C (158°F and 185°F), supply
10 to 30 VDC to the E2E and make sure that the E2E has a control output of 100 mA maximum.
6
