THM402020SG-10 datasheet, PDF - EEWORLD Datasheet

THM402020SG-10: Description2,097,152 WORDSx40 BIT DYNAMIC RAM MODULE; Categorystorage storage; File Size587KB，18 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

THM402020SG-10 Overview

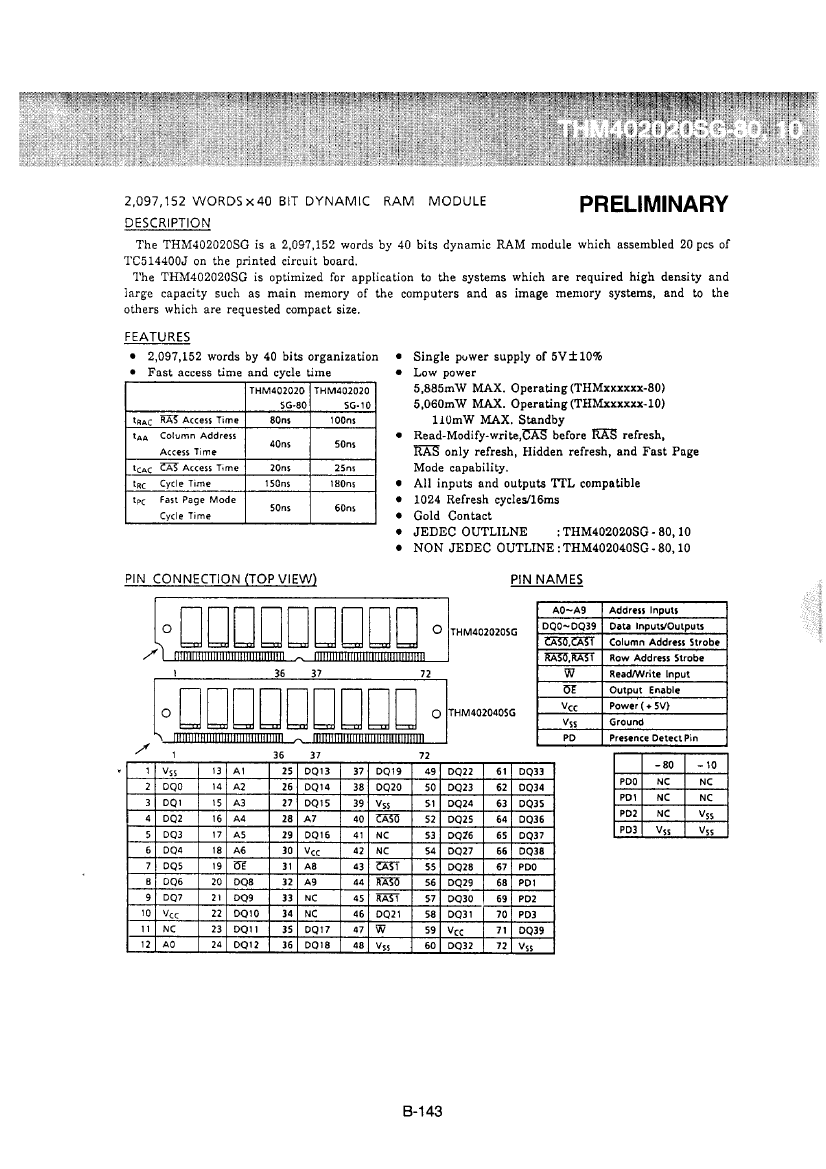

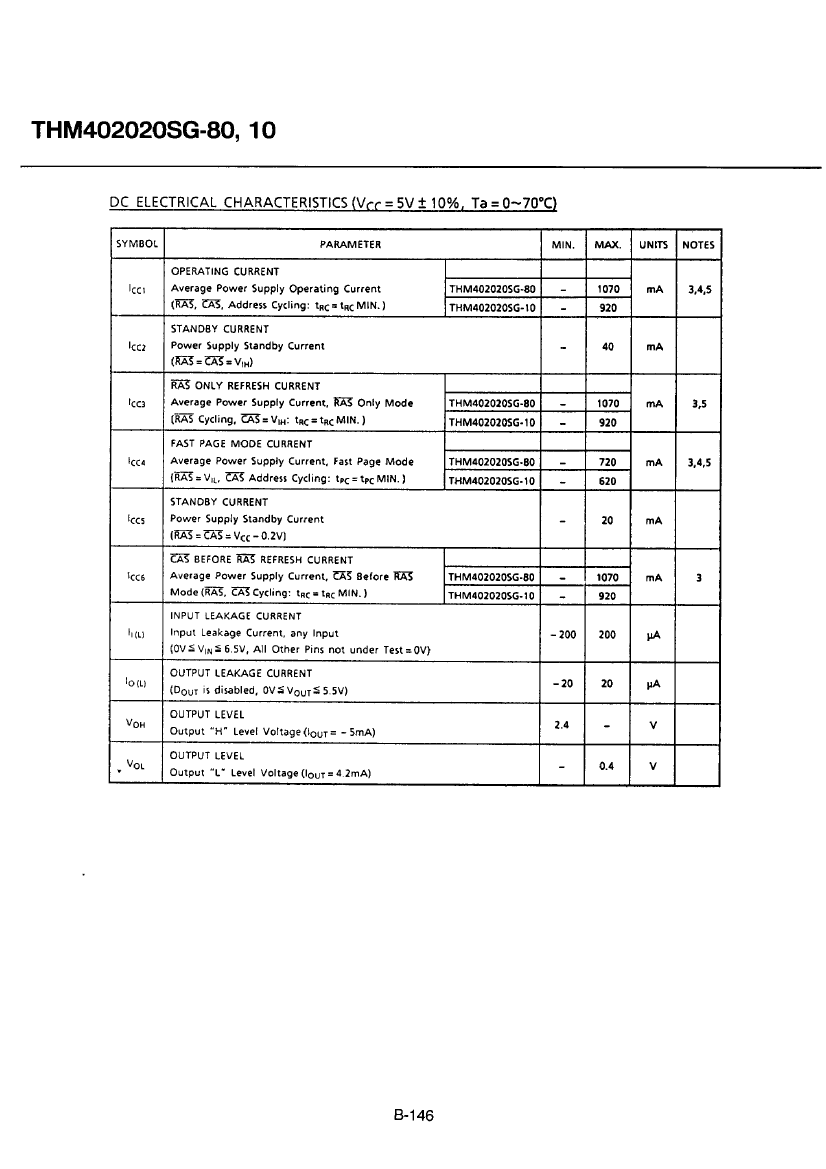

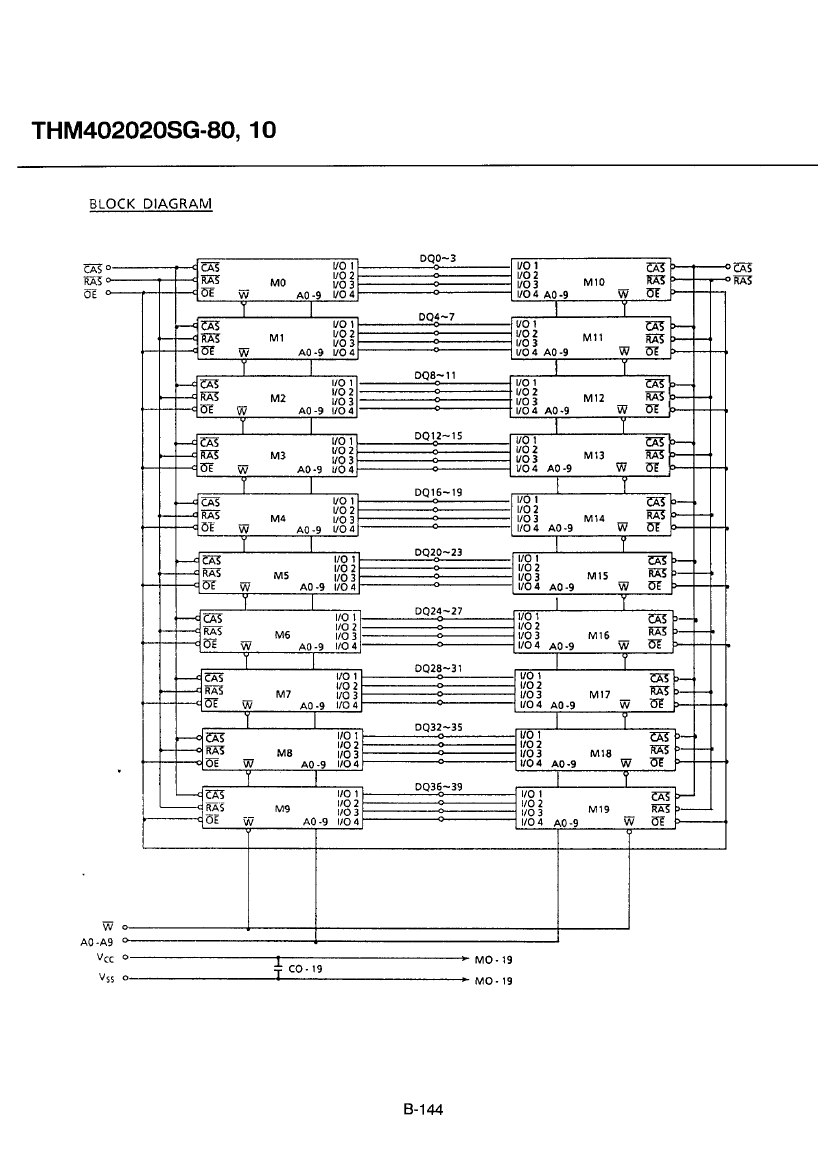

2,097,152 WORDSx40 BIT DYNAMIC RAM MODULE

Parameter Name	Attribute value
Parts packaging code	SIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE

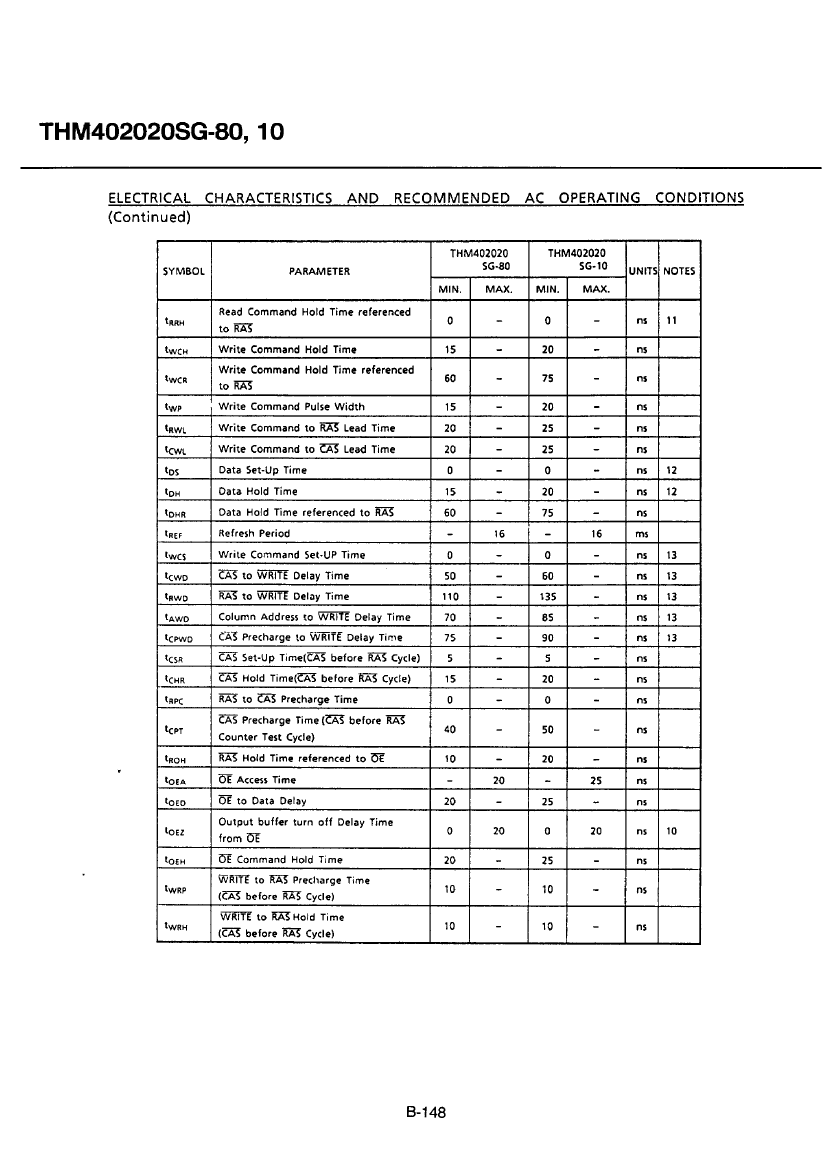

Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N72
memory density	83886080 bi
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024

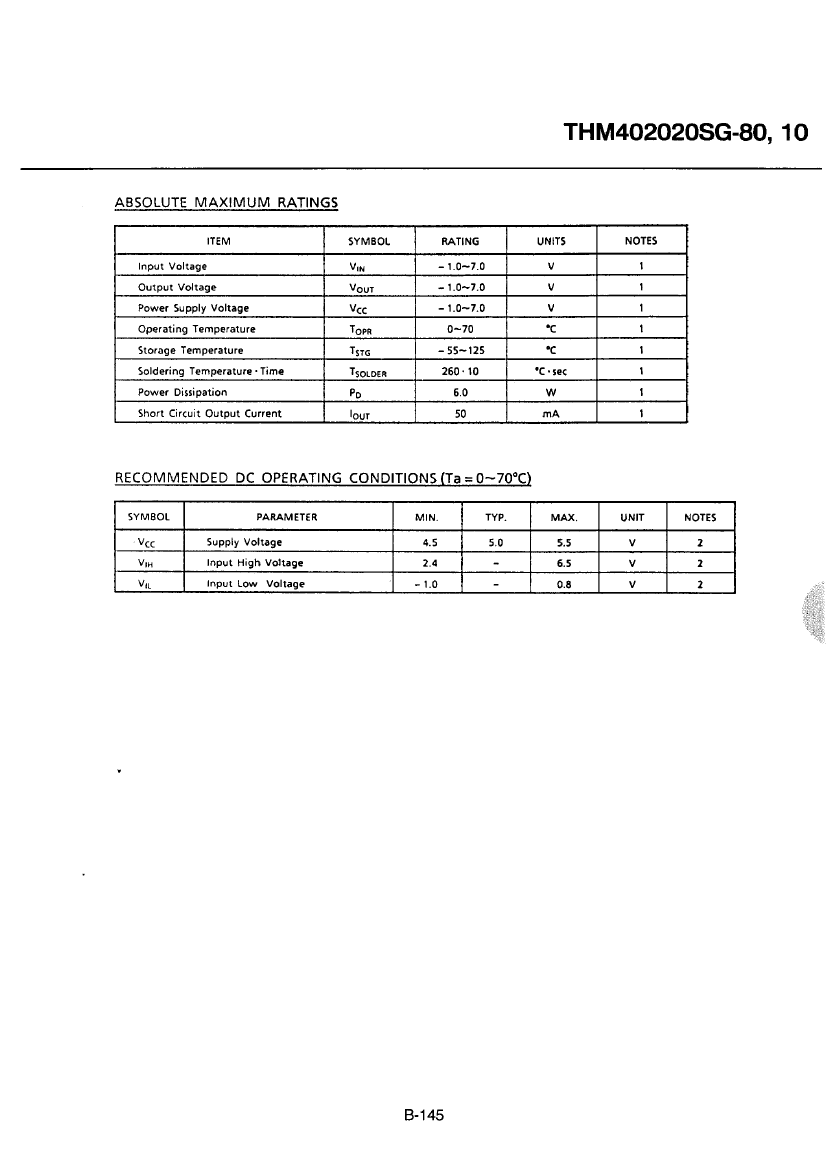

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE
Base Number Matches	1

	THM402020SG-10	THM402020SG-80
Description	2,097,152 WORDSx40 BIT DYNAMIC RAM MODULE	2,097,152 WORDSx40 BIT DYNAMIC RAM MODULE
Parts packaging code	SIMM	SIMM
Contacts	72	72
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE
Maximum access time	100 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N72	R-XSMA-N72
memory density	83886080 bi	83886080 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	40	40
Number of functions	1	1
Number of ports	1	1
Number of terminals	72	72
word count	2097152 words	2097152 words
character code	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	2MX40	2MX40
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
refresh cycle	1024	1024
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE
