Ordering number:EN1426B
PNP/NPN Epitaxial Planar Silicon Transistors

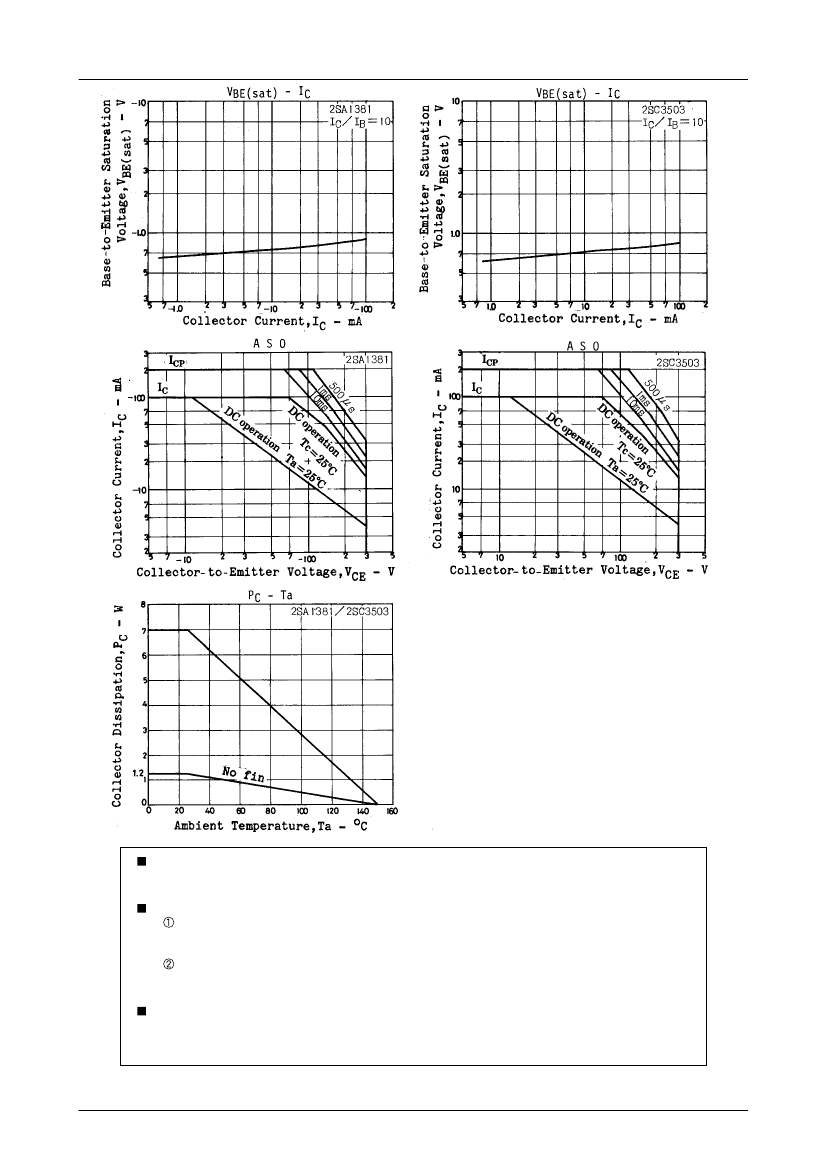

2SA1381/2SC3503
High-Definition CRT Display,
Video Output Applications
Features
Package Dimensions
unit:mm
2009A
[2SA1381/2SC3503]
· High breakdown voltage : V
CEO
≥300V.
· Small reverse transfer capacitance and excellent high
frequency characteristic
: C
re
=1.8 pF (NPN), 2.3pF (PNP), V
CB
=30V.
· Adoption of MBIT process.
JEDEC : TO-126
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Conditions
B : Base
C : Collector
E : Emitter
Ratings
(–)300
(–)300
(–)5
(–)100
(–)200
1.2
Unit
V
V
V
mA
mA
W
W
Tc=25˚C
Tj
Tstg
7
150
–55 to +150
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Reverse Transfer Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Base-to-Emitter Breakdown Votage
Symbol
ICBO
IEBO
hFE
fT
Cob
Cre
VCE(sat)
VBE(sat)
VCB=(–)200V, IE=0
VEB=(–)4V, IC=0
VCE=(–)10V, IC=(–)10mA
VCE=(–)30V, IC=(–)10mA
VCB=(–)30V, f=1MHz
VCB=(–)30V, f=1MHz
IC=(–)20mA, IB=(–)2mA
IC=(–)20mA, IB=(–)2mA
(–)300
(–)300
(–)5
40*
150
2.6
(3.1)
1.8
(2.3)
(–)0.6
(–)1.0
Conditions
Ratings
min
typ
max
(–)0.1
(–)0.1
320*
MHz
pF
pF
pF
pF
V
V
V
V
V
Unit
µA
µA
V(BR)CBO IC=(–)10µA, IE=0
V(BR)CEO IC=(–)1mA, RBE=∞
V(BR)EBO IE=(–)10µA, IC=0
* : The 2SA1381/2SC3503 are classified by 10mA h
FE
as follows :
40
C
80
60
D
120
100
E
200
160
F
320
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
71598HA (KT)/3107KI/D134MW, TS No.1426-1/4

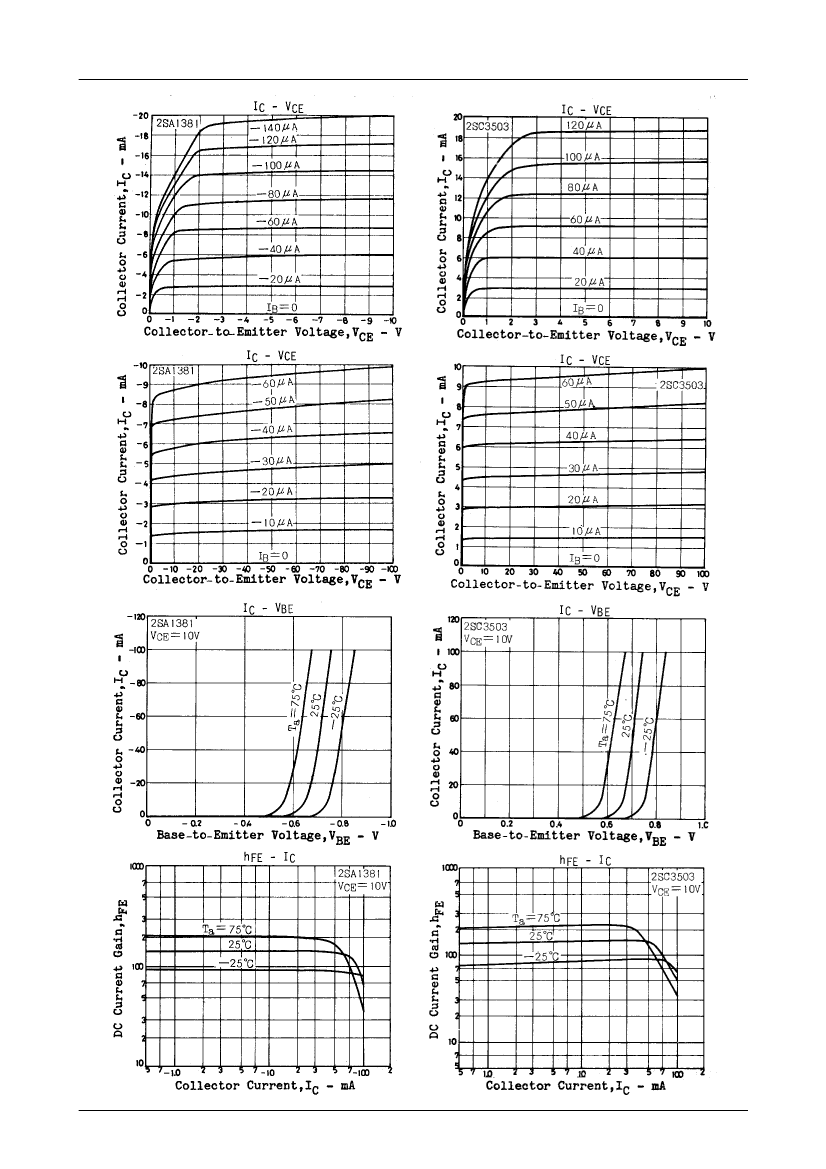

2SA1381/2SC3503
No.1426-2/4

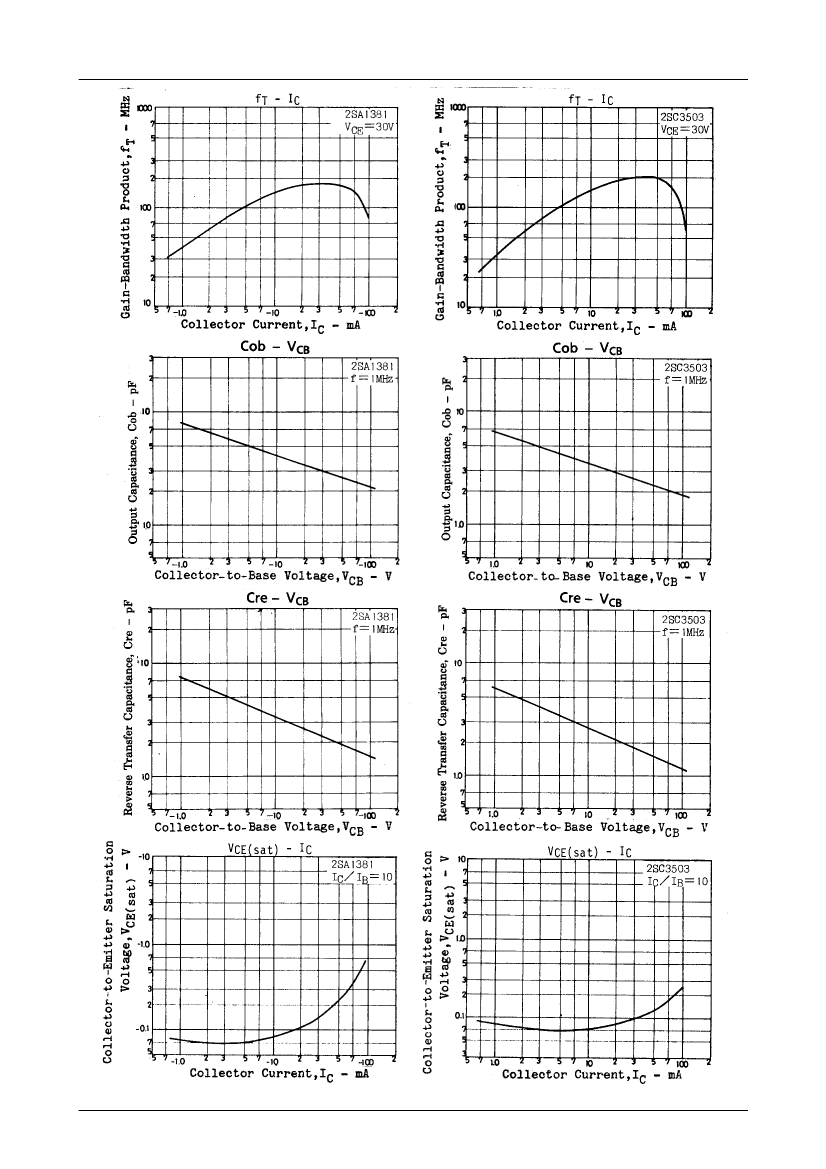

2SA1381/2SC3503
No.1426-3/4
2SA1381/2SC3503
