CAT24C256YI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT24C256YI

CAT24C256YI: DescriptionIC,SERIAL EEPROM,32KX8,CMOS,TSSOP,8PIN,PLASTIC; Categorystorage storage; File Size315KB，17 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

CAT24C256YI Overview

IC,SERIAL EEPROM,32KX8,CMOS,TSSOP,8PIN,PLASTIC

CAT24C256YI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
package instruction	TSSOP, TSSOP8,.25
Reach Compliance Code	compli
Other features	IT ALSO OPERATES AT 0.1MHZ
Maximum clock frequency (fCLK)	0.4 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DDDR
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.4 mm
memory density	262144 bi
Memory IC Type	EEPROM
memory width	8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	32KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	225
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Serial bus type	I2C
Maximum standby current	0.000001 A
Maximum slew rate	0.001 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE

Preview

Download Datasheet

View All

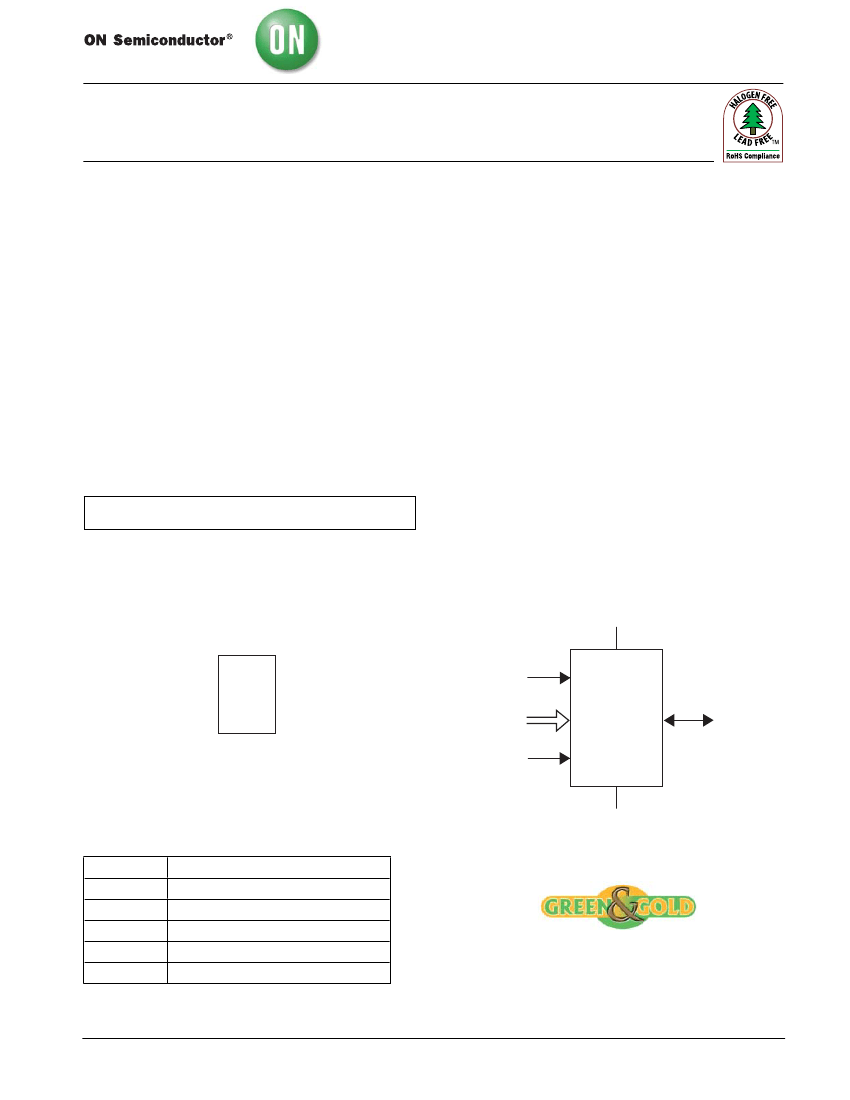

CAT24C256

256-Kb I

C CMOS Serial EEPROM

FEATURES

■

Supports Standard and Fast I

C Protocol

■

1.8V to 5.5V Supply Voltage Range

■

64-Byte Page Write Buffer

■

Hardware Write Protection for entire memory

■

Schmitt Triggers and Noise Suppression Filters

DEVICE DESCRIPTION

The CAT24C256 is a 256-Kb Serial CMOS EEPROM,

internally organized as 32,768 words of 8 bits each.

It features a 64-byte page write buffer and supports

both the Standard (100kHz) as well as Fast (400kHz)

C protocol.

Write operations can be inhibited by taking the WP pin

High (this protects the entire memory).

External address pins make it possible to address up to

eight CAT24C256 devices on the same bus.

on I

C Bus Inputs (SCL and SDA).

■

Low power CMOS technology

■

1,000,000 program/erase cycles

■

100 year data retention

■

Industrial temperature range

■

RoHS-compliant 8-pin PDIP, SOIC, TSSOP and

8-pad TDFN packages

For Ordering Information details, see page 15.

PIN CONFIGURATION

PDIP (L)

SOIC (W, X)

TSSOP (Y)

TDFN (ZD2)

VSS

VCC

SCL

SDA

FUNCTIONAL SYMBOL

VCC

SCL

A2, A1, A0

CAT24C256

SDA

For the location of Pin 1, please consult the

corresponding package drawing.

VSS

PIN FUNCTIONS

, A

SDA

SCL

Device Address

Serial Data

Serial Clock

Write Protect

Power Supply

Ground

* Catalyst carries the I

C protocol under a license from the Philips Corporation.

Characteristics subject to change without notice

Doc. No. MD-1104, Rev. G
