SN54LS378J: DescriptionIC,FLIP-FLOP,HEX,D TYPE,LS-TTL,DIP,16PIN,CERAMIC; Categorylogic logic; File Size248KB，5 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

SN54LS378J Overview

IC,FLIP-FLOP,HEX,D TYPE,LS-TTL,DIP,16PIN,CERAMIC

SN54LS378J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
package instruction	DIP, DIP16,.3
Reach Compliance Code	_compli
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Su	30000000 Hz
MaximumI(ol)	0.004 A
Number of functions	6
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	22 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE

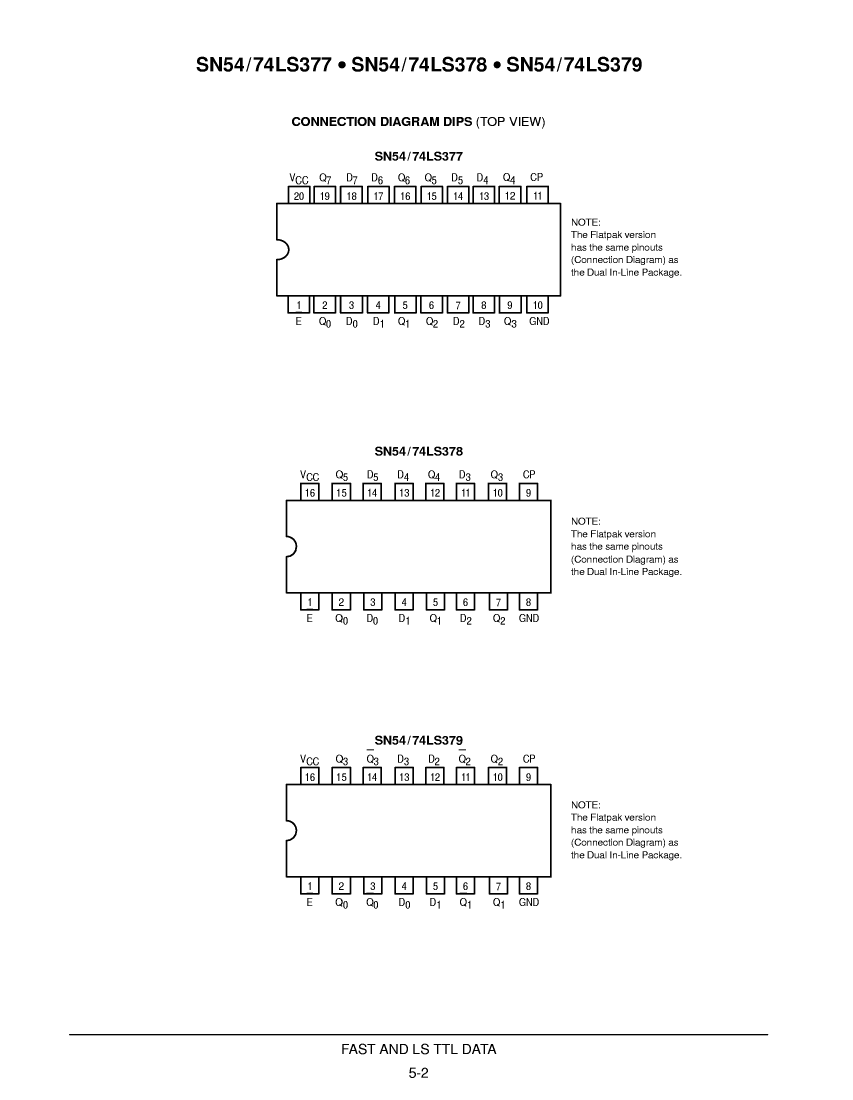

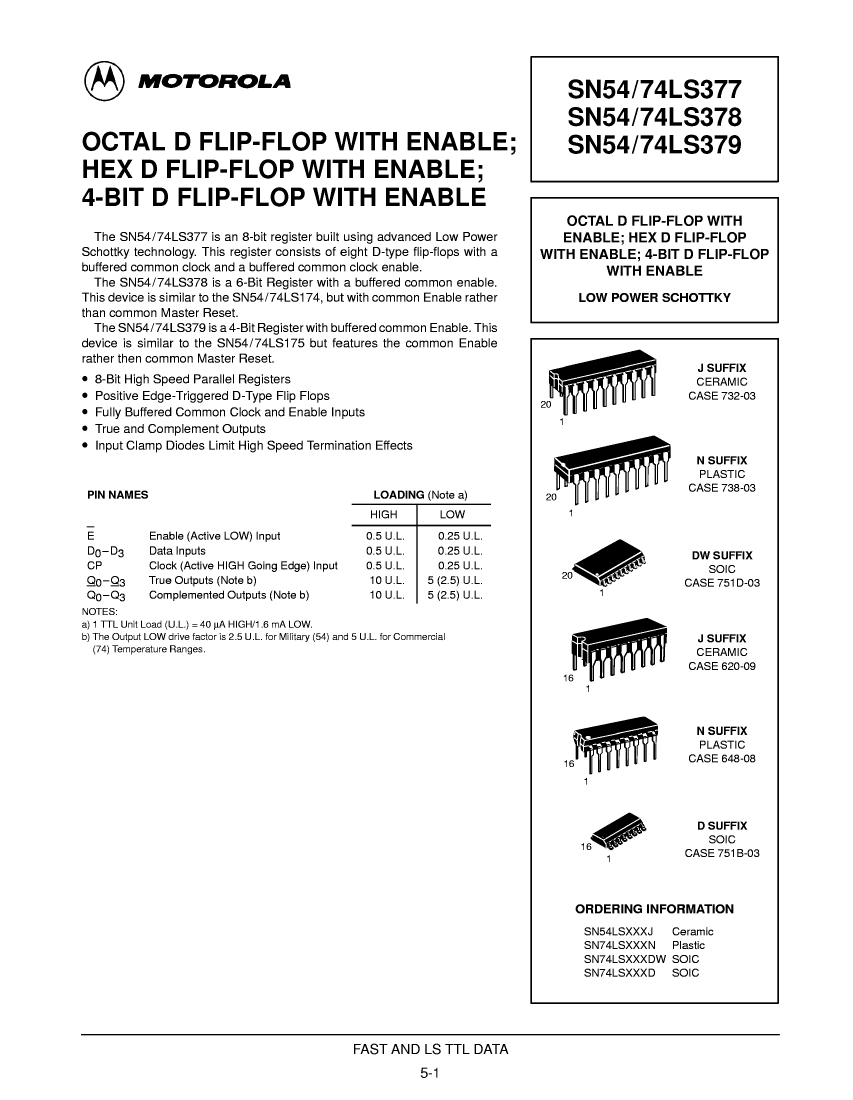

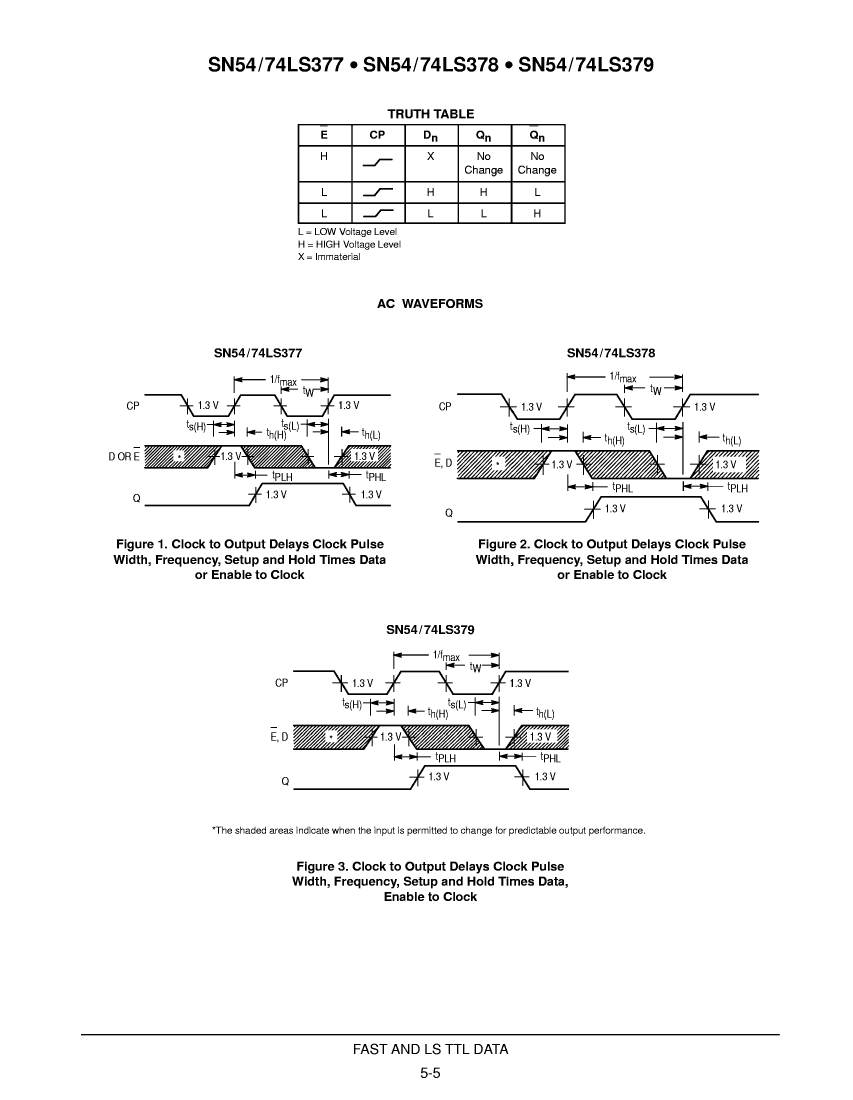

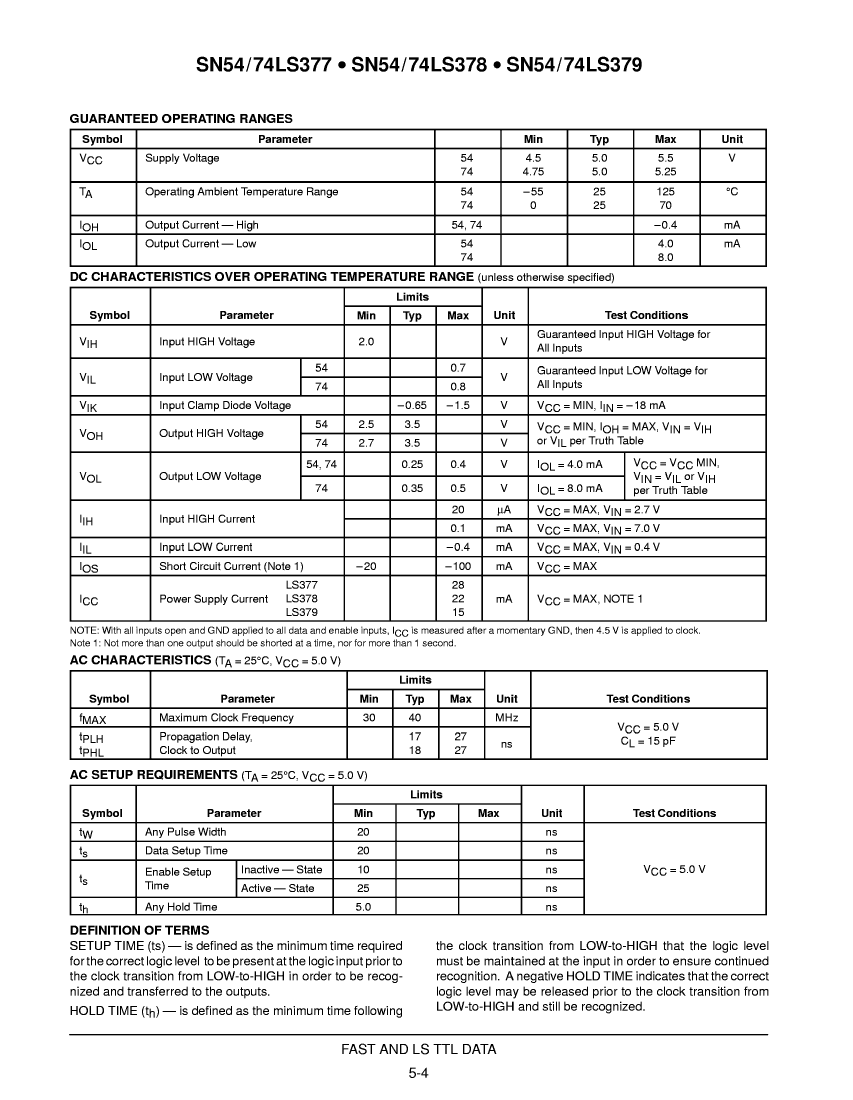

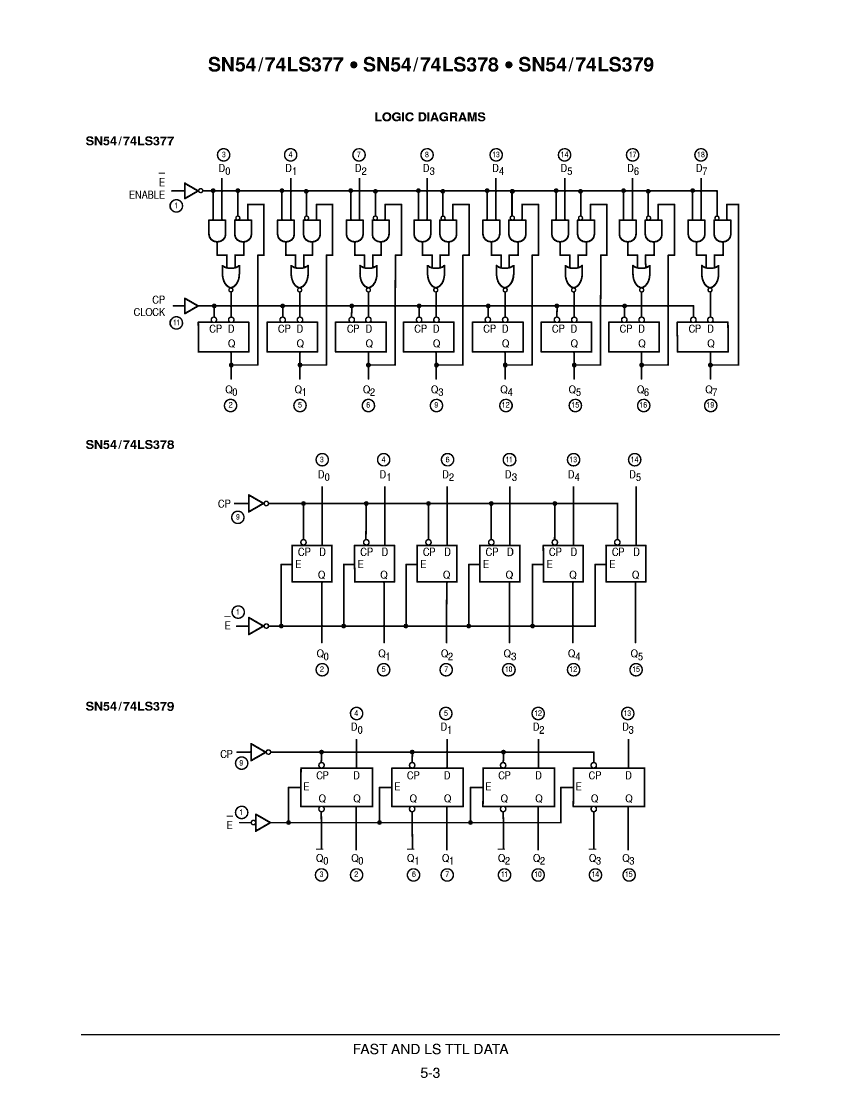

Preview

Download Datasheet

View All

SN54LS378J Related Products

	SN54LS378J	SN74LS379DR2	SN74LS379D	SN54LS377J	SN54LS379J	SN74LS378D
Description	IC,FLIP-FLOP,HEX,D TYPE,LS-TTL,DIP,16PIN,CERAMIC	IC,FLIP-FLOP,QUAD,D TYPE,LS-TTL,SOP,16PIN,PLASTIC	IC,FLIP-FLOP,QUAD,D TYPE,LS-TTL,SOP,16PIN,PLASTIC	IC,FLIP-FLOP,OCTAL,D TYPE,LS-TTL,DIP,20PIN,CERAMIC	IC,FLIP-FLOP,QUAD,D TYPE,LS-TTL,DIP,16PIN,CERAMIC	IC,FLIP-FLOP,HEX,D TYPE,LS-TTL,SOP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP20,.3	DIP, DIP16,.3	SOP, SOP16,.25
Reach Compliance Code	_compli	compliant	unknown	not_compliant	not_compliant	_compli
JESD-30 code	R-XDIP-T16	R-PDSO-G16	R-PDSO-G16	R-XDIP-T20	R-XDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.004 A	0.008 A	0.008 A	0.004 A	0.004 A	0.008 A
Number of functions	6	4	4	8	4	6
Number of terminals	16	16	16	20	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	SOP16,.25	DIP20,.3	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	22 mA	15 mA	15 mA	28 mA	15 mA	22 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maximum Frequency@Nom-Sup	-	30000000 Hz	30000000 Hz	30000000 Hz	30000000 Hz	-
