15KP12 datasheet, PDF - EEWORLD Datasheet

15KP12: Description15000 W, BIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size473KB，3 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

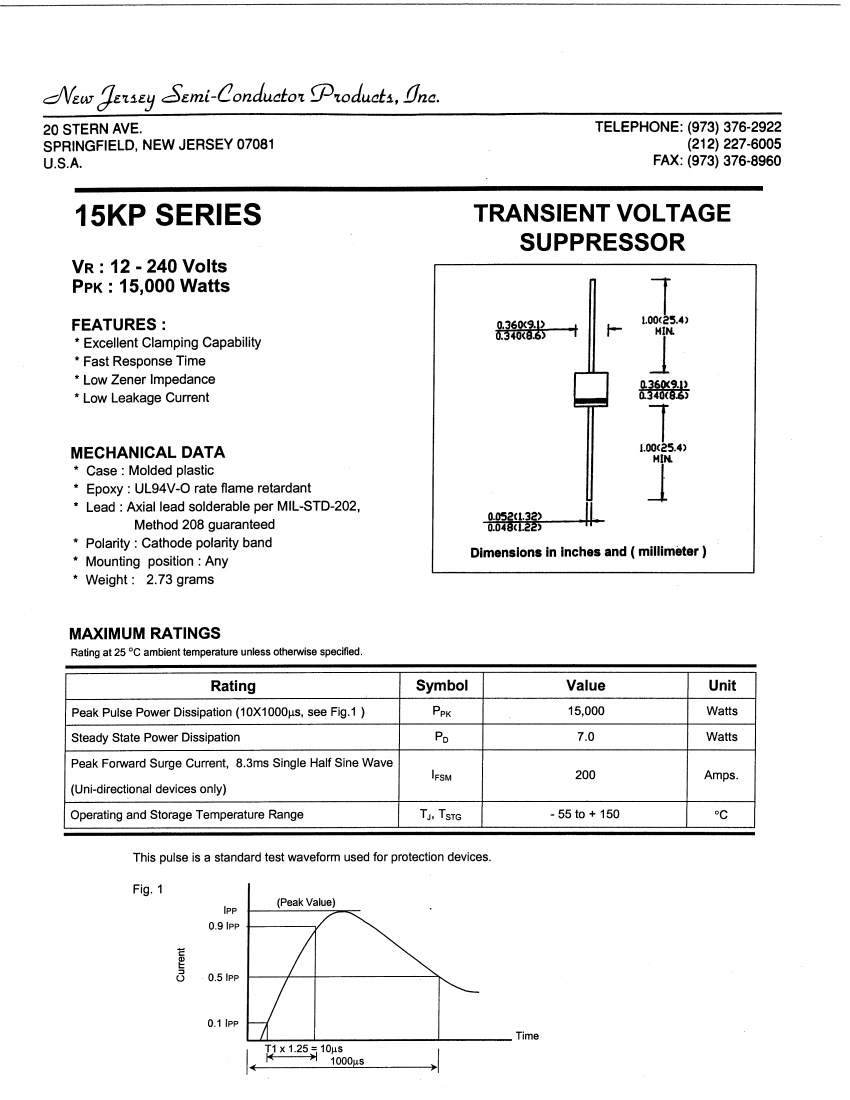

15KP12 Overview

15000 W, BIDIRECTIONAL, SILICON, TVS DIODE

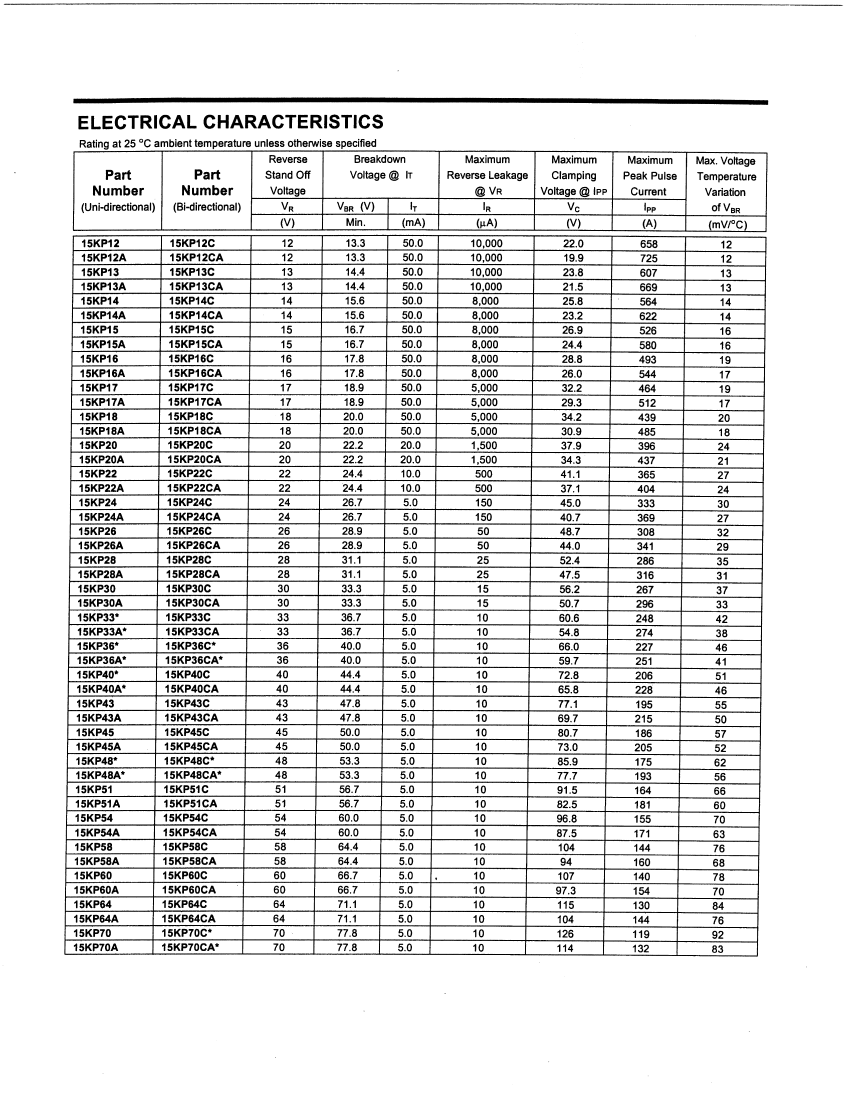

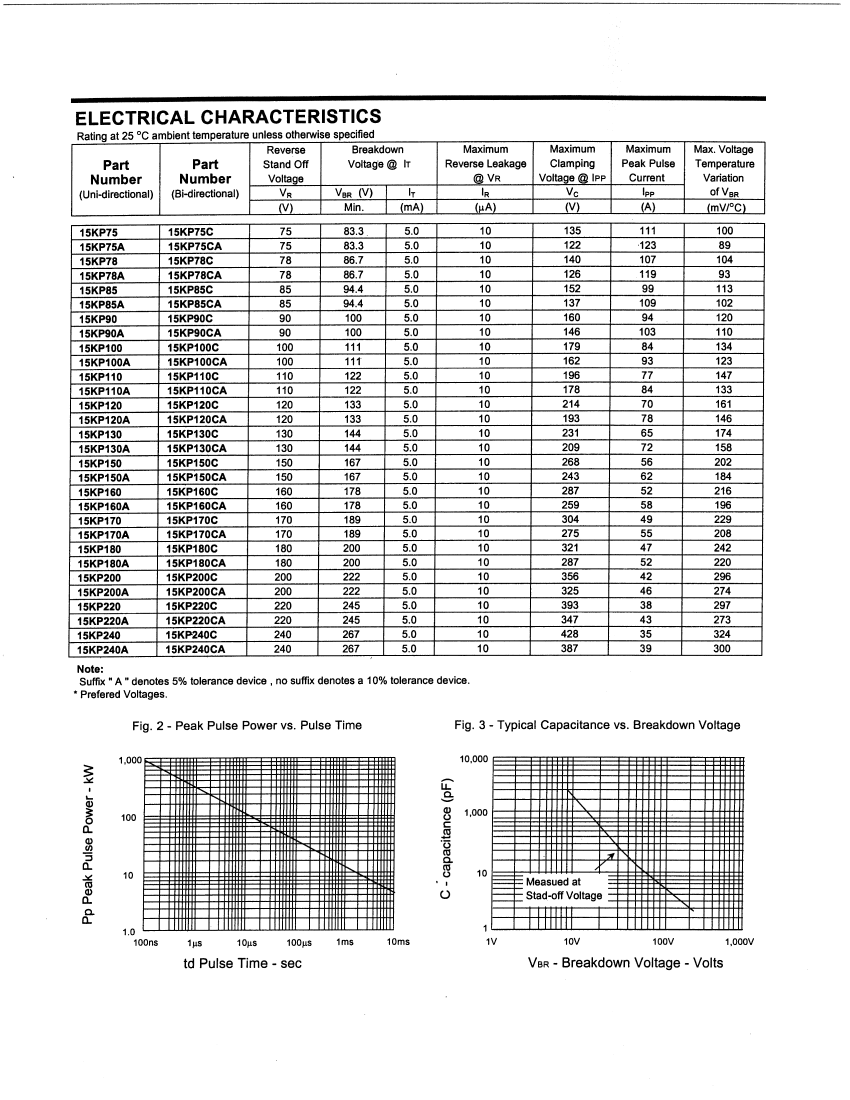

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	New Jersey Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	LOW ZENER IMPEDANCE, EXCELLENT CLAMPING CAPABILITY
Minimum breakdown voltage	13.3 V
Breakdown voltage nominal value	13.3 V
Shell connection	ISOLATED
Maximum clamping voltage	22 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	15000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	7 W
Maximum repetitive peak reverse voltage	12 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	15KP12	HFE22-C/24-D1T21-R	EA20QC06_2015	15KP43CA
Description	15000 W, BIDIRECTIONAL, SILICON, TVS DIODE	MINIATURE HIGH POWER LATCHING RELAY	SBD	15000 W, BIDIRECTIONAL, SILICON, TVS DIODE
