LR3360-F: DescriptionT-1 SINGLE COLOR LED, RED, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size109KB，10 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric Compare View All

LR3360-F Overview

T-1 SINGLE COLOR LED, RED, 3 mm

LR3360-F Parametric

Parameter Name	Attribute value
Objectid	1936664048
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.045 A
Maximum forward voltage	2 V
Lens type	DIFFUSED
Nominal luminous intensity	4.11 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	70 deg

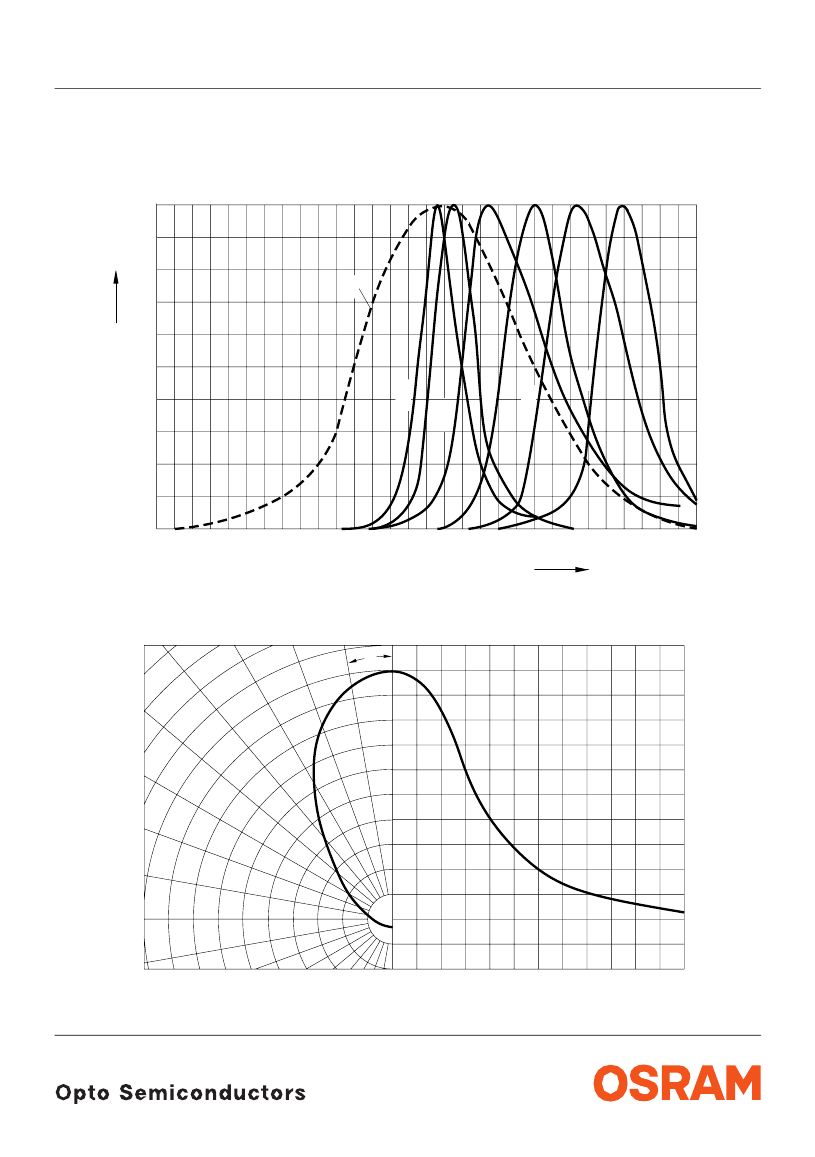

Preview

Download Datasheet

View All

3 mm (T1) LED, Diffused

LR 3360, LS 3360, LO 3360,

LY 3360, LG 3360, LP 3360

fBesondere Merkmale

•

Gehäusetyp:

eingefärbtes, diffuses 3 mm (T1)

Gehäuse

•

Besonderheit des Bauteils:

Lötspieße mit

Aufsetzebene

•

Wellenlänge:

645 nm (rot),

628 nm (super-rot), 606 nm (orange),

587 nm (gelb), 570 nm (grün),

560 nm (pure green)

•

Abstrahlwinkel:

70°

•

Technologie:

GaAlP (rot, super-rot, orange,

gelb, grün), GaP (pure green)

•

optischer Wirkungsgrad:

0,4 lm/W (rot),

1,5 lm/W (super-rot, orange, gelb),

2,5 lm/W (grün), 0,6 lm/W (pure green)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• optischer Indikator

• Hinterleuchtung (LCD, Handy, Schalter,

Tasten, Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Signal- und Symbolleuchten

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u.ä.)

Features

•

package:

colored, diffused 3 mm (T1) package

•

feature of the device:

solder leads with

stand-off

•

wavelength:

645 nm (red),

628 nm (super-red), 606 nm (orange),

587 nm (yellow), 570 nm (green),

560 nm (pure green)

•

viewing angle:

70°

•

technology:

GaAlP (red, super-red, orange,

yellow, green), GaP (pure green)

•

optical efficiency:

0.4 lm/W (red),

1.5 lm/W (super-red, orange, yellow), 2.5 lm/W

(green), 0.6 lm/W (pure green)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

Applications

• optical indicators

• backlighting (LCD, cellular phones, switches,

keys, displays, illuminated advertising, general

lighting)

• signal and symbol luminaire

• marker lights (e.g. steps, exit ways, etc.)

• interior automotive lighting (e.g. dashboard

backlighting, etc.)

2002-03-14

LR3360-F Related Products

	LR3360-F	LP3360-HL	LO3360-K	LG3360-HL	LY3360-HL	LO3360-JM	LR3360-DG	LR3360-FJ	LP3360-GK
Description	T-1 SINGLE COLOR LED, RED, 3 mm	T-1 SINGLE COLOR LED, PURE GREEN, 3 mm	T-1 SINGLE COLOR LED, ORANGE, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3mm	T-1 SINGLE COLOR LED, YELLOW, 3 mm	T-1 SINGLE COLOR LED, ORANGE, 3 mm	T-1 SINGLE COLOR LED, RED, 3 mm	T-1 SINGLE COLOR LED, RED, 3 mm	T-1 SINGLE COLOR LED, PURE GREEN, 3 mm
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	unknown	unknown	compliant
color	RED	PURE GREEN	ORANGE	GREEN	YELLOW	ORANGE	RED	RED	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.045 A	0.03 A	0.04 A	0.04 A	0.04 A	0.04 A	0.045 A	0.045 A	0.03 A
Lens type	DIFFUSED	DIFFUSED GREEN	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED GREEN
Nominal luminous intensity	4.11 mcd	10.4 mcd	9.15 mcd	10.4 mcd	10.4 mcd	16.25 mcd	1.625 mcd	4.11 mcd	6.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	660 nm	557 nm	610 nm	572 nm	586 nm	610 nm	660 nm	660 nm	557 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	70 deg	70 deg	70 deg	70 deg	70 deg	70 deg	70 deg	70 deg	70 deg
Is it lead-free?	-	Lead free	Lead free	-	Lead free	Lead free	-	-	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	-	-	conform to
Maker	-	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	-	Osram Opto Semiconductor	-	Osram Opto Semiconductor	Osram Opto Semiconductor
JESD-609 code	-	e3	e3	e3	e3	e3	-	-	e3
Terminal surface	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	-	Tin (Sn)
