LP9L-21122B32 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LP9L-21122B32

LP9L-21122B32: DescriptionSpecial Switch, SPST, Momentary, 0.05A, 28VDC, Solder Lug Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size1MB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

LP9L-21122B32 Overview

Special Switch, SPST, Momentary, 0.05A, 28VDC, Solder Lug Terminal, Panel Mount

LP9L-21122B32 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknow
Actuator color	BLACK
Actuator length	0.39 inch
Actuator material	THERMOPLASTIC
Actuator stroke	2.032 mm
Actuator type	PUSHBUTTON
Other features	2V GREEN LED
Body color	ORANGE
Casing diameter	0.469 inch
Nozzle length	0.278 inch
Casing type	15/32-32
Contact (AC) maximum rated R load	0.05A@115VAC
Maximum contact current (AC)	0.05 A
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@28VDC
contact time	SNAP ACTION
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1050VRMS V
Electrical life	500000 Cycle(s)
illumination	LED
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	LP9L
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Terminal surface	Gold (Au)
Terminal length	0.13 inch
Terminal material	SILVER
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

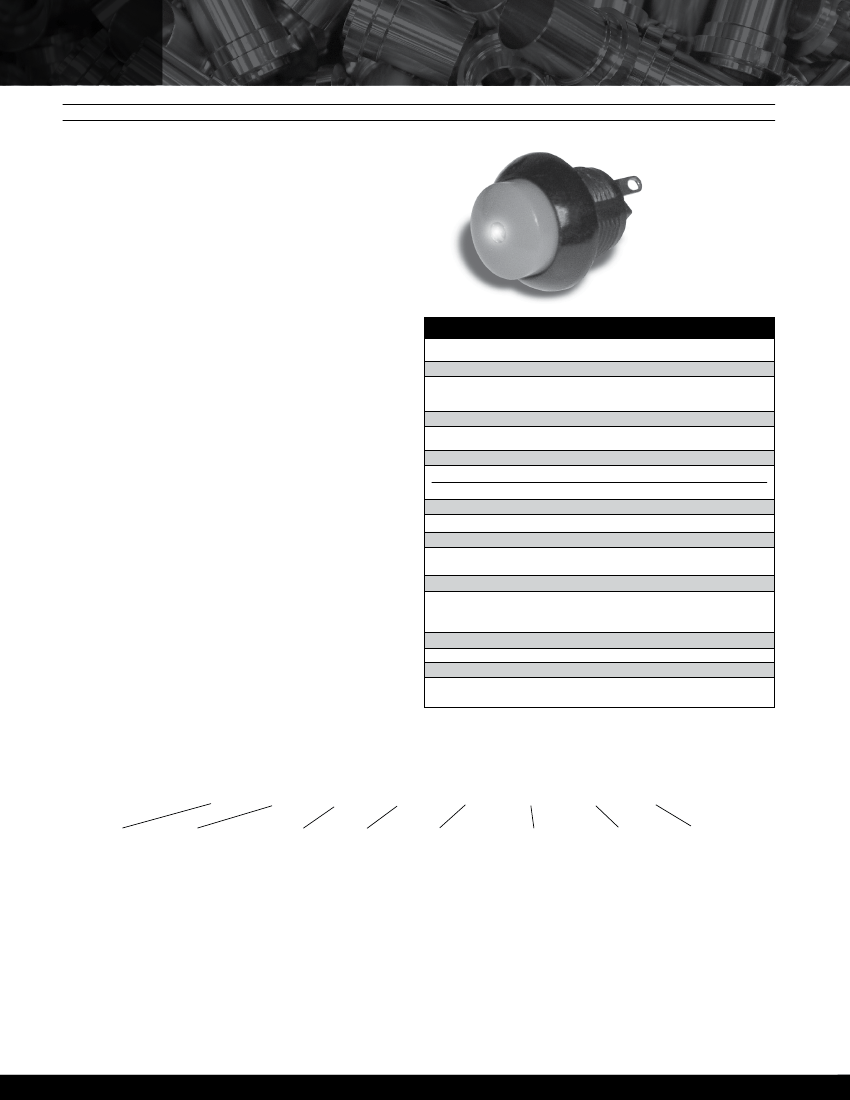

LP9L

ILLUMINATED

PUSHBUTTONS

ILLUMINATED SEALED DOME PUSHBUTTONS

LOW LEVEL MOMENTARY ACTION COMMERCIAL GRADE LED ILLUMINATED & WATERTIGHT SEALED

The OTTO LP9L Lighted Dome series is a quality precision switch

designed for use in panels, control grips, instruments and other

demanding applications where attractive, rugged, lighted low

level pushbutton switches are required.

The LP9L series offers a positive tactile feedback, signaling the

operator when the switch is operated with the added benefit

of reliable LED illumination. The LP9L series offers four button

versions; flush and raised profile with either a glossy or matte

finish. It also comes with a threaded case for hex nut mounting

while providing a short behind panel depth.

The LP9L series is constructed to meet IP68S watertight seal.

Expect 500,000 operations at 50mA resistive.

The LP9L series are momentary snap-action double break

switches, available in standard and low operate forces.

The LED is available in five colors and has the ability to

accommodate 2 or 12VDC.

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive:

DWV:

Electrical Life:

50mA

1050Vrms through switch contacts only

500,000 cycles

Sea Level @ 28VDC or 115VAC, 60/400Hz

Raised Dome

Also available with

Flush Dome

Features:

• Low level switch

• Watertight to IP68S

• LED lighted with the ability to accommodate

2 or 12VDC

• LED available in 6 colors

• Flush & raised button style

• Matte or glossy button finish

• Positive tactile feedback contact transfer

• Withstands extreme shock & vibration

• Short behind panel depth

• RoHS/WEEE/Reach compliant

LIGHTING:

Light Source Voltage (DC)

Mechanical Life:

Seal:

Operating Force:

Total Travel:

Overtravel:

500,000 cycles

IP68S

1.7 +/- 0.5 lb. (standard force)

12 +/- 4 oz (low force)

0.080 inches max

0.010 inches min

Actual Voltage Nominal (DC)

13.5

Voltage Max (DC)

2.6

14.5

Operating Temp Range:

-55°C to +85°C

MATERIALS:

Case:

Button:

Terminals:

Mounting Hardware:

Thermoplastic

Silver with gold plate

Hex nut and lockwasher for round/threaded style case only

Panel gasket for snap-in style case only

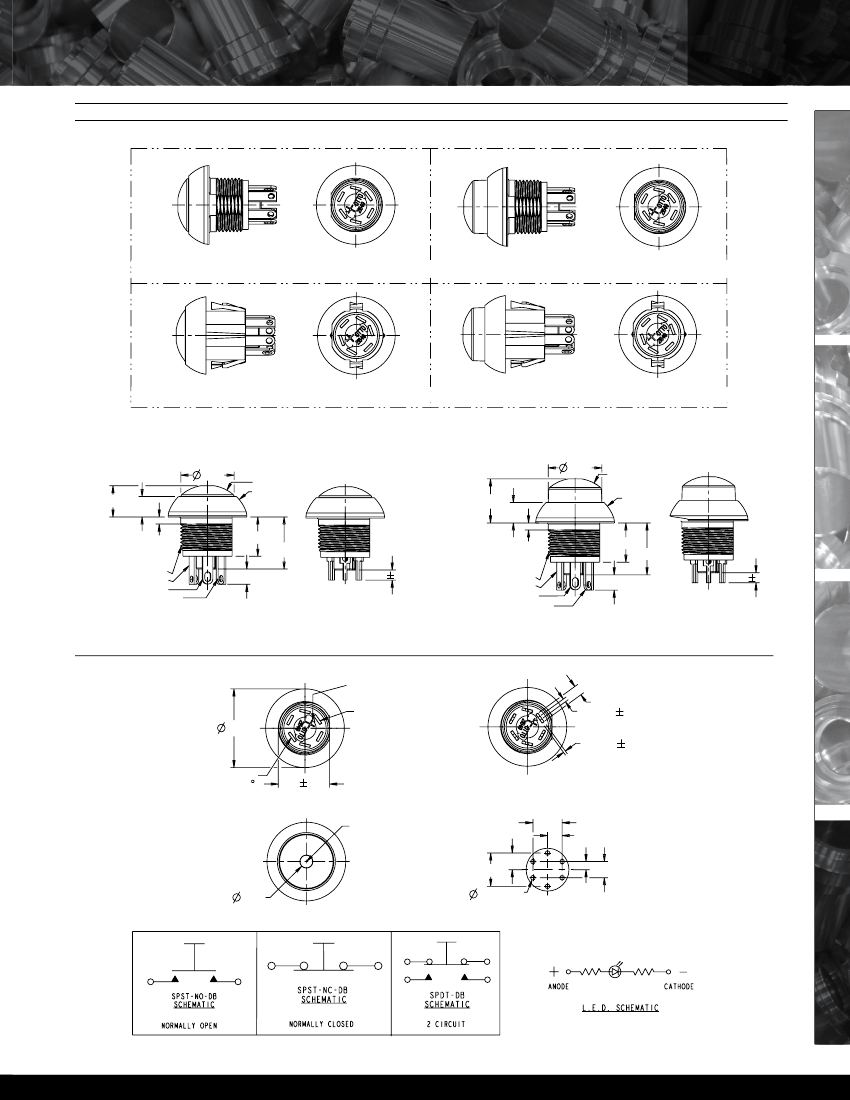

LP9L

Button Style*

Flush

Raised

Flush Matte

Raised Matte

–

Terminal Style

Solder

PC Pin

LP9L PART NUMBER CODE

Circuit Form

N.O.

N.C.

2 Circuit

Case Color

Red

Black

Orange**

Yellow**

Green**

Blue**

Violet**

Gray**

White

Button Color

Red

Black

Orange

Yellow

Green

Blue

Violet

Gray

White

Case Style*

Round/Threaded

Snap-In

Operating Force

Standard

Snap-Action

Low Force

Snap-Action

Light Source

2V Red LED

2V Green LED

2V Amber LED

2V Blue LED

2V White LED

12V Red LED

12V Green LED

12V Amber LED

12V Blue LED

12V White LED

2V Deep Green LED

12V Deep Green LED

* Button and case will be of the same texture.

For all mixed gloss/matte combination options, contact factory.

** For minimum requirement, contact factory.

110

OTTO Full Line Catalog

Specifications Subject To Change Without Notice
