EEEFK0J152GV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EEEFK0J152GV

EEEFK0J152GV: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 1500uF, Surface Mount, 4141, CHIP; CategoryPassive components capacitor; File Size103KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEEFK0J152GV Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 1500uF, Surface Mount, 4141, CHIP

EEEFK0J152GV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 4141
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
high	10.5 mm
leakage current	0.0945 mA
length	10.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	850 mA
size code	4141
surface mount	YES
Delta tangent	0.26
Terminal shape	FLAT
width	10.3 mm

Preview

Download Datasheet

View All

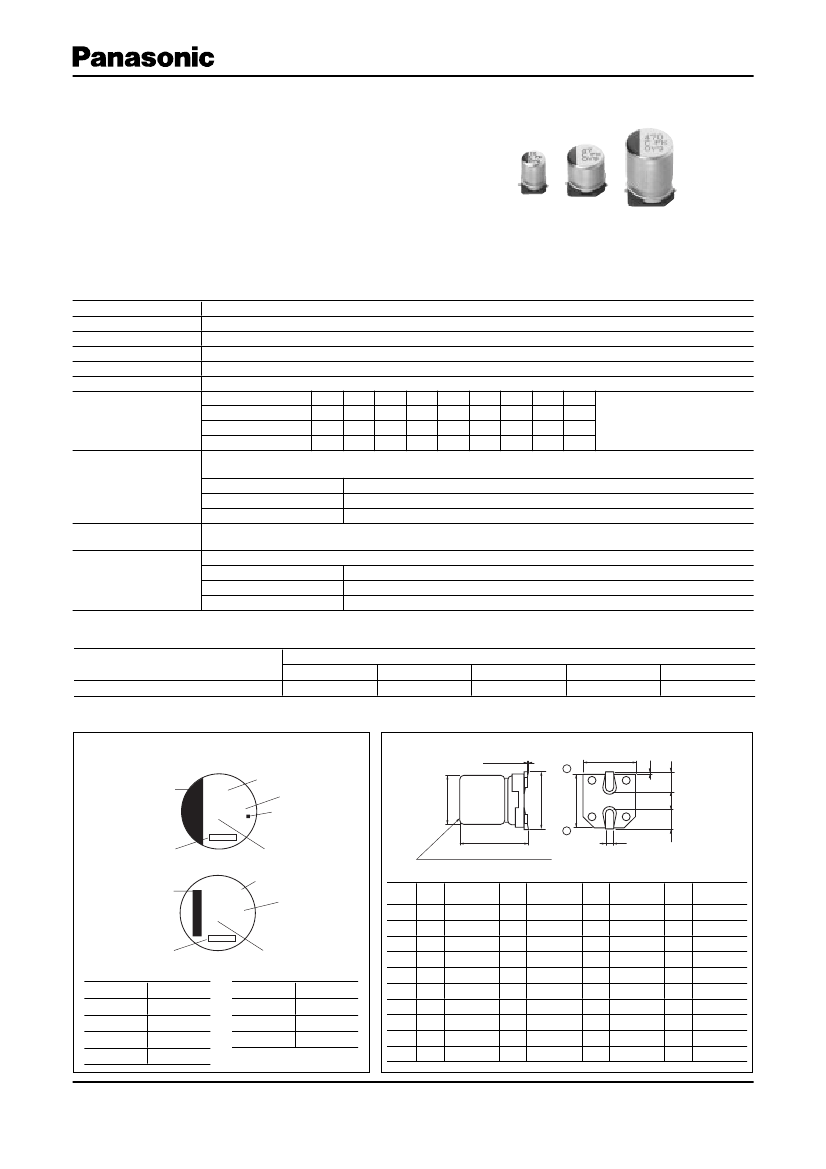

Aluminum Electrolytic Capacitors/ FK

Surface Mount Type

Series:

Type:

●

Endurance: 2000 h to 5000 h at 105 °C

●

Low impedance (40 % to 60 % less than FC series)

Miniaturized (30 % to 50 % less than FC series)

●

Vibration-proof product is available upon request. (φ8 mm and larger)

●

RoHS directive compliant

■

Features

■

Speciﬁcations

Category Temp. Range

Rated W.V.Range

Nominal Cap.Range

Capacitance Tolerance

DC Leakage Current

tan

Characteristics

at Low Temperature

–55 °C to +105 °C

6.3 V.DC to 100 V.DC

3.3 µF to 6800 µF

±20 % (120 Hz/+20 °C)

0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Please see the attached standard products list

80 100

W.V. (V)

6.3

Z(–25 °C)/Z(+20 °C) 2

(Impedance ratio at 120 Hz)

Z(–40 °C)/Z(+20 °C) 3

Z(–55 °C)/Z(+20 °C) 4

After applying rated working voltage for 2000 hours at +105 °C±2 °C and then being stabilized at +20 °C,

Capacitors shall meet the following limits. (

φ12.5

and sufﬁx “G” in

φ8

10.2,

φ10

10.2 are 5000 hours)

Capacitance change

±30 % of initial measured value (Sufﬁx “G” is 35 %)

tan

200 % of initial speciﬁed value (Sufﬁx “G” is 300 %)

DC leakage current

initial speciﬁed value

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance (With voltage treatment)

After reﬂow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.

Capacitance change

±10 % of initial measured value

tan

initial speciﬁed value

DC leakage current

initial speciﬁed value

Endurance

Shelf Life

Resistance to

Soldering Heat

■

Frequency correction factor for ripple current

50, 60

0.70

120

0.75

Frequency (Hz)

0.90

10 k

0.95

100 k to

1.00

(Unit : mm)

(I)

( ) Reference size

0.65±0.1

0.90±0.2

0.90±0.3

1.20±0.3

1.0

1.5

1.8

2.2

3.1

4.6

4.4

6.7

(P)

1.8

2.2

2.6

3.4

3.5

4.7

5.5

6.7

A±0.2

Correction factor

■

Marking

Example:6.3 V 22 µF, 6.3 V 3300 µF

Marking color : BLACK

φ10

Negative polarity

marking (–)

■

Dimensions in mm (not to scale)

0.3 max.

–

φD±0.5

Mark for Lead-Free

Products Black Dot

(Square)

Rated Voltage Mark

Series identification

B±0.2

Capacitance (µF)

j FK

Pressure Relief (φ10 and larger)

Lot number

φ12.5

Negative polarity

marking (–)

Capacitance (µF)

3300

j FK

Series identification

Size

code

4.0

5.0

6.3

8.0

10.0

12.5

16.0

18.0

5.8±0.3

7.7±0.3

6.2±0.3

10.2±0.3

13.5±0.5

16.5±0.5

A,B

4.3

5.3

6.6

8.3

10.3

13.5

17.0

19.0

5.5 max.

6.5 max.

7.8 max.

9.5 max.

10.0 max.

12.0 max.

15.0 max.

19.0 max.

21.0 max.

0.35

+- 1.5

0.2

0.35

+- 1.5

0.2

0.35

+- 1.5

0.2

0.35

+- 1.5

0.2

0.35

+- 1.5

0.2

0.70±0.2

0.70±0.3

Lot number

Rated Voltage Mark

6.3 V

10 V

16 V

25 V

35 V

50 V

63 V

80 V

100 V

H13

J16

K16

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

00 Nov. 2012

– EEE-41 –
