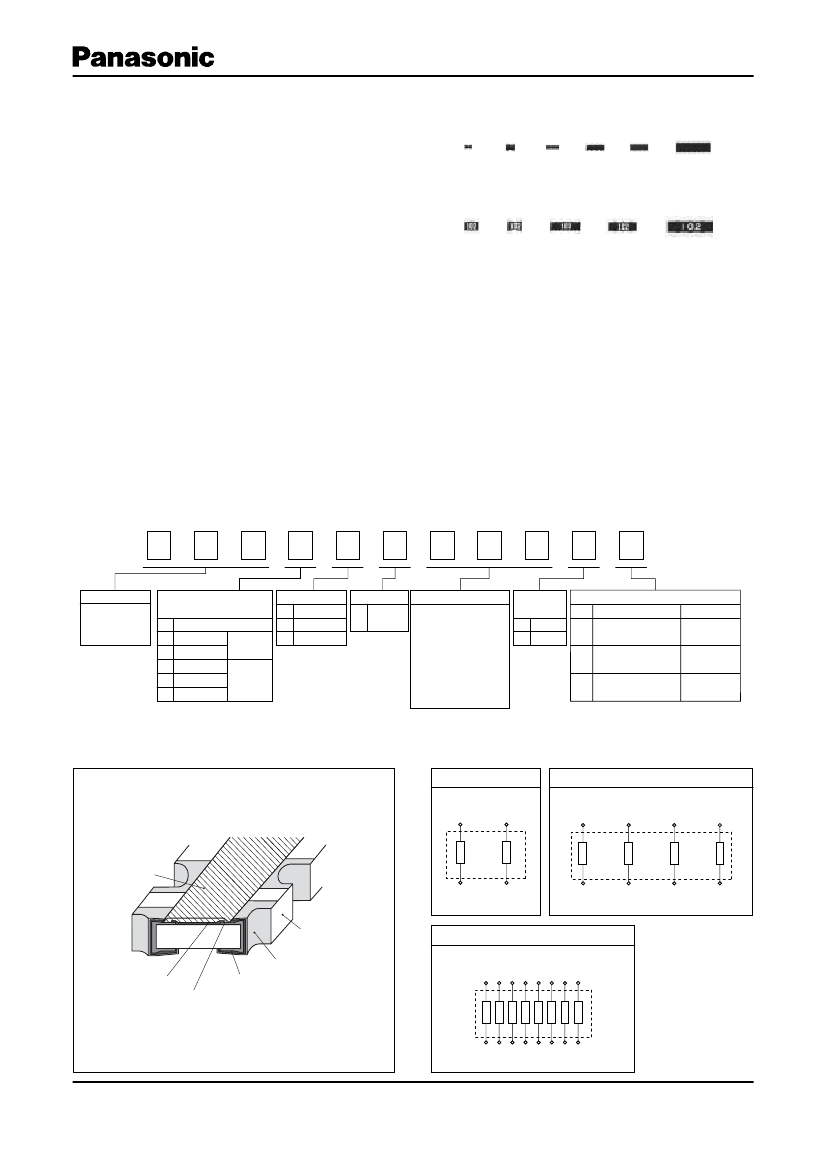

Placement efficiency of Chip Resistor Array is two, four or eight times of the flat type chip resistor
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
X
B
V
8
V
4
7
2
J
V
Product Code
Thick Film
Chip Resistor
Networks
1
2
3
N
V
S
Chip Resistor Array
Type: inches
0201 Array
0402 Array
0603 Array
0402 Array
0603 Array
0805 Array
Convex
Terminal
Concave
Terminal
No. of Terminal
4 4 Terminal
8 8 Terminal
H 16 Terminal
Schematics
Packaging Methods
Resistance Value
Resistance
Packaging
Type
Isolated The first two digits are Tolerance Code
V
type
significant figures of
J
±5
%
Embossed Carrier Taping
EXBS8V
Nil 4 mm pitch
resistance value and
0 Jumper
the third one denotes
Punched Carrier Taping EXB14V, 18V,
the number of zeros
X 2 mm pitch
24V, 28V, N8V
following. Jumper is
Punched Carrier Taping EXB2HV, 34V,
expressed by R00
V 4 mm pitch
38V, V4V, V8V
Example: 222: 2.2 k
■
Construction (Example : Concave Terminal)
■
Schematics
●
Isolated type
14V, 24V, 34V, V4V
2 resistors
4
3
8
18V, 28V, N8V, 38V, V8V, S8V
4 resistors
7
6
5
Protective coating
1
2
1
2
3
4
Alumina substrate
Electrode (Outer)
Electrode (Between)
2HV
8 resistors
16 15 14 13 12 11 10
9
Thick film
resistive element
Electrode (Inner)
1
2
3
4
5
6
7
8
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008
Chip Resistor Array
■

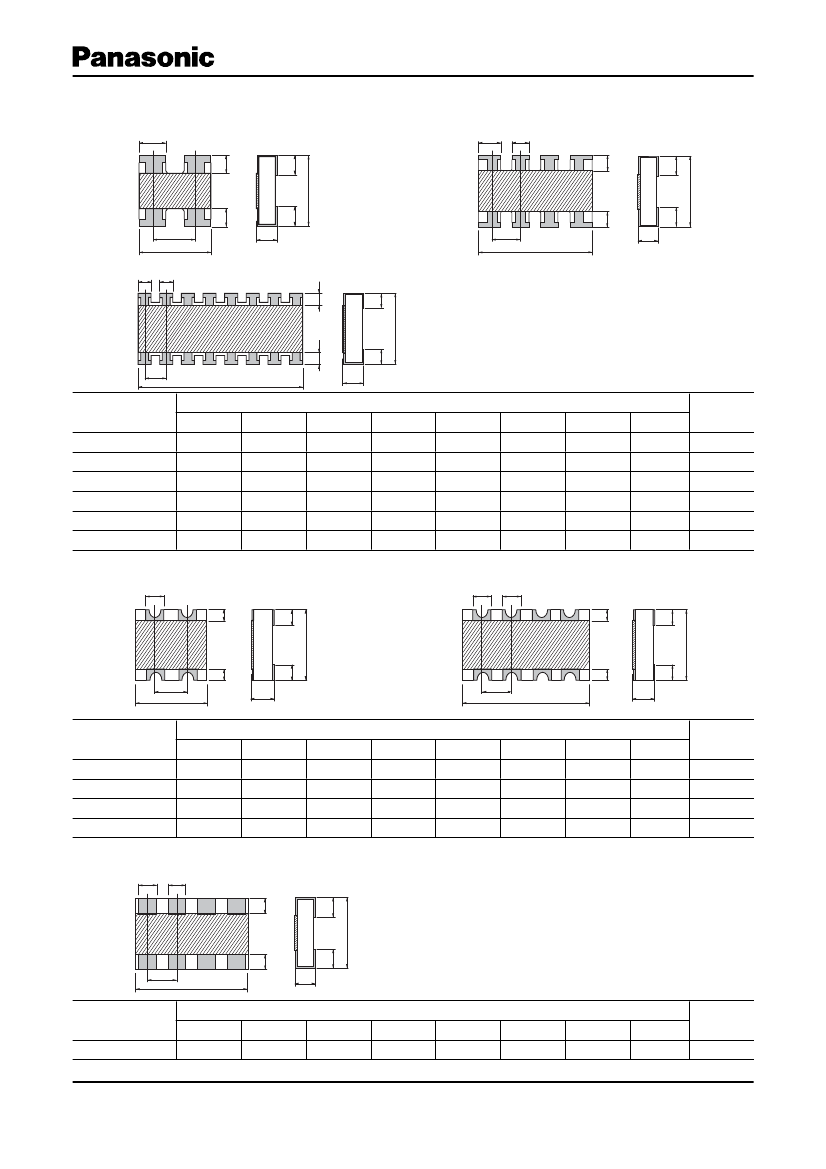

Dimensions in mm (not to scale)
(1) Convex Terminal type
A1
EXB14V, 24V, 34V
B
G
A1
A2
EXB28V, 38V
B
G
T
L
EXB2HV
B
G
G
W
P
B
T
G
W
B
G
W
P
L
A1 A2
T
P
L
Type
(inches)
EXB14V (0201 2)
EXB24V (0402 2)
EXB28V (0402 4)
EXB2HV (0402 8)
EXB34V (0603 2)
EXB38V (0603 4)
Dimensions (mm)
L
0.80
±0.10
1.00
±0.10
2.00
±0.10
3.80
±0.10
1.60
±0.20
3.20
±0.20
W
0.60
±0.10
1.00
±0.10
1.00
±0.10
1.60
±0.10
1.60
±0.15
1.60
±0.15
T
0.35
±0.10
0.35
±0.10
0.35
±0.10
0.45
±0.10
0.50
±0.10
0.50
±0.10
A1
0.35
±0.10
0.40
±0.10
0.45
±0.10
0.35
±0.10
0.65
±0.15
0.65
±0.15
A2
—
—
0.35
±0.10
0.35
±0.10
—
0.45
±0.15
B
0.15
±0.10
0.18
±0.10
0.20
±0.10
0.30
±0.10
0.30
±0.20
0.30
±0.20
P
(0.50)
(0.65)
(0.50)
(0.50)
(0.80)
(0.80)
G
0.15
±0.10
0.25
±0.10
0.25
±0.10
0.30
±0.10
0.30
±0.20
0.35
±0.20
B
Mass (Weight)
[g/1000 pcs.]
0.5
1.2
2.0
9.0
3.5
7.0
( ) Reference
(2) Concave Terminal type
A1
EXBV4V
B
G
A1
A2
EXBN8V, V8V, S8V
B
G
T
G
W
G
B
P
L
T
P
L
Type
(inches)
EXBN8V (0402 4)
EXBV4V (0603 2)
EXBV8V (0603 4)
EXBS8V (0805 4)
Dimensions (mm)
L
2.00
±0.10
1.60
+0.20
–0.10
3.20
+0.20
–0.10
5.08
+0.20
–0.10
B
W
W
1.00
±0.10
1.60
+0.20
–0.10
1.60
+0.20
–0.10
2.20
+0.20
–0.10
T
0.45
±0.10
0.60
±0.10
0.60
±0.10
0.70
±0.20
A1
0.30
±0.10
0.60
±0.10
0.60
±0.10
0.80
±0.15
A2
0.30
±0.10
—
0.60
±0.10
0.80
±0.15
B
0.20
±0.15
0.30
±0.15
0.30
±0.15
0.50
±0.15
P
(0.50)
(0.80)
(0.80)
(1.27)
G
0.30
±0.15
0.45
±0.15
0.45
±0.15
0.55
±0.15
Mass (Weight)
[g/1000 pcs.]
3.0
5.0
10
30
( ) Reference
(3) Flat Terminal type
A1
A2
EXB18V
G
T
G
W
P
L
B
B
Type
(inches)
EXB18V (0201 4)
Dimensions (mm)
L
1.40
±0.10
W
0.60
±0.10
T
0.35
±0.10
A1
0.20
±0.10
A2
0.20
±0.10
B
0.10
±0.10
P
(0.40)
G
0.20
±0.10
Mass (Weight)
[g/1000 pcs.]
1.0
( ) Reference
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Resistor Array
■
Ratings
Item
Resistance Range
Resistance Tolerance
14V,24V,V4V,34V
Specifications
10 to 1 M :E24 series
J: ±5 %
4 terminal
Item
14V,18V
(1)
Limiting Element Voltage
2HV
Max. Rated Continuous
24V,28V,N8V,38V,34V,V4V,V8V
Working Voltage
S8V
Specifications
12.5 V
25 V
50 V
100 V
25 V
50 V
200 V
±200 10
-6
/°C(ppm/°C)
(
)
Number of Terminals
18V,28V,N8V,38V,V8V,S8V
8 terminal
2HV
14V,24V,V4V,34V
16 terminal
2 terminal
T.C.R.
Max. Over-load Voltage
(2)
14V,18V
2HV
S8V
24V,28V,N8V,38V,34V,V4V,V8V
100 V
Number of Resistors
18V,28V,N8V,38V,V8V,S8V
4 terminal
2HV
14V,28V,N8V
18V
Power Rating at 70 °C
24V,V4V,34V,V8V,38V
S8V
2HV
8 terminal
0.031 W/element
0.031 W/element
(0.1 W/package)
0.063 W/element
0.1 W/element
0.063 W/element
(0.25 W/package)
Category Temperature Range
(Operating Temperature Range)
14V,18V
Jumper Array
S8V
14V,18V
S8V
–55 °C to 125 °C
0.5 A
2A
1A
4A
Rated Current
2HV,24V,28V,N8V,38V,34V,V4V,V8V
1 A
Max, Overload Current
2HV,24V,28V,N8V,38V,34V,V4V,V8V
2 A
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV= Power Rating Resistance Value, or Limiting Element Voltage (max.
RCWV) listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5 Power Rating or max. Overload (Voltage) listed above whichever less.
100
Rated Load (%)
–55
°C
70
°C
Power Derating Curve
For resistors operated in ambient temperature above
70 °C, power rating shall be derated in accordance
with the figure on the right.
80
60
40
20
0
–60 –40 –20 0
125
°C
20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
■
Packaging Methods (Taping)
●
Standard Quantity
Type
EXB14V, 18V
EXB24V, 28V
EXBN8V
EXB2HV
EXB34V, 38V
EXBV4V, V8V
EXBS8V
Embossed Carrier Taping
Punched Carrier Taping
4 mm
5000 pcs./reel
2500 pcs./reel
2 mm
10000 pcs./reel
Kind of Taping
Pitch (P
1
)
Quantity
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Resistor Array
●

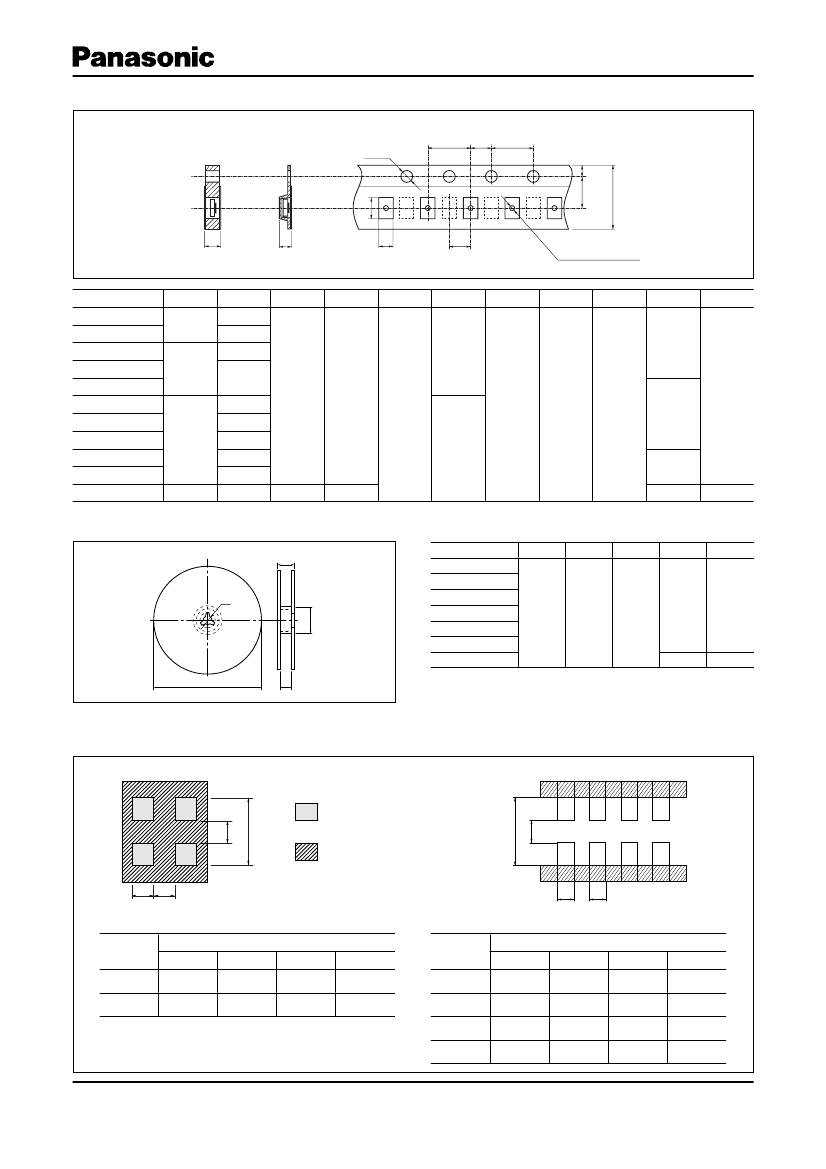

Carrier Tape
Punched Carrier
Embossed Carrier
φD
0
P
1
P
2
P
0
E
Unit (mm)
F
B
T
T
A
P
1
(2 mm pitch)
φD
1
(Only Emboss)
W
Type
EXB14V
EXB18V
EXB24V
EXB28V
EXBN8V
EXB2HV
EXB34V
EXB38V
EXBV4V
EXBV8V
EXBS8V
A
0.70
+0.10
–0.05
B
0.95
+0.05
–0.10
W
F
E
P
1
P
2
P
0
φD
0
T
φD
1
1.60
±0.10
1.20
±0.10
2.00
±0.10
0.52
±0.05
1.20
±0.10
2.20
±0.10
4.10
±0.15
8.00
±0.20
3.50
±0.05
1.75
±0.10
2.00
±0.05
4.00
±0.10
1.50
+0.10
–0
_
0.70
±0.05
1.95
±0.20
1.95
±0.15
3.60
±0.20
1.95
±0.20
3.60
±0.20
2.80
±0.20
5.70
±0.20
12.00
±0.30
5.50
±0.20
4.00
±0.10
0.84
±0.05
1.60 max. 1.50
+0.10
–0
Unit (mm)
T
●
Taping Reel
Type
EXB14V,18V
EXB24V,28V
EXBN8V
EXB2HV
EXB34V,38V
EXBV4V,V8V
EXBS8V
φA
φB
φC
W
T
φC
φB
180.0
+0
60 min. 13.0
±1.0
–3.0
9.0
±1.0
11.4
±1.0
13.0
±1.0
15.4
±2.0
φA
W
■
Land pattern design
Recommended land pattern design for Network chip is shown below.
Conductor
f
Solder Resist
a
d
a
b
c
b
c
(Not to scale)
Type
14V
24V
Dimensions
a
0.30
0.5
b
0.30
0.35 to 0.40
c
0.30
0.30
Unit (mm)
d
0.80 to 0.90
1.4 to 1.5
Type
18V
V4V,V8V
34V,38V
S8V
Dimensions
a
b
c
(Not to scale)
Unit (mm)
f
0.20 to 0.30 0.15 to 0.20 0.15 to 0.20 0.80 to 0.90
0.7 to 0.9
0.7 to 0.9
1 to 1.2
0.4 to 0.45 0.4 to 0.45
0.4 to 0.5
0.4 to 0.5
2 to 2.4
2.2 to 2.6
3.2 to 3.8
0.5 to 0.75 0.5 to 0.75
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jun. 2008
Chip Resistor Array
f
a
f
a
b
d c d c d
b
b
d c d c d c d c d c d c d
b
Type
28V
N8V
(Not to scale)
Dimensions
Unit (mm)
a
b
c
d
f
0.40
0.525
0.25
0.25
1.40
0.45 to 0.50 0.35 to 0.38
0.25
0.25
1.40 to 2.00
Type
2HV
a
1.00
(Not to scale)
Dimensions
Unit (mm)
b
c
d
f
0.425
0.25
0.25
2.00
■
Recommended Soldering Conditions
Recommendations and precautions are described below.
●
Recommended soldering conditions for reflow
· Reflow soldering shall be performed a maximum of
two times.
· Please contact us for additional information when
used in conditions other than those specified.
· Please measure the temperature of the terminals
and study every kind of solder and printed circuit
board for solderability before actual use.
Peak
Temperature
Preheating
Heating
For soldering (Example : Sn/Pb)
Preheating
Main heating
Peak
Temperature
140 °C to 160 °C
Above 200 °C
235 ± 5 °C
Time
60 s to 120 s
30 s to 40 s
max. 10 s
For lead-free soldering (Example : Sn/Ag/Cu)
Temperature
Time
Preheating
150 °C to 180 °C
60 s to 120 s
Main heating
Above 230 °C
30 s to 40 s
Peak
max. 260 °C
max. 10 s
Time
●
Flow soldering
· We do not recommend flow soldering, because a solder bridge may form.
Safety Precautions
The following are precautions for individual products. Please also refer to the precautions common to Fixed Resistors
shown on page ER3 of this catalog.
1. Take measures against mechanical stress during and after mounting of Chip Resistor Array (hereafter called the
resistors) so as not to damage their electrodes and protective coatings.
Be careful not to misplace the resistors on the land patterns. Otherwise, solder bridging may occur.
2. If a transient load (heavy load in a short time) like a pulse is expected to be applied, check and evaluate the operations
of the resistors when installed in your products before use.
Never exceed the rated power. Otherwise, the performance and/or reliability of the resistors may be impaired.
3. Do not use halogen-based or other high-activity flux. Otherwise, the residue may impair the resistors' performance
and/or reliability.
4. When soldering with a soldering iron, never touch the resistors' bodies with the tip of the soldering iron. When using a
soldering iron with a high temperature tip, finish soldering as quickly as possible (within three seconds at 350 °C max.).
5. As the amount of applied solder becomes larger, the mechanical stress applied to the resistors increases, causing
problems such as cracks and faulty characteristics. Avoid applying an excessive amounts of solder.
6. Do not apply shock to the resistors or pinch them with a hard tool (e.g. pliers and tweezers). Otherwise, the resistors'
protective coatings and bodies may be chipped, affecting their performance.
7. Avoid excessive bending of printed circuit boards in order to protect the resistors from abnormal stress.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
The serial port debugging software on the computer needs to send the protocol to stm32 twice in a row! This problem has troubled me for a long time. I wonder if anyone has encountered it and can give ...
We know that the triode can control the current of the collector by controlling the current of the base to achieve the purpose of amplification. The amplifier circuit uses this characteristic of the t...
只要一用那个函数就报错
./lnk_msp430g2553.cmd", line 56: error #10099-D: program will not fit intoavailable memory.run placement with alignment fails for section ".bss"size 0x302 .Available memory ranges:RAMsize:...
[align=left] [/align][align=left]Since I got the SensorTag sensor component, I submitted my own solution: Bluetooth Life Wizard. [/align][align=left]At the beginning, the progress was very smooth. I l...
With the rapid development of science and technology, especially the widespread application of digital technology and various ultra-large-scale integrated circuits, electronic equipment, especially...[Details]
introduction
For the voltage regulator modules (VRMs) that power the latest computer central processing units (CPUs), power supply designers have historically used multiphase interleaved b...[Details]
We know that microcontroller development tools generally include real-time online emulators and programmers. Among them, online emulators are very good tools, but they are also more expensive...[Details]
In the previous series, we have listed some basic knowledge of C language in Tables 1 to 3. We hope that beginners can strengthen their memory of the above tables and gradually learn to use them wh...[Details]
On the afternoon of July 10, Beijing time, Taiwan's largest chip designer MediaTek expects its smartphone chip shipments to grow by double digits in the third quarter of this year, and the company is ...[Details]
1 Introduction
In recent years, there have been many major advances in the production technology and processes of automotive headlights, which have greatly improved the performance of automoti...[Details]
Experimental tasks
A DS18B20 is used to form a temperature measurement system. The temperature measurement accuracy reaches 0.1 degrees. The temperature range is between -20 degrees and +50 de...[Details]
Different initialization between C8051F and 80C51 series microcontrollers
In the past 30 years, major electronic component manufacturers in the world have launched their own unique single-chip...[Details]
introduction
MAX6636 is a multi-channel precision temperature monitor that can not only monitor local temperature, but also connect up to 6 diodes externally. Each channel has a programmable...[Details]
Investment in
the
medical device
industry has been on the rise in recent years. In the past two years, venture capital for medical devices has almost doubled, reaching $4 billion in 2007. Fr...[Details]
With concerns about the growing energy crisis, motor efficiency has become an important and timely topic. This is because motors use 63% to 70% of the electricity produced in the United States and ...[Details]
In 2012, more than half of the cars in the European, Japanese and American car markets will be equipped with color displays, navigation systems, satellite communications and other in-vehicle infota...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guangzho...[Details]
Recently, news came from the certification department that the photovoltaic grid-connected inverter of Samil New Energy Co., Ltd. (hereinafter referred to as "Samil New Energy") has once again obta...[Details]
Almost everyone in a student dormitory has a bedside lamp. But if you want to read for a while after turning off the lights and don't want to disturb your roommates' sleep, you may need a reading l...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
