LM239F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM239F

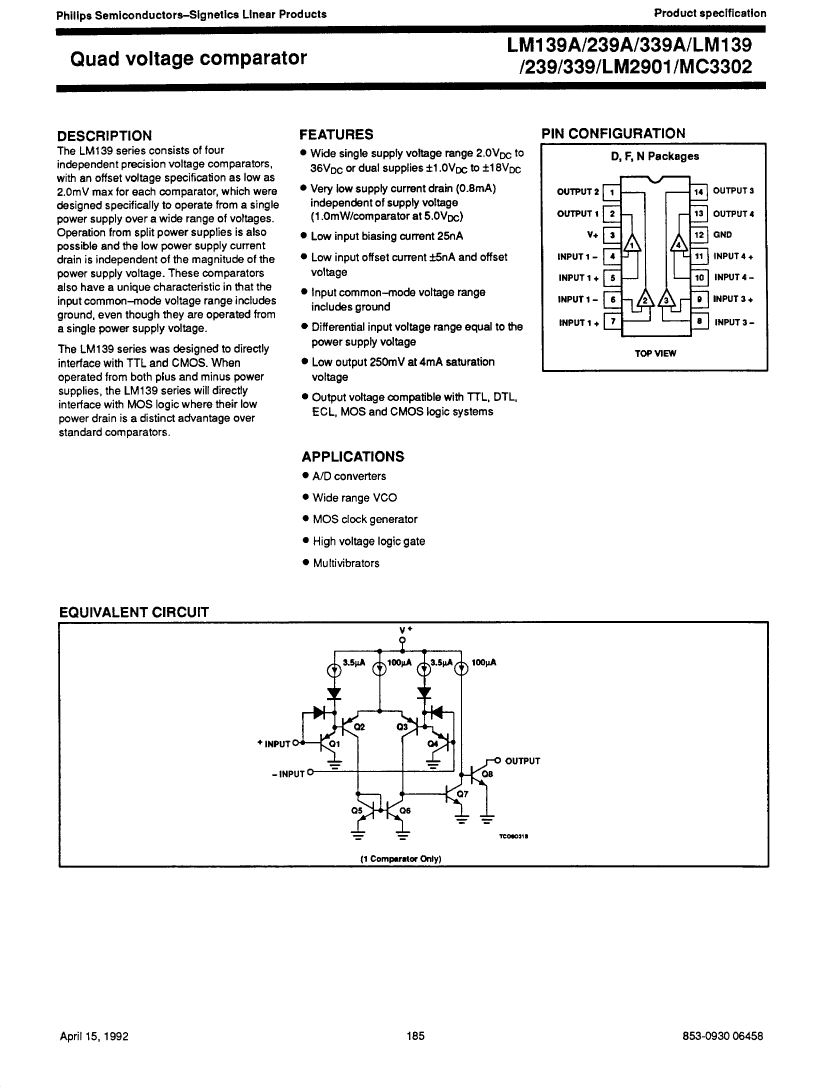

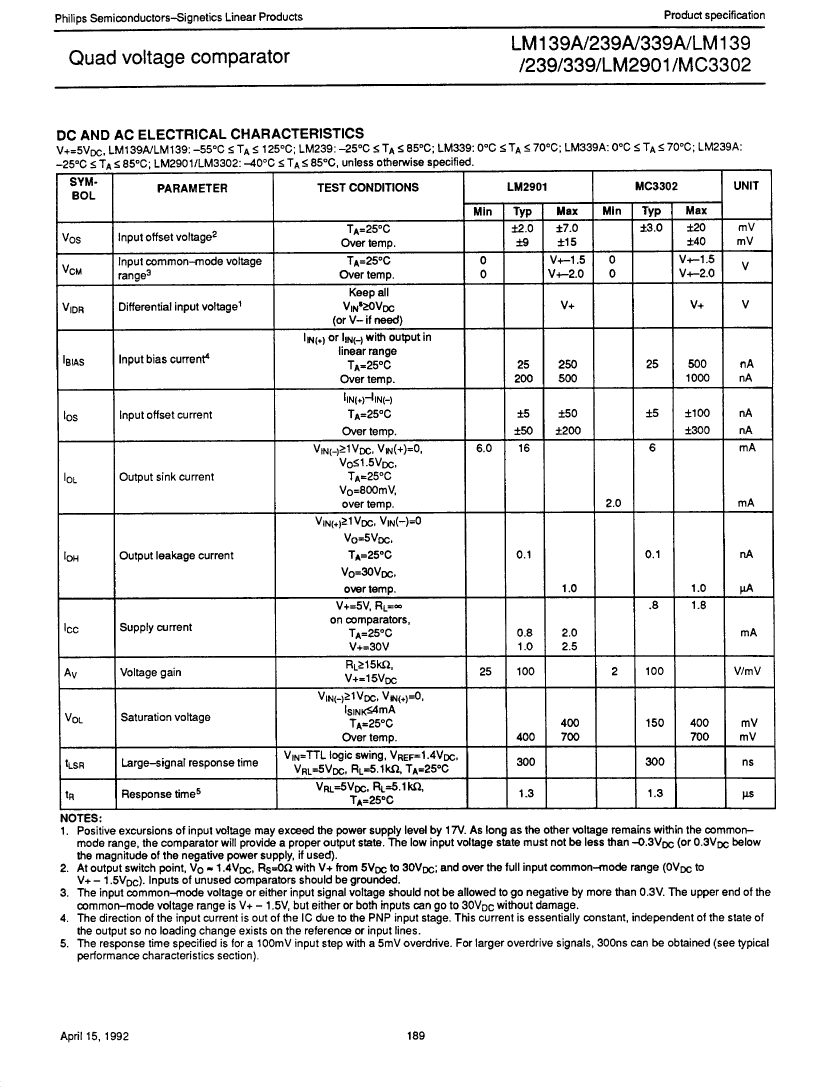

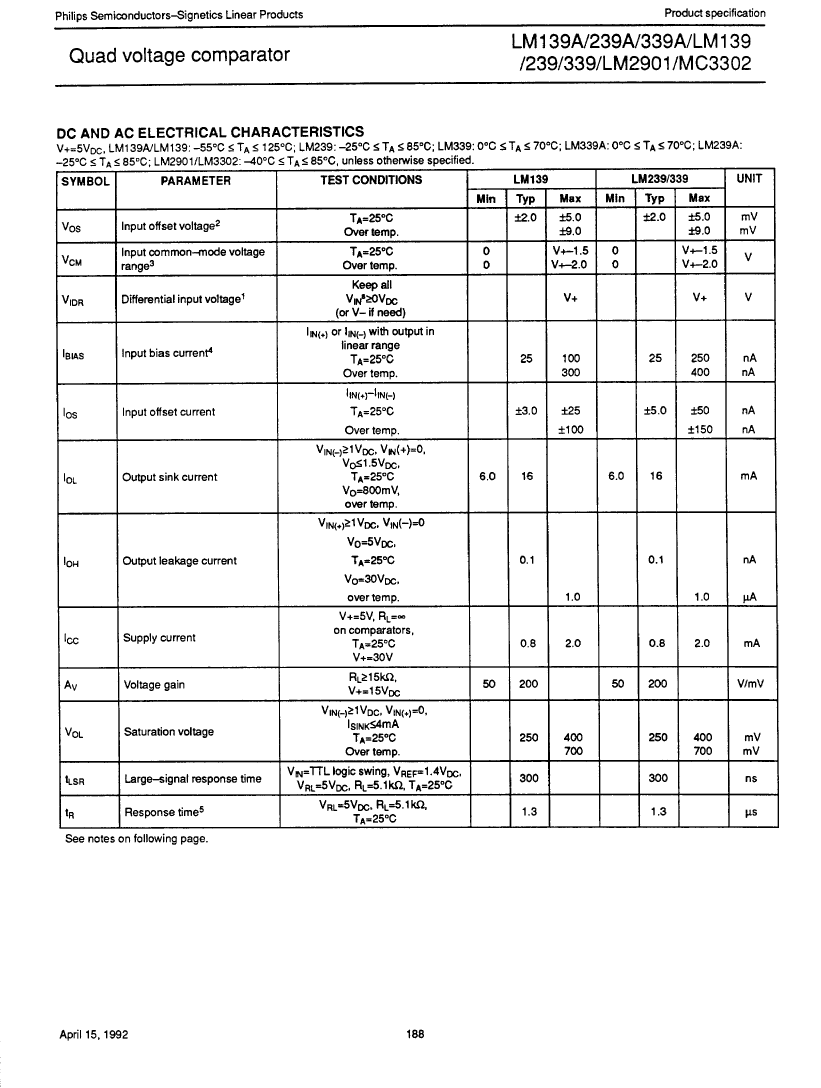

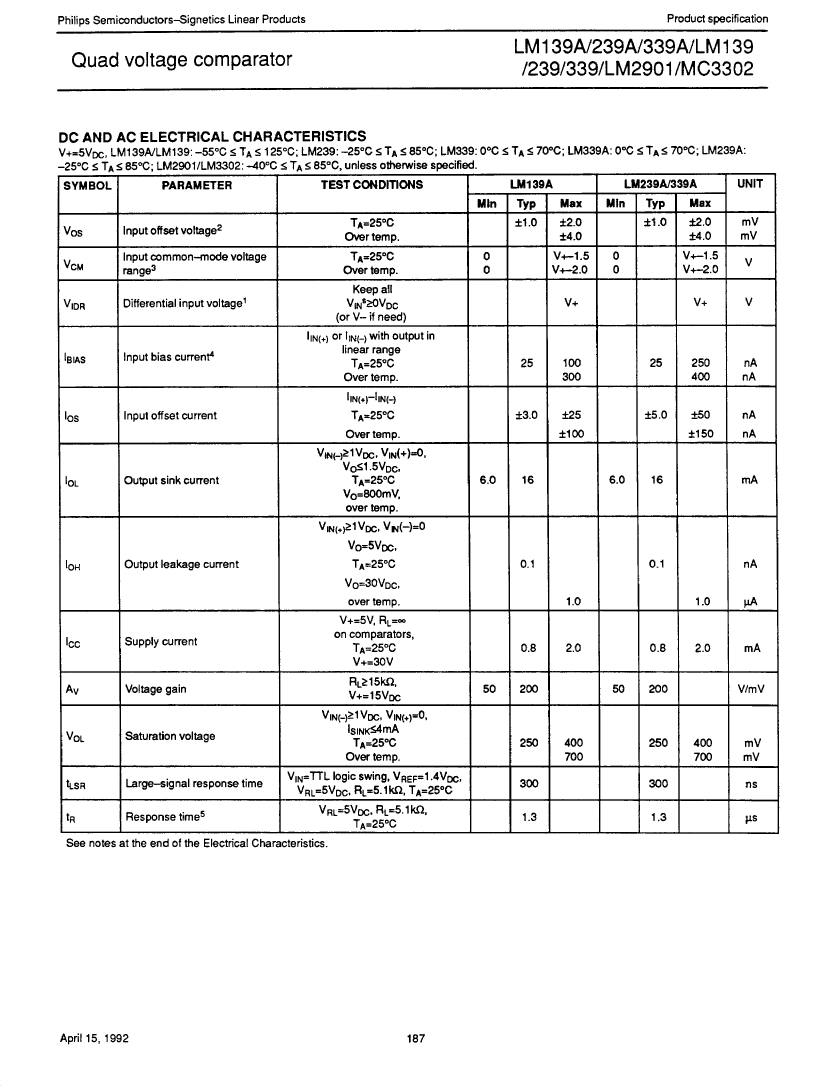

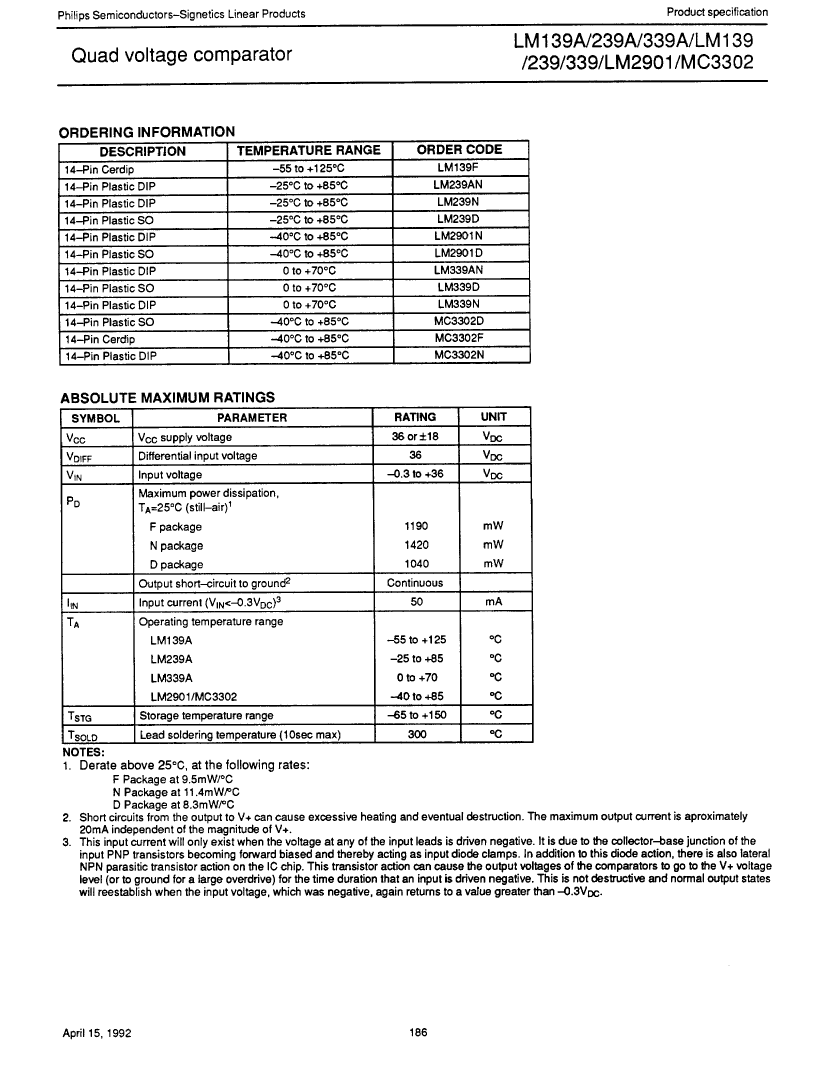

LM239F: DescriptionComparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size518KB，7 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

LM239F Overview

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,

LM239F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
Amplifier type	COMPARATOR
Maximum bias current (IIB) at 25C	0.25 µA
Maximum input offset voltage	9000 µV
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum slew rate	2 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

LM239F Related Products

	LM239F	LM239AN-B	MC3302N-B	MC3302D-T	LM339F	LM139AF-B
Description	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,	Comparator, 4 Func, 4000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP14,	Comparator, 4 Func, BIPolar, PDIP14,	Comparator, 4 Func, BIPolar, PDSO14,	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,	Comparator, 4 Func, 4000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	70 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-40 °C	-40 °C	-	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum input offset voltage	9000 µV	4000 µV	-	-	9000 µV	4000 µV
Nominal response time	1300 ns	1300 ns	-	-	1300 ns	1300 ns
Maximum slew rate	2 mA	2 mA	-	-	2 mA	2 mA
